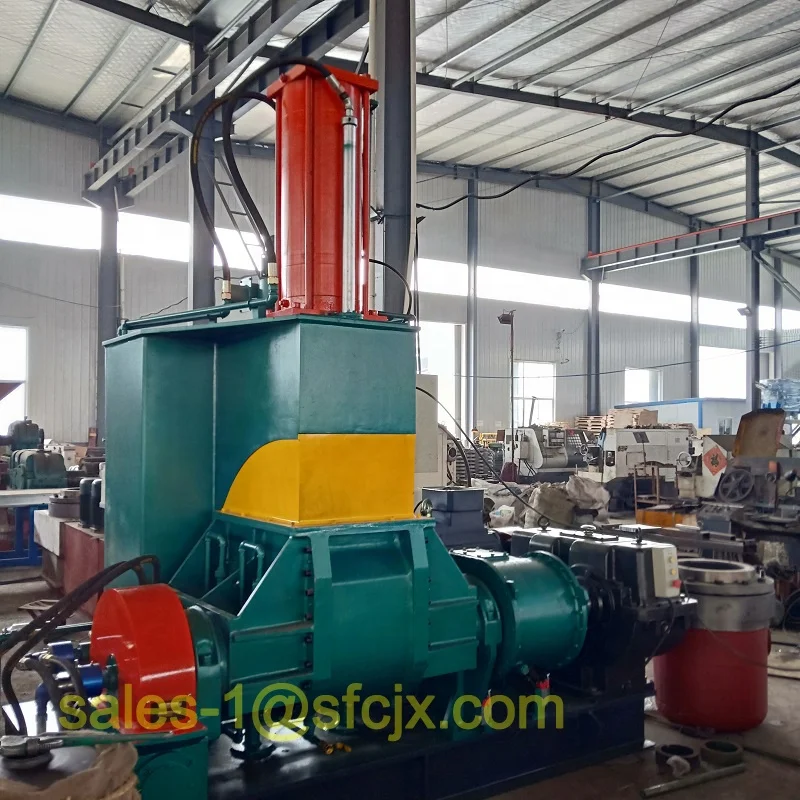

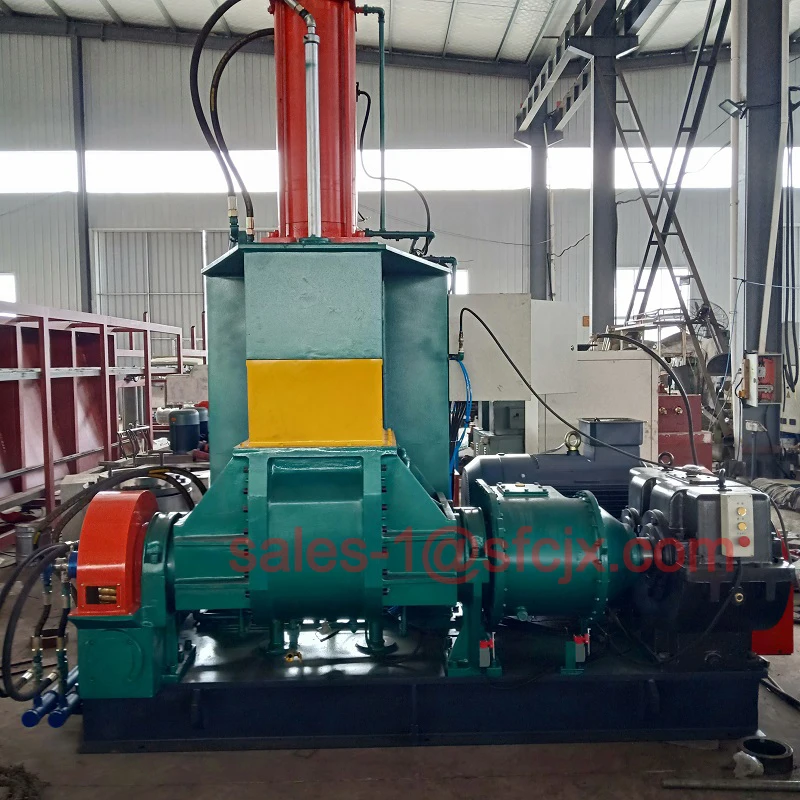

2020 Dependable Quality Kneading Machine with SFC Brand
Introduction of Our Mixer

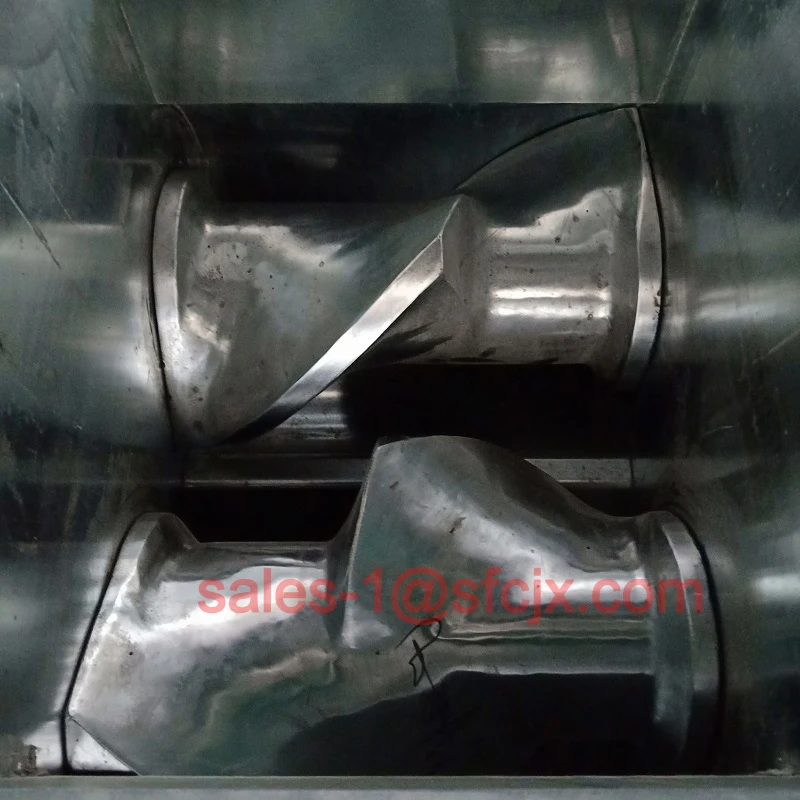

Dispersion Mixer has become the most commonly used type of mixer in the rubber and plastics industries. The tilt mixer with its uniquely designed rotors, rotor blades, mixing chamber and pressure lid allows for thorough material flow and controlled shear mixing within the mixing chamber. This intensive mixing achieves a uniform compound mixture with exceptional dispersion of materials.
This Rubber Kneader is mainly used for plasticizing and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials.
Features of Our mixer:
Unitized Design: The compactly unitized Dispersion Mixer combines all the tilt mixer components on a common bed. This structure simplifies installation and can be easily re-located.
Easy Cleaning: One of the most important features and advantages of the Dispersion Mixer is its easy cleaning and color change capability. The tilting action of the mixer chamber makes this possible and gives full access to all material contact surfaces for easy and complete cleaning.
Dust Stops Seals: A special high temperature oil-less dry mechanical seal is used between the mixing rotor and chamber. This seal minimizes wear and material leakage as well as eliminating compound contamination with lubricating oils. The simplified seal design allows for quick and easy seal changes.
Mixing Contact Surfaces: The Kneader Dispersion Mixers are available with a variety of surface treatments for the toughest compounds. From mixing silicones to ferrous compounds, treatments include hard chrome, stainless steel and specialty carbide finishes.
Item | Unit | X(S)N-35x30 | X(S)N-55x30 | X(S)N-75x30 | X(S)N-110x30 | X(S)N-150x30 | X(S)N-200x30 |
Total Volume of Mixing Chamber | (L) | 75 | 125 | 170 | 250 | 325 | 440 |
Working Volume of Mixing Chamber | (L) | 35 | 55 | 75 | 110 | 150 | 200 |
Driving Motor Power | (KW) | 55 | 75 | 110 | 185 | 220 | 280 |
Titling Motor Power | (KW) | 2.2 | 2.2 | 4 | 5.5 | 11 | 11 |
Rotational Speed of The Rotor (front/rear) | (r/min) | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
Pressure of Compressed Air | (m³/min) | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥2.0 | ≥4.0 |
Pressure of Cooling Water (mixing rubber) | (MPa) | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 |
Pressure of Heating Steam (plastic mixing | (MPa) | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
Dimensions (L x W x H) | (mm) | 3200x1900x2950 | 3230x1927x2958 | 3325x2615x3150 | 4075x2712x3580 | 4250x2750x4106 | 4250x3400x4215 |
Gross Weight | (t) | ~6.3 | ~7.1 | ~9.5 | ~14.9 | ~19.5 | ~22.5 |
1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.
