Мотор EC MIA-AHE15NB/C для 150m 3/ч Миа высокопроизводительная машина рекуператор HRV/ERV на потолке с рекуперацией тепла

* Energy saving EC motor, 3 speeds control High efficiency enthalpy heat recovery

* comfortable indoor climate

* Early Effect+Activated Carbon washable filter, efficiency over 96%

* Auto bypass, electric heater and auto defrosting for your optional

* Intelligent control system, optional CO2 and humidity control function

Working Principle in Summer

In summer operation, the heat recovery calculation formula: fresh air ventilator supply indoor air temperature = outdoor temperature - (outdoor temperature - indoor temperature) * heat exchange efficiency

Working Principle in Winter

In winter operation, the heat recovery calculation formula: fresh air ventilator supply indoor air temperature = (indoor temperature - outdoor temperature) * heat exchange efficiency + outdoor temperature

Cross Counterflow Heat Exchanger

The high thermal conductivity of molecular material, developed by Japanese DR team, efficiency ou to 90%. It can infiltrate water molecules in the process of heat exchange. With the washable material, it also can avoid the problem of bacteria and molds production.

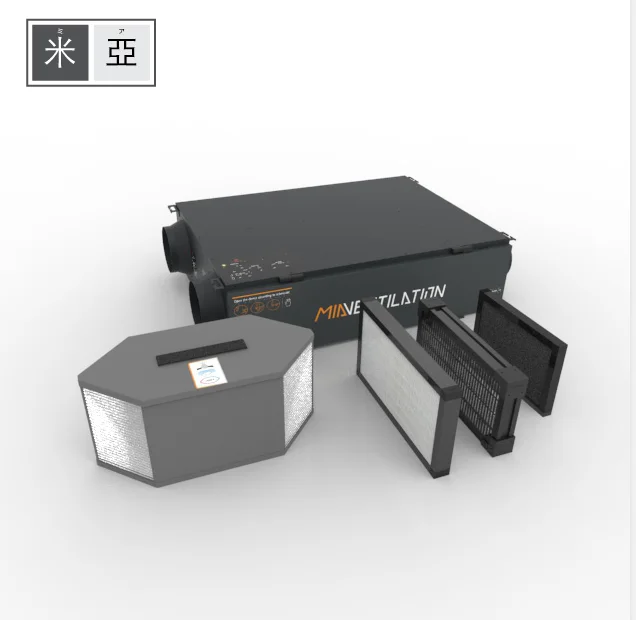

MIA Air Purification System

The sealing property is far more than the paper border with using the plastic margin. The filter with composite fiber, sprayed with activated carbon powder, can filter dust particle effiently and the wind resistance is very small. The even-distributed activated carbon. This washable can be used repeatedly, and two in one way, greatly reduces the total cost of consumables.

The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the enviromental friendly imparted sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

with pin type electric discharge way, the high-voltage electrostatic dust can replace the traditional tungsten filament high-voltage electrostatic dust collection. It's thickness in only 4cm, can de suitable for all kinds of models. The removel rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infrction. It's washable, also can be cleaned with brush, and will not increase the using cost.

Air Ventilation System Controller

Three-speed Control Knob

* speed control

Intelligent LCD Controller

* speed control

* temperature display

* time setting

Intelligent LCD Controller-APP

* three speed control
* temperature display
* time setting

* PM2.5 display

* CO2 display

* APP control

Installation:
