Радиочастотная манекен нагрузка 200

Радиочастотная манекен нагрузка 200

Категория: >>>
Поставщик: Hwatel,(Beijing),Technology,Co.,Ltd.

Цена:5,00 $ - 10,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	6.35 $*	6.93 $*
Jul-16-2025	5.16 $*	5.63 $*
Jun-16-2025	6.96 $*	6.42 $*
May-16-2025	6.13 $*	6.0 $*
Apr-16-2025	5.97 $*	5.69 $*
Mar-16-2025	6.14 $*	6.76 $*
Feb-16-2025	6.91 $*	6.10 $*
Jan-16-2025	6.22 $*	6.51 $*

Характеристики

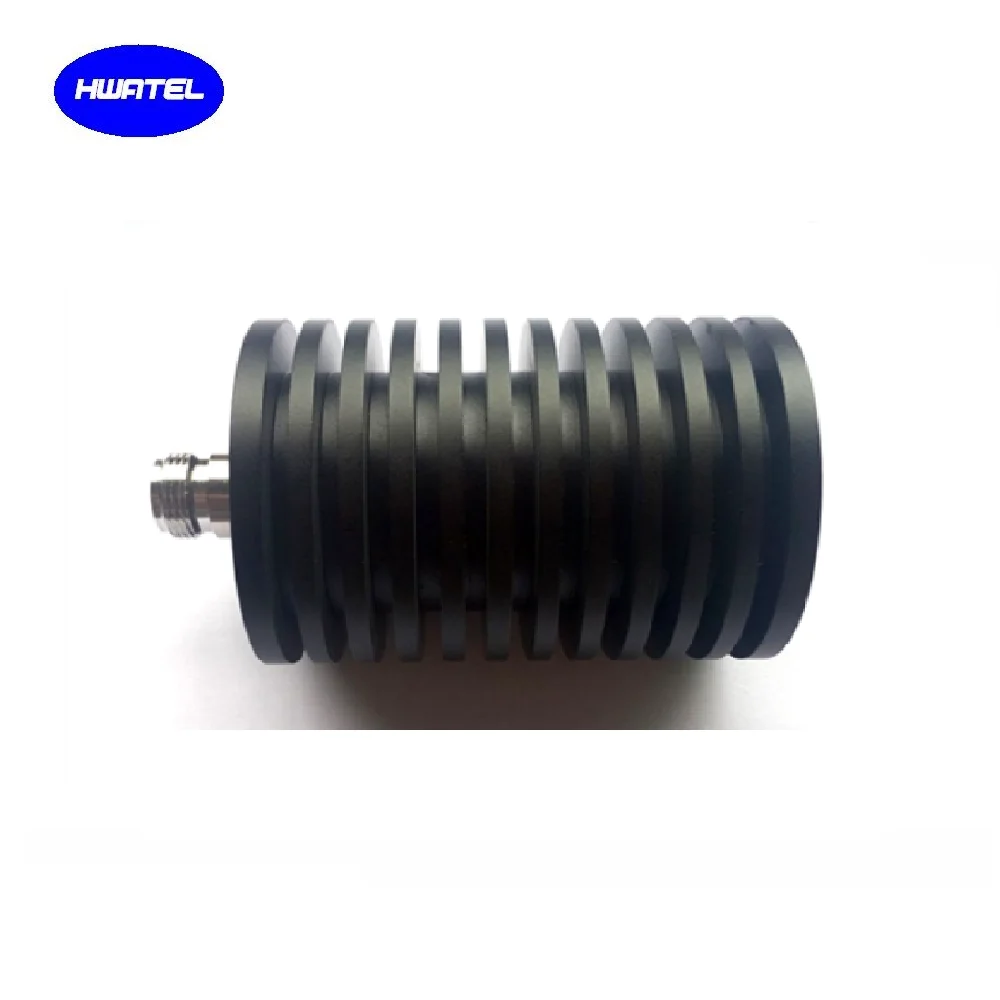

N Female dummy load

HT ATT-xx-NF

Overview

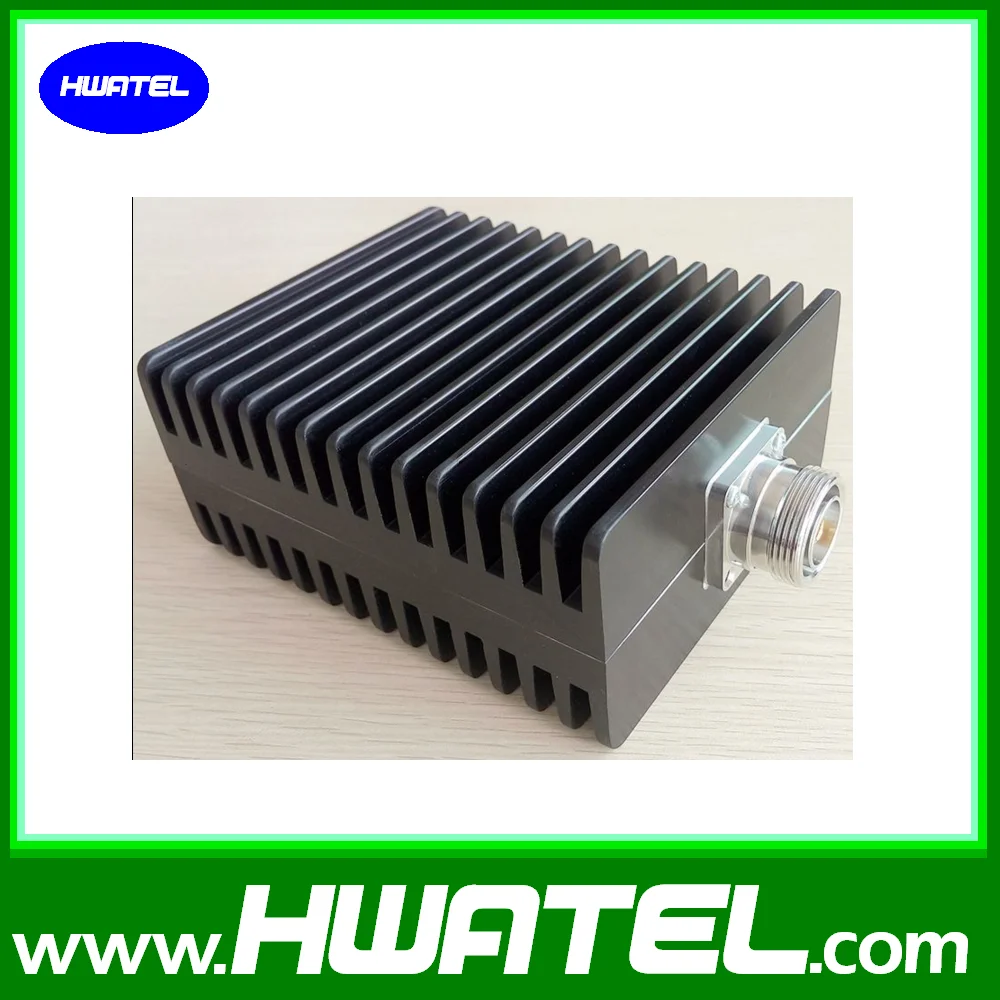

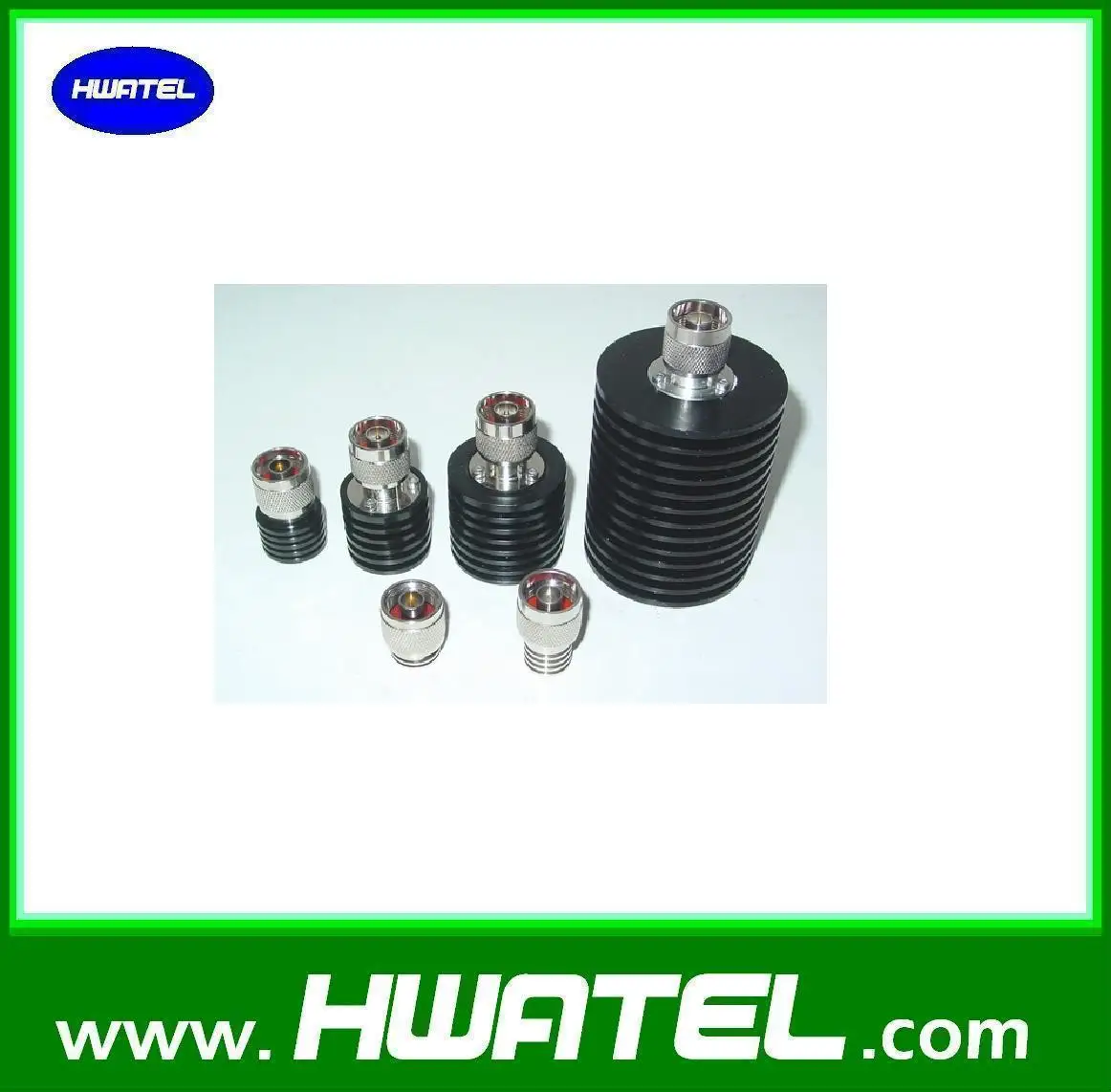

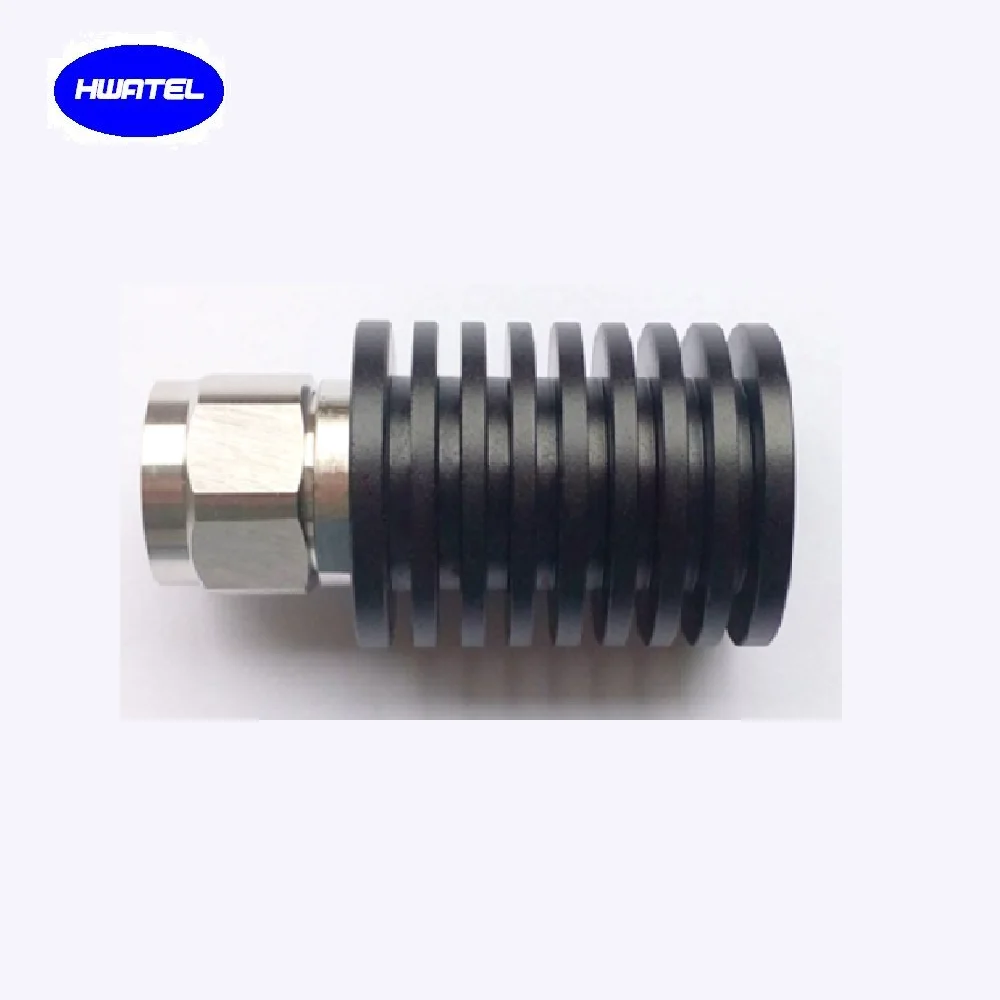

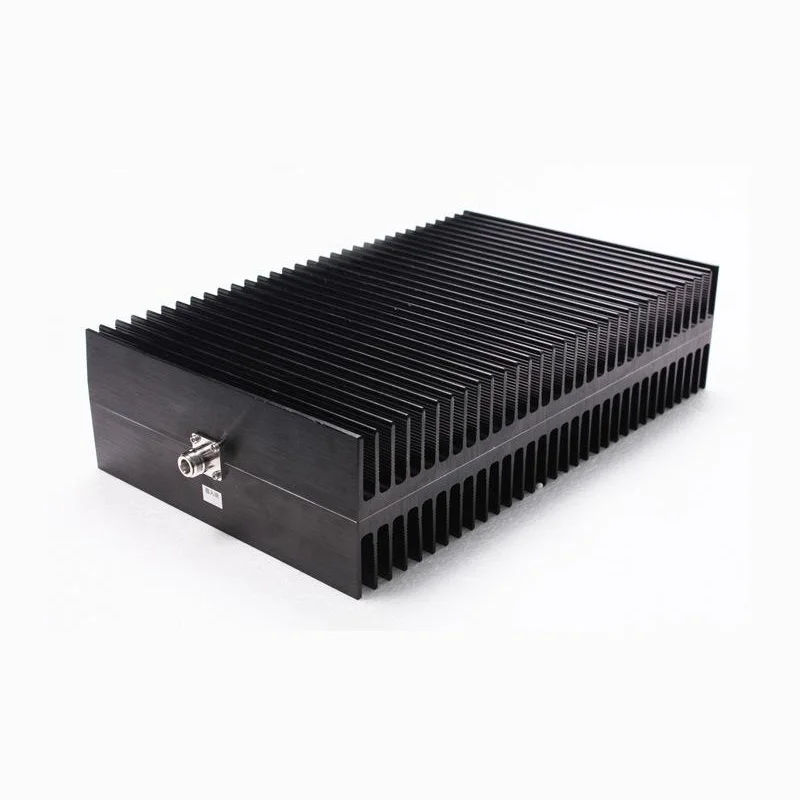

HWATEL Termination Loads is wide range coxial loads from DC to 18G Hz. Cooling finsminimize temperature rise of the resistive film terminal element, xonrained within a carefully matched coaxial housing.

Feature

High reliability
Available from DC to 18G Hz
Power rating from 1W to 2000 Watt
Connector: SMA, N, 7/16 DIN, L27

Tech Specification

Type	Average Power(W)	Peak Power(KW)	Frequency Range (GHz)	VSWR	Connector
SMAF	1	0.25	dc-12.4	1.1-1.3	SMA
DTZ	2	0.5	dc-12.4	1.1-1.3	N,BNC,SMA,TNC
TF5	5	0.5	dc-4	<1.2	N,BNC,SMA,TNC
TF10	10	1	dc-12.4	1.1-1.3	N,BNC,SMA,TNC
TF25	25	1	dc-12.4	1.1-1.3	N,7/16,SMA,TNC
TF50	50	10	dc-12.4	1.1-1.3	N,7/16,SMA,TNC
TF80	80	10	dc-12.4	1.10-1.35	N,7/16,TNC
TF100	100	10	dc-4	1.10-1.35	N,7/16
TF150	150	10	dc-4	1.1-1.3	N,7/16
TF200	200	10	dc-4	1.1-1.3	N,7/16
TF250	250	10	dc-4	1.1-1.3	N,7/16
TF300	300	10	dc-4	1.15-1.4	N,7/16
TF400	400	10	dc-4	1.15-1.4	N,7/16
TF500	500	10	dc-4	1.15-1.4	N,7/16
TF800	800	20	dc-4	1.15-1.4	N,7/16
TF1000	1000	50	dc-4	1.15-1.4	N,L27
TF2000	2000	100	dc-1	<1.25	N,L27
TF5KW	5000		dc-1	<1.2	L27,L36
10KWTF	10000		dc-1	<1.2
