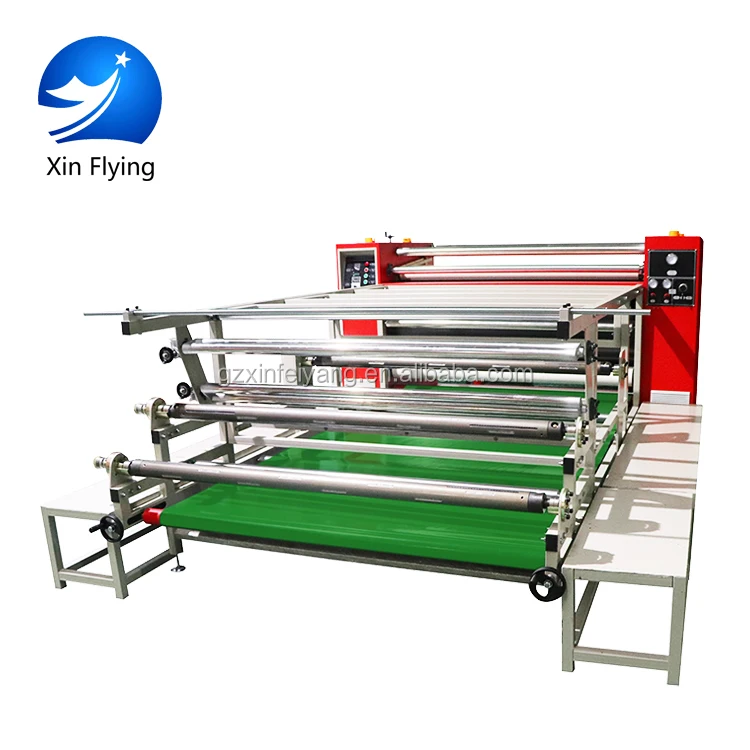

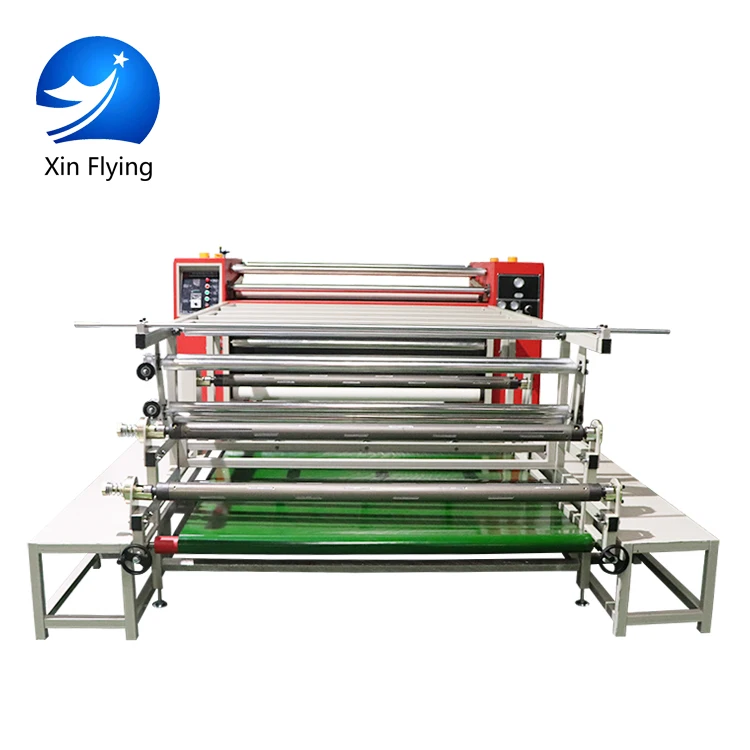

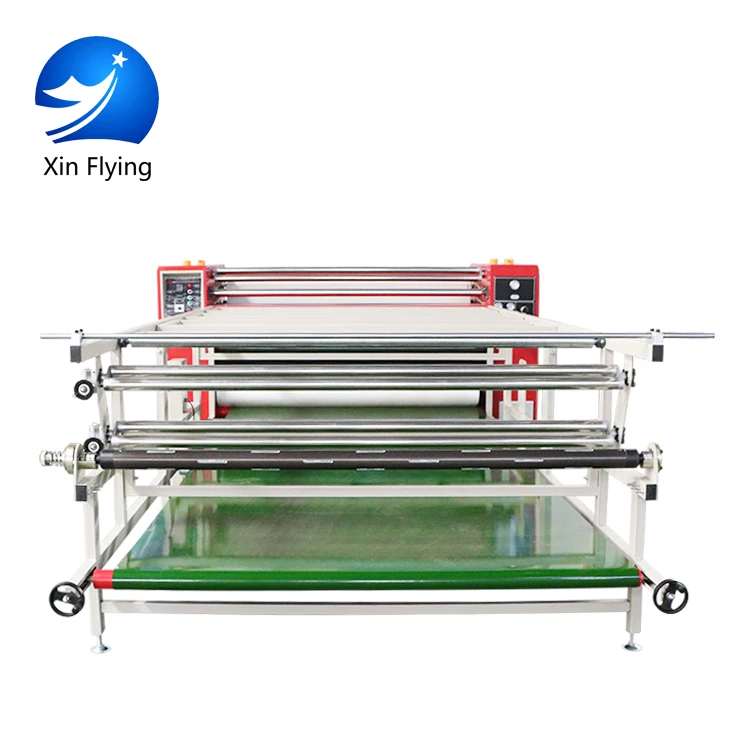

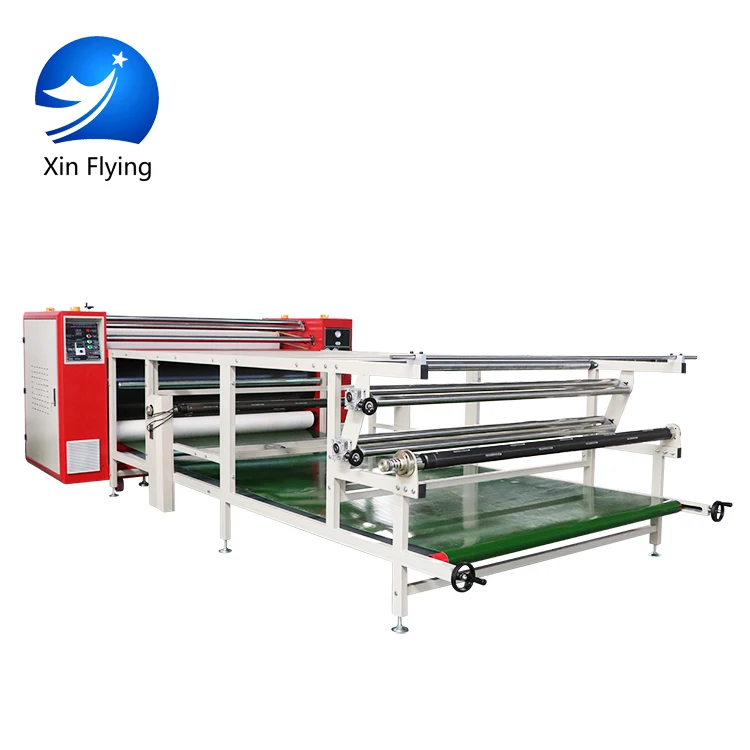

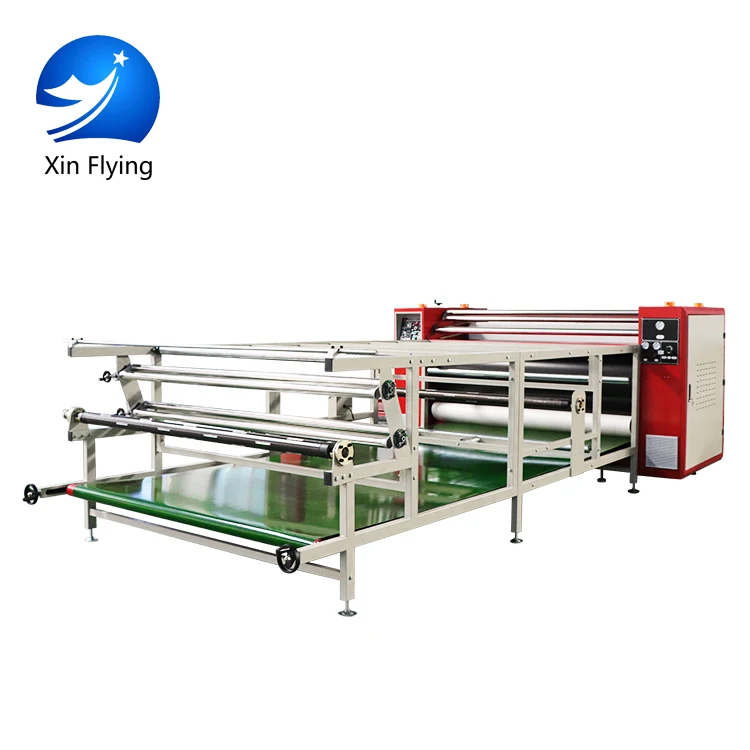

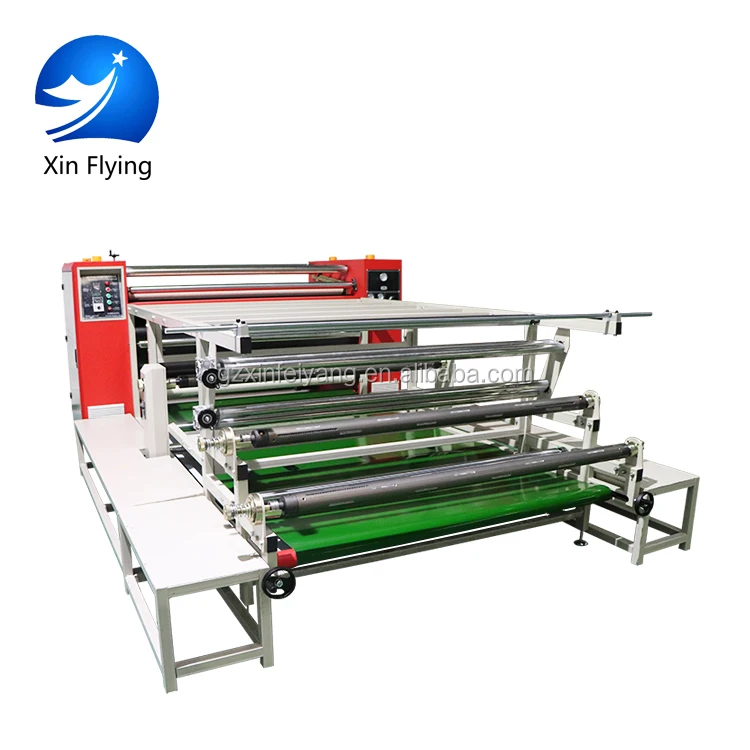

Oil Heating Large Format Roll To Calander Rotary Heat Transfer Press Machine
- Категория: Передача тепла >>>
- Поставщик: Guangzhou,Xin,Flying,Digital,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 12066.11 $* | 12307.33 $* |
| Jul-15-2025 | 9786.66 $* | 9982.30 $* |
| Jun-15-2025 | 11876.32 $* | 12114.24 $* |
| May-15-2025 | 11781.35 $* | 12017.51 $* |
| Apr-15-2025 | 9406.50 $* | 9594.81 $* |
| Mar-15-2025 | 11591.19 $* | 11823.30 $* |
| Feb-15-2025 | 11496.33 $* | 11726.68 $* |
| Jan-15-2025 | 11401.22 $* | 11629.64 $* |
Характеристики
Working Process
Using a transfer paper printer, you can easily print the patterns required by various customers, and achieve massproduction,pollution-free, simple operation, saving manpower, material and financial resources, which greatly reduces productioncosts.
Details Images
Product model | XinFlying 6012 | XinFlying 6017 | |||||
Specification | 600*1100mm | 600*1600mm | |||||
Roller diameter | 600mm | 600mm | |||||
Transfer width | 1600mm | 1800mm | |||||
Voltage | Single/3 phase 220V/380V | ||||||
Operation power | 34kw | 10kw | |||||
Temperature range | 0-399°C | ||||||
Working table | 3m | ||||||
Transfer speed | 150-280m/h | ||||||
Heating type | Oil heating | ||||||
Operate method | Three putting,two receiving | ||||||
Pressure | with pressure strengthen system | ||||||
Feeding way | Automatic feeding textile | ||||||
Textile type | Both use for roll and sheet textile printing | ||||||
Packing size(L*W*H) | 2590*1300*1500mm | 2850*1300*1500mm | |||||
Weight | 1500kg | 2000kg | |||||
Our Advantages
Customer Photos
Certifications
Company Profile
Exhibition
FAQ
1.Q: What’s the machine installation?
A: We provide the machine usage & installation videos and instruction manual, afford the 24 hour online service support for oversea customers. If need, we could provide the on-site installation and training service.
2.Q: How about the machine’s package and transportation ?
A:We will protect the machine with film and bubble film around the machine when it leaves the factory, and fix it on the bottom of the wooden case with iron nails. After the wooden case is packed, we will choose the mode of transportation according to the customer's requirements, and provide export service according to the customer's requirements.
3.How about the machine’s maintenance ?
A:With warranty of whole printer ( not included the printer head) , simultaneously we will provide the lifetime warranty if use together with our ink. Also our after-sales engineers will provide 24 hour online technical consulting service.
A: We provide the machine usage & installation videos and instruction manual, afford the 24 hour online service support for oversea customers. If need, we could provide the on-site installation and training service.
2.Q: How about the machine’s package and transportation ?
A:We will protect the machine with film and bubble film around the machine when it leaves the factory, and fix it on the bottom of the wooden case with iron nails. After the wooden case is packed, we will choose the mode of transportation according to the customer's requirements, and provide export service according to the customer's requirements.
3.How about the machine’s maintenance ?
A:With warranty of whole printer ( not included the printer head) , simultaneously we will provide the lifetime warranty if use together with our ink. Also our after-sales engineers will provide 24 hour online technical consulting service.
