Характеристики
Overview
Product Application
Quarry Stone Cutting Machine 2QYKT-3600 is suitable for mining granite, marble, quartz at quarry.
TECHNICAL DATA FOR 2QYKT | 2QYKT -3000A | ||||||||||
Model Number | 2QYKT-3000 | 2QYKT-3300 | 2QYKT-3600 | D | |||||||
Blade diameter | mm | 3000 | 3300 | 3600 | 3600 | 3000 | |||||
Max. cutting depth | mm | 1250 | 1400 | 1550 | 1550 | 1250 | |||||
Power of main motor | kw | 55 x 2 | 55 x 2 | 55 x 2 | 55 x 2 | 45 x 2 | |||||
Power of pump motor | kw | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | |||||
Power of stroke motor | kw | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | |||||
Motor of railawy switch | kw | 1.1 X 2 | 1.1 x 2 | 1.1 x 2 | 1.1 x 2 | 0.55 x 2 | |||||
Gross power | kw | 117.9 | 117.9 | 117.9 | 117.9 | 96.8 | |||||
Dimension (L x W x H) | cm | 370x210x275 | 370x220x275 | 380x220x290 | |||||||
Gross weight | kg | 7000-8500 | 7000-8500 | 7500-10000 | 8500-11000 | 7000-8000 | |||||
Main Features
1) Four-wheel drive power
2) No need triangle belt, avoiding the elastic problem of traditional belt.
3) Faster, more energy saving.
4) Safer, more stable.
Detailed Images

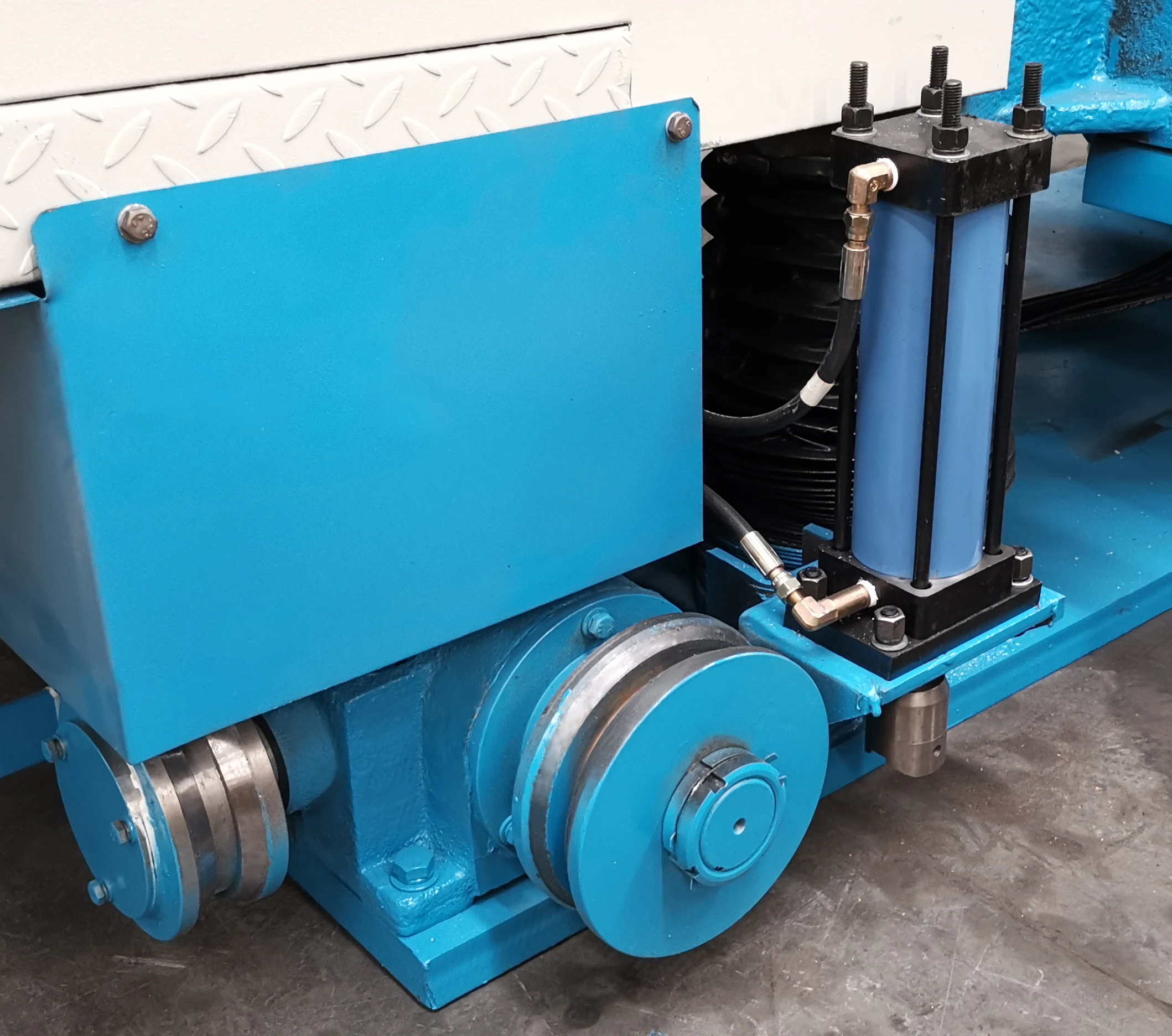

4 rollers physicaly design
Double main motors drive the double blades more smooth,more steady and more efficiently.
Advantage of Blade with Cut hole design
1) Reduce dead weight, reduce load, reduce power loss by about 40%.
2) Both convenient with cooling water into the joint, enhance the cooling effect of the saw blade deformation, and better will be the joint sand discharge, but also can release the stress generated in the use, more resistant to deformation, longer life

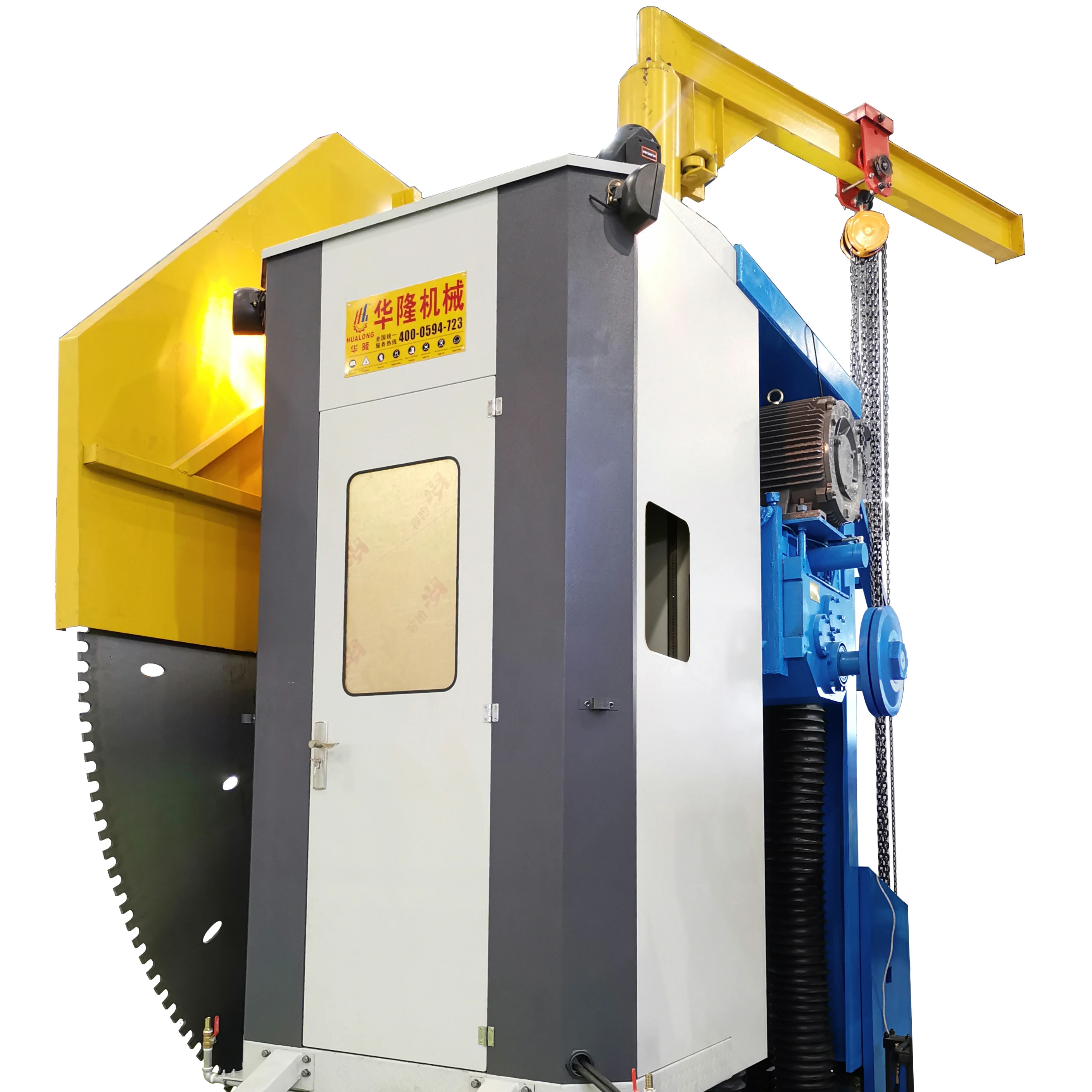

Power Connection & Operation Panel
Brand: Schneider, SINEE, C-Lin, TENGEN
Original: China
Quality certificated by CE
Main motor
Name: Three-phase asymchronous motor
Brand: ND
Efficiency: 92.5%
Original: China
Domestic famous engines, strong driving force, good efficiency, high economic benefits.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Related Products
Double stone cutting machine
91.8% Response Rate
Sandstone cutting machine HKSS-1200/1400
91.8% Response Rate
Double-head Quarry Combination Saw Machine
91.8% Response Rate
Packing & Delivery
Packaging | ||
Size | 3800 (L) * 2200 (W) * 2900 (H) | |
Weight | 8500-11000 kgs | |
Packaging Details | 1) All parts covered by pe film. 2) Small / middle sized parts and accessories packed in plywood cartons. 3) With steel wire to fix in container, anti slip suitable for shipment. | |
