Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100

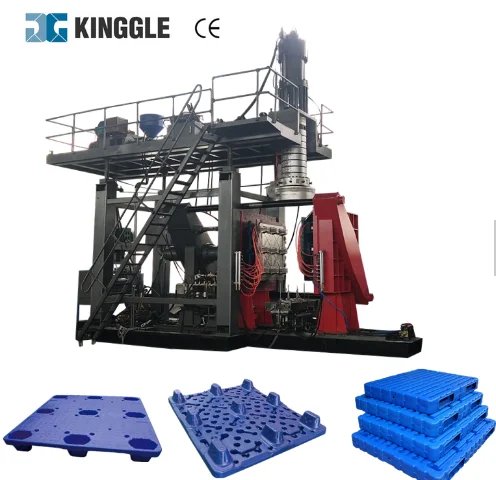

Пластиковый поддон/резервуар для воды/машина выдувного формования
- Категория: Оборудование для производства резиновых изделий >>>
- Поставщик: Ningbo,Kinggle,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.4 $* | 0.58 $* |
| Aug-18-2025 | 0.38 $* | 0.80 $* |
| Jul-18-2025 | 0.80 $* | 0.27 $* |
| Jun-18-2025 | 0.72 $* | 0.58 $* |
| May-18-2025 | 0.21 $* | 0.83 $* |
| Apr-18-2025 | 0.41 $* | 0.3 $* |
| Mar-18-2025 | 0.72 $* | 0.8 $* |
| Feb-18-2025 | 0.46 $* | 0.53 $* |
| Jan-18-2025 | 0.75 $* | 0.66 $* |
Характеристики
Suit product
Technology
| Specifications | Unit | Fixed open-closing type | |||
| Machiner model | PXB120A | PXB120B | PXB120C | PXB120D | |
| Material | PE,PP,ABS etc. | ||||
| Max container capacity | L | 500 | 500 | 500 | 500 |
| Machine dimension ( L×W×H ) | M | 9.0×4.0×6.5 | 9.0×4.0×6.5 | 9.0×4.0×6.5 | 9.0×4.0×6.5 |
| Machine Weight | T | 36 | 38 | 45 | 50 |
| Clamping unit | |||||
| Mold platen size ( W×H ) | MM | 1400×1750 | 1600×1750 | 1600×2000 | 1800×2000 |
| Max mold size ( W×H ) | MM | 1200×2000 | 1400×2000 | 1400×2200 | 1600×2200 |
| Power | |||||
| Servo oil pump motor power | KW | 35 | 35 | 45 | 45 |
| Average energy consumption | KW | 85-100 | 85-100 | 100-130 | 100-130 |
| Blow pressure | Mpa | 2 | 2 | 2 | 2 |
| Extruder unit | |||||
| Screw diameter | MM | 120 | 120 | 120 | 120 |
| Screw L/D ratio | L/D | 24:1 | |||
| Melting capacit for HDPE | KG/HR | 300-380 | 300-380 | 450-550 | 450-550 |
| Extruder power | KW | ||||
| Die head | |||||
| Max die-pin diameter | MM | 650 | 750 | 850 | 850 |
| Accumulator capacity | L | 25 | 30 | 45 | 45 |
| Accumulator weight ( HDPE ) | KG | 18 | 22.5 | 33 | 33 |
Die head: verticality first-in first-out system;

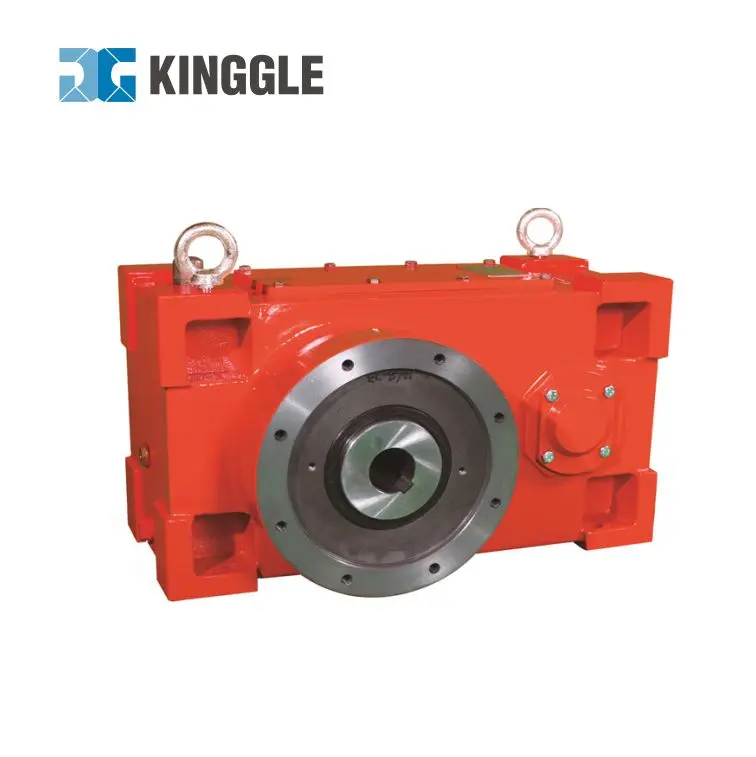

Extruder unit: adopt automatic temperature control unit of import,the screw united by hard tooth surface gear box and frequency motorto achieve stepless speed regulation;
Clamping device: the clamping device of double draw bar is a type of hydraumatic and fixed , draw bar of new type through template,this type is accommodate large size of mould,smooth action,high stability,clamping mould force is uniformly,template is not distortional;
Hydraulic system: whole system adopt imported components,proportional pressure,flow,pressure feedback,system response is faster,action is more smoothly,lowest power loss,and the output of torque is big.
Electric controlling system: it adopts Japan programmable controller,touch screen,the characteristic of it has direct manipulation and large information on board.
Main component brand
Our Services
The warranty period for Kinggle machine is one year with a life long maintenance.
If the user requires special quality guarantee, other stipulated warranty period may be made after
mutual agreement.
1. Reply the email and take action in 24 hours. |
2. 100% Quality inspection before the shipment. |
3. Can trainning clients operator for free in seller`s factory. |
4. Engineer overseas is avilable. Introduce our engineer come to customer’s factory working. |
5. Blowing mould and injection mould made orginal. |
6. Auxiliary machines for complate line. |
7.Custimized design as requirements. |
Packaging & Shipping
Customer/ Exhibiton
Certifications
FAQ
[1] Q: Are you a factory or trading company?
A: We are a factory. Our factory is near Shanghai & Ningbo port, Ningbo ,zhejiang .
[2] Q: Do you provide blow molding machine ,mold and auxiliaries equipments?
A: Yes, we can provide full blow molding machine line. The machine can produce Max 10,000L items, our
factory have patent for the multilayers and multi-colors!
[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers need” . Kinggle machinery factory focuses on quality, quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
[4] Q: How about guarantee ?
A: One year guarantee, oversea service is avaliable.
[5] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,or other languages to make sure you will have an easy operation .
