Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100
Гидравлический штуцер для шланга ferrule гайка опрессовочной машины
- Категория: Rubber Product Making Machinery >>>
- Поставщик: Tianjin,Hoyite,Rubber,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4998.58 $* | 5248.94 $* |
| Aug-15-2025 | 4956.18 $* | 5204.88 $* |
| Jul-15-2025 | 4158.98 $* | 4366.52 $* |
| Jun-15-2025 | 4872.21 $* | 5116.95 $* |
| May-15-2025 | 4242.73 $* | 4454.27 $* |
| Apr-15-2025 | 4788.95 $* | 5027.31 $* |
| Mar-15-2025 | 4746.97 $* | 4983.51 $* |
| Feb-15-2025 | 4704.31 $* | 4939.41 $* |
| Jan-15-2025 | 4662.15 $* | 4895.46 $* |
Характеристики
Product Description
Hydraulic hose fitting ferrule nut crimping machine HYT-D201 Introduction
HYT-D201 nut crimping machine(Nut-press) is our new product. Wehave improved the capacity of the plunger pump and the power of motor, this machine can work more efficiency. We make a new design on adjusted hand wheel, the machine is more easy to be operated. We add the toughened glass shield andemergency stop button on machine, the machine is more safe to run. Welcome to give us suggestion so that we can do better.
Technical Datas Of Hydraulic Nut Crimper Machine HYT-D201
Typte number | HYT-D201 |
Crimp ranger | 1/8"-2" |
Standard voltage&motor | 380V/3kW |
Optional voltage&motor | Your voltage is available |
Opening without dies | φ130mm |
Opening | min28mm |
Thrust of cylinder | 42 T |
NO. of standard die | 9 sets |
Systematic Pressure | 15Mpa |
Capacity of plunger pump | 14.5L/min |
Hydraulic liquid | Winter: YB-N32;Summer: YB-N46 |
Capacity of tank | 35L |
Weight | 265KGS |
L*W*H | 800*700*850 (mm) |

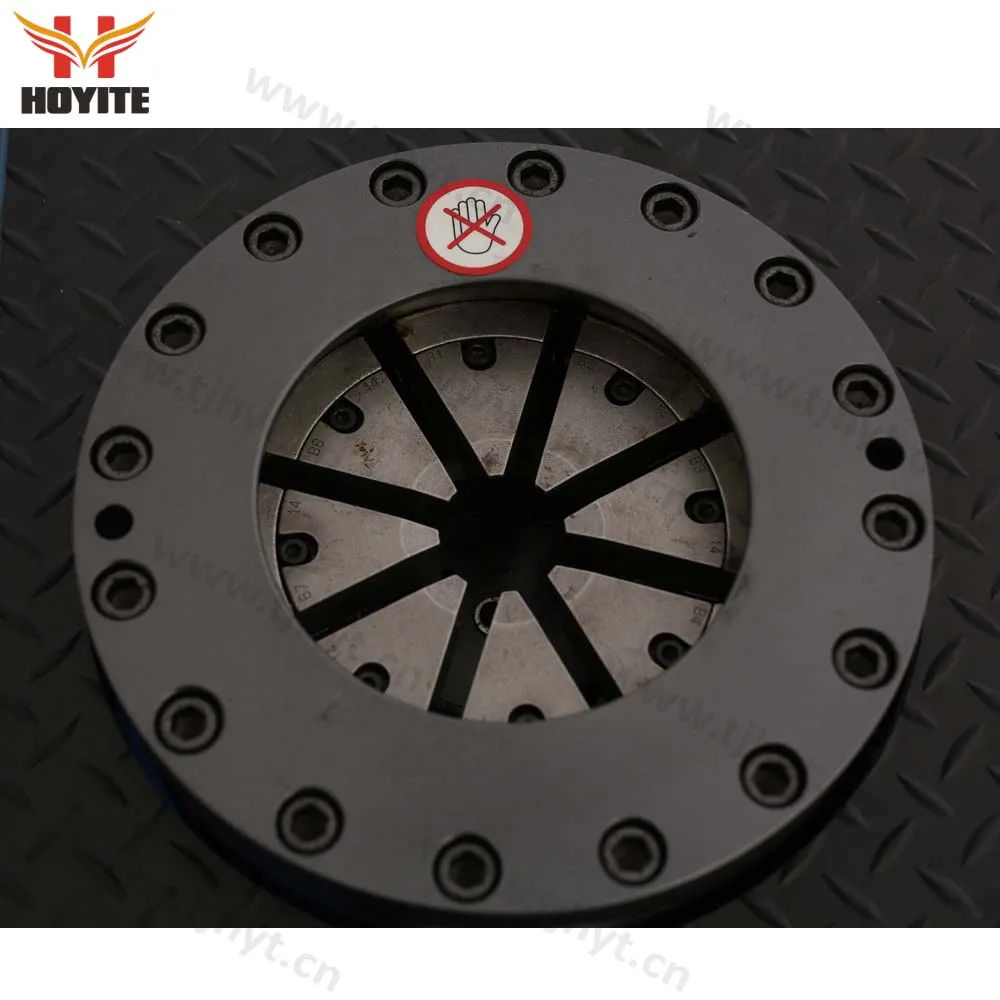

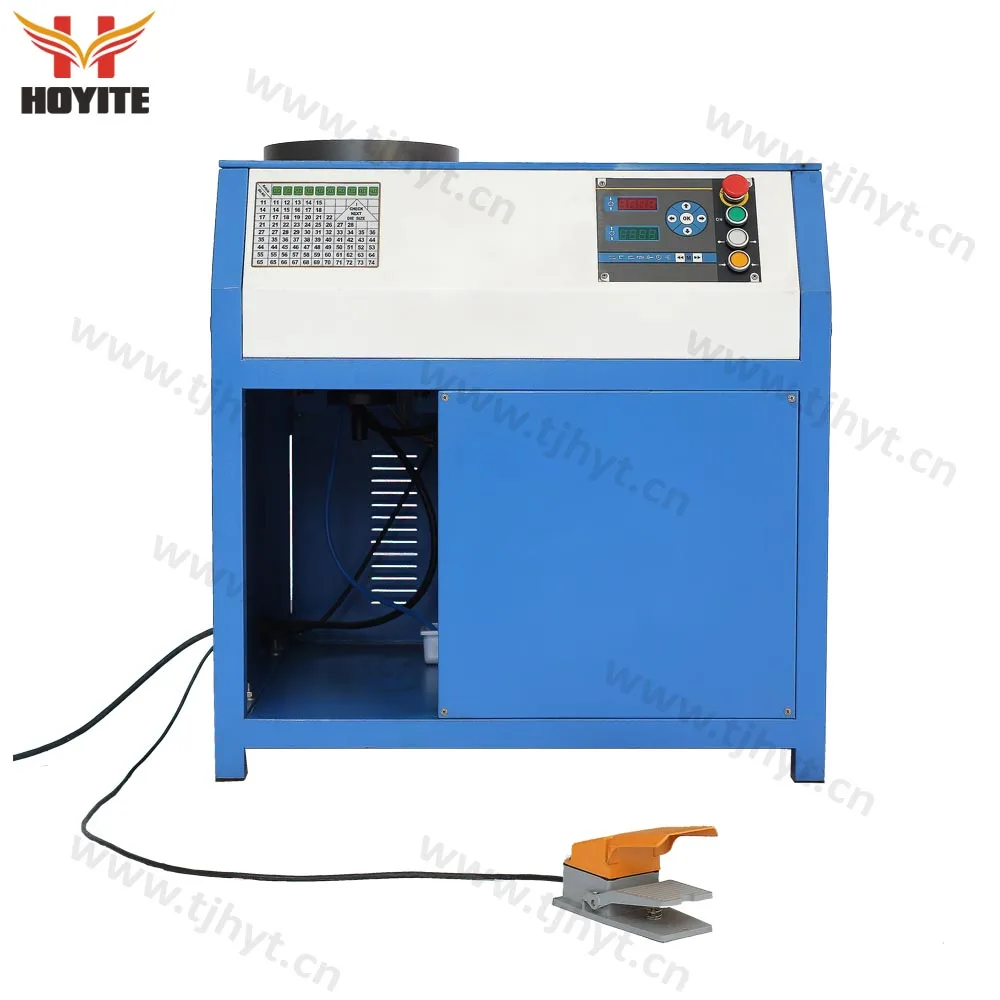

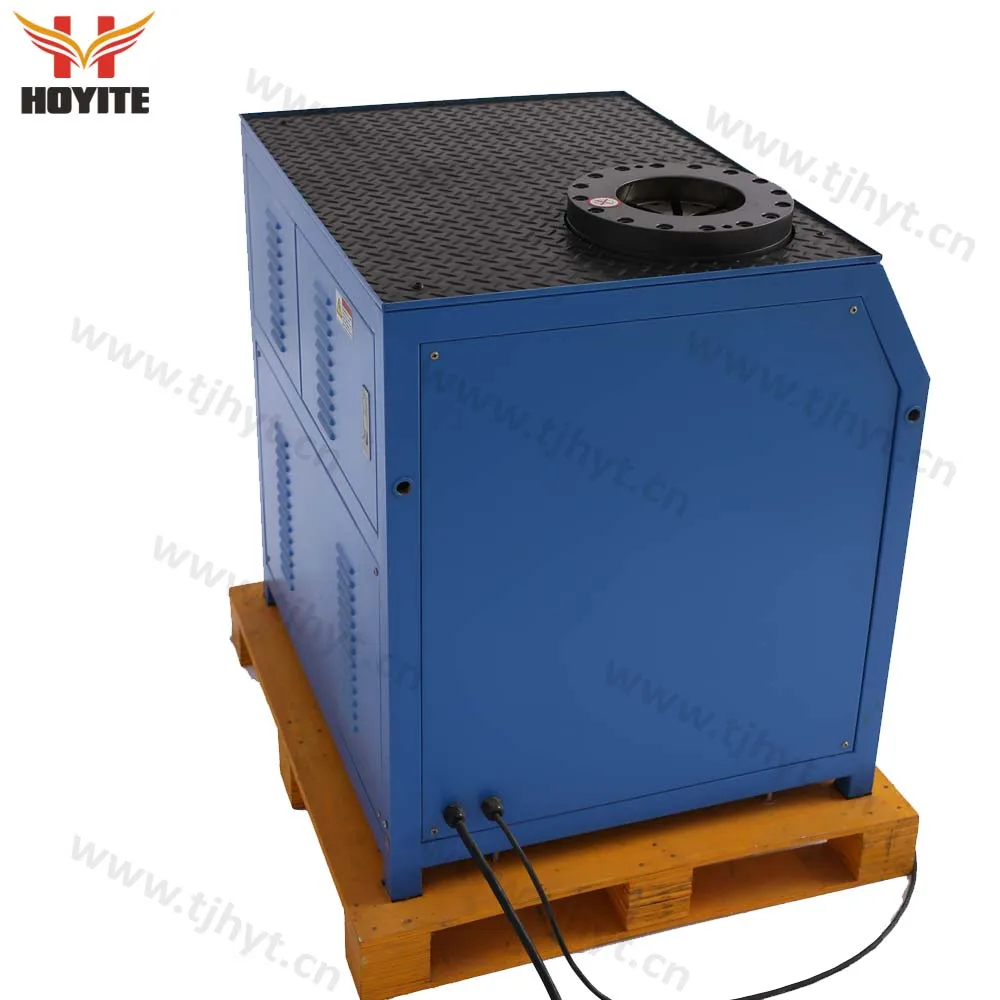

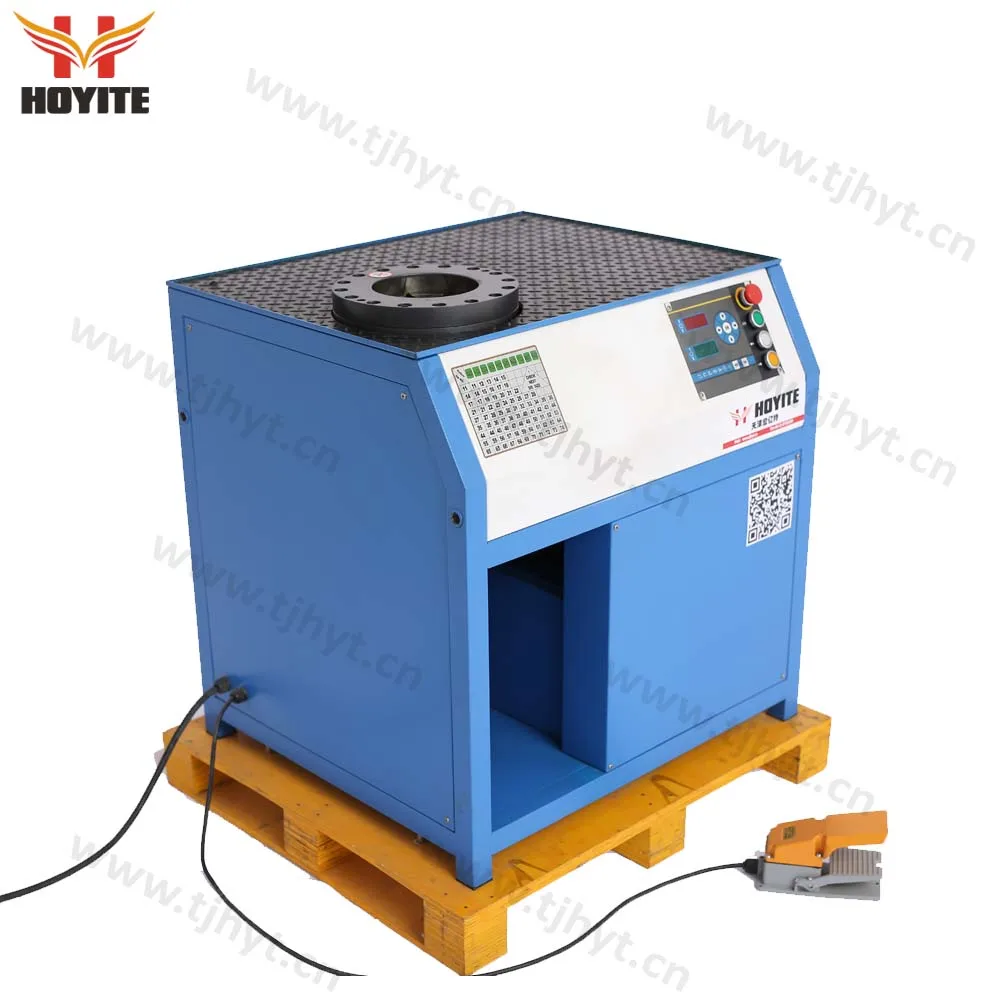

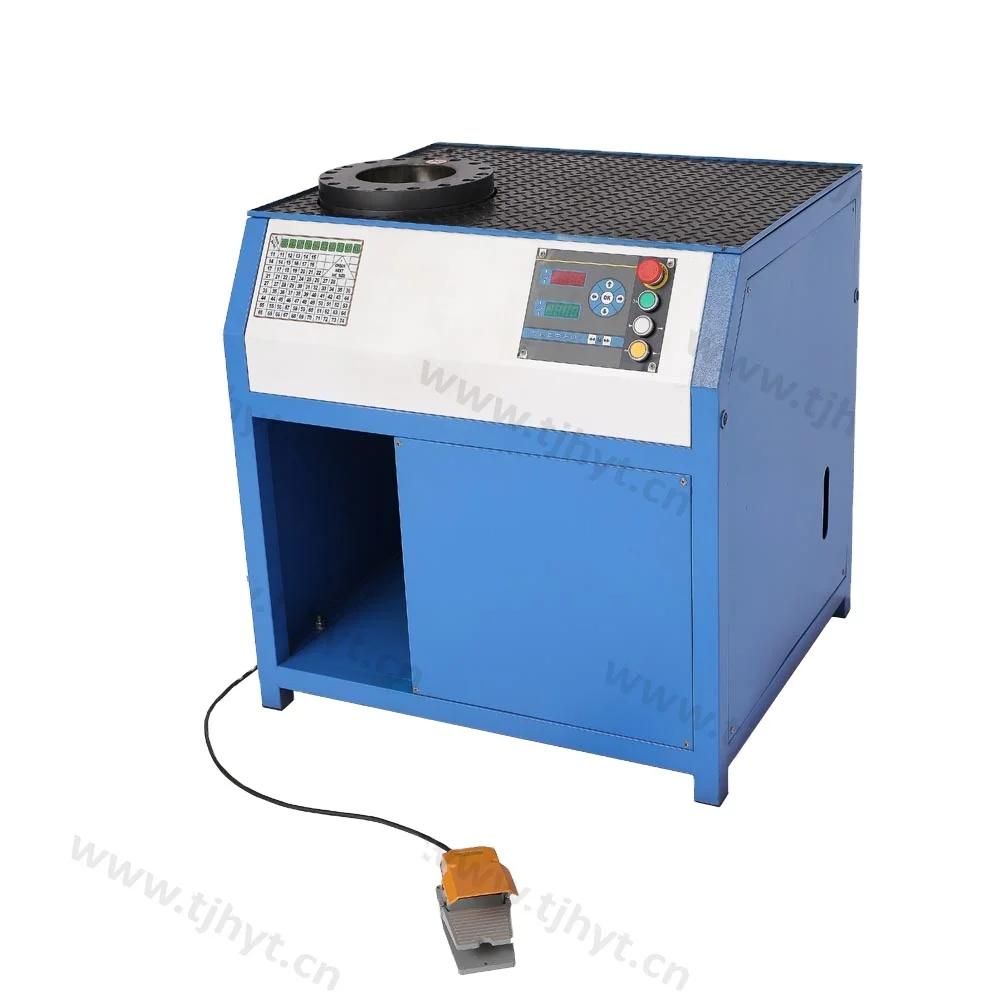

Detailed Images
Advantages Of Hydraulic Nut Crimper Machine HYT-D201
1). Integral-type cylinder, performance steady;
2). Human design, high efficiency;
3). Added with base-protective resin gasket to not damage the working surface;
4). Operating system upgrade easy and intelligence;
5). Precise mumerical regulator, fast and accurate.
Packing & Delivery
Packing-1
1. Prepare fumigation-free wooden pallets as export standards for packaging and inspecting Conveniently.
2. Fix the machine on the wooden pallet to avoid slipping and shaking.
Packing-2
3. Wrap moisture-proof film to prevent dampness and abrasion during transportation.
4. Add wooden cases to ensure transportation and prevent collision.
Packing-3
5. Wooden case is secured by overall steel strapping to ensure the package is firm and the machine is not damaged.
6. Trailer / Forklift loading.
Certifications
\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t
INTRODUCTION HOYITE
Tianjin HOYITE have 12 years excellent quality, advanced services and competitive prices, HOYITE has won numerous customers' trust and support.
1.We are in the field of hydraulic hose, hose crimping machine since 1996 .
2.We are a factory manufacturing hydraulic rubber hose, hose crimping machine, cutting machine, skiving machine, and agent hose fitting, metal hose etc,best production capability ,best quality control, Best Service .
3.100% QC inspection Before Shipment.
4. Customize the specification or drawing is available, just according to your request.
5. Our deliver time is normally after confirm payment 5-25 days.
6. If you have any problems ,we are welcome you to contact us.
Contact to us
When you contact to us you can get:
1, Better price and discount.
2, More detail and recommend.
3, OEM or design new LOGO for you.
4, More professinal service.
Please remember to click "contact supplier" or "chat now" for more detailed information, We promise to better recommend and professinal servcie for you.
20190420 Kevin New, 200522,K,m
