Автогрейдер 210HP SEM921 поставка с завода
- Категория: Motor Graders >>>
- Поставщик: Jining,United,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 7172168.5 $* | 7530776.78 $* |
| Aug-15-2025 | 7111898.63 $* | 7467493.4 $* |
| Jul-15-2025 | 5966762.39 $* | 6265100.29 $* |
| Jun-15-2025 | 6991357.67 $* | 7340925.42 $* |
| May-15-2025 | 6087302.9 $* | 6391667.12 $* |
| Apr-15-2025 | 6870816.51 $* | 7214357.25 $* |
| Mar-15-2025 | 6810546.77 $* | 7151073.37 $* |
| Feb-15-2025 | 6750276.14 $* | 7087790.61 $* |
| Jan-15-2025 | 6690006.9 $* | 7024506.25 $* |
Характеристики

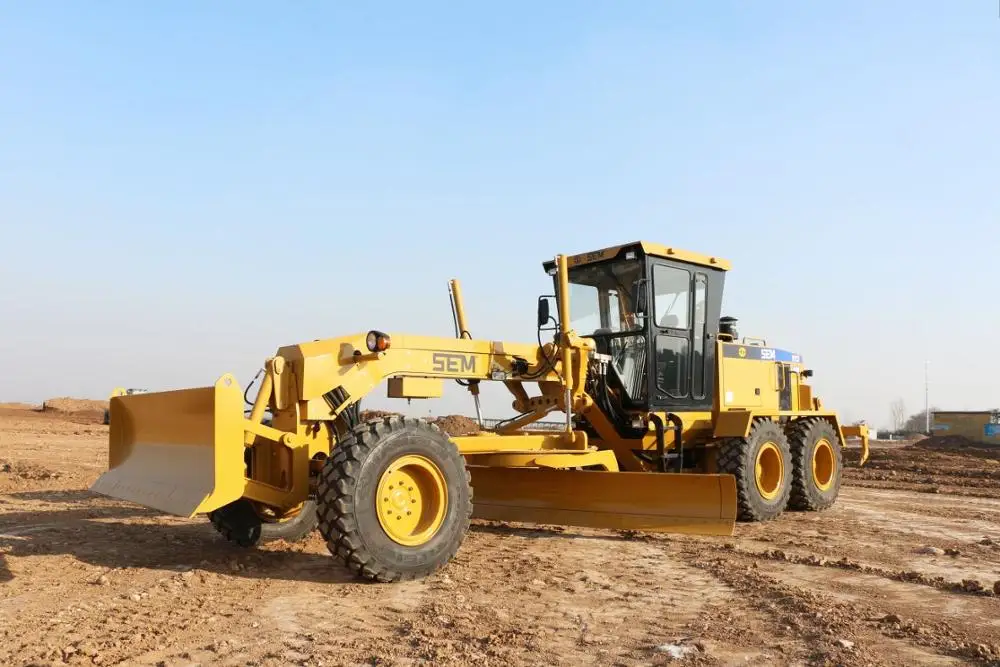

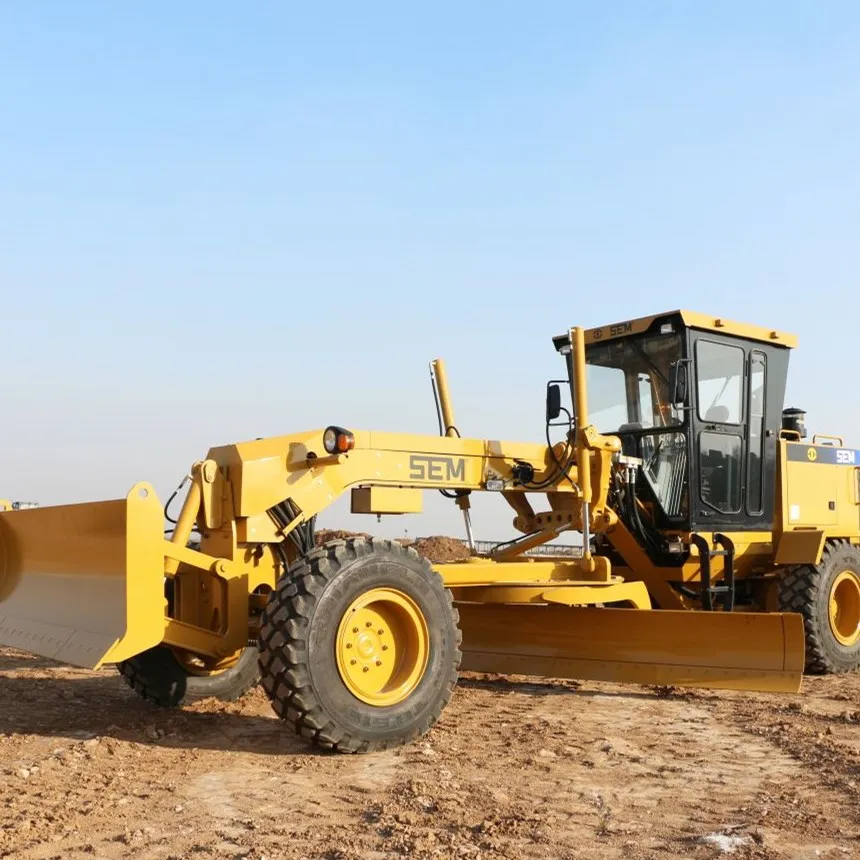

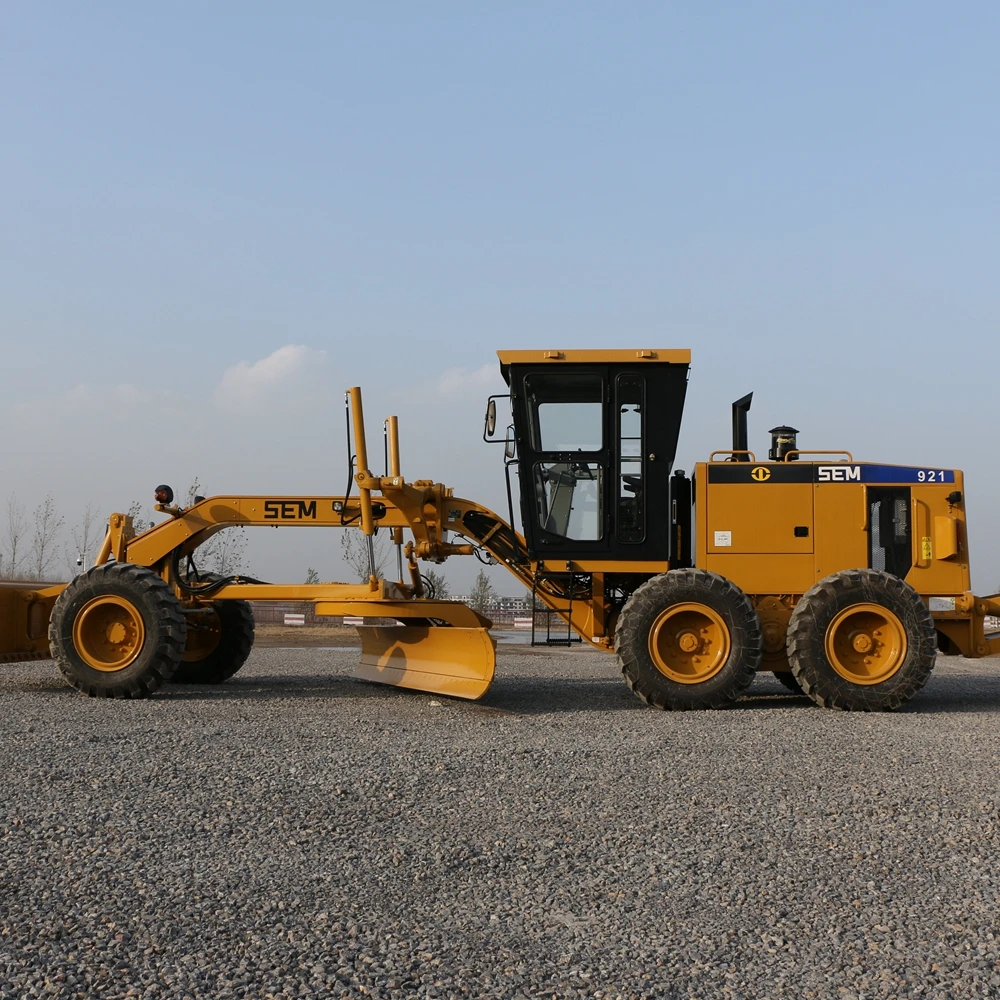

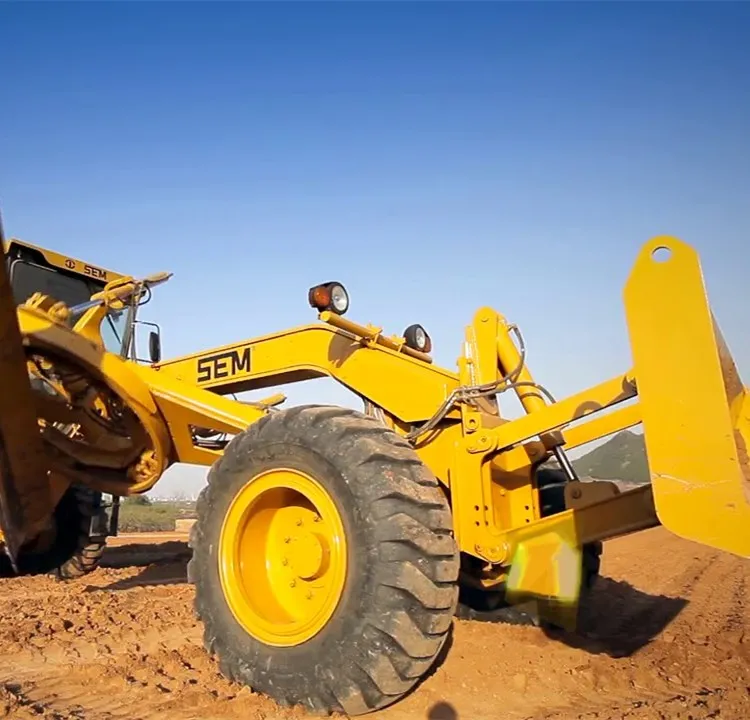

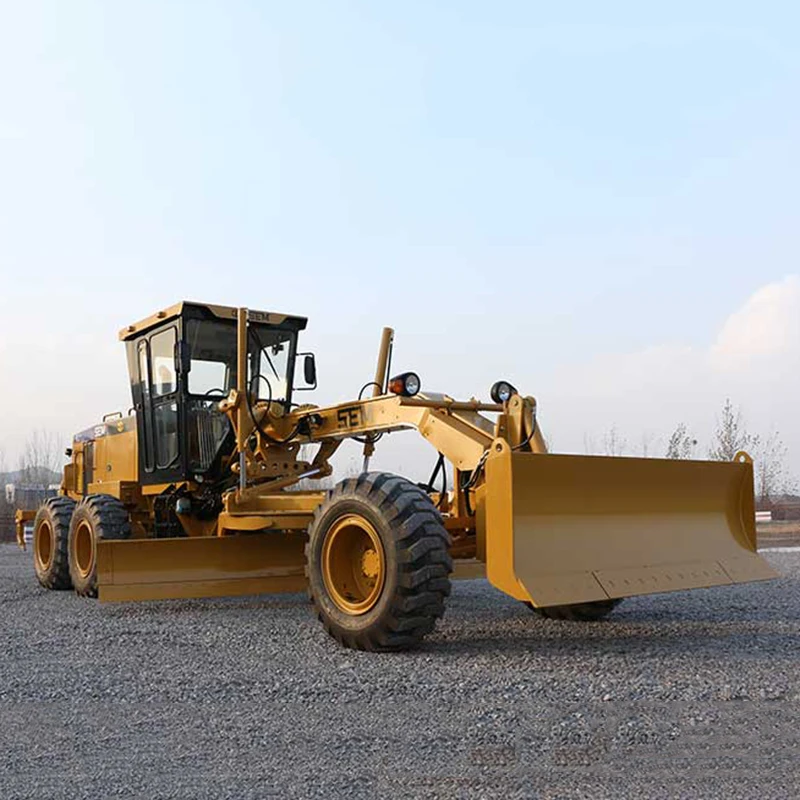

SEM factory supply Road Machinery 210HP SEM921 motor grader
Our Products
Product Description
Main Specifications | |
Operating weight (Kg) | 15070 |
Overall dimensions (L*W*H) (mm) | 8,703*2,630*3,360 |
Blade length (L*W*H) (mm) | 3,974*25*607 |
Max.lifting height (mm) | 475 |
Max.depth of cut (mm) | 715 |
Max. drawbar (kN) | 78 |
Wheelbase (mm) | 6140 |
Frame articulation angle (°) | 20 |
Min.turning radius (m) | 7.8 |
Engine brand | SDEC SC9DK190.1G3 |
Rated power | 140 |
Transmission type | Hangchi 6WG180 |
Travel speed ( forward/rear ) | 40/25 |
Rear axle/tandem | SEM ST22 |
Service brake | Outboard disc with brake caliper,Air to oil Control |
Oscillation (front up/rear up) | 15/25 |
Max.oscillation angle | ±16 |
Steering angle (L/R) | 47.5 |
Max.lean angle of front wheels | 18 |
Hydraulic system | Load sensing,PPPC |
Service refill II capacities | |
Fuel tank (L) | 320 |
Engine oil (L) | 22 |
Coolant (L) | 65 |
transmission (L) | 28 |
Rear axle (main reducer & tandem)(L) | 157 |
Circle drive (standard)(L) | 2 |
Circle drive (with slip clutch )(L) | 7 |
Hydraulic oil tank(L) | 55 |
Product Details
Advantage
Packaging & Shipping
Package :Nude or Polish with wax before shipping.
Shipping:Withing 45days after payment
Company Information
Jining United Import and Export Co.,Ltd is the authorized company of SEM. We supply Wheel Loader, Soil Compactor, Motor Grader, Track Type Tractor and also many kinds of normal products and customized products, to support parts maintenance, service and sales of all machines and 950GC.
Our company was found in 2011,located in Jining City, Shandong province,Before we worked as the construction machinery factory Jining Changhong Construction Machinery Co.,Ltd in Nov, 1996, mainly doing all construction machine spare parts, though all staff ‘effort and government`s support, We has quickly developed and expansion into overseas market.Now as a special spare parts and whole machine supplier, we have a complete set of service from before-sales to after-sales. Now our product have been sold all of the world,like Russia,India,Brazil,Southeast Asia,Africa and other countries.Warmly welcome all regular and new customers to visit our company.
FAQ
1, What’s your MOQ?
Minimum order is 1 pc only, dealership is warmest welcome.
2,What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the trucks?
We transport the vehicle in nude or Polish with wax before shipping.
Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.
4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
