Землесос для добычи золота с

Категория: Земснаряд >>>
Поставщик: Qingzhou,Jinzun,Mining,Machinery,Co.,Ltd.

Цена:45 000,00 $ - 46 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	53550.71 $*	56228.17 $*
Aug-16-2025	53100.81 $*	55755.42 $*
Jul-16-2025	44550.84 $*	46778.72 $*
Jun-16-2025	52200.38 $*	54810.74 $*
May-16-2025	45450.12 $*	47723.61 $*
Apr-16-2025	51300.47 $*	53865.78 $*
Mar-16-2025	50850.24 $*	53393.84 $*
Feb-16-2025	50400.52 $*	52920.47 $*
Jan-16-2025	49950.52 $*	52448.28 $*

Характеристики

bucket chain type gold mining dredger

Product Description

Bucket Gold Mining Dredger

Bucket Gold Mining Dredger is used in the river or shallow water,forpurpose recovery alluvial gold from river sand. Bucket golddredger is a product of deformation of sand dredger. Increasethe height of sand discharge, so will have sufficient space for theinstallation of ore concentration equipment, these equipmentextract gold from the sand.

Advantages and Characteristics

1.High capacity and fine screening

2. Polyurethane screen plate, work life is 5 times of highmanganese steel

3.ccentric shaft vibration,more stable and durable

Technical details

1.Chain Bucket System

Model:BGD-100~300

Dimension:24*5.4*4.8m

Capacity:50~300t/h

Power:150~300KW

Max:dredging depth:20m

Min.Dredging depth:5m

Mesh open size:6-20mm

Max.Dredging size:300m

2.Knelson type centrifugal concentrator

Model:STL100

Capacity:8-100t/h

Feeding Size:0-6mm

Feeding Density:<30%

Recoil Water:40-60m3/h

Fine Ora Output:120-160kg/time

Motor Power:15kw

Recovery Rate: 99%

Diamension:2500*2000*2400

Weight:3500kg

3.Pulsating Sluice Box

Capacity:40-50m3/h

Motor Power:5.5kw,1.1kw(hydraulic)

Feeding Size:0-15mm

Feeding Density:30%

Water Consumption:50-65m3/h

Vibration Frequency:32/min

Dimension:6000*1100*1000mm

Weight:1850 kg

4.Screen System

Name: Gold Trommel Screen
Size (mm): φ1500*3500 or according to processing capacity
Remark: 2 layer trommel screen
Function: for washing, screening and separating the minerals
Water spray pipes: on both sides of the trommel
Mesh size: `12mm and 6mm or according to clients requirement

5.Power System

Name: Cummins diesel Generator
Power: 100Kw-400Kw
Brand: Cummins, Weichai, or as required
Function: supplying power to all the systems

6.Mercury Amalgamator

Type: V-shaped

Working mode: amalgamator + distiller retort

Function: With the help of Mercury, to extract all the gold out from the concentrates that recovered by the sluice and concentrators
Recovery rate: 100%

7.Gold Smelting Furnace

Capacity: 10-15kg per batch

Moulds: 100g; 200g; 500g; 1000g
Function: to smelting the gold sand and make into final product of gold bars

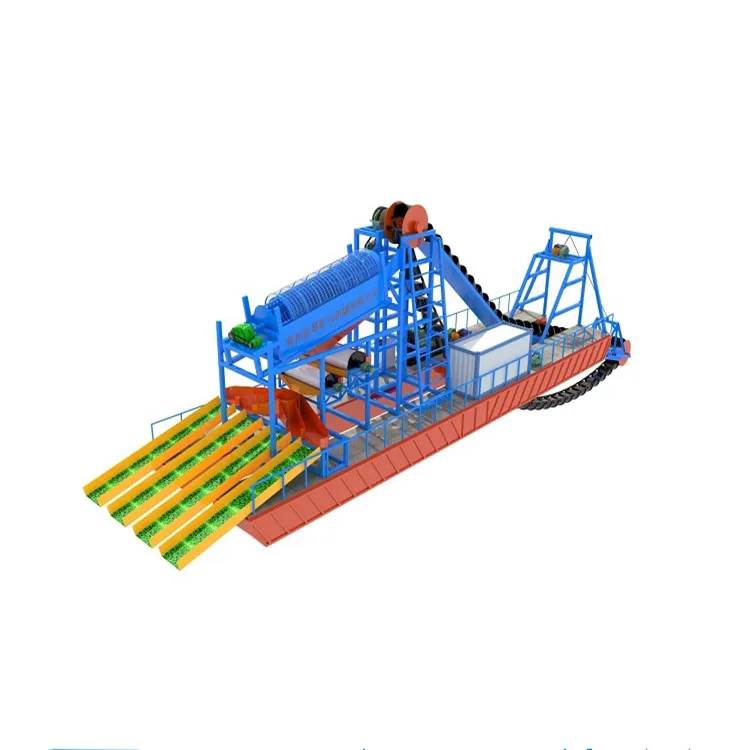

Detailed Images

SPECIFICATION OF ALLUVIAL GOLD MINING MACHINE TROMMEL WASH PLANT

Model	Dredger depth	capacity	power	Recovery Rate
BGD-100	5-30meters	100tph	150kw	98%
BGD-200	5-30meters	200tph	150kw	98%
BGD-300	5-30meters	300tph	150kw	98%

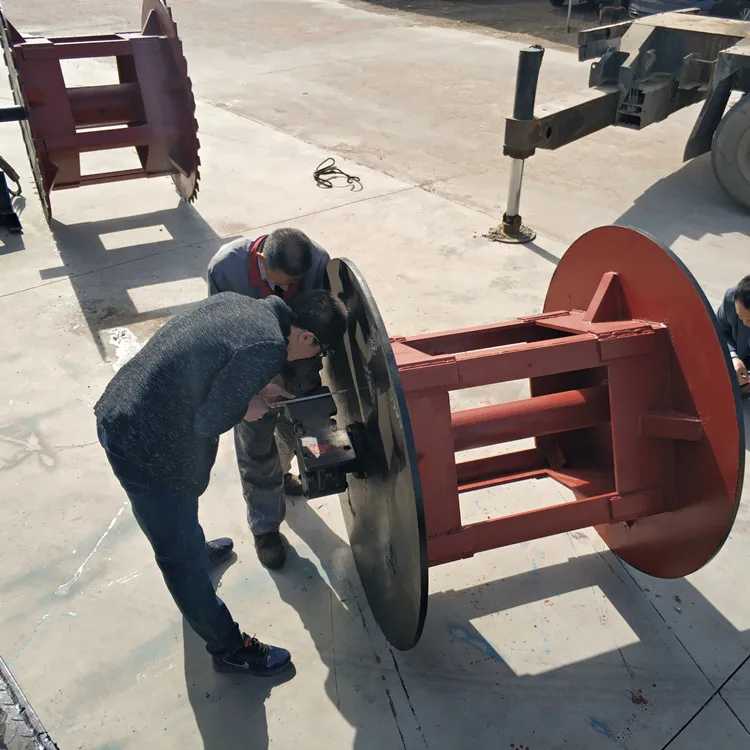

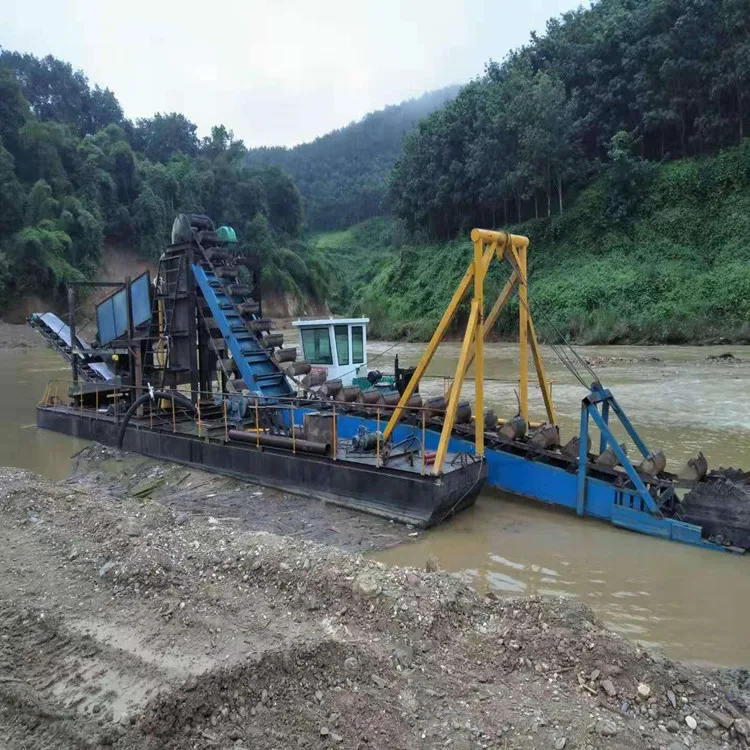

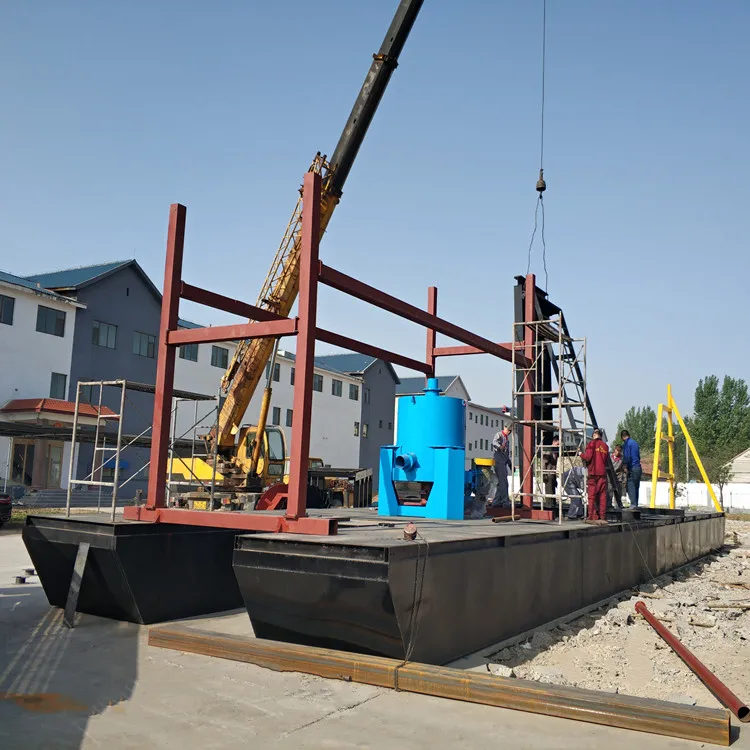

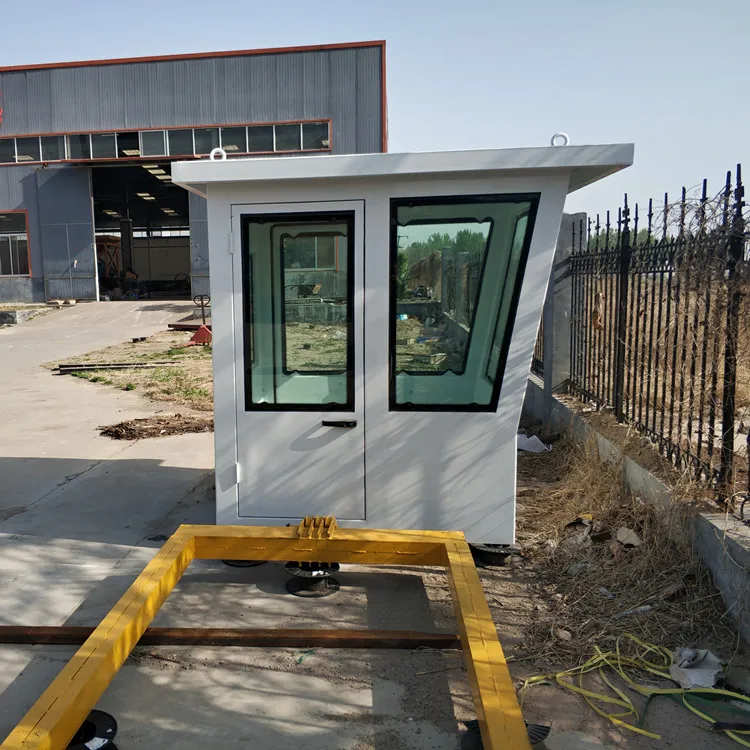

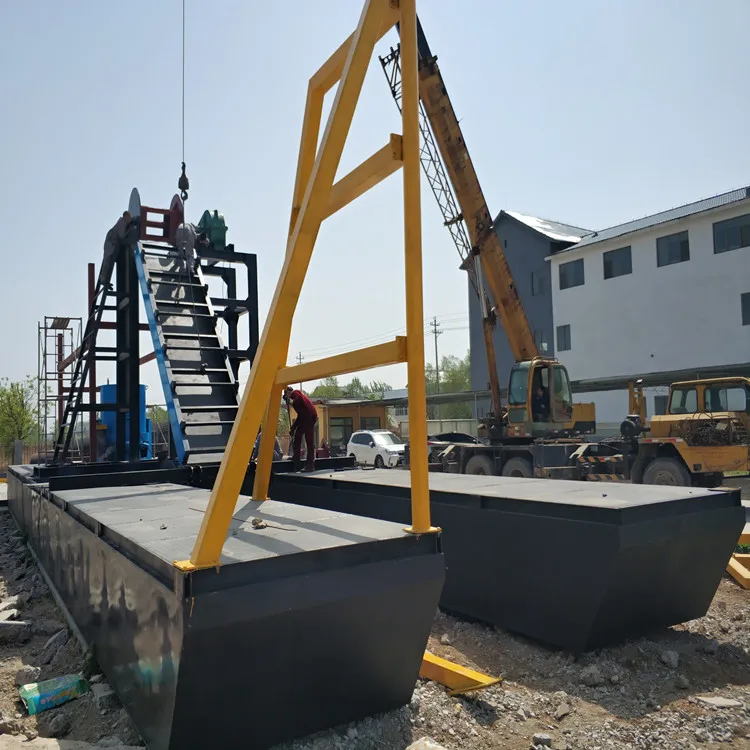

Customer Photos

Packing&Shipping

Delivery Time:7-30 days, depend on orders;

1,LCL : Wood case or channel steel frame with iron piece

2,FCL : Nude and firmed in container (20gp, 40gp, 40HQ)

Company Introduction

Qingzhou Jinzun Mining Machinery Co.,Ltd. Is large gold mining service company,Specialized in designing,manufacturing, installing and debugging of gold mining equipment as well as providing flow sheet design and course of training of mining. Our company was founded in 2015 year as one of leading manufacturer of gold mining equipment in China.Main Products: Gold trommel, centrifugal concentrator, vibrating sluice, clay washer, vibrating screen, gold dredger etc.was well sold both home and abroad. Exported to Russia, Laos, Vietnam, Kazakhstan, Tajikistan, North Korea, the Philippines, Mongolia, Myanmar, Papua New Guinea, Indonesia, Fiji, South Africa, Ghana, Benin,

After Sales Service
