Характеристики
Product Description

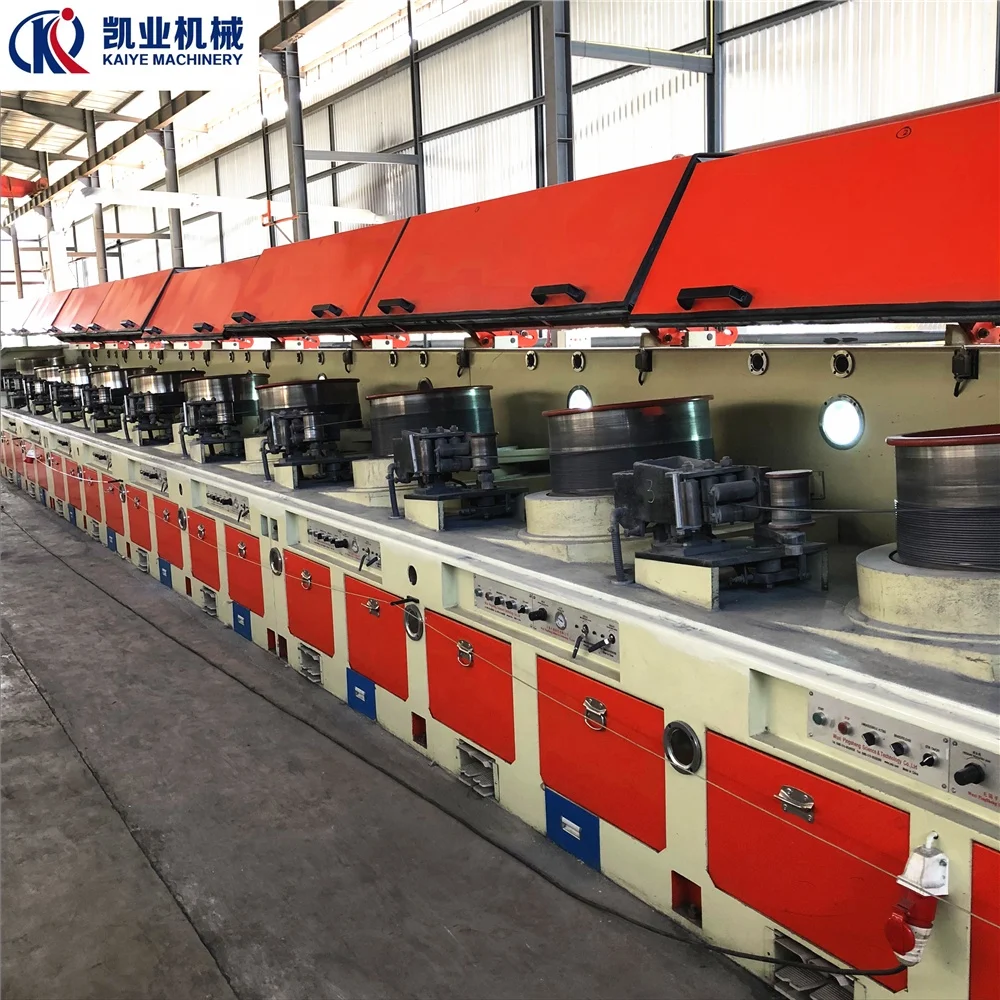

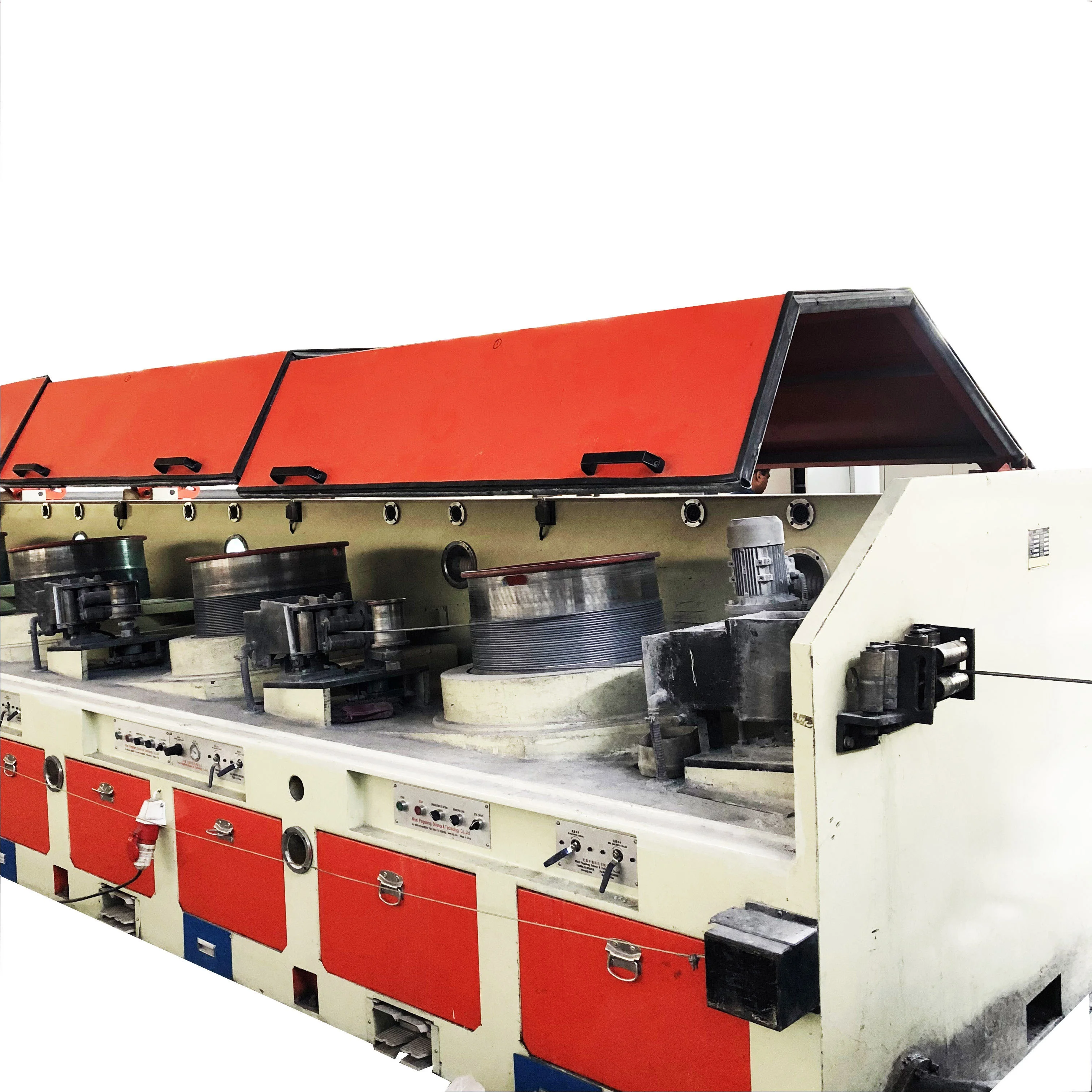

Straight Line Wire Drawing Machine
Product Introduction
Straight line wire drawing machine designed and produced by Kaiye has international advanced technical indicators and performance. Machines are adopted company's several invention patents and patents for utility models in hardening and cooling technology of capstan. Machines are equipped with speed and stress sensors, which can achieve multi item signal sampling to expand the function of intelligent detection of wire drawing machine.
Production Process:

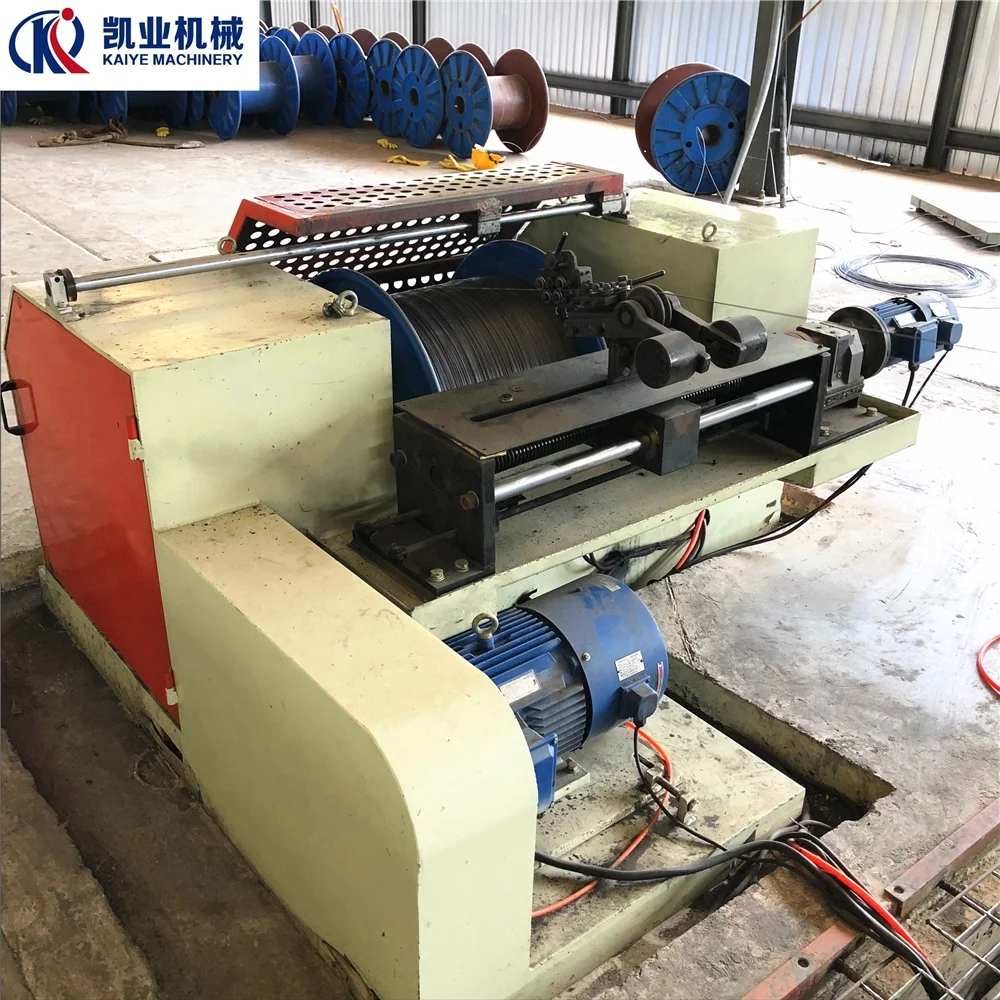

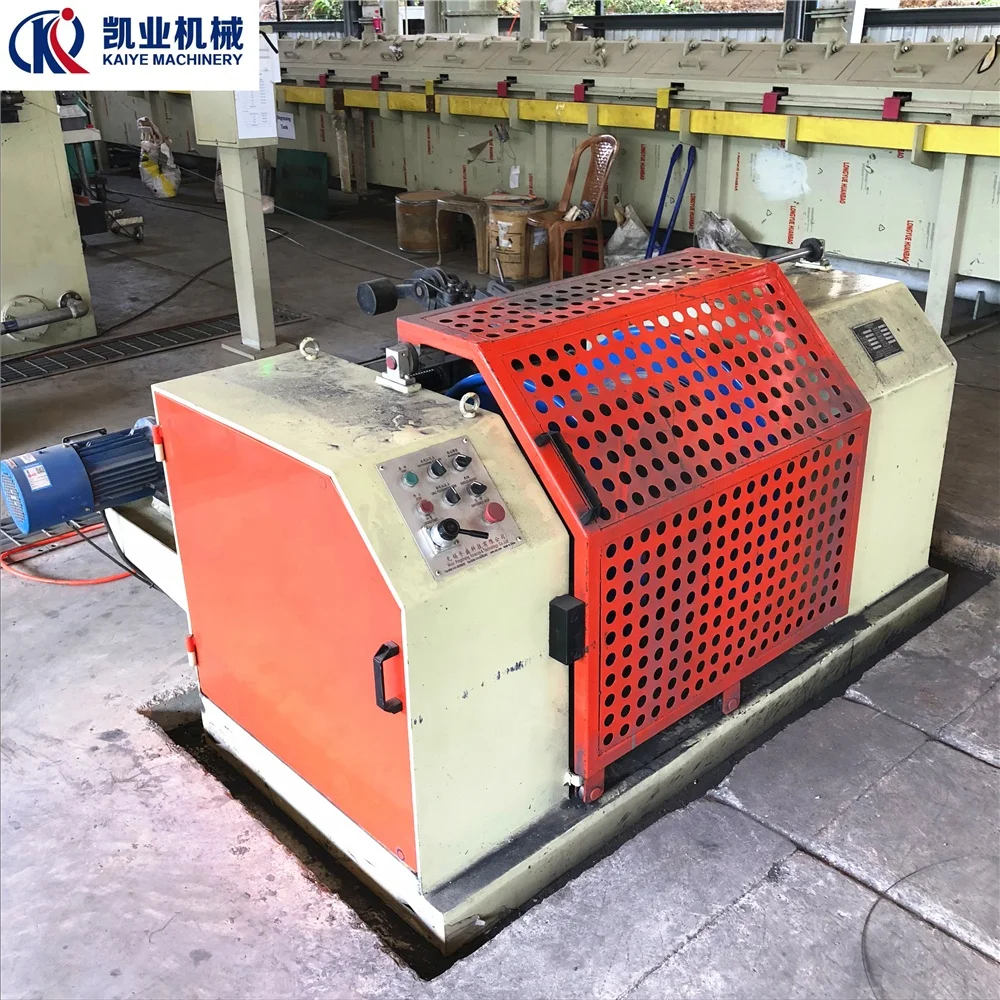

Φ6.0mm Raw material→ High pay-off frame→ Shelling and Rust removal →LZ6/560 Straight Line Wire Drawing Machine→Tension device→wire take-up machine
Φ6.0mm Raw material→ High pay-off frame→ Shelling and Rust removal →LZ6/560 Straight Line Wire Drawing Machine→Tension device→wire take-up machine
The main functions
1) Easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
4)As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range
of technology and high speed drawing.
5)Good cooling system, final wire quality is very good.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
4)As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range
of technology and high speed drawing.
5)Good cooling system, final wire quality is very good.
Machine Parameter
Items | LZ11/600(550) | ||||
Capstan diameter | 600(550) mm | ||||
Drawing dies | 11 Time | ||||
Inlet wire diameter | Φ6.5-8.0 mm | ||||
Outlet wire diameter | Φ2.0-2.2 mm | ||||
Drawing speed | 12-18m/s | ||||
Tensile strength | ≦1300 Mpa | ||||
Total reduction rate | 90.53 % | ||||
Average reduction rate | 21 % | ||||
Motor power | 37-22 Kw | ||||
Detailed Images

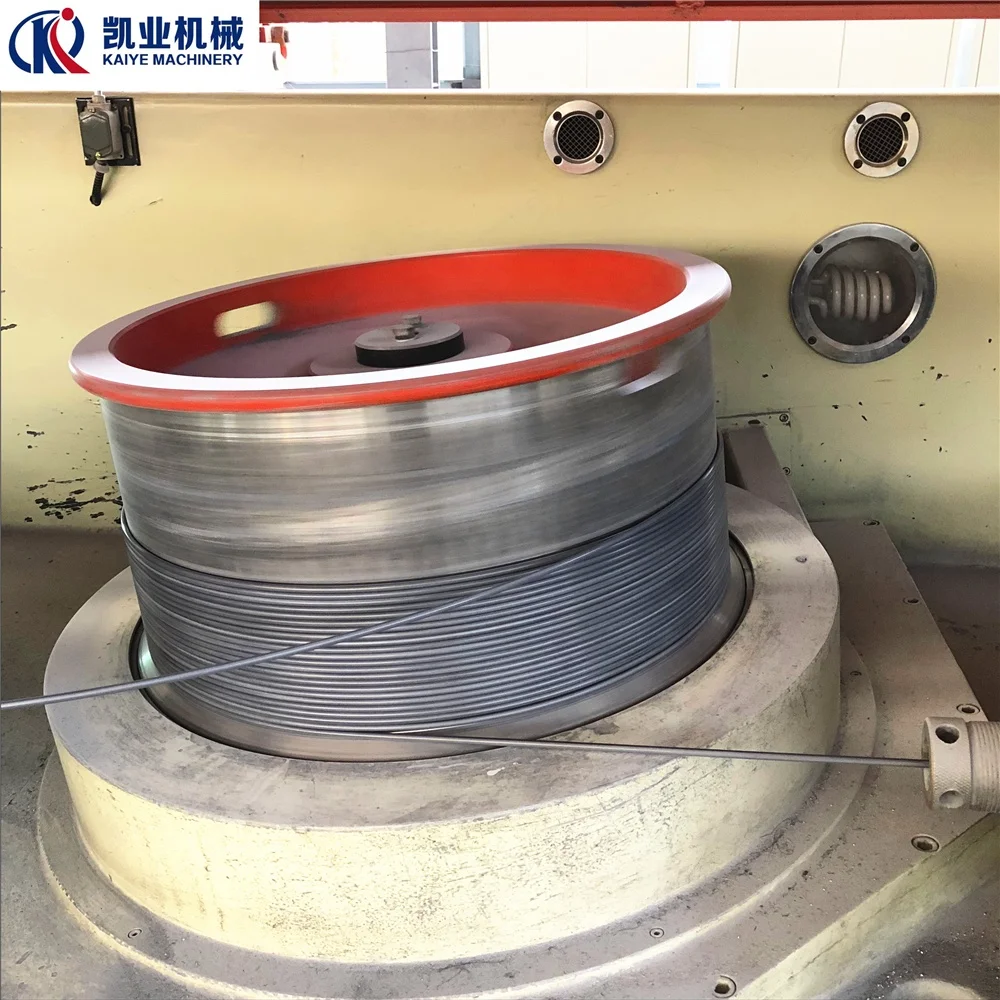

Drawing parts.
The material is ZG45 steel, surface is overlay welding, thickness > 5mm, surface roughness 55, the interior
part of the capstan is by the process of ZnAl corrosion spraying. The effective life of the capstan is over 22000 hours.
part of the capstan is by the process of ZnAl corrosion spraying. The effective life of the capstan is over 22000 hours.

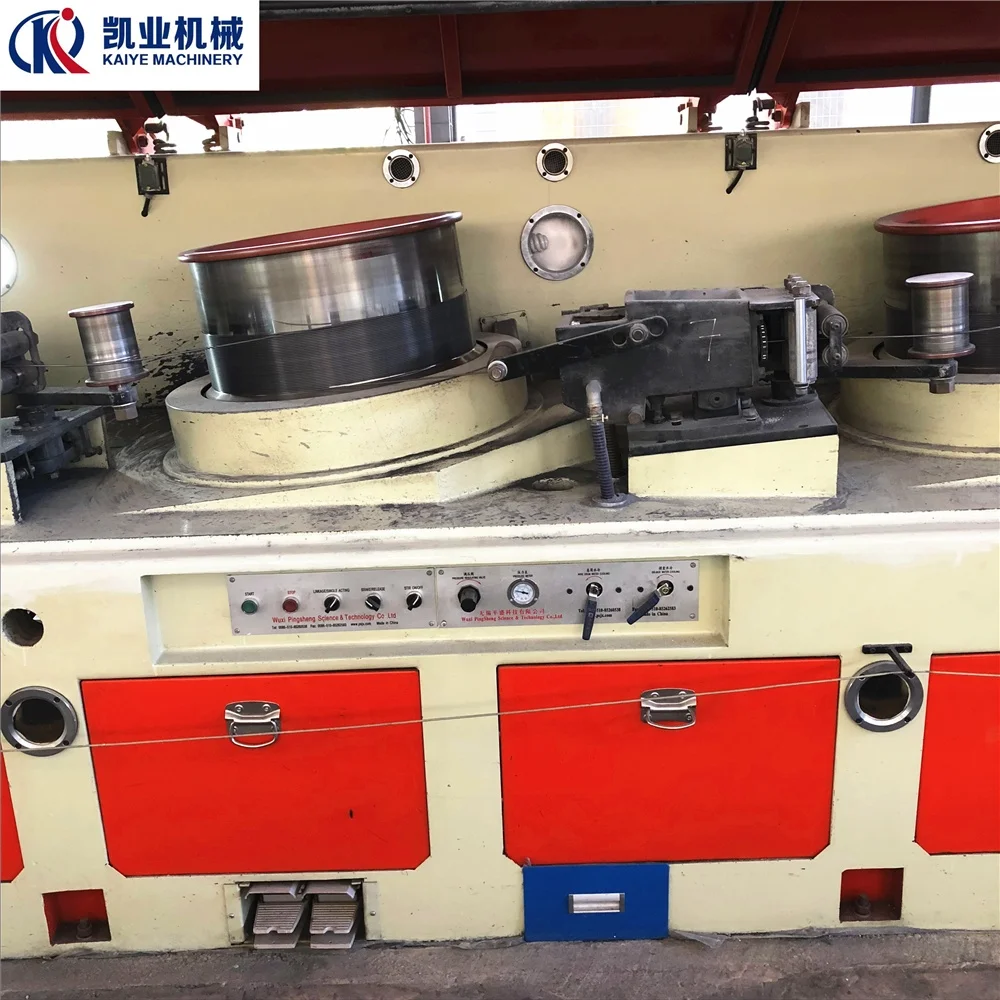

Lubricant parts.
First block use rotation die box, it can reduce the harmful of not full roundness wire rod, save dies and lubricant power. Other use normal type drawing box on Dry wire drawing machine.
Variable frequency motor.
Frequency conversion motors are manufactured with high polymer insulating materials, vacuum pressure impregnating paint and special insulation structure, which greatly improves the insulation voltage resistance and mechanical strength of electrical windings. Forced ventilation and heat dissipation system ensures effective heat dissipation of motors at any speed, and can realize long-term operation at high or low speed.
Production Process
Other machines
We also have other types of wire drawing machines. If your wire material is high carbon wire or stainless steel wire , the process is different . So if you want to know more details about different process, you can contact me now.
There are many suitable drawing materials for straight wire drawing machine, including welding rod; welding wire (gas shielded wire, submerged arc wire, flux cored wire, etc.); steel wire (high, medium and low carbon steel wire, stainless steel wire, tire steel wire, hose steel wire, spring steel wire, steel cord, etc.); electric wire (aluminum clad steel wire, copper wire, aluminum
wire, etc.); alloy wire, etc.
wire, etc.); alloy wire, etc.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our Company
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields.
Factory workshop.
Our main products:
（1）Wire mesh welding machine
（2）3D EPS panel machine, reinforcement mesh welding machine
（3）Gabion mesh machine
（4） Hexagonal wire mesh machine
（5）Wire drawing machine
（6） Expanded metal machine
（7）Chain link fence machine
（8） CNC stirrup rebar bending machine .
（2）3D EPS panel machine, reinforcement mesh welding machine
（3）Gabion mesh machine
（4） Hexagonal wire mesh machine
（5）Wire drawing machine
（6） Expanded metal machine
（7）Chain link fence machine
（8） CNC stirrup rebar bending machine .
Factory R&D Team.
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years. Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.
FAQ
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, Certificate of quality etc, your customs clearance will be no problem.
If you are interested in our machinery, please contact me now
