Product Description

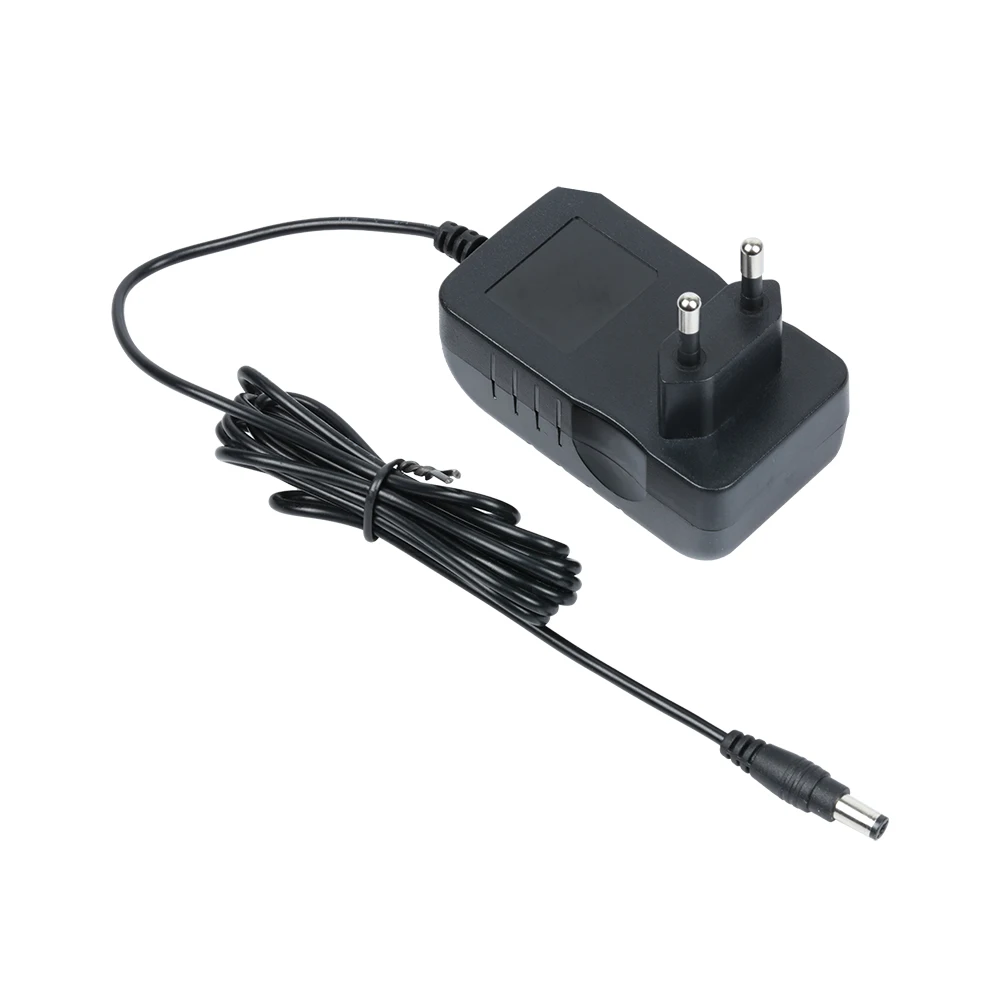

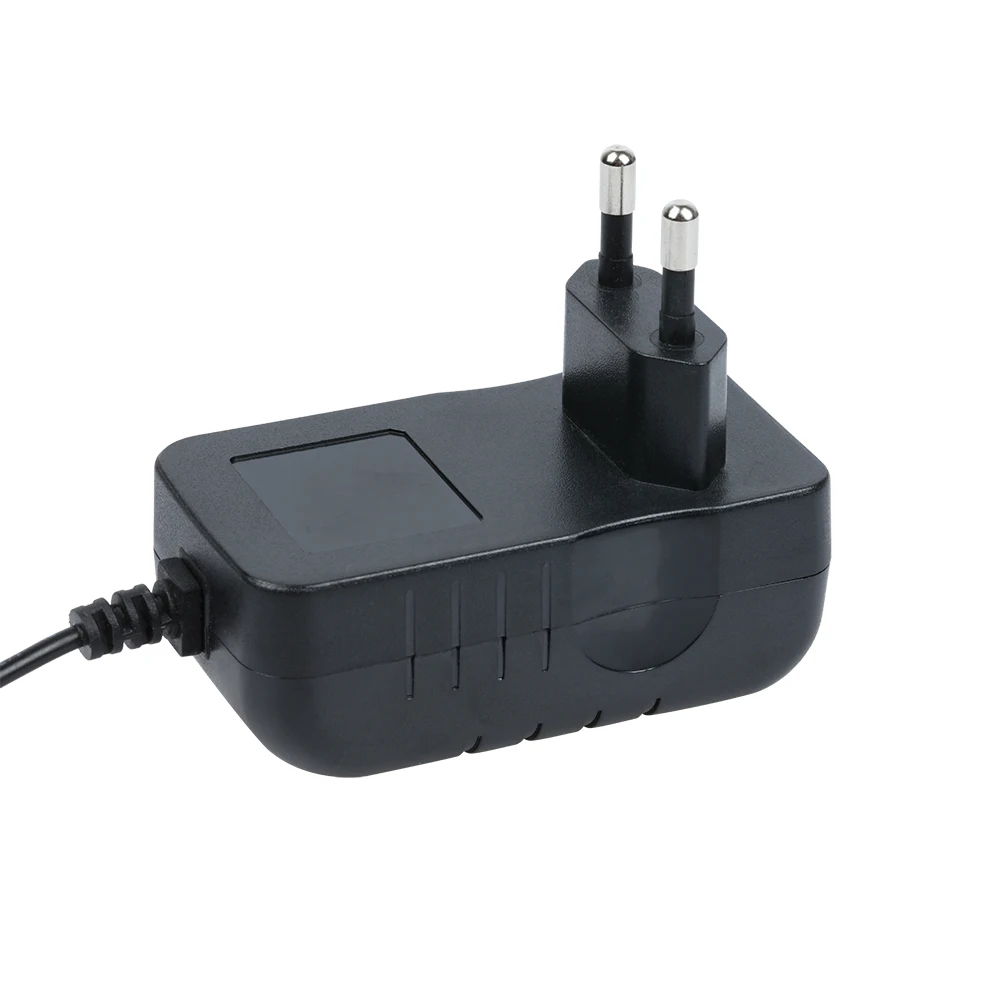

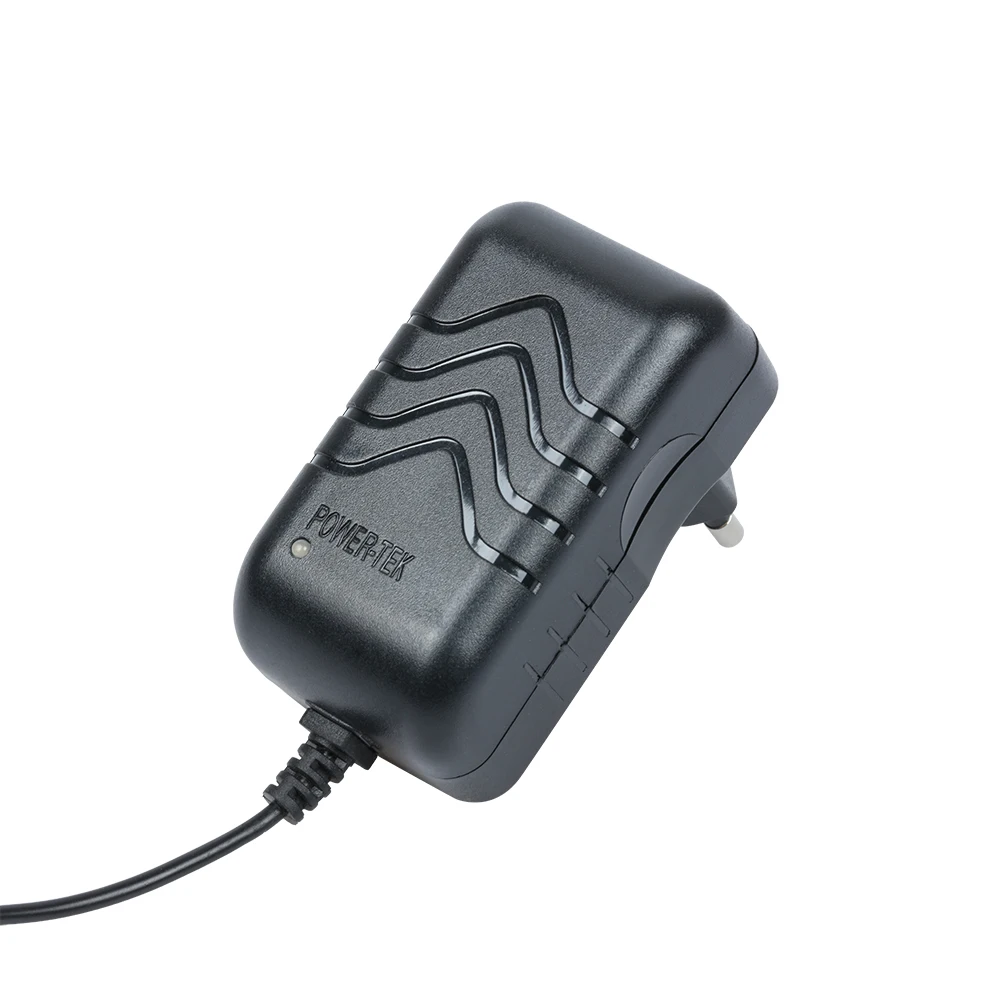

12V1500mA POWER-TEK POWER ADAPTER 18W Wall Mount  with UL/FCC , CE, PSE,KC,KCC Certificates.





Products Name	12V1.5A POWER ADAPTOR
Input Voltage	96-264V AC 50/60Hz 0.8 A
Output Voltage /Current	12VDC 1500mA
Total Output Power	18W(Max)

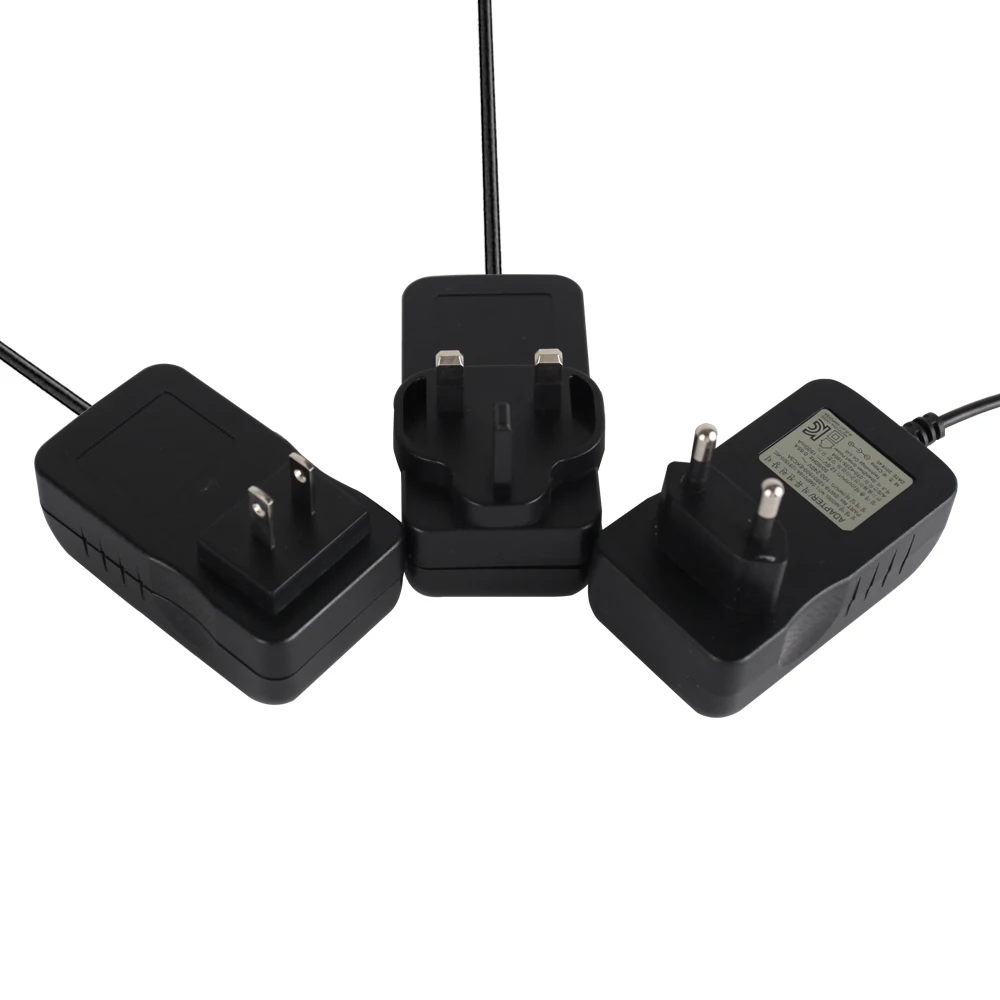

Input Inlet	CE UL/Fcc PSE KC KCC UK
O/P DC Cord Length	1.2M, 1.5M, 1.8M, 2.5M,3.0M, etc.

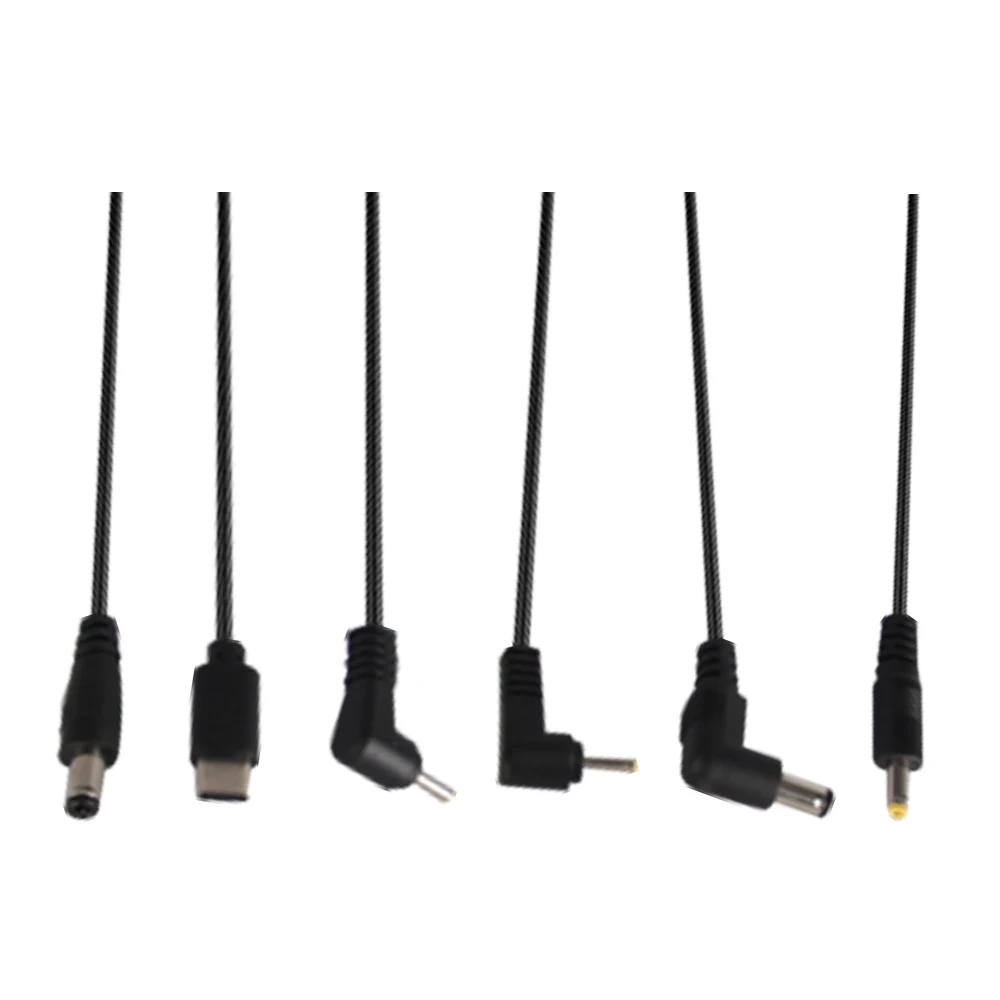

DC Connector	5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm, 3.5*1.0mm,         4.0*1.7mm, 2.5*0.7mm ,etc.
Dimension / Net Weight	L60.0X W38.0xH26.0mm ; 80g/pc
Safety Approvals	UL/FCC, CE, PSE, KC,KCC  Certificate, Level 6
MTBF	50,000 hours
Ripple and noise	<80mV
Operating temperature	-10 to 45°C
Storage temperature	-20 to 80°C
Humidity	5% to 95% RH (rockwell hardness)



POWER	MODEL	INPUT	OUTPUT		AC
			Voltage	Current	Input Inlet
15W Series	SW24-XXXXYYYY-Z	96-264V/AC 1.0A	5-24Vdc	1.0-3.0A	CE+UL+KC+PSE+UK
	SW24-05003000-X		5V	3.0A
	SW24-09002000-X		9V	2.0A
	SW24-12001500-X		12V	1.5A
	SW24-24001000-KC		24V	1.0A





FAQ:

Q1: What is the warranty for your product?

A1: We guaranteed for 2 years, any quality problem happened in this period of time for our reason, we will send the replacement parts in next order.


Q2: How soon can I get samples for test to check quality?

A2: We can provide 1-3pcs free samples. The lead time for our regular products is 2-3 days. For customized products need 5-7 days. We will also customized nice product to meet your requirement.

Q3: Can you accept OEM&ODM service business?

A3: Yes, we can. Our month supply ability is 600000pcs. Our R&D team can customize the special product as your needs. You can visit our website to learn more about our excellent R&D team, and you will believe you can get satisfied product.


Q4: Do you accept small quantity orders?

A4: Yes, we accept. But no doubt that the more the amount of you order, you will get more discounts if you have a regular monthly order volume, we also would like to give you the appropriate discount.



Packing Way

1. PE bag+ Small white box + Carton

2. PE bag+ Honeycomb cardboard + Carton

3. We accept custom design retail packing box, customer need to provide file in AI format.

4. All outer cartons we use a standard exporting high quality carton.
