LR Certified T11 T14 Chemical ISO Liquid Storage Special Tank Container on Sale
Product Description
Chemicals tank container is widely used in chemicals industry for chemicals transportation on the road/ rail/ ship and storage.
Product Dimension
TYPE
20 ISO frame, UN portable tank
Vessel design code
ASME VIII Div 1& IMDG etc.
Shell material
Stainless steel 316L, SANS 50028-7 WNr 1.4402/1.4404
Frame material
GB/T 1591-Q345D
Frame dimensions
Nominal capacity
31,000L 33,000L 35,000L
Tare weight (approx)
Working pressure
4.0bar
Test pressure
6.0bar
Design temperature
-40 to 130C
Approvals
Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT
Manlid
500mm, 8-point fastening manlid, low profile with TIR provision
Airline valve
1.5 BSP air inlet with 1 1/2BSP connection, fitted with captive blank cap and chain.
Pressure relief valve
2 1/2 BSP pressure relief valve without flameproof of gauze
Set pressure: 4.4 bar
Bottom discharge
3 stainless steel foot-valve with butterfly valve and blank flange / 3 BSP cap
Top outlet
Provision only
Insulation
50mm Rockwood with G.R.P
Steam heating
8longitudinal runs of heating coils, giving a total effective heating area of 10 M2 will be fitted.
Walkway
F type walkway, Aluminum
Thermometer
1 off dual scale
Stacking
10 high stacking, rated to 24000 kg per tank

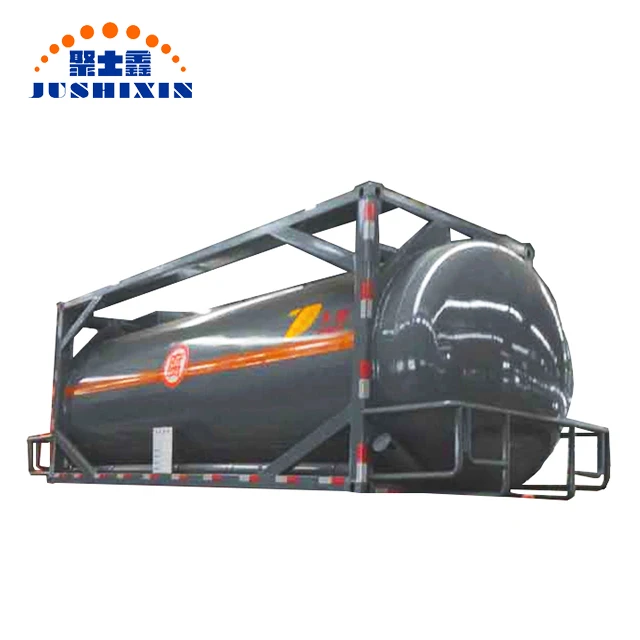

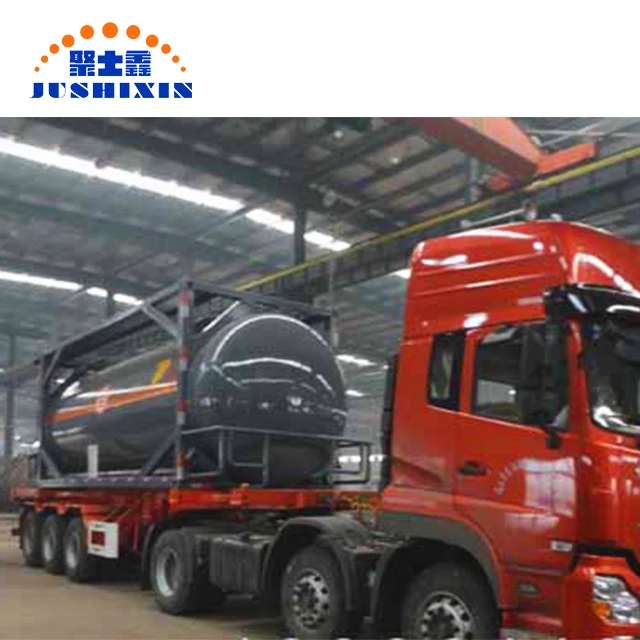

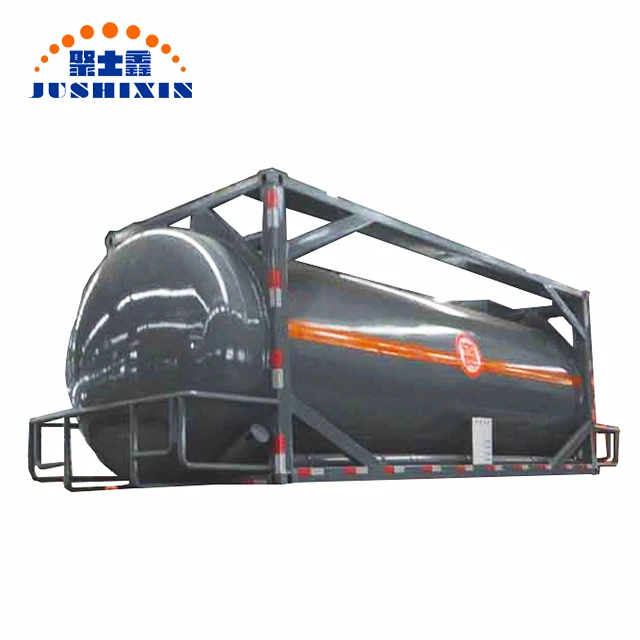

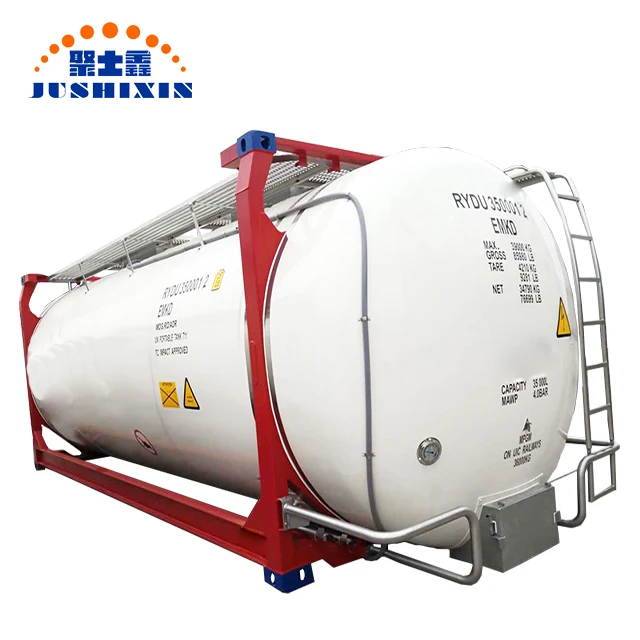

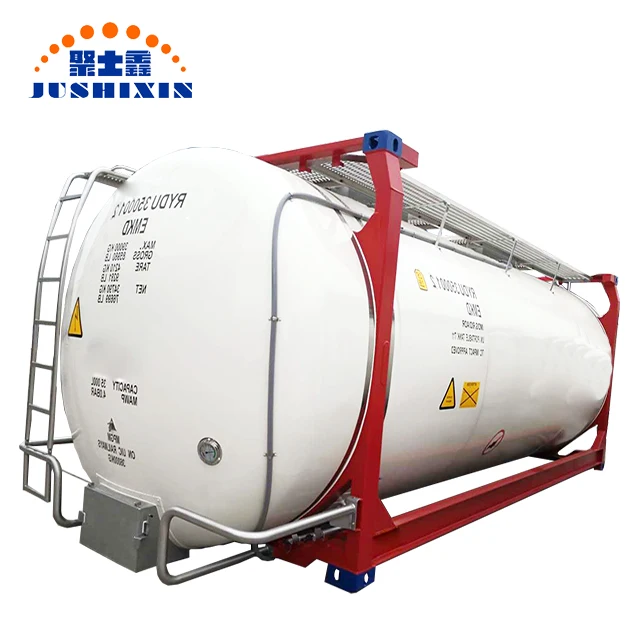

Detailed Images
The materials for the tank could becarbon steel,stainless steel,aluminum,PE lined steel, andpure PE, thermal insulated tank, etc. The majority of tank are with steam or electric heating device, inert gas protection device.

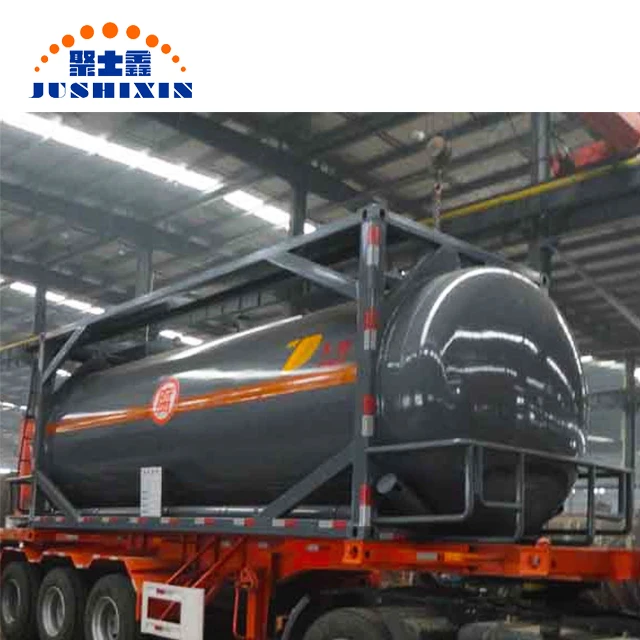

Factory Workshop
The following are the producing procedures of iso tank container in factory workshop.
Our Services
We can provide you with a complete set of service from quota, design, manufacture and installation, according to your requirements we can design by your plan, or manufacture by your drawing, guarantees inner quality and safety, good looking appearance and function by introducing international advanced large-sized equipment of pulse plasma arc welder and auto polishing machines and cooperating with international famous finished equipment making company. More detailed information will available on your requirement.
Company Information
Henan Jushixin Transportation Equipment Co.Ltd is the professional manufacturer of ISO tank container,such as standard liquid tank container, electrical heating tank container, reefer tank container, food grade tank container, baffle tank container, swap tank container, gas tank container, H2O2 tank container, AHF tank container, bitumen tank container, different types of lining tank container, etc, and 10ft tank container, offshore tank container, IBC/SBC ,etc, with high standard machinery and automatic equipment, powerful R&D team and elite sales team, we have built a long business relationship with many world famous enterprises.pls contact us if any interset.
Related Products
The following are some pictures of related productions of iso tank container provided by our company.
