Хорошее качество 0-60 в тестер батареи JK5530 заряда и разряда
- Категория: Battery Testers >>>
- Поставщик: Changzhou,Jinailian,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 869.94 $* | 912.55 $* |
| Aug-18-2025 | 861.43 $* | 904.62 $* |
| Jul-18-2025 | 723.96 $* | 759.71 $* |
| Jun-18-2025 | 847.55 $* | 889.22 $* |
| May-18-2025 | 737.15 $* | 774.15 $* |
| Apr-18-2025 | 832.19 $* | 874.14 $* |
| Mar-18-2025 | 825.54 $* | 866.8 $* |
| Feb-18-2025 | 818.26 $* | 859.79 $* |
| Jan-18-2025 | 810.38 $* | 851.96 $* |
Характеристики
Product Description

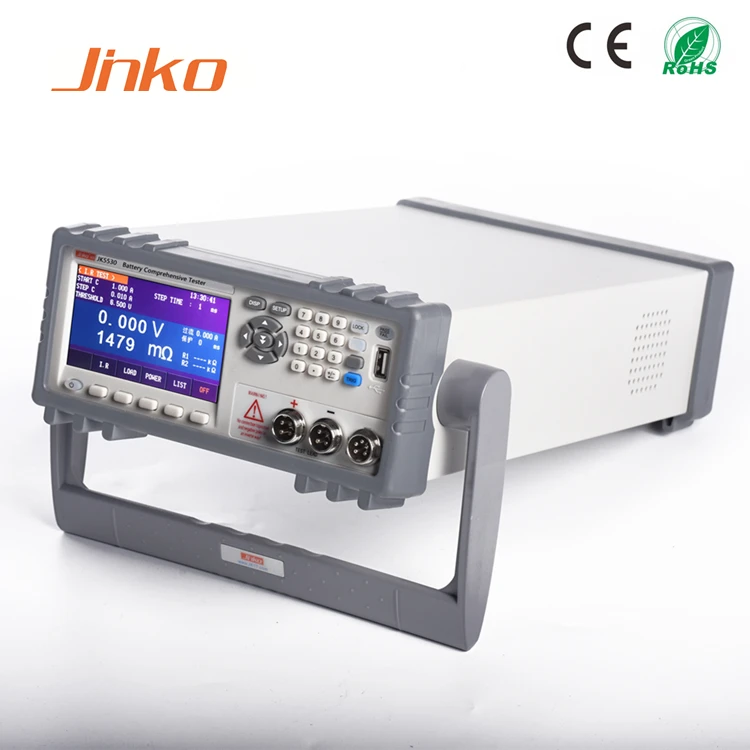

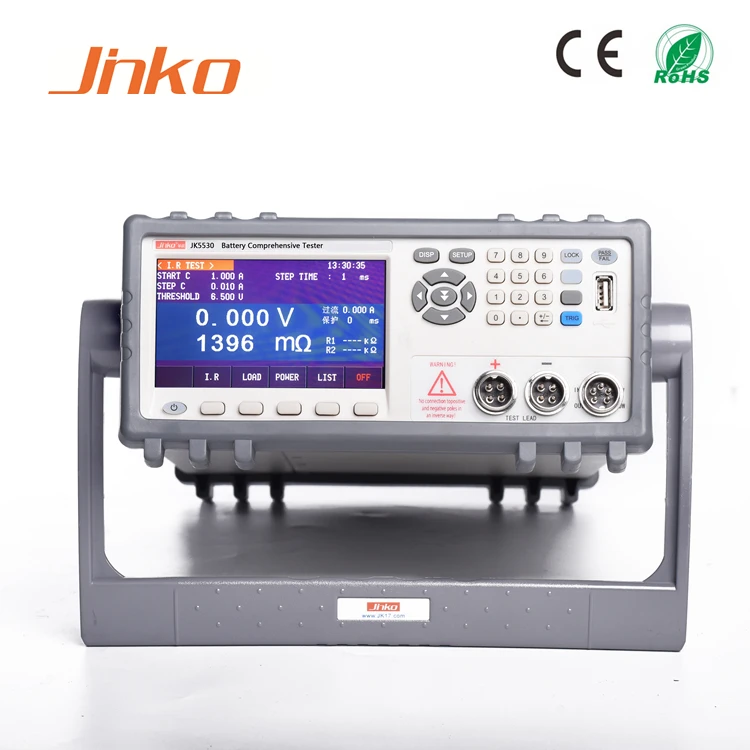

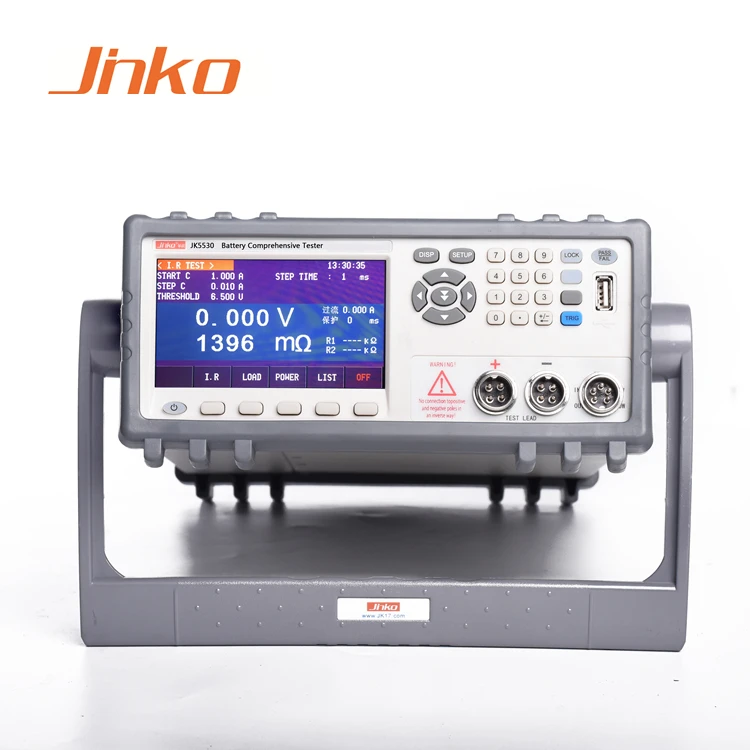

The basic functions of the JK5530 battery comprehensive tester include:
1.The static parameters of the battery are detected quickly.
1.1 Battery voltage detection (for a lithium battery that has been in a protected state, it can automatically wake up)
1.2 Battery internal resistance detection
1.3 Battery charge performance detection
1.4 Detection of battery discharge performance
1.5 Detection of battery overcurrent size (only for lithium batteries)
1.6 Detection of battery short circuit protection function (only for lithium battery)
1.7 The above can be detected in the part of the value size, and the upper and lower limits can be set to be screened quickly.
2.Battery capacity detection.
3.The battery charging function can be selected separately.
4.The battery discharge function can be selected separately.
5.The function of the numerical control current and voltage source.
6.Numerical control electronic load function.
7.Function of voltage and internal resistance meter
8.Instrument calibration function
Model | JK5530 | JK5530+ | JK5530B | |
Test range
| Voltage measurement range | 0-36V, resolution:1mV | 0-60V resolution:1mV | 0-62V resolution 1mV accuracy:±5mV |
Internal resistance measurement range | 0-1999mΩ Resolution 1mΩ | |||
Capacity measurement range | 0-99999mAH,Minimum resolution 1mAH | |||
R1 R2 resistance | 1kΩ ~ 200kΩ | |||
Accuracy | Voltage measurement accuracy | ±(result*0.1%+3mV) (voltage 0~36V) | ||
Current measurement accuracy | ±(result*0.2%+30mA)(current 0~10A) | |||
Internal resistance measurement accuracy | ±(result*1%+1mΩ) | |||
Capacity measurement accuracy | ±2% | |||
Test speed | Static test (All functions) | 1.1-2s | ||
Capacity test | Determine the capacity test time according to the battery capacity and discharge power | |||
Internal CNC | Maximum output voltage(Constant voltage + constant current) | 20V | 60V | |
Voltage source index | Output maximum current | 5A | 10A(common) | |
Output maximum power | 80W | 200 W | ||
Ripple voltage | <20mV | <100mV | ||
Load adjustment rate | <10% | |||
Response time (time from 0 to the highest output voltage) | 1S | |||
Internal CNC electronic load index | Maximum discharge voltage | 30V | 62 V | |
Maximum discharge current | 10A(continuous) | 30A(continuous) | ||
Limit power | 80W(continuous) | 100W(continuous) | 200W(continuous) | |
Load mode | constant current | Constant voltage, constant current | ||
Interface |
| No | Yes (with host computer software) | |
Accessories |
| Test fixture for resistance, Test fixture for voltage, Temperature probe, Power cable, Data line (JK5530+,JK5530B) | ||
Size&Weight | JK5530/JK5530+ Dimension(mm):225(W)*110(H)*355(D), About 3.6kg JK5530B Dimension(mm):225(W)*110(H)*405(D), About 4.5kg | |||
Packaging & Shipping
Company Information
Changzhou Jinailian Electronic Technology Co., Ltd. , established in 2000, is a private hi-tech enterprise integrating R&D, manufacturing and marketing. After 20 years of development, Jinko has developed 30 varieties, including: LCR Digital Bridge series; capacitance and inductance measurement (sorting) series; leakage current tester series; DC low resistance tester, MOS tube tester, transistor tester, multiplex temperature tester, paperless recorder, electrical parameter measuring instrument, and other high-precision measuring instruments and testers. Other active products such as: DC stabilized voltage supply and high power switching power supply.
