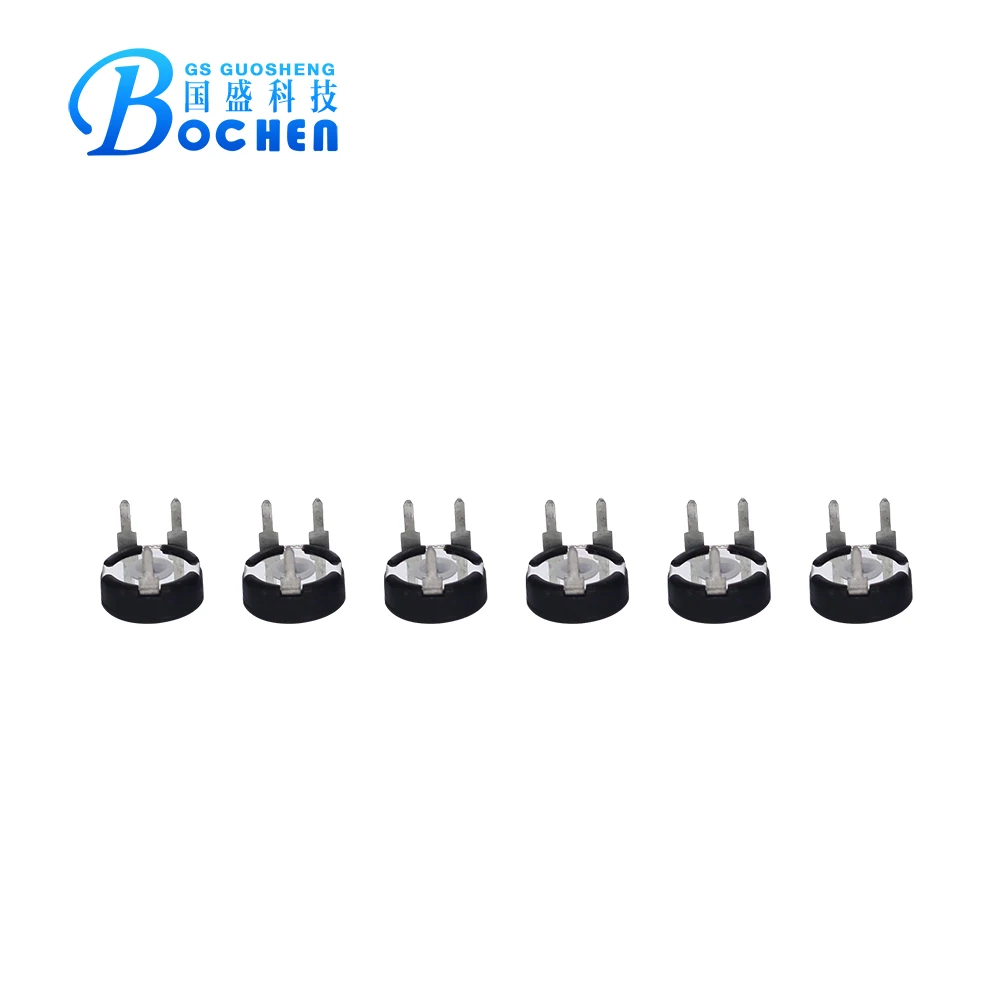

PT10 потенциометр из углеродной пленки 5K 10k 50k 100k 200k 500k
- Категория: Potentiometers >>>
- Поставщик: Chengdu,Guosheng,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.12 $* | 0.72 $* |
| Aug-18-2025 | 0.67 $* | 0.68 $* |
| Jul-18-2025 | 0.52 $* | 0.44 $* |
| Jun-18-2025 | 0.64 $* | 0.6 $* |
| May-18-2025 | 0.45 $* | 0.59 $* |
| Apr-18-2025 | 0.73 $* | 0.51 $* |
| Mar-18-2025 | 0.18 $* | 0.47 $* |
| Feb-18-2025 | 0.88 $* | 0.66 $* |
| Jan-18-2025 | 0.57 $* | 0.44 $* |
Характеристики
PT10 Carbon film potentiometer 5K,10k,50k,100k, 200k, 500k spain potentiometer

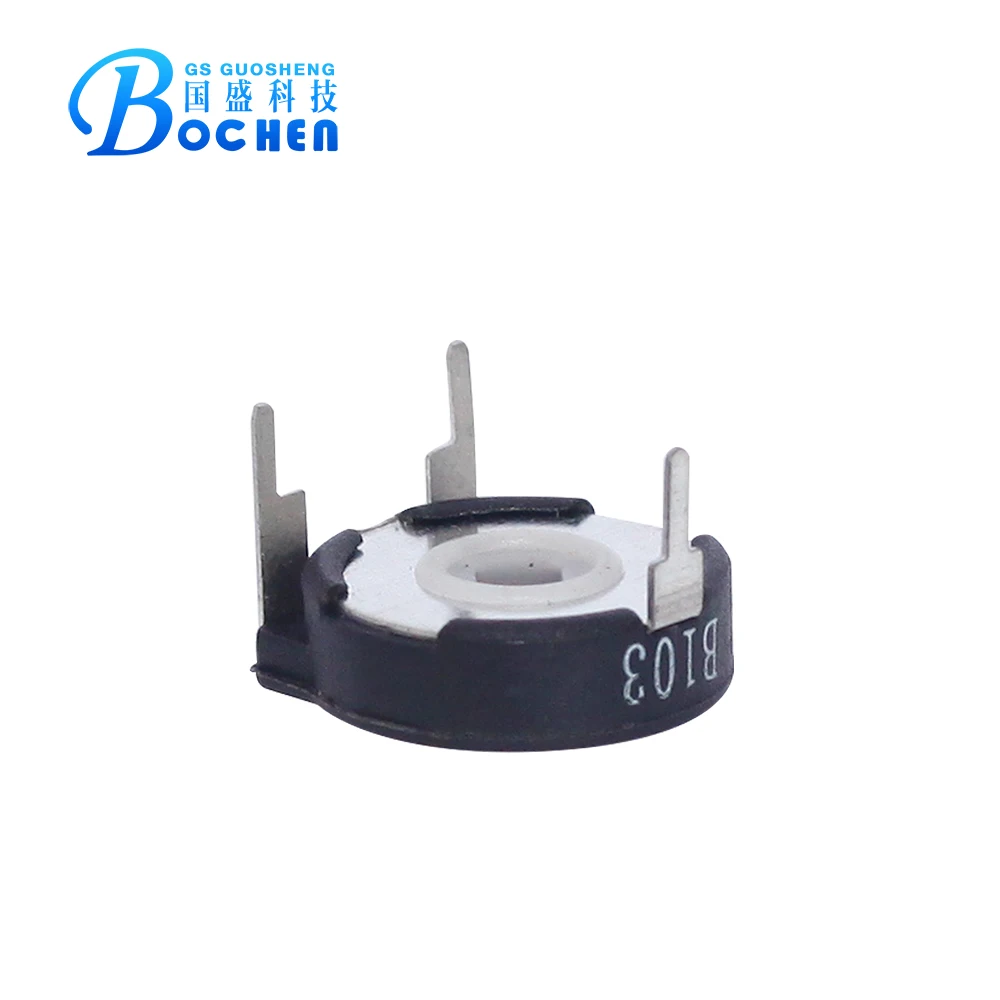

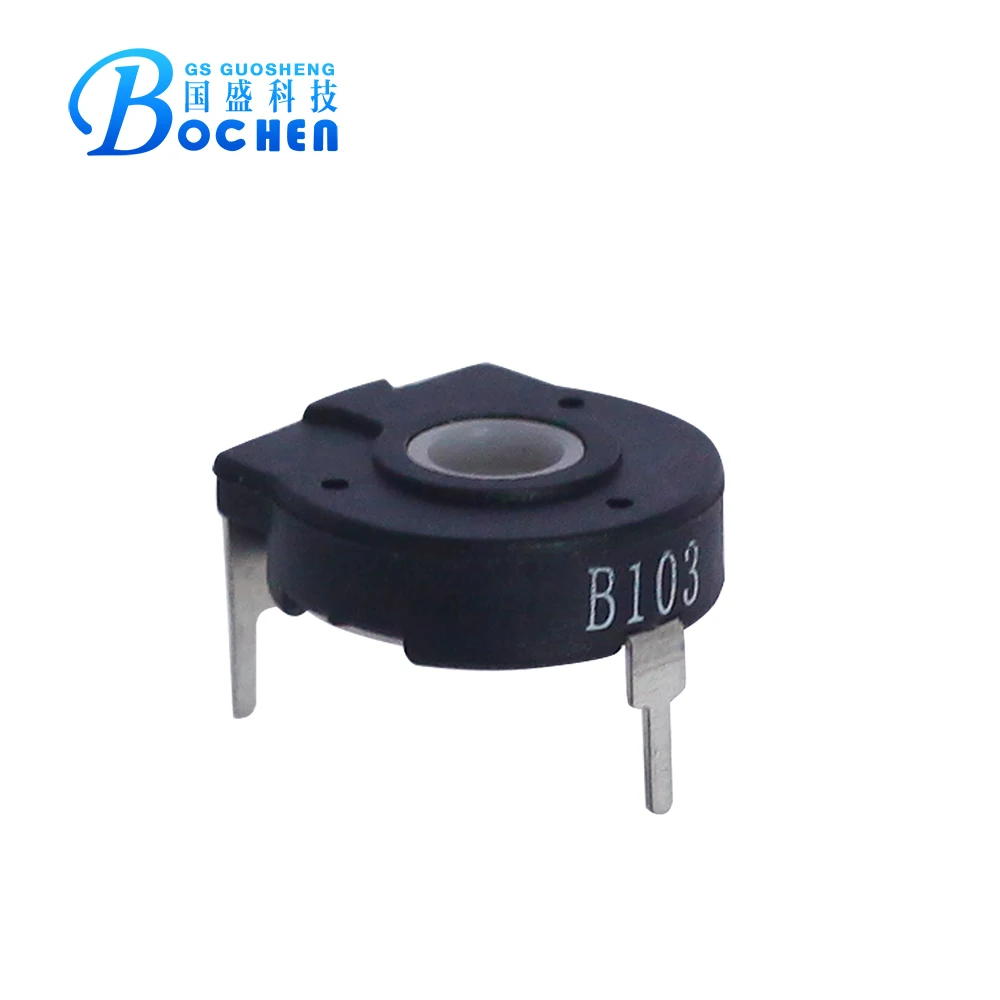

PT10 Potentiometer
| Resistance Range | 100ohm~2.2Mohm |
| Resistance taper | B (linear) |
| Total Resistance tolerance | R<1M ohm ±20% R≥1M ohm ±30% |
| Rated power | 0.15W(50℃) |
| Residual resistance | 20ohm Max |
| rotation of noise | ≤47mV |
| Electrical Rotation angle | 220°±20° |
| Max operating voltage | 200V DC |
| Total rotation angle | 235°±5° |
| Rotation torque | 40-200gf.cm |
| Stop torque | 5kgf.cm |
| Push Pull strength | ≥10N |
Shape Dimension:
Products Catalogues:
