Характеристики
FB0745 0.7X to 4.5X zoom C mount monocular optical microscope lens
Product Description
1. Parallel light path optical system,zoom body magnification 0.7X~4.5X,ratio 1:6.4
2. Whole parfocal,lighting uniformity ,high resolution
3. Support a variety of professional light source
4. CCD Adapter(Optinal): 0.3X,0.5X,0.75X,1.5X,2X,3X
5. Auxiliary objectives(Optinal):0.3X,0.5X ,0.6X,1.5X,2X
6. High magnification infinity PL achromatic objective :5X,10X ,20X,40X,60X,80X,100X
7. High magnification infinity PL apochromatic objective:5X,10X ,20X,50X
8. Standard configuration: B45 zoom body + 1X objective + 1X CCD Adapter
●0.7-4.5X zoom,1XCCD adapter and 1X objective
●1:6.4 big ratio●standard working distance is 86mm
●Can choose Auxiliary Objective 0.3X,0.5X ,0.6X,1.5X,2X
●Standard C mount.CS mount optional
● Equipped with fine-tuning handwheel , which can be adjusted to focus.no need adjust working distance again after focus well again●Can choose 0.3X.0.5X,1.5X.2.0X,3.0X CCD adapter optional
Product Pictures

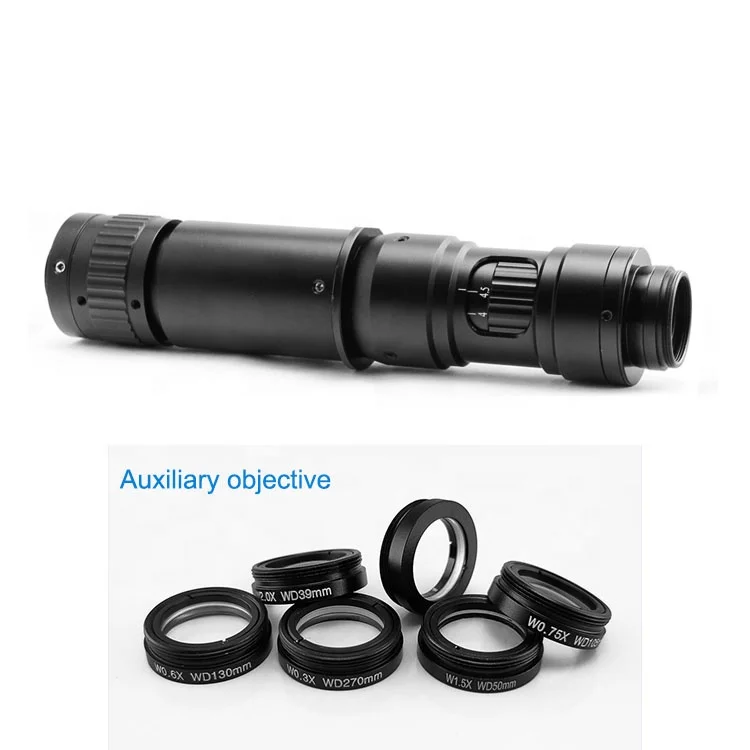

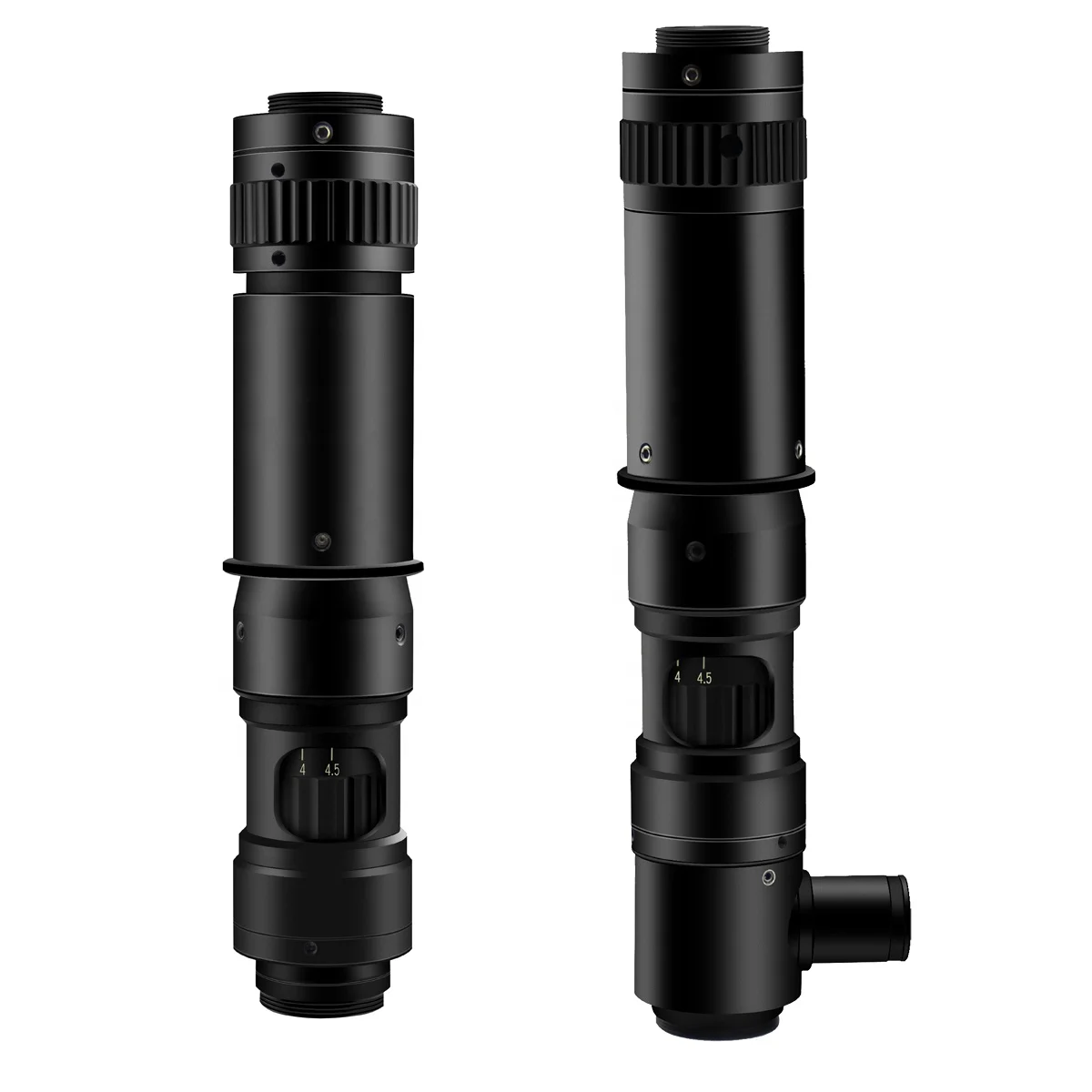

FB0745 Zoom lens

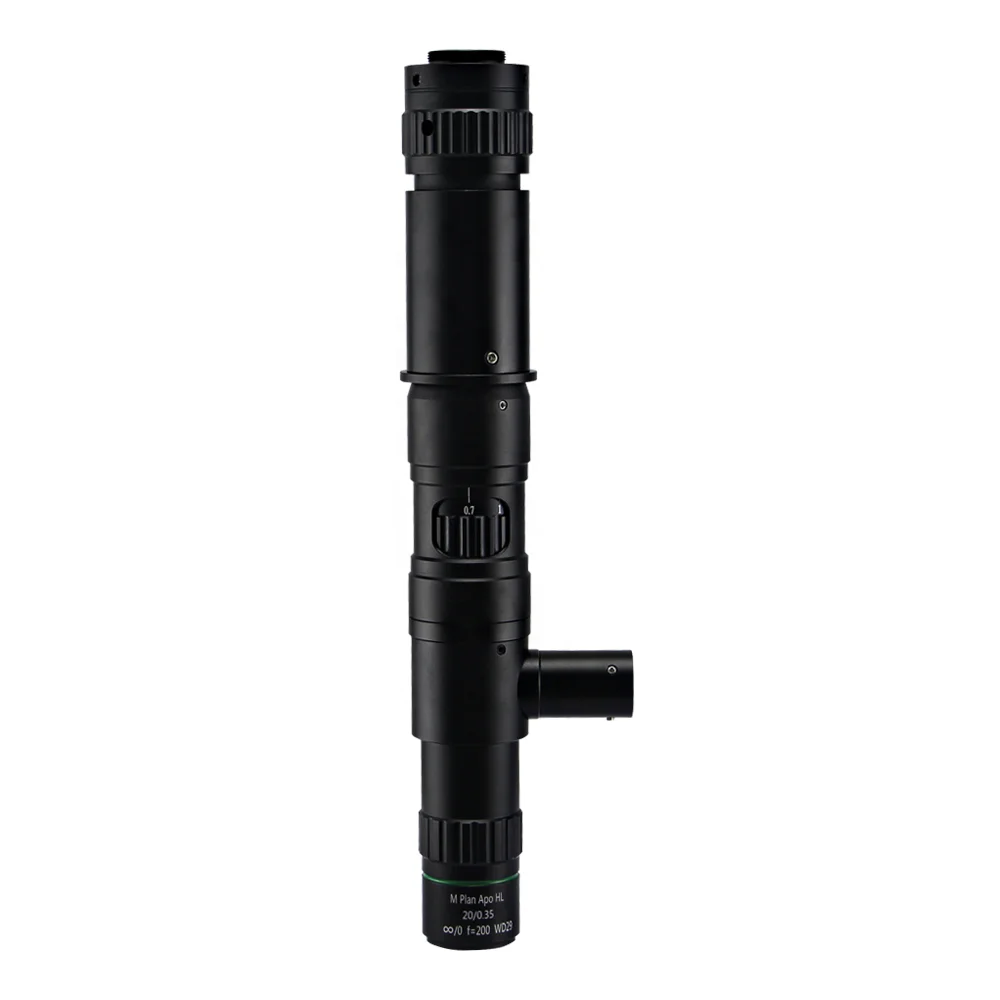

FB0750C zoom lens with coaxial light

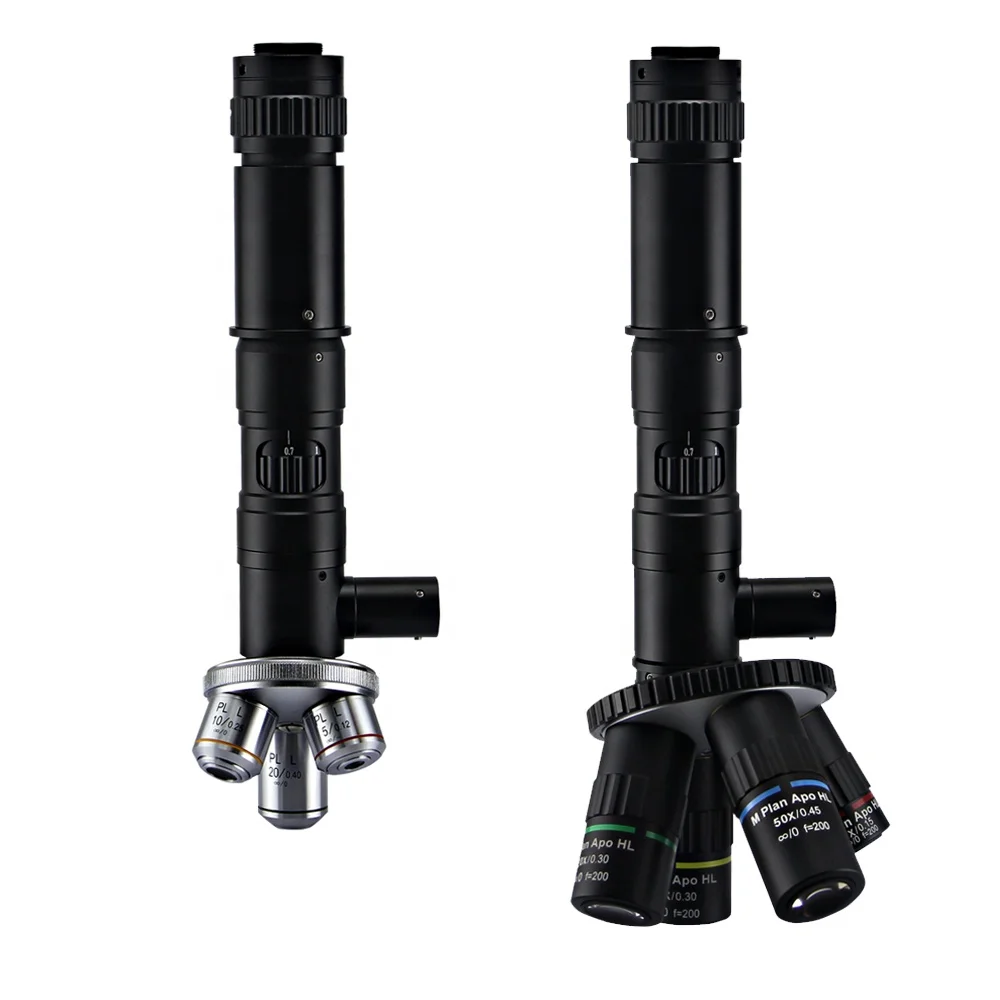

FB0745CP3 coaxial zoom lens with 3 holes nosepiece
FB0650CP4 coaxial zoom lens with 4 holes nosepiece

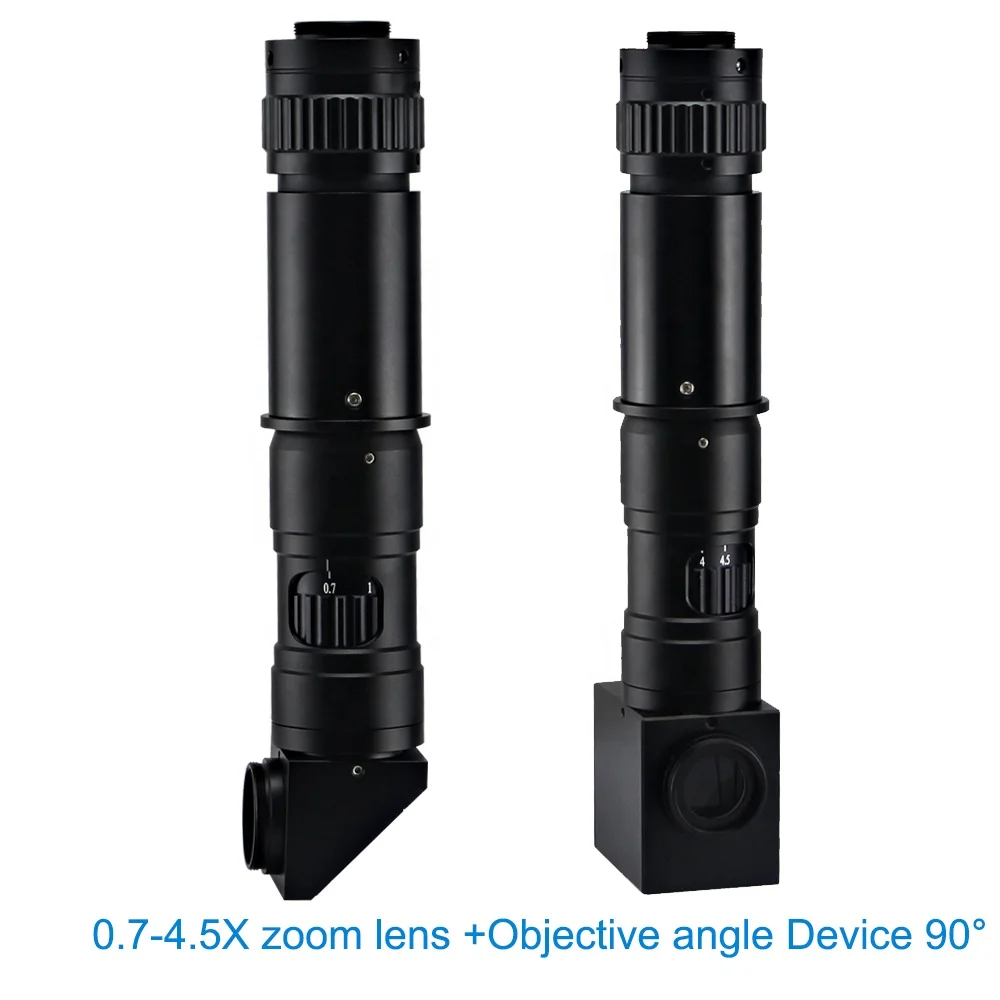

FB0745O90 zoom lens with Objective angle Device 90°（Reverted image）
FB0745O180 zoom lens with Objective angle Device 90°
（ erect image）
Drawing Size
FB0745
FB0745C
Optical Parameter
Mount Objective | 0.3X | 0.45X | 0.5X | 0.67X | 1X standard | 1.5X | 2.0X | 3X | ||
standard1.0X WD: 86mm | Total Mag. | 0.21x- 1.35x | 0.3-2.0X | 0.35x- 2.25x | 0.5x-3.3x | 0.7x-4.5x | 1x-6.7x | 1.4x-9.0x | 2.1x-13.5x | |
FOV (mm) | 22X17- 3.5X2.6 | 16X12- 2.4X1.8 | 13X10- 2X1.6 | 9.6X7.2- 1.4X1 | 6.8X5- 1X0.8 | 4.8X3.6- 0.7X0.5 | 3.4X2.5- 0.5X0.4 | 2.2X1.7- 0.35X0.26 | ||
0.3X WD: 270mm | Total Mag. | 0.063X- 0.405 X | 0.09-0.6X | 0.1X-0.6X | 0.15X-1X | 0.21X- 1.35X | 0.3X-2X | 0.42X-2.X | 0.63X-4X | |
FOV (mm) | 80x60- 12X9 | 53.3X40- 8X6 | 48X36- 7X5.3 | 32X24- 4.8X3.6 | 22X17- 3.5X2.6 | 16X12- 2.4X1.3 | 11X8.5- 1.7X1.3 | 7.6X5.7- 1.2X0.9 | ||
0.4X WD: 195mm | Total Mag. | 0.08-0.5X | 0.12-0.8X | 0.14-0.9X | 0.18-1.2X | 0.28-1.8X | 0.42-2.7X | 0.56-3.6X | 0.84-5.4X | |
FOV (mm) | 60X45- 8.8X6.6 | 40X30- 5.9X4.4 | 34.2X25- 5.3X4 | 26.6X20- 4X3 | 17.1X12.8- 2.6X2 | 11.4X8.6- 1.8X1.3 | 8.6X6.4- 1.3X1 | 5.7X4.3- 0.9X0.7 | ||
0.5X WD: 160mm | Total Mag. | 0.1X-0.6X | 0.16-1.0X | 0.17X-1.X | 0.26X- 1.68X | 0.35X- 2.25X | 0.52X-3.X | 0.7X-4.5X | 1X-6.7X | |
FOV (mm) | 48X36- 7X5.3 | 30X22.5- 4.8X3.6 | 28X21- 4.3X3.2 | 18X13.8- 2.8X2 | 13X10- 2X1.6 | 9X6.9- 1.4X1 | 6.8X5- 1X0.8 | 4.8X3.6- 0.7X0.5 | ||
0.6X WD: 130mm | Total Mag. | 0.12X-0.81X | 0.19-1.2X | 0.21X- 1.35X | 0.3X-2X | 0.42X-2.X | 0.63X-4X | 0.8X-5.4X | 1.26X-8X | |
FOV (mm) | 40X30- 6 X4.5 | 25.3X18- 4X3 | 22X17- 3.5X2.6 | 16X12- 2.4X1.3 | 11X8.5- 1.7X1.3 | 7.6X5.7- 1.2X0.9 | 6X4.5- 0.8X0.6 | 3.8X2.8- 0.6X0.4 | ||
1.5X WD: 50mm | Total Mag. | 0.3X-2X | 0.5-3.0X | 0.52X-3.X | 0.78X-5X | 1X-6.7X | 1.6X-10X | 0.21X- 1.35X | 3X-20X | |
FOV (mm) | 16X12- 2.4X1.3 | 9.6X7.2- 1.6X1.2 | 9X6.9- 1.4X1 | 6X4.6- 0.96X0.7 | 4.8X3.6- 0.7X0.5 | 3X2.2- 0.48X0.36 | 22X17- 3.5X2.6 | 1.6X1.2- 0.24X0.18 | ||
2.0X WD:39 mm | Total Mag. | 0.42X-2.X | 0.63-4.0X | 0.7X-4.5X | 1X-6.7X | 1.4X-9.0X | 0.21X- 1.35X | 2.8X-18X | 4.2X-27X | |
FOV (mm) | 11X8.5- 1.7X1.3 | 7.6X5.7- 1.2X0.9 | 6.8X5- 1X0.8 | 4.8X3.6- 0.7X0.5 | 3.4X2.5- 0.5X0.4 | 22X17- 3.5X2.6 | 1.7X1.2- 0.26X0.2 | 1.1X0.8- 0.17X0.13 | ||
Optional Accessory

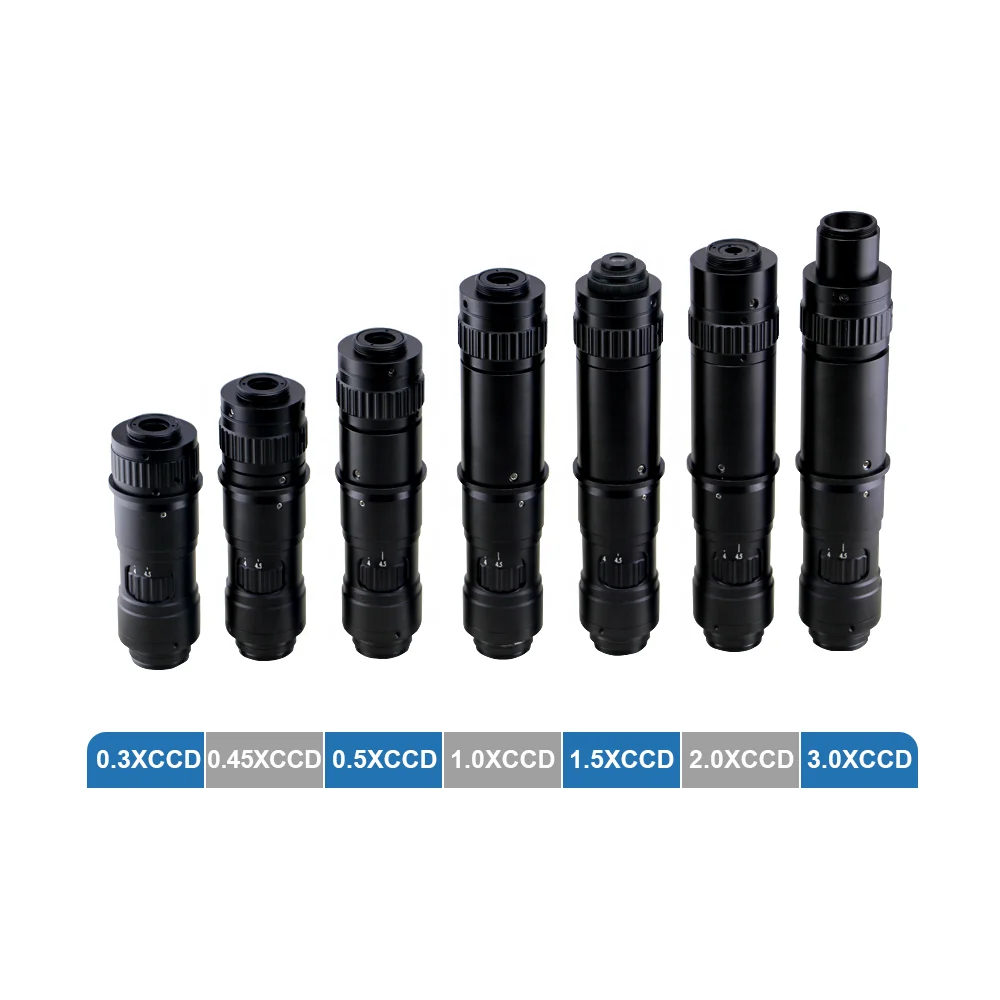

CCD Adapter | ||
C4503 | 0.3X CCD adapter | |
C45045 | 0.45X CCD adapter | |
C4505 | 0.5X CCD adapter | |
C45075 | 0.75X CCD adapter | |
C4515 | 1.5X CCD adapter | |
C4520 | 2.0X CCD adapter | |
C4530 | 3.0X CCD adapter | |
CCD adapter with iris | |||
C4505R | 0.5X C mount | Standard C-mount with iris | |
C4510R | 1.0X C mount | Standard C-mount with iris | |
Auxiliary Objective | ||
AW4503 | 0.3X .Working distance is 270mm | |
AW6504 | 0.4X .Working distance is 195mm | |
AW4505 | 0.5X.Working distance is 160mm | |
AW4506 | 0.6X.Working distance is 130mm | |
AW4515 | 1.5X .Working distance is 50mm | |
AW4520 | 2.0X .Working distance is 39mm | |
LC6511 11mm coaxial device
LC6511P 11mm coaxial device with polarizer
L6511 11mm 3W LED point light for coaxial device
Objective angle Device 90°
Reverted image
Objective angle Device 90°
Erect image
Adjustable auxiliary objective
5W LED ring light
5W Polarized LED ring light
Packing and Shipping
Packing size | FB0745(30*13*6CM) FB0745C(33*21*7cm) |
Gross weight | 1.5KG |
Packing style | polyfoam protection and strong carton |
Delivery time | Sample order within 5 days |
