Блок питания APFC 100-240VAC EPS 12V VER 2 92 500W/600W/700W/800W/900W для ПК/настольного
- Категория: Блоки питания ПК >>>
- Поставщик: Shenzhen,Roeyuta,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.69 $* | 0.80 $* |
| Aug-19-2025 | 0.33 $* | 0.51 $* |
| Jul-19-2025 | 0.95 $* | 0.96 $* |
| Jun-19-2025 | 0.85 $* | 0.6 $* |
| May-19-2025 | 0.87 $* | 0.98 $* |
| Apr-19-2025 | 0.98 $* | 0.36 $* |
| Mar-19-2025 | 0.59 $* | 0.37 $* |
| Feb-19-2025 | 0.94 $* | 0.98 $* |
| Jan-19-2025 | 0.33 $* | 0.56 $* |
Характеристики

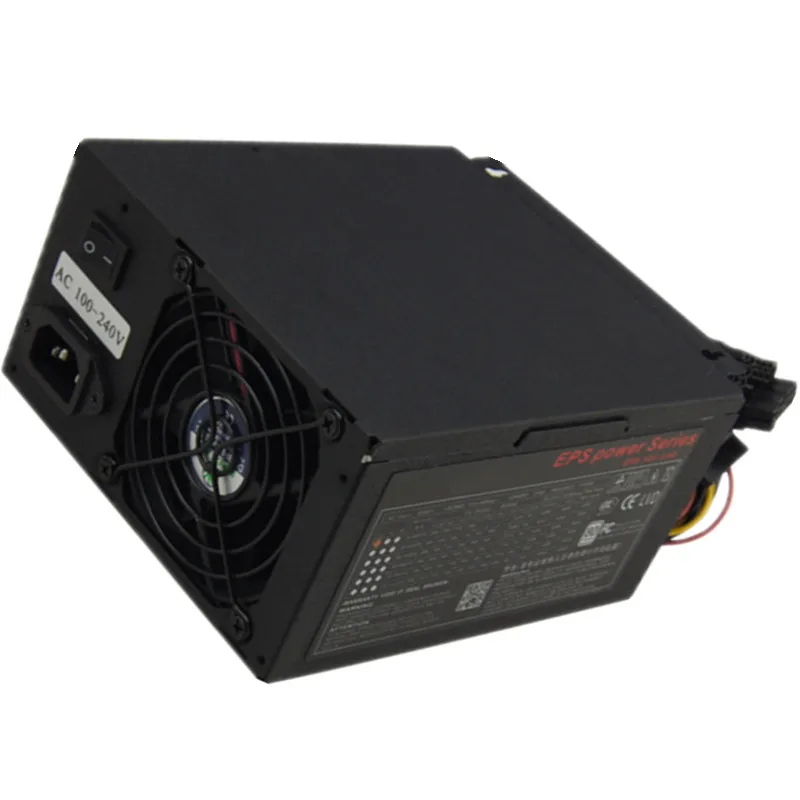

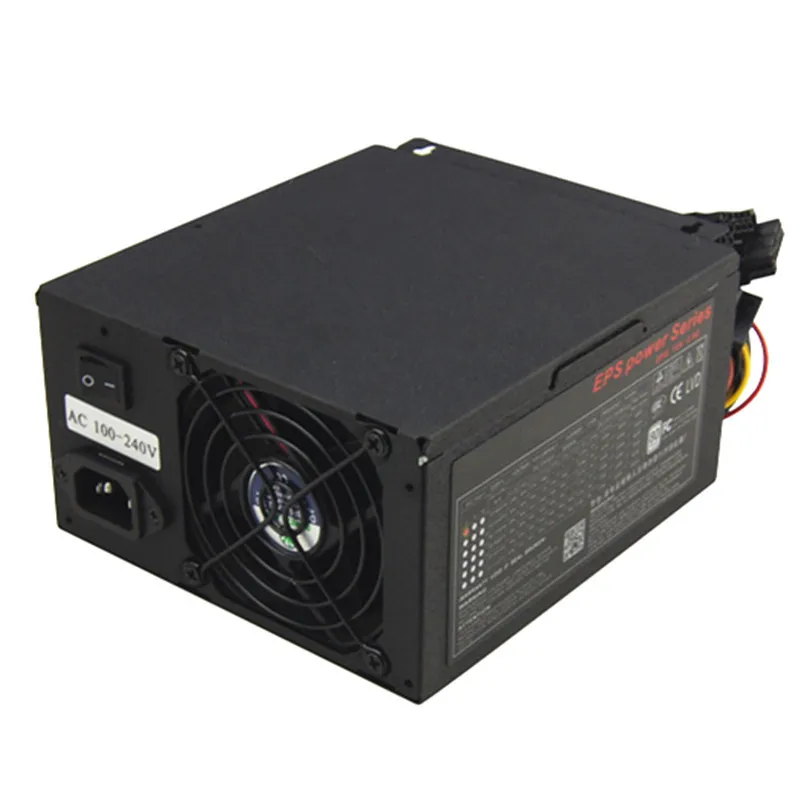

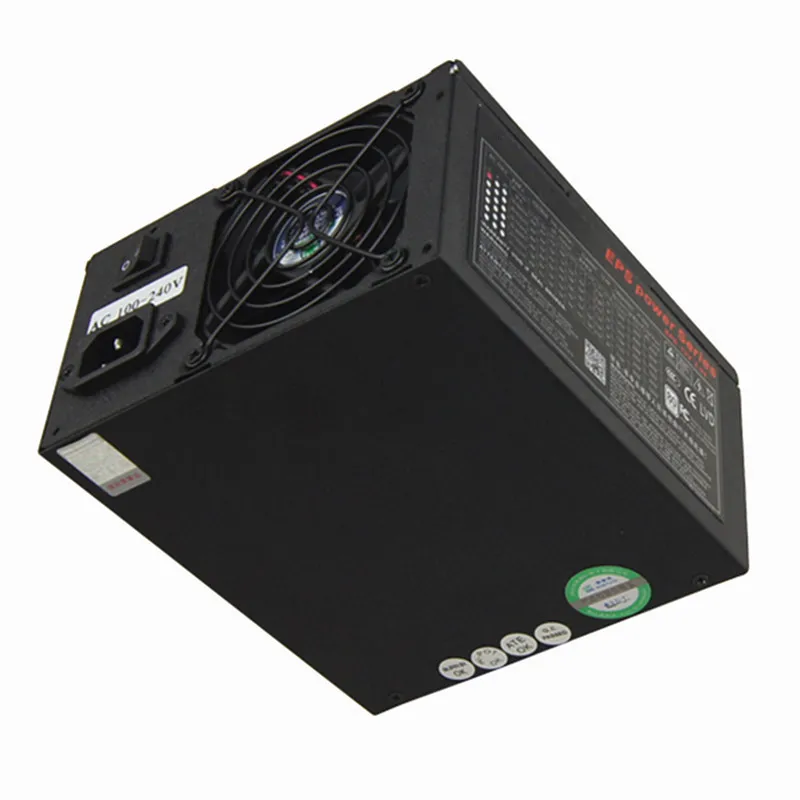

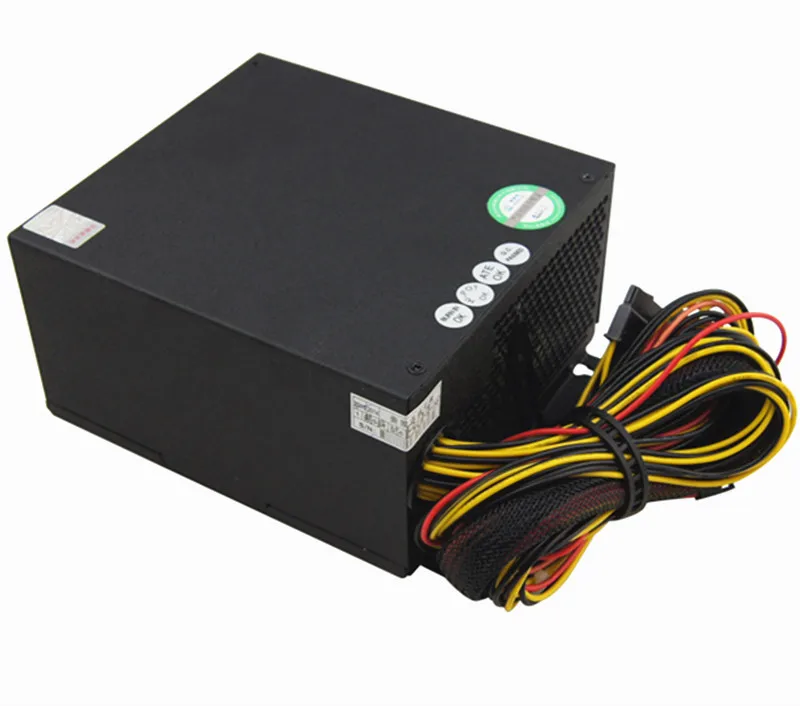

APFC 100-240VAC EPS 12V VER 2.92 500W/600W/700W/800W/900W PC/Desktop/Computer/Server Power Supply
Specification:
| Model Number: | RYT-560EPS |
| Max. Power: | 500W |
| Application: | Industrial computer ,Servers, etc. |
| Fan Type: | 8/14cm |
| Power Factor: | Active PFC |
| Input Voltage: | 100-240VAC |
| High efficiency: | 85% |
| Dimention: | 158x150x86mm |
| Carton Dimention: | 470x360x440mm |
Feature:
*Comply with EPS12V Ver2.92, Rated output power: 400W (500W Max)
* With 14 cm fan
* Build in EMI, with active PFC
* All wires with black net
* High efficiency
* Low ripple & noise
* Output over voltageprotection
* Short circuitprotection on all outputs
* 100% Hi-pot tested
* 100% burn-in underhigh ambient temperature(45°C)
* Life Cycle:100K hours

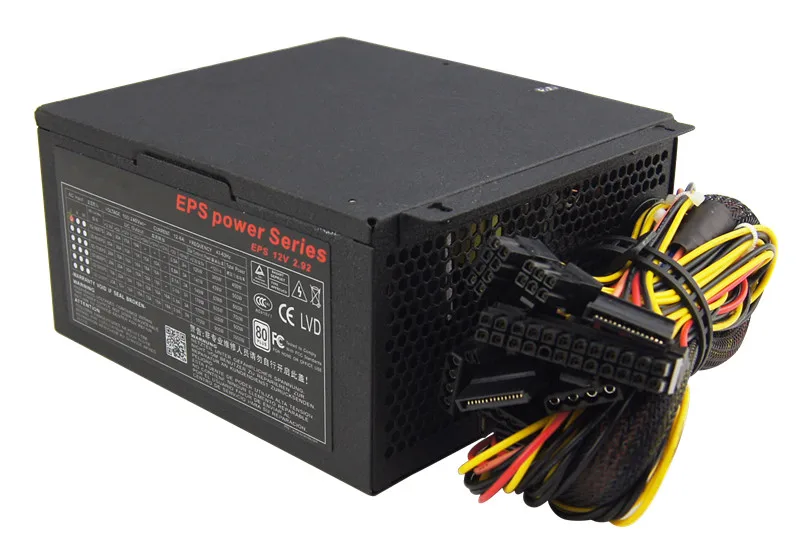

* Connectors: 20+4Pin for M/B,4+4pin for 12VCPU,6+2pin for 12VCPU,SATA*3,4Pin for HDD*3
Parameter:
| AC Input: 100-240V, 8-4A,47-63Hz | |||||||
| DC Output: | +3.3V | +5V | +12V1 | +12V2 | -12V | +5VSB | -5V |
| 28A | 30A | 17A | 19A | 0.5A | 3A | -A | |
| Output Power: MAX Power: 560W, Rated Power: 400w | |||||||
PFC type:Active
Protection function: OVP, OPP, SCP
Cooling system: SPEED: 2200RMP(+/-10%)
TEMP.AUTO ONTROL: 800rpm at 41.7cfm~2200rpm at 95.5cfm
Fan: 14CM
Noise: 22dB at 1800rpm
P.G signal: 100-500ms
Keep time: 17ms(min)
Conversion efficiency:85%
MTBF:100000 hours
Working temperature:0-50℃
