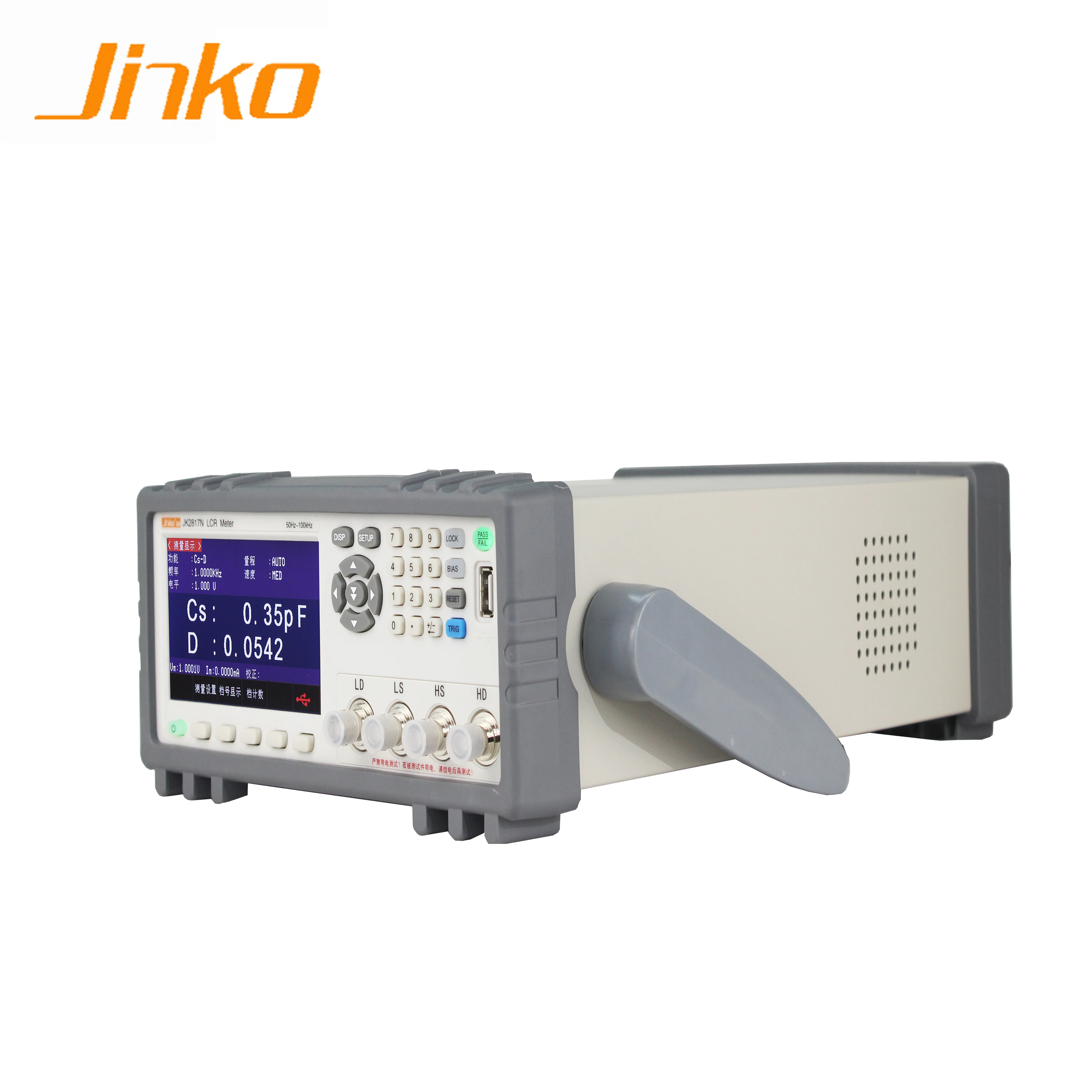

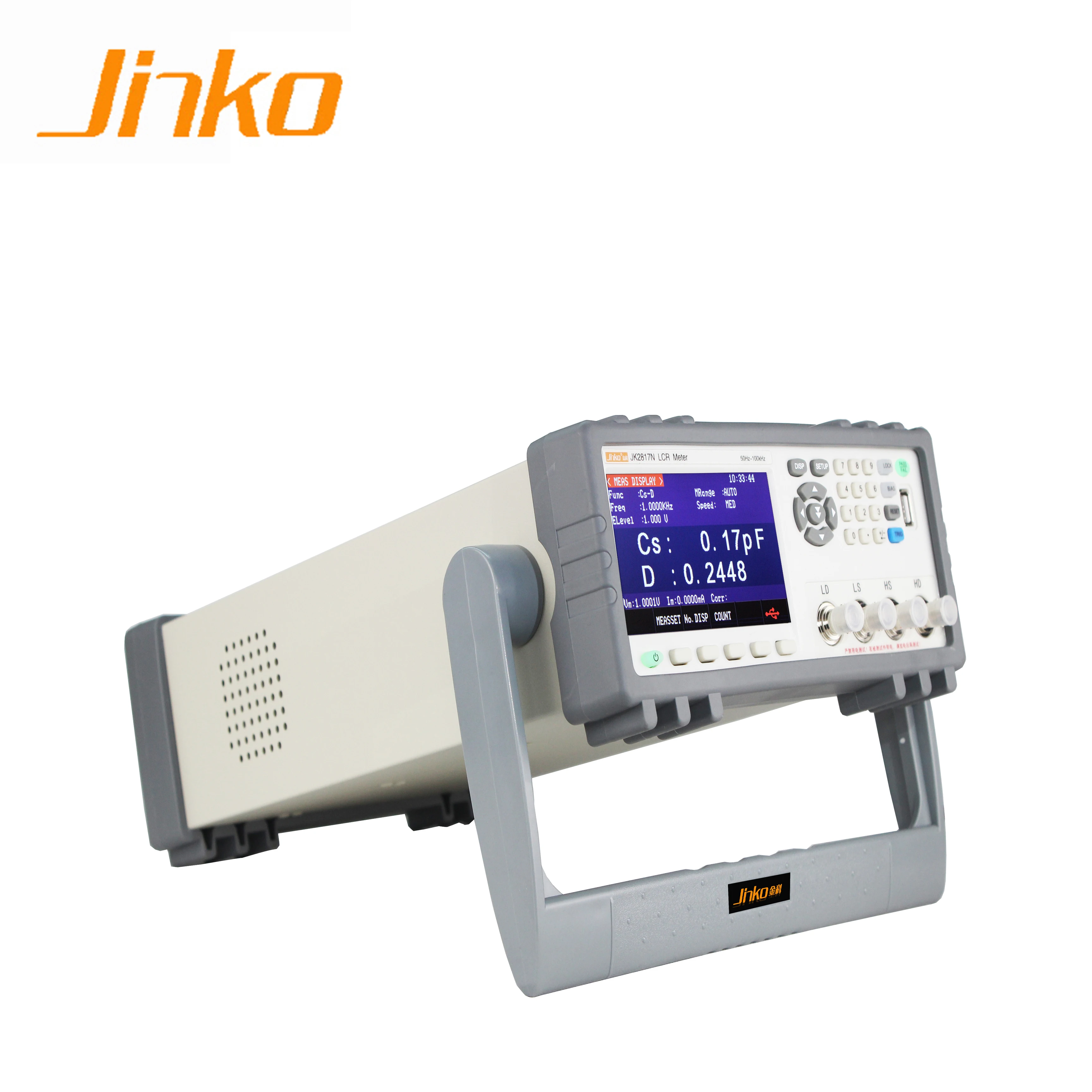

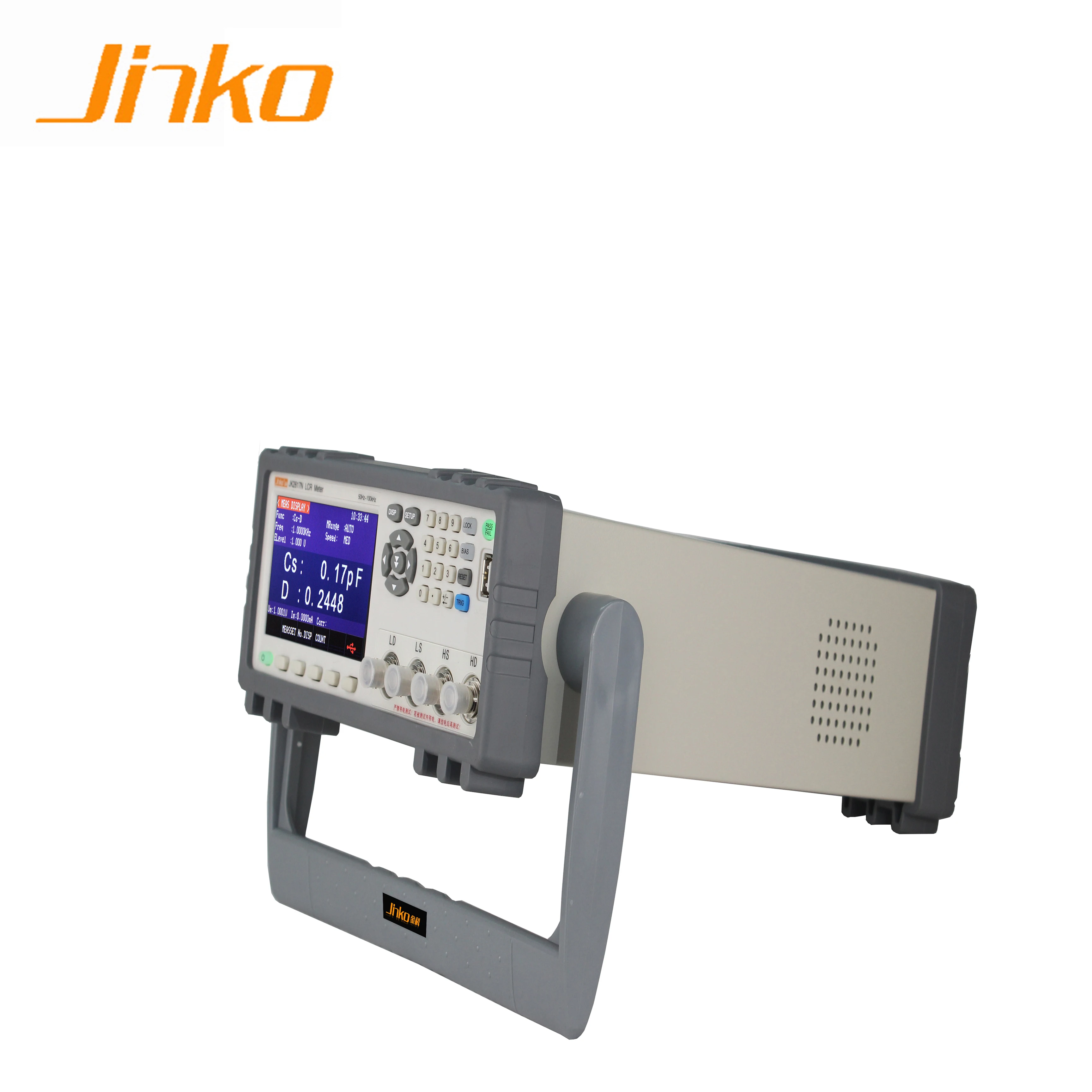

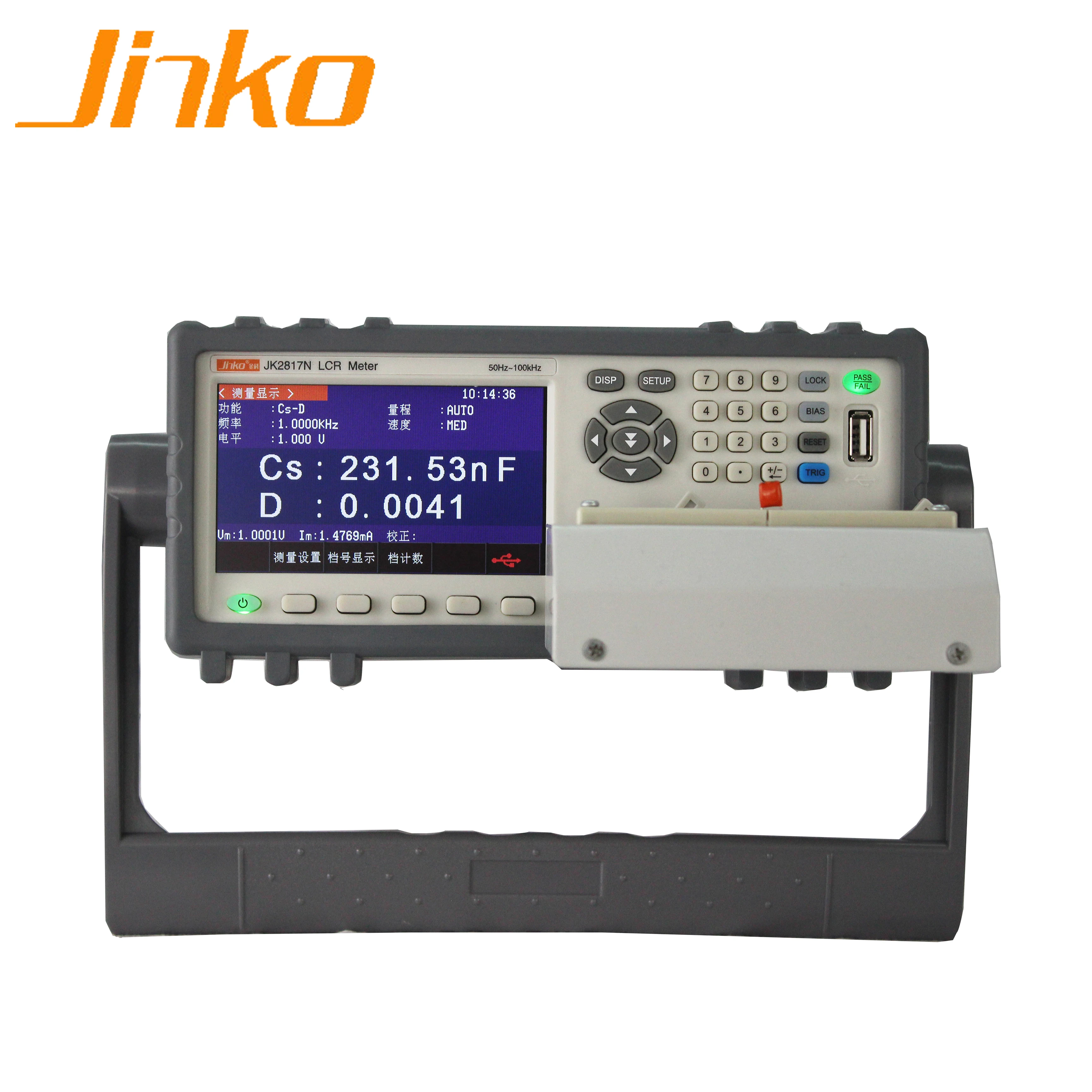

JINKO высокопроизводительный цифровой LCR измеритель JK2817N lcr мост 50 Гц-100 кГц прецизионный
- Категория: Другие электронные измерительные инструменты >>>
- Поставщик: Changzhou,Jinailian,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 438.28 $* | 447.99 $* |
| Jul-18-2025 | 355.51 $* | 362.23 $* |
| Jun-18-2025 | 431.81 $* | 440.85 $* |
| May-18-2025 | 428.22 $* | 437.94 $* |
| Apr-18-2025 | 342.65 $* | 349.26 $* |
| Mar-18-2025 | 421.71 $* | 429.53 $* |
| Feb-18-2025 | 417.67 $* | 425.18 $* |
| Jan-18-2025 | 414.65 $* | 422.61 $* |
Характеристики
Product Description
The JK2817N type general high frequency LCR digital bridge is the latest generation of component parameter testing instrument in our company.This product adopts high performance ARM microprocessor control,color 4.3 inch LCD English and Chinese display more convenient operation,is an updated product of JK2817B, and can be equipped with USB interface,The powerful test function and excellent measurement performance make the product crowded into the international advanced level, and will give customers the value of enjoyment at a low price. the product can provide stable 5 bit resolution test, The frequency range of 50Hz-100kHz, 0.1V 0.3V 1V programmable signal level, Up to 12 times / sec, the measurement speed, the 5 level range, the constant 30 ohm or 100 ohm source internal resistance and the flexible operation mode of the human body can meet the requirements of quality assurance, incoming inspection and high precision measurement for the production line.
Performance characteristics:
4.3 inch TFT LCD
50 Hz~100 kHz,A total of 34 typical test frequencies
The resolution of the 5 bit readings can reach the fastest speed of 12 times per second
30 Ω/100 ΩOptional signal source output impedance
Internal comparator, 10 gear sorting and file counting function
Voltage and current monitoring function
Support U disk file storage and upgrade file programs by U disk
Keyboard locking function
Soft power switch
Technical parameter
| Model | JK2817N |
| Test parameter | |Z|,|A|,C,L,X,B,R,G,D,Q, |
| Display | 4.3 inch TFT LCD display, 5 bit reading resolution |
| Test level | 0.1V 0.3V 1V |
| Basic accuracy | 0.1% |
| Test speed | Test speed |
| Display range | |Z|, R, X: 0.0001 Ω — 99.999MΩ C: 0.001 pF — 99999 µ F L: 0.001 µH — 99.999 kH Q: 0.0001 — 9.9999 D: 0.0001 — 9.9999 Δ% : 99.999%— 99.999% |
| equivalent circuit | Series, parallel |
| Range mode | Auto, keep |
| Trigger mode | Internal, manual, external, bus |
| Correction function | Open circuit, short circuit, |
| Measuring end | 5 |
| Display mode | Direct reading, Δ%,file number and file count |
| Storage | CSV data file, screenshot (GIF image) |
| Interface | RS-232C, HANDLER, |
| accessories | Random accessories: 4 terminal Kelvin test cable, Selection: SMD test tongs |
| Working temperature and humnity | 0℃ — 40℃, ≤90% RH |
| Power requirements | 198 V — 242 V AC, 47.5 Hz — 52.5 Hz ,power waste:≤50 VA |
| Size (W×H×D) | Upper frame size (mm):215(w)*88(H)*335(D) outside size (mm):235(w)*105(H) *360(D) |
| weight | about 3.6kg |
Packaging & Shipping
Company Information
Changzhou Jinailian Electronic Technology Co., Ltd. , established in 2000, is a private hi-tech enterprise integrating R&D, manufacturing and marketing. After 20 years of development, Jinko has developed 30 varieties, including: LCR Digital Bridge series; capacitance and inductance measurement (sorting) series; leakage current tester series; DC low resistance tester, MOS tube tester, transistor tester, multiplex temperature tester, paperless recorder, electrical parameter measuring instrument, and other high-precision measuring instruments and testers. Other active products such as: DC stabilized voltage supply and high power switching power supply.
