2x1x1 м габионная коробка Филиппинская шестиугольная проволочная
- Категория: Металлическая сетка >>>
- Поставщик: Anping,Xinboyuan,Wire,Mesh,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.21 $* | 0.63 $* |
| Aug-18-2025 | 0.48 $* | 0.9 $* |
| Jul-18-2025 | 0.91 $* | 0.6 $* |
| Jun-18-2025 | 0.9 $* | 0.98 $* |
| May-18-2025 | 0.61 $* | 0.35 $* |
| Apr-18-2025 | 0.41 $* | 0.8 $* |
| Mar-18-2025 | 0.14 $* | 0.49 $* |
| Feb-18-2025 | 0.48 $* | 0.30 $* |
| Jan-18-2025 | 0.20 $* | 0.67 $* |
Характеристики
Contact Me
Recommend Products
Product Description

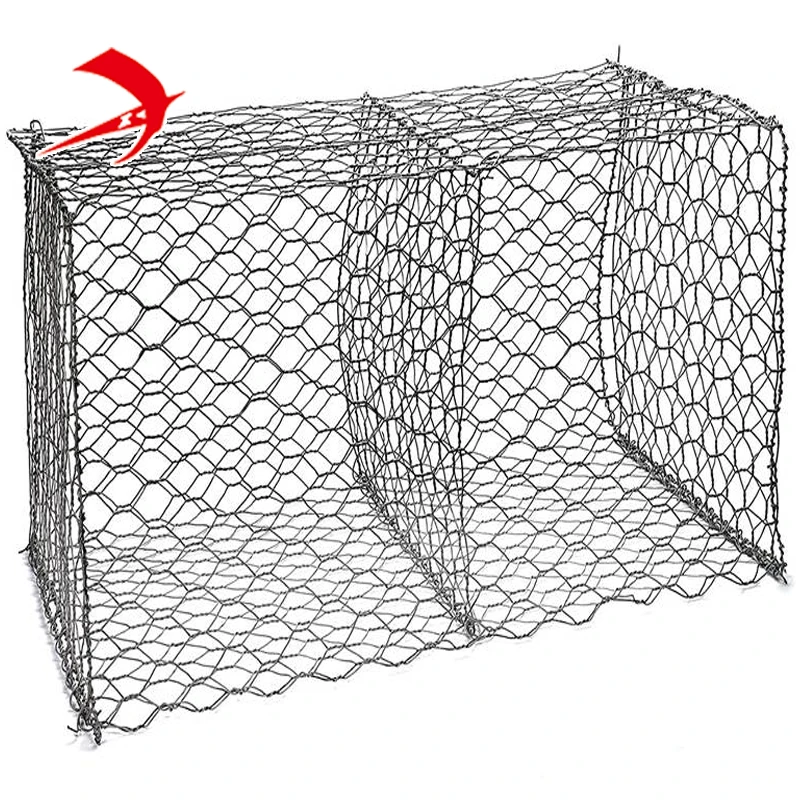

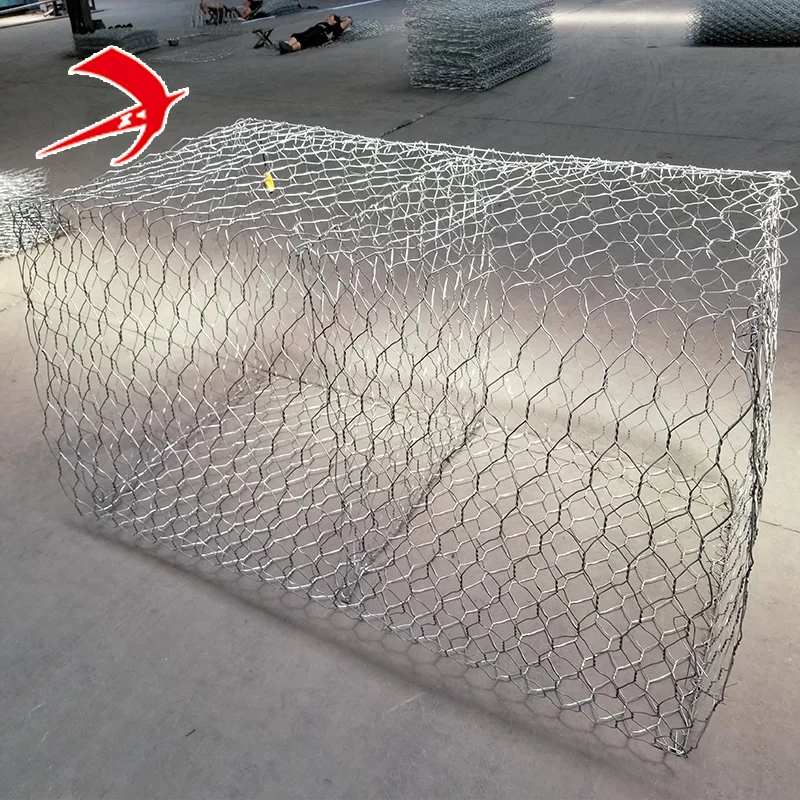

2x1x1m Gabion Baskets
Gabion iron wire basket are made of hot dipped galvanized steel wire /heavy galvanized coating steel wire/ PVC coated wires, the
mesh shape is hexagonal style.
The gabion retaining wall are used widely in slope protection,mountain rock holding,gabion for river bank protection
mesh shape is hexagonal style.
The gabion retaining wall are used widely in slope protection,mountain rock holding,gabion for river bank protection
Size Paramenters
Standard | ASTM 975 Standards: | |||||||
style 1 Galvanized wire as per ASTM A 641, class 3 soft temperstyle 2 Same as style 1 with extra coating with PVC.style 3 Zn-5Al or Zn-10Al coated wire as per ASTM A 856, also known as Galfan wire. | ||||||||
EN 10223-3 standard: | ||||||||
Galvanized wire meets EN 10244-2 and old BS 443Wire tensile strength is between 380N/mm2 and 550N/mm2 as per BS 1052. | ||||||||
Aperture (mm) | Wire Diameter (mm) | Edge wire (mm) | Gabion Sizes (m) | Material (zinc coating) | ||||
60x80mm | 2.2mm/2.7mm | 2.4mm/3.4mm | 6x2x0.3m/2x1x0.5m | 1.galvanized steel wire 2.high zinc steel wire 3.pvc coating steelwire | ||||
80x100mm | 2.7mm/3.0mm/3.2mm | 2.4mm/3.4mm | 2x1x1/3x1x1m/4x1x1m | |||||
100x120mm | 3.0mm/3.05mm/3.2mm | 3.4mm | 3x1x1/4x1x1m/5x1x1m | |||||
Terramesh System | ||||||||
80x100mm | 2.7mm/3.0mm/3.2mm | 2.4mm/3.4mm | 2x1x3m/2x1x6m | |||||
Products Paramenters
3x1x1m Gabion Baskets
wire diameter:2.7mm/3.0mmedge wire:3.4mm
Tie wire:2.2mm
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc ：250g/㎡
Tie wire:2.2mm
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc ：250g/㎡
4x1x1m Gabion Baskets
wire diameter:2.7mm/3.0mmEdge wire:3.4mm
Tie wire:2.2mm
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc ：250g/㎡
Tie wire:2.2mm
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc ：250g/㎡
6x2x0.3m Gabion Baskets
Wire diameter:2.2mmEdge wire:2.7mm
Tie wire:2.2mm
Mesh size:60x80mm/80x100mm
Zinc coating:40-60g/㎡
High zinc ：250g/㎡
Tie wire:2.2mm
Mesh size:60x80mm/80x100mm
Zinc coating:40-60g/㎡
High zinc ：250g/㎡
PVC Coated Gabion Protection Net
wire diameter:2.2/3.3mmedge wire:3.4/4.4mm
tie wire:2.2/3.2mm
mesh size:80x100mm/100x120mm
Size:2X30m/Roll
zinc coating:40-60g/㎡
high zinc ：250g/㎡
tie wire:2.2/3.2mm
mesh size:80x100mm/100x120mm
Size:2X30m/Roll
zinc coating:40-60g/㎡
high zinc ：250g/㎡
PVC Coated Gabion Baskets
Wire diameter:2.7/3.7mmedge Wire:3.4/4.4mm
Tie wire:2.2/3.2mmSize: 2x1x1m/3x1x1m
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc ：250g/㎡
Tie wire:2.2/3.2mmSize: 2x1x1m/3x1x1m
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc ：250g/㎡
1x1x1m PVC Coated Gabion Basket
Wire diameter:2.7/3.7mmedge Wire:3.4/4.4mm
Tie wire:2.2/3.2mmSize: 3x1x1m/4x1x1m
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc ：250g/㎡
Tie wire:2.2/3.2mmSize: 3x1x1m/4x1x1m
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc ：250g/㎡

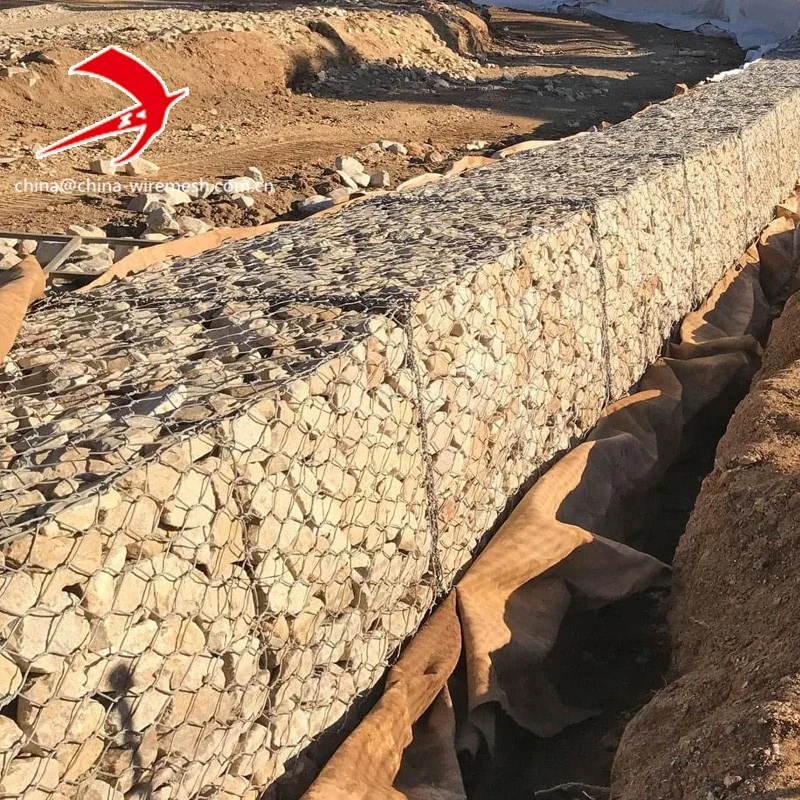

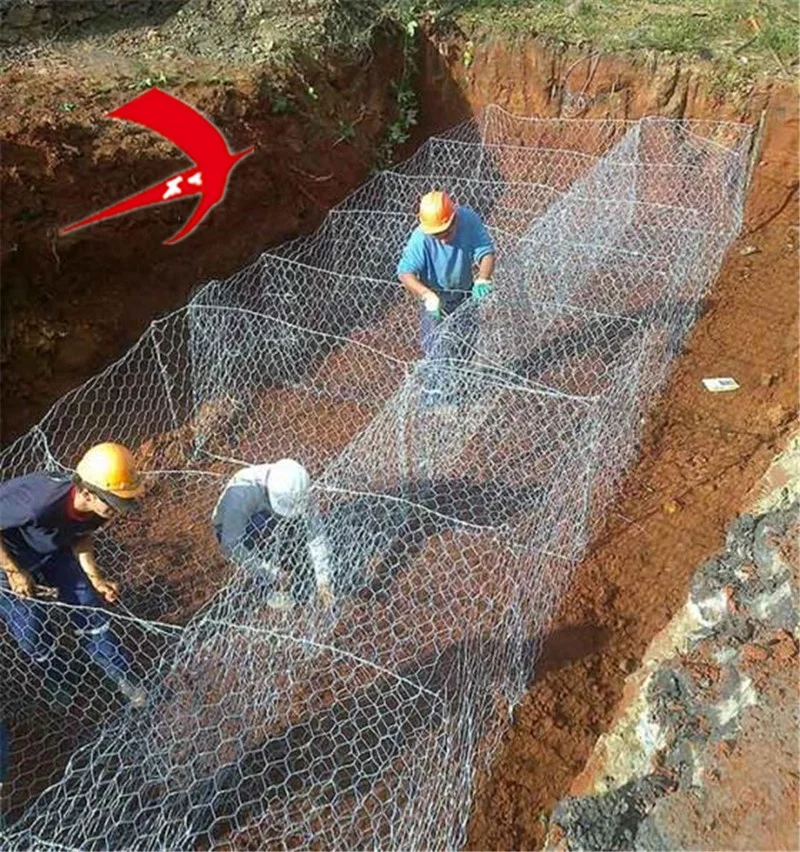

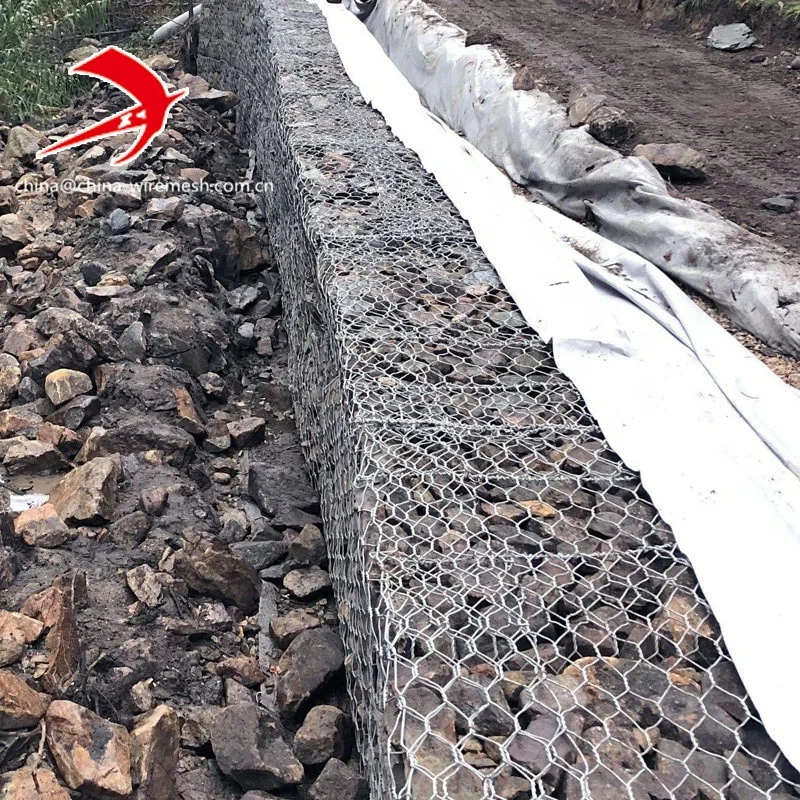

Products Installation
Gabion Baskets can be used for slope support, foundation pit support, gabion retaining wall.
Gabion Baskets can be used for slope support, foundation pit support, gabion retaining wall.
Gabion Baskets can be used for slope support, foundation pit support, gabion retaining wall.
Product packaging
1. Nude package,compacted before packaging.
2. 50pcs/bundle with labels.
3 .Customized.according to the customers' requirement.
2. 50pcs/bundle with labels.
3 .Customized.according to the customers' requirement.
