Бинокулярный зум SZ650 7X-45X стерео микроскоп с отраженным и прозрачным светодиодным
- Категория: Optical Instruments >>>
- Поставщик: Chongqing,Scope,Instrument,Co.,Ltd.,[Chongqing,China]Chongqing
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 31149.28 $* | 31772.54 $* |
| Jul-16-2025 | 25263.44 $* | 25768.60 $* |
| Jun-16-2025 | 30659.69 $* | 31272.82 $* |
| May-16-2025 | 30413.63 $* | 31021.2 $* |
| Apr-16-2025 | 24282.13 $* | 24768.19 $* |
| Mar-16-2025 | 29923.56 $* | 30521.42 $* |
| Feb-16-2025 | 29678.60 $* | 30272.17 $* |
| Jan-16-2025 | 29432.43 $* | 30021.81 $* |
Характеристики

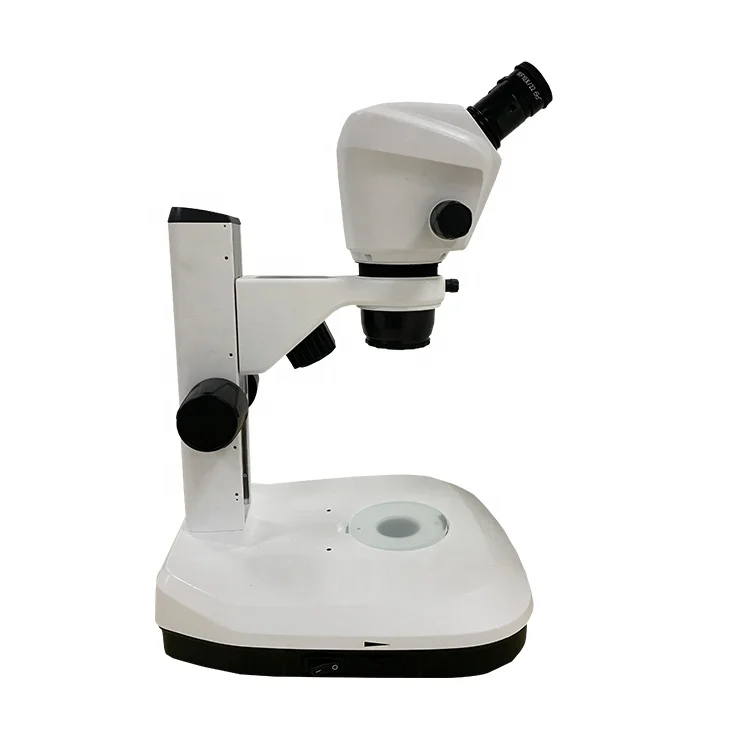

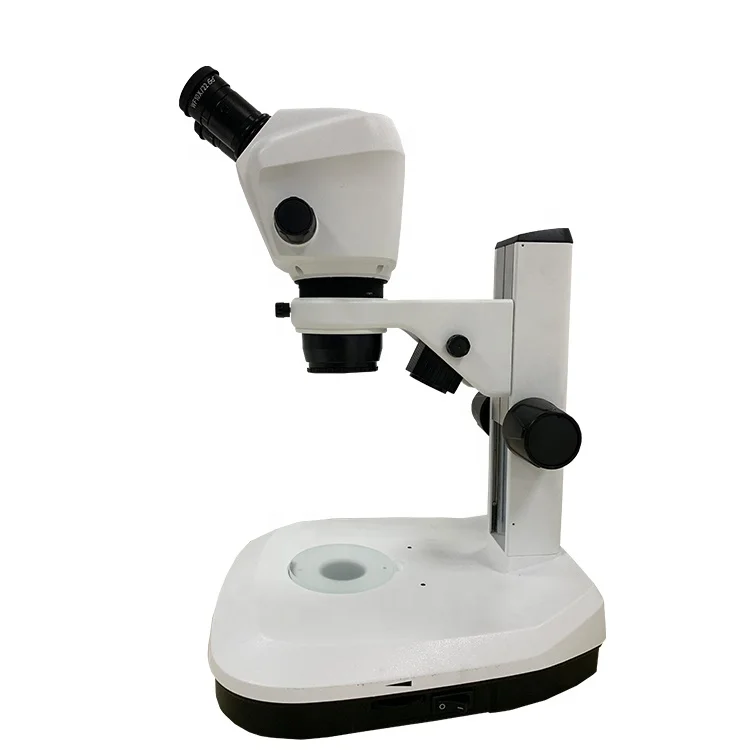

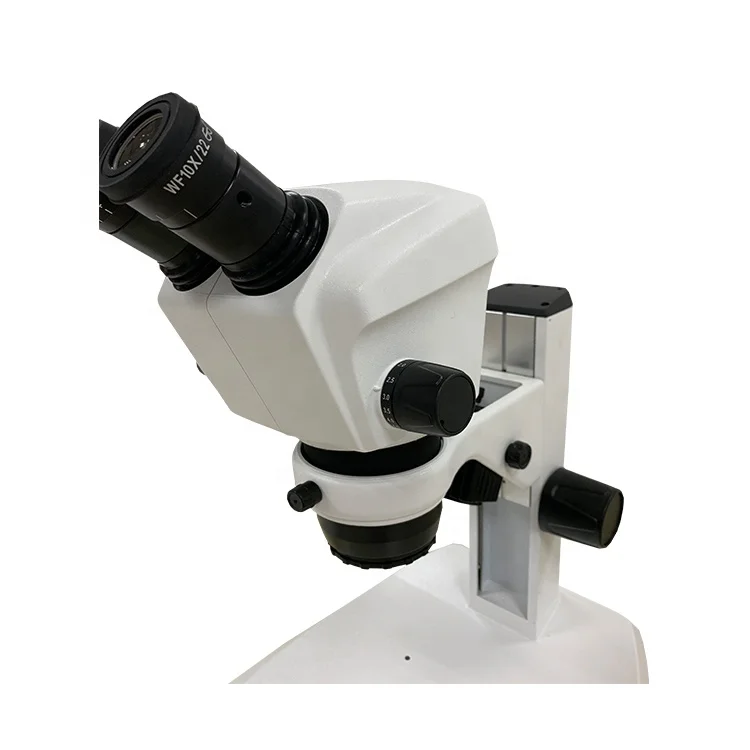

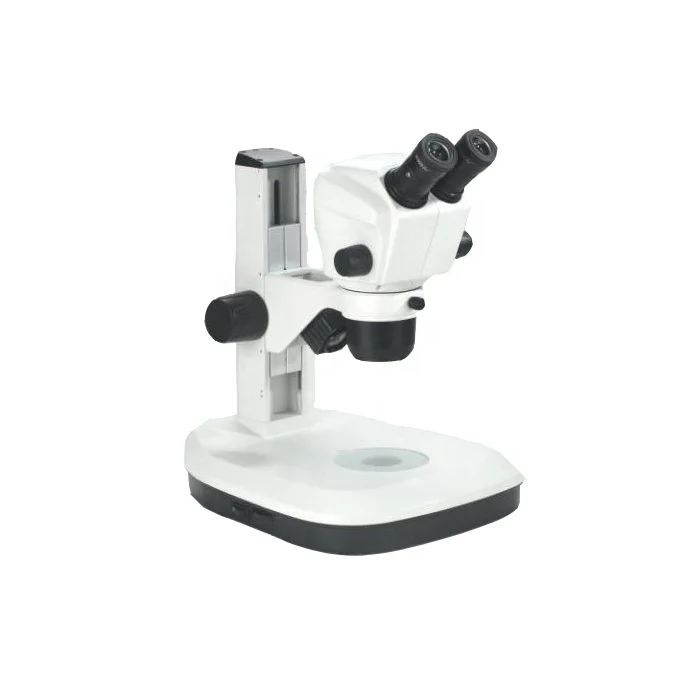

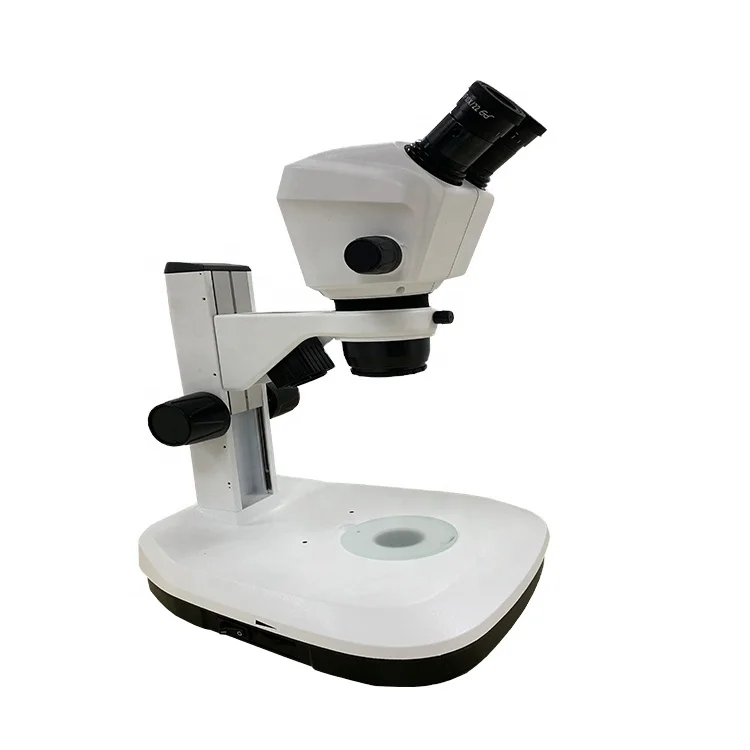

SZ650 Binocular Zoom 7X-45X Stereo Microscope with reflected and transmitted led light suorce
SZ650BP SZ650B2L
◊SZ650 40° viewing angle,suitable for long-term sitting observation.
◊330mm X300mm big stand, high stability , apply to all kinds of anatomy of specimen.
◊Greenough optical system,built-in rotating shaft zoom system.
◊No tilting image in left & right light path in complete pupillary distance,no dizziness feeling
after long time observing.
◊High resolution ,large depth of field, excellent color restoration and contrast.
◊Illumination optical:LED, halogen lamp,cold light soource (100v~240v wide voltage input).
◊Operation comfortable(manufactured by high-precision machine,excellent assembly technology).
◊High-end material(PC resin cover,aluminium alloy,copper alloy parts,austenite stainless steel driving parts).
◊Different size reticule eyepiece ◊SZ650 Zoom Stereo Microscope Size(mm)
| Model | SZ650 Zoom Stereo Microscope |
| Objectives Zoom Range | 0.7X-4.5X |
| Zoom Ratio | 1:6.5 |
| Field Diameter(mm) | Φ22 |
| Working Distance(mm) | 110 |
| Stereo Angle(°) | 12 |
| Viewing Angle(°) | 40 |
| Interpupillary Adjustable Distance(mm) | 50-75 |
| Video Output Distribution | No |
| Guide Rail Focusing Distance(mm) | 80 |
| Pillar Stand Focusing Distance(mm) | 115 |
SZ650 Objective & Eyepiece Parameter List (0.7X-4.5X)
| Additional Objective | 0.5X | 1X(built-in) | 2X | |
| W.D. | 189mm | 110mm | 36mm | |
| 10XEyepiece/Φ22mm | Magnification | 3.5~22.5 | 7~45 | 14~90 |
| Field dia.(mm) | 62.9~9.8 | 31.43~4.89 | 15.71~2.44 | |
| 15XEyepiece/Φ16mm | Magnification | 5.25~33.75 | 10.5~67.5 | 21~135 |
| Field dia.(mm) | 45.71~7.11 | 22.86~3.56 | 11.43~1.78 | |
| 20XEyepiece/Φ12mm | Magnification | 7~45 | 14~90 | 28~180 |
| Field dia.(mm) | 34.28~5.33 | 17.14~2.67 | 8.57~1.33 | |
SZ650 Zoom Stereo Microscope outfits
| Items | SZ650BP | SZ650B2L | |
| Main Body | Binocular | • | • |
| 10XEyepiece/Φ22mm | •• | •• | |
| 15XEyeoiece/Φ16mm | °° | °° | |
| 20XEyepiece/Φ12mm | °° | °° | |
| 0.5X/2X Objective | ° | ° | |
| Focusing Unit | • | • | |
| No Light | • | -- | |
| Reflecting 3W LED | -- | • | |
| Transmitting 3W LED | -- | • | |
| Black & White Plate | • | • | |
| Glass Plate | -- | • | |
| Arm Stand | • | • | |
| Pillar Stand | ° | ° | |
| Focusing Arm Stand | ° | ° | |
| Base(330mm X300mm) | • | • | |
Note:"•" in table is standaard outfits, "°" is optional accessories.
