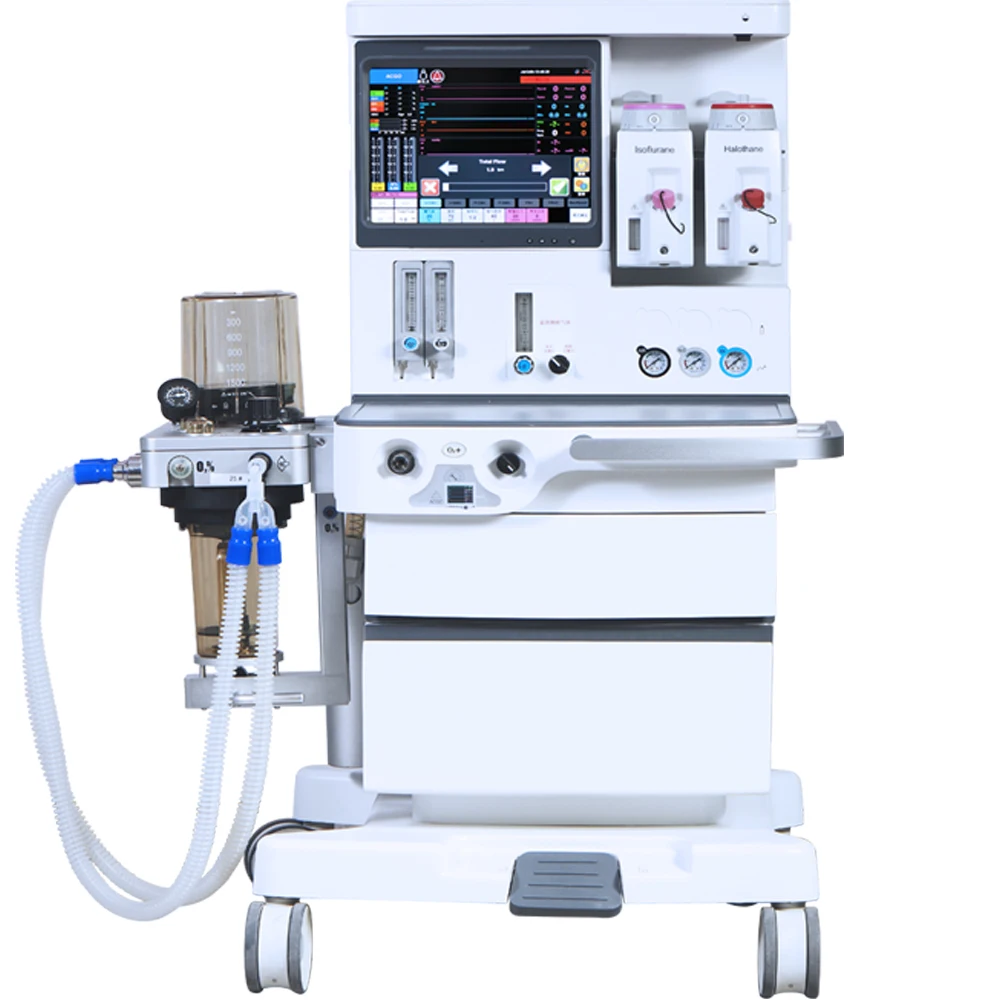

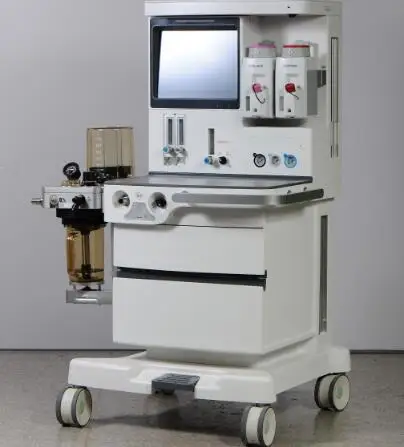

China Manufactures High Quality S6100X Human Anasthesia Machine

Configuration

Technical Specification

2.1 Adjusting Parameter

Tidal Volume:10mL~1500mL;

Inspiration pressure: 1cmH₂O;

Pressure support:3cmH₂O~50cmH₂O;

Pressure limit:  10cmH₂O~100cmH₂O;

PEEP: 0cmH₂O~30cmH₂O;

Respiration frequency:4bpm~100bpm;

Inspiration apnea: OFF, 5%~60%;

I:E:4:1~1:10;

Inspiration time: 0.2s~5s;

Trigger:5%~95%;

SIMV frequency:4bpm~60bpm;

Pressure trigger: -1cmH₂O~-20cmH₂O;

Flow trigger: 0.3 L/min,1L/min~15L/min;

Rise time:0s~2s;

2.2 Monitoring parameter

Tidal volume:0mL~2500mL;

Minute volume:0L/min~100L/min;

Respiration frequency:0bpm~120bpm;

Oxygen concentration:15%~100%(V/V)

Airway pressure:-20cmH₂O~100cmH₂O;

Inspiration platform pressure:0cmH₂O~100cmH₂O;

PEEP:0cmH₂O~70cmH₂O;

I:E:4:1~1:10;

Resistance:0 cmH₂O/(L/s)~250 cmH₂O/(L/s);

Compliance:0 ml/cmH₂O~250 ml/cmH₂O;

AG(optional)

CO2:   0%~15%(V/V);

N2O:   0%~100%(V/V);

Enflurane,Isoflurane:   0%~8%(V/V);

Sevoflurane:   0%~10%(V/V);

2.3 Alarm

VT UPPER LIMIT:5mL~2000mL;

VT LOWER LIMIT:0mL~1595mL;

MV upper limit:0.1L/min~100L/min;

MV lower limit:0.0L/min~99.9L/min;

Respiration frequency upper limit:2bpm~100bpm;

Respiration frequency lower limit:0bpm~98 bpm;

FIO2 upper limit:20%~100%;

FIO2 lower limit:18%~98%;

Airway pressure upper limit:2cmH₂O~100cmH₂O;

Airway pressure lower limit:0cmH₂O~98cmH₂O;

Apnea:20s~40s.

Oxygen concentration never lower than 25% when N2O start

2.4Testing

Automatic leakage compensation testing.

Patient circuit leakage compensation and automatic compliance compensation.

Patient monitor and AG monitor can be equipped.

Manual ventilator, mechanical ventilation and standby.

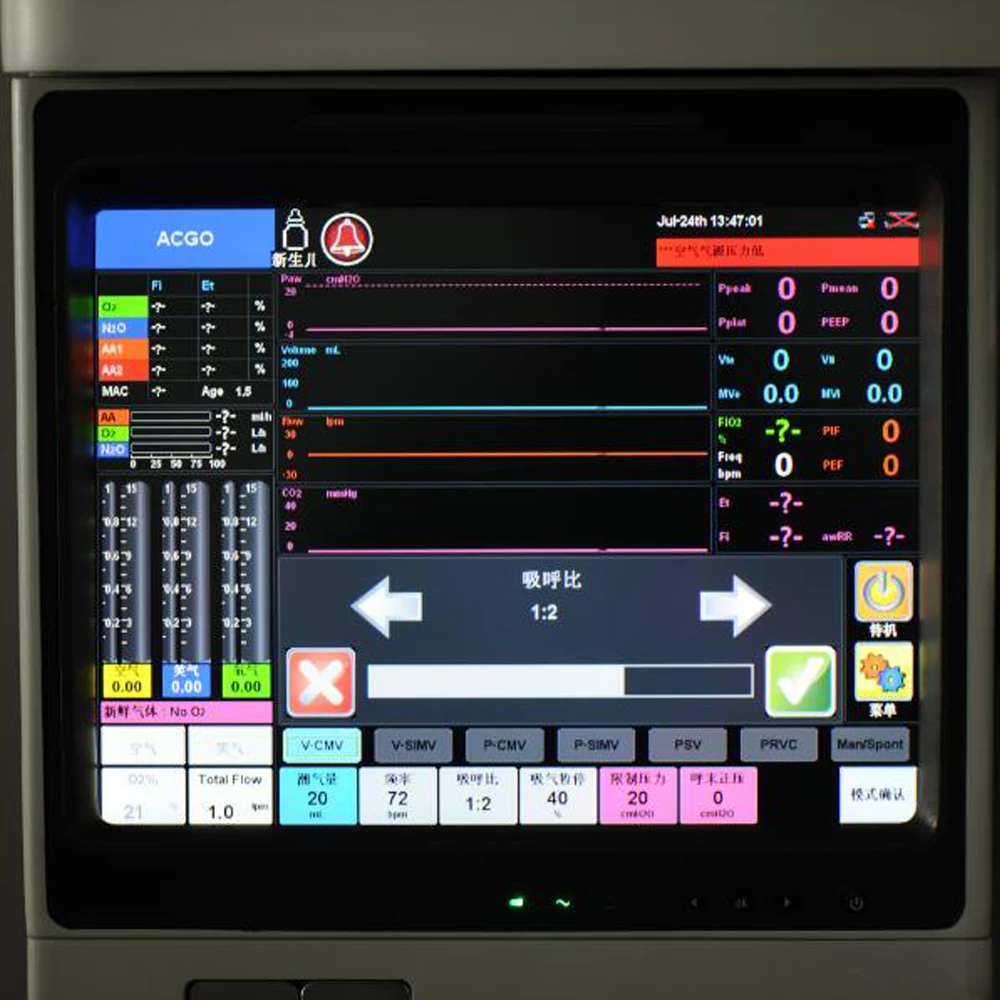

Waveform:P-T, F-T, V-T, Lung function loop, ETCO2, Anesthesia gas, oxygen concentration, N2O concentration.

Self-testing visible

Alarming visible

ACGO function

2.5 Battery working

There are two battery inside, use one of them can last long for no less than 60 mins, when use two, it can last long for no less than 120 mins.
