Высококачественный скоростной пропеллер производящий дизайн для лодок/arneson поверхностный привод Морской

Technical specification parameter list

 Item

Model

7GS6

7GS8

7GS10

7GS12

7GS20

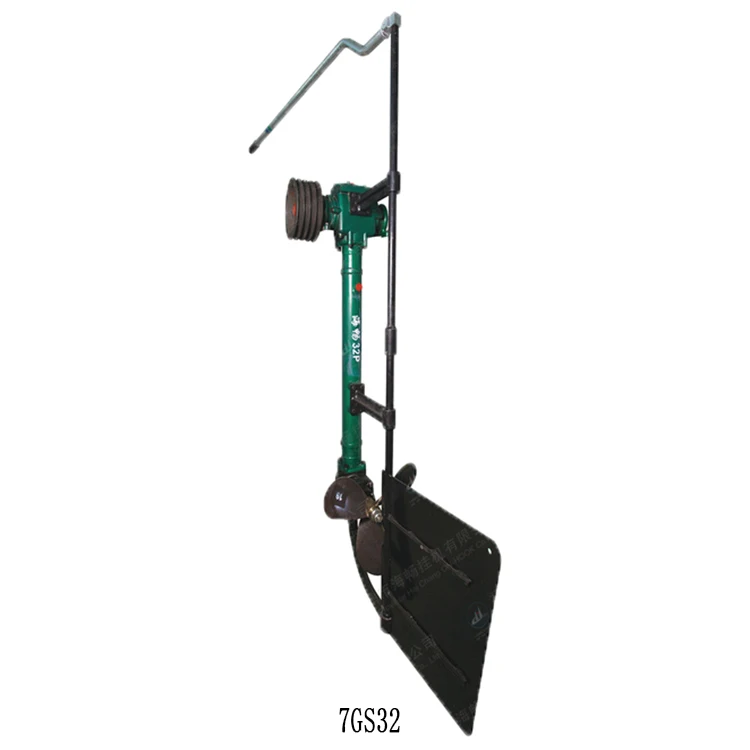

7GS32

1

Speed (km/h)

No-load speed(kn/h)

≥9.5

≥10

≥11

≥11.5

≥12

≥16

Rated heavy load speed(kn/h)

≥9

≥9.5

≥9.5

≥10

≥11

≥14

2

Maximum column pull ahead (kg/force)

≥104

≥131

≥159

≥180

≥280

≥300

3

Overall dimensions L*W*H(mm)

920*570*1600

920*570*1600

920*570*1600

920*570*1600

920*570*1600

930*590*1700

4

Hung-machine net weight(Kg)

45

48

68

90

110

130

5

 Auxiliary power

R175A  R175B

R180  R180N

R190N

SJ195

SJ1110

CF40M

 Rated power(KW/rpm)

6

7

10

12

20

32

Rated speed(r/min)

2600

2600

2200

2000

2000

2200

6

 Load tonnage of matching ships(t)

5~7

6~8

7~9

8~10

10~16

20-25

7

The propeller

 Diameter(mm)

360

380

390

450

520

530

 Pitch(mm)

320

320

330

346

350

360

 Speed(r/min)

900

1000

1000

1000

1000

1200

 Rotation direction

Right

Right

Right

Right

Right

Right

 Blade number

3

3

3

3

3

3

8

Triangle belt(mm)

B1092

B1041

B1041

B1245

B1295

B1300
