Shenzhen data cable 19 years oem Factory supply multicore Gjfjv indoor fiber optic non armoured cable
We are 19 years fiber optic cable manufactory!
Welcome to go to the factory tour!
We focus on the quality of the fiber optic cable!
Send message to us can get free samples.
Product Description

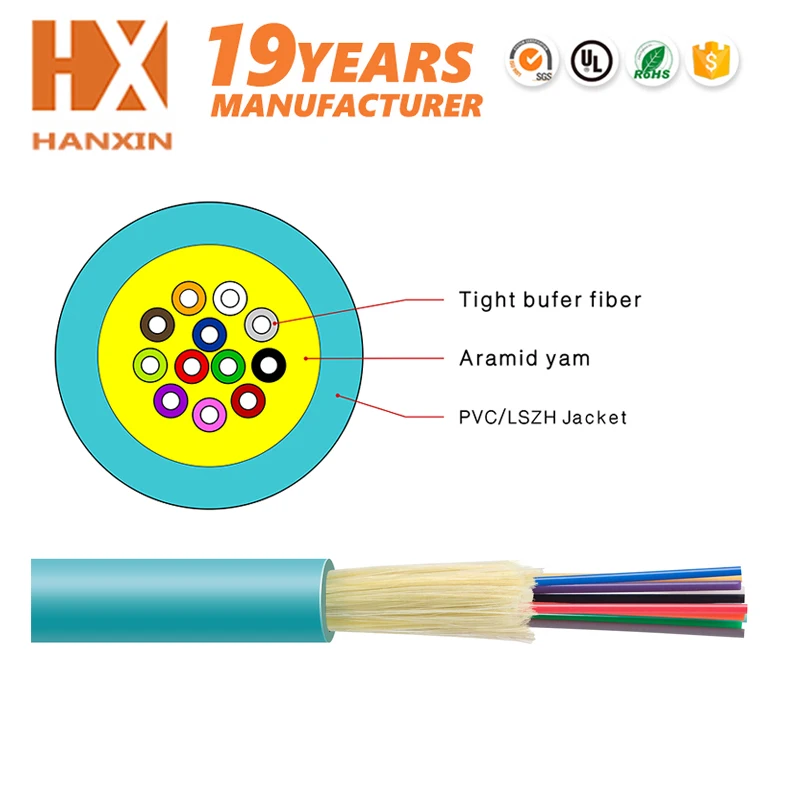

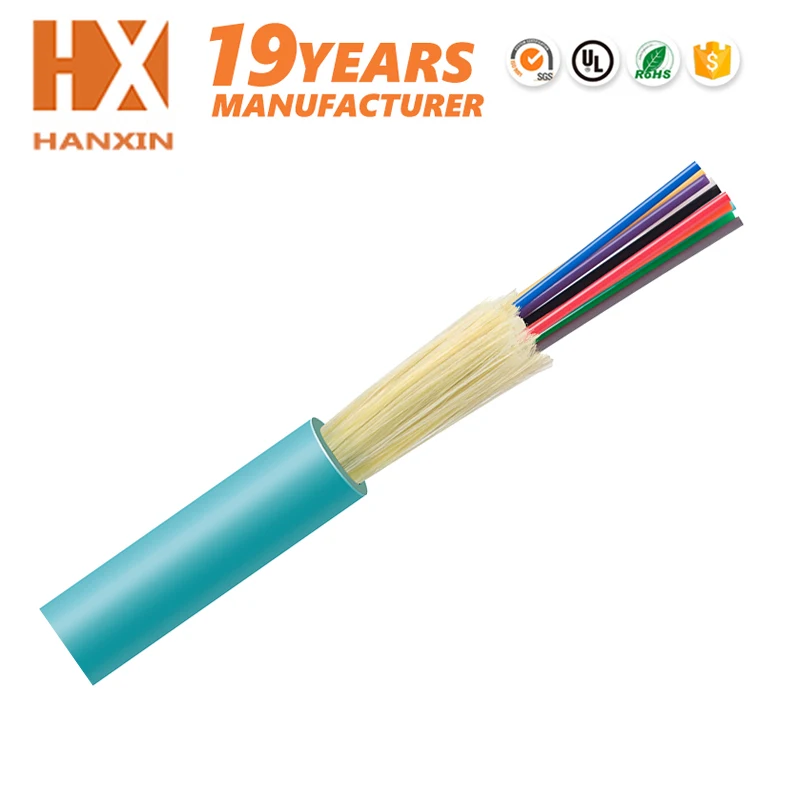

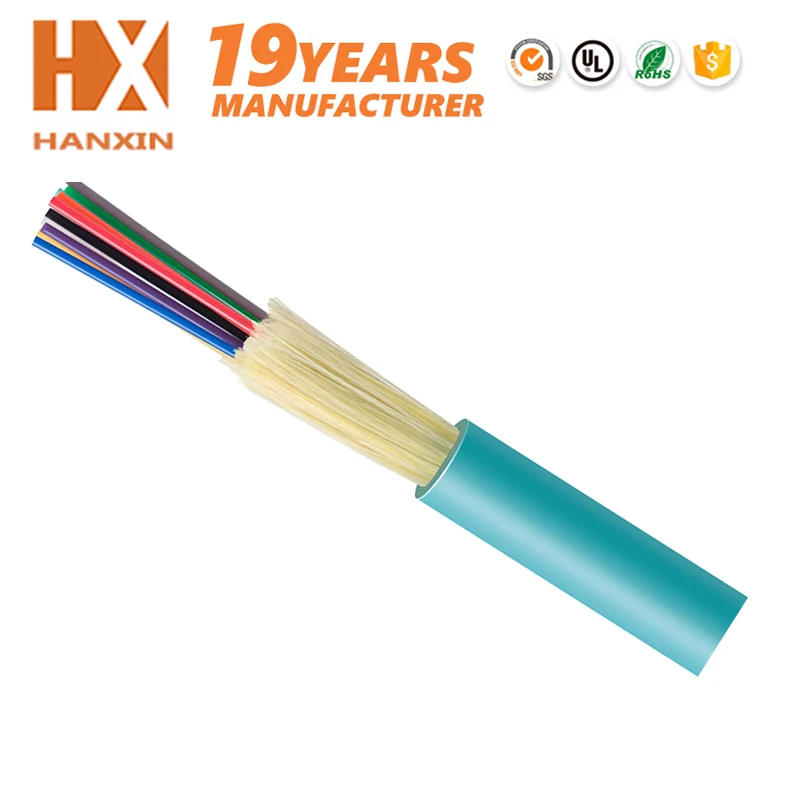

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Products Features
·Small diameter, light weight,flame retardant,excellent strippability
·Low-attenuation,High flexibility
·No need for transition connector box or pigtail between tight buffer fiber and cable,low cost with installation cause to it’s no needs to clean the water-proofing ointment.
Products Standard
·GJFJV cable complies with Standard YD/T1258.2-2009,ICEA-596,GR-409,IEC794 etc; and meets with the requirements of UL approval for OFNR and OFNP.
Fiber Code
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 |
Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
Tight Buffer Fiber Diameter | 900±50μm | |||||
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
@1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km | |
@1310nm | ≤0.36dB/km | ≤0.36dB/km |
|
| |
@1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |
Bandwidth (Class A) | @850 |
|
| ≥500MHZ·km | ≥200MHZ·km |
@1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km | |
Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
Cable Cut-off Wavelength |
| ≤1260nm | ≤1480nm |
|
|
Application
Advanced Equipment
National Level Lab
Certifications
More Products
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with more than 560 staff.
2.How many years have you been in the field of fiber optics ?
Since 1999.
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, SGS, RoHs.
6.What is your delivery time?
Usually within 2-3 working days
7.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
Yes. We supply OEM&ODM service. You can send us your drawing.
