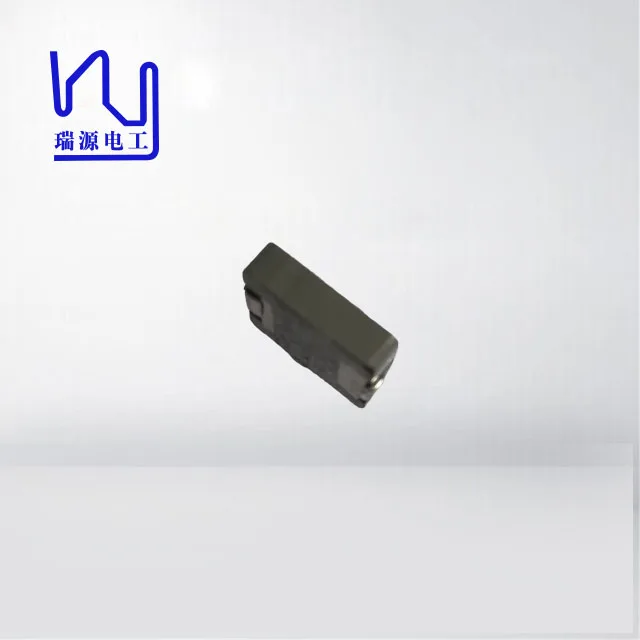

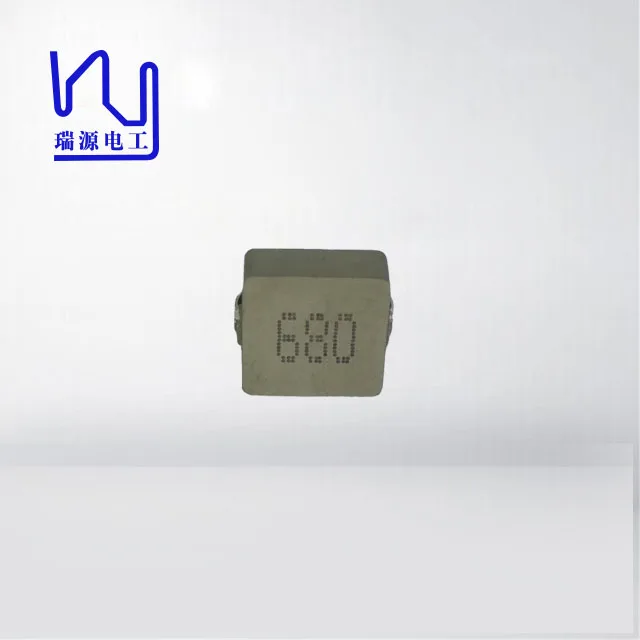

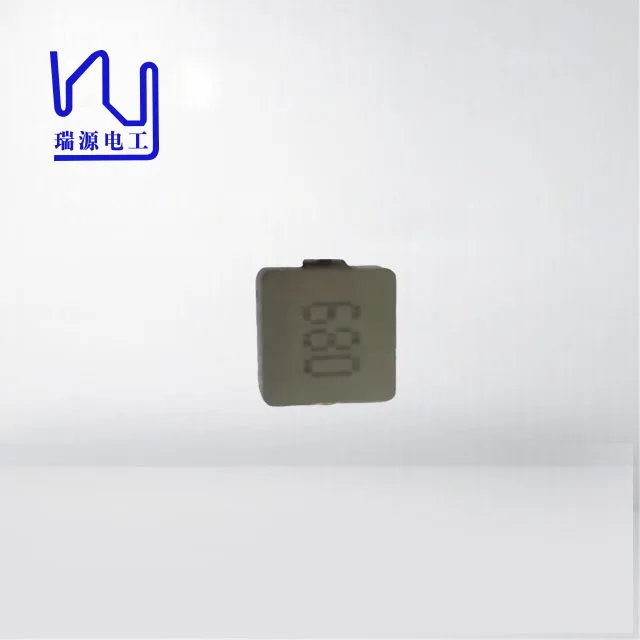

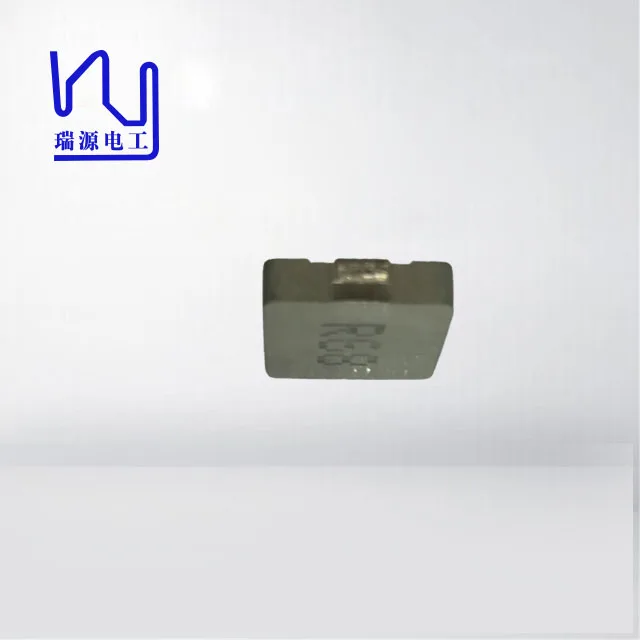

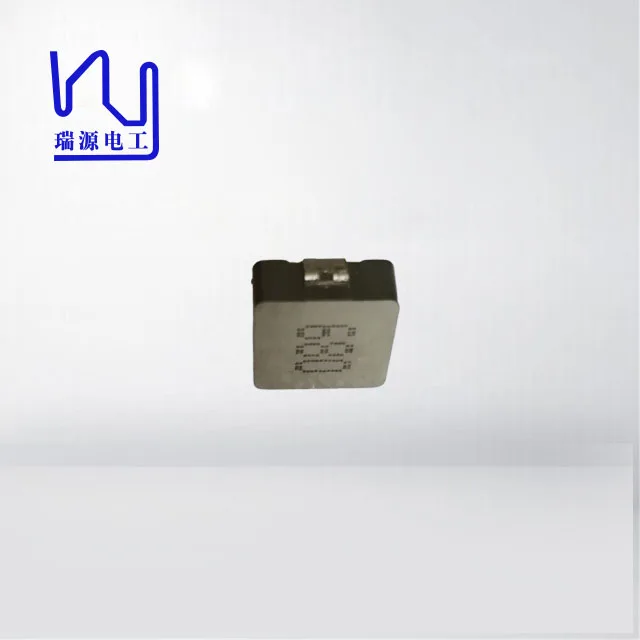

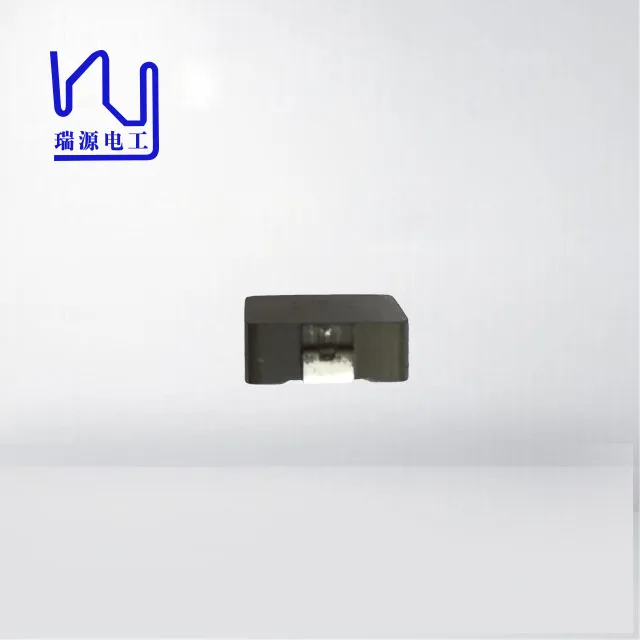

Integrally molded Powder Inductor is a new type of inductor that the coils are embedded in the soft magnetic powder. Due to its closed magnetic circuit structure and the variety of soft magnetic materials, it has many different characteristics from traditional inductors.
The integrated powder inductor also has excellent magnetic performance stability and temperature stability. In the production process, there are other characteristics that are not self-contained by the materials, that is, good controllability and shape controllability. It can produce a variety of unique performance inductors by controlling and changing the production process of the powder.
Main Features:
Electrical characteristics:
1. Inductance range: 0.1uH~100uH
2. Rated current range: 0.2A~80AIDC)
3. Resistance between coil and powder: ≥150V
4. Temperature rise: ≤40°C
Comparation with traditional power inductor
Item
Integrity Inductor
TC inductor
APL1108P56
PG0200
saturation current
45A REF
35A REF
45A REF
36A REF
Magnetic saturation thermal sensitivity
low
low
Normal
High
Temp Class of magnet wire
IAILKN5@200C
2UEW @135C
HAW @ 200C
PEW @155C
Production mode
Full Auto
Semi Auto
Semi Auto
Semi Auto
Magnetic sound
null
Slight
Slight
Yes
RoHS
Comliant
Comliant
No
Comliant
Customer designed
Easy
Normal
Normal
Difficult
Process problem
Null
Turn to turn fault
Apperance, Higher temperature rise
Excessive glue,Higher temperature rise
Price
Medium
Low
Medium
High
Specification:
Certifications
Company Information
Exquisite,High quality, all for customers is not a slogan but the value of our people that exist in our blood. Every day, the first idea in our mind is how to improve ourselves and our rules to provide a better service and experience not only procurement but also good feel during inquiry, talking.
We also enrich our professional knowledge in different industries and applications, so our role is not just one of best provider of enmaled copper wire but a trustable consult in different applications.
Welcome to contact us! And our team are waiting for helping you!
FAQ
1. How to purchase from us? Offer Requirement for Inquiry →Producing Sample →Sample Confrimation → Quotation →PI → Confirm PI → Arrange Payment→ Manufacture → Shipping 2.What's the MOQ? There is no MOQ.Smaill quantity is ok 3. Can I get sample for testing before bulk order? Of course.Samples can be offered to you by free, but shipment should at your side, it is fair. 4. Can I order with my logo printing, size and shape? of course.Transformer can be made according customer's requirement. 5. What's your trade term? Usually FOB CIF CFR. 6.What is your lead time? Small sample order 4-7 workingdays; Large order should be within 25 working days after order confirmed. 7. What's your shipping term? By Sea/Air/Express from Tianjin Port 8.What's your payment term? T/T or L/C 9. What's your Guarantee? Within 2 years, if any quality problem, the defect products will be all replaced at once. 10. Can you do OEM? Yes, our engineers have many years of designing experience. According to customer’s ideas, drawing or sample, they can arrange to design and meet customer requirements.
