 fluorescent binocular microscope

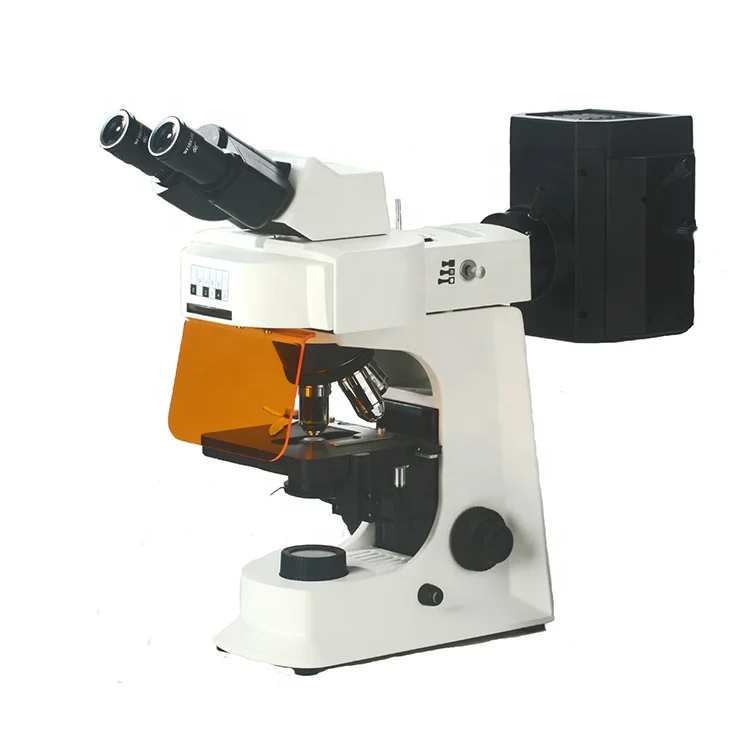

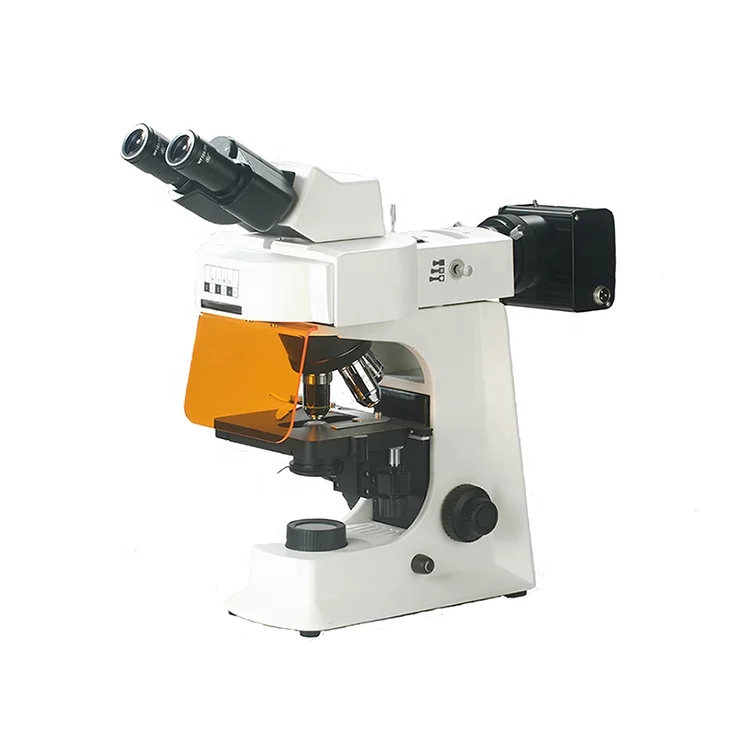

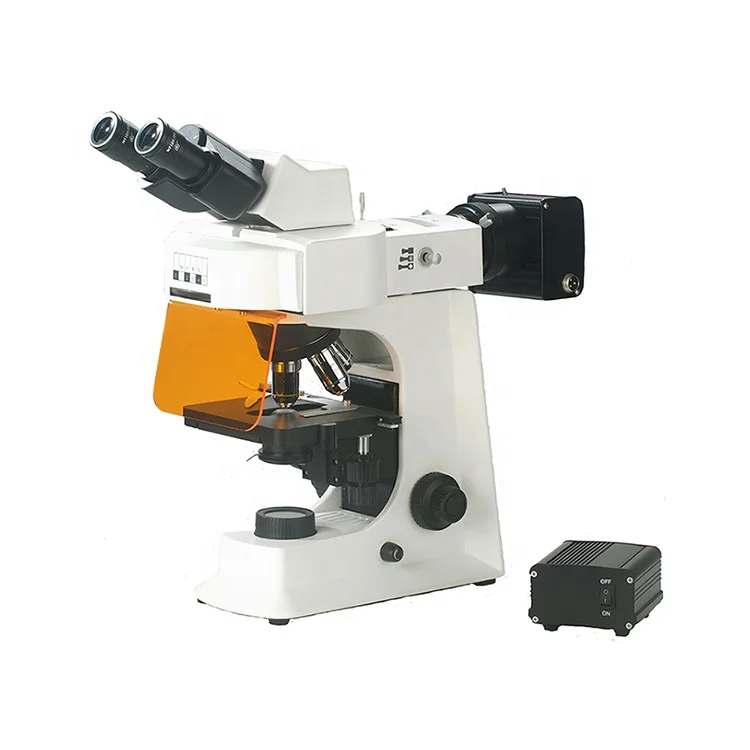

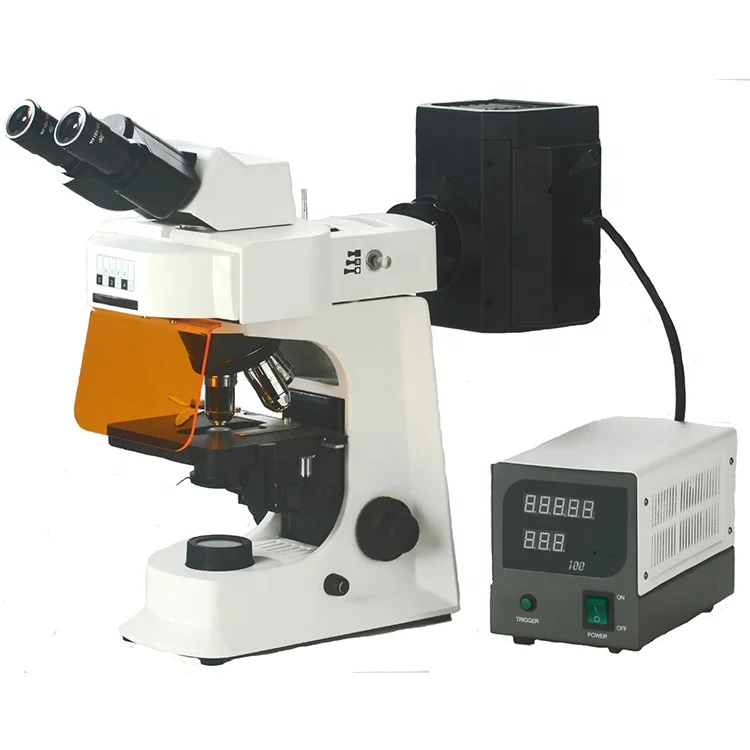

This 40X-1000X EPI fluorescence microscope is designed for fluorescent microscopy applications.

It offers high performance and advanced features. The microscope comes with four high quality infinity objectives ( 4X, 10X, 40X , 100X). It provides both fluorescent and bright field microscopy features. This fluorescence microscope is an ideal instrument for advanced researchin basic theory research and clinical diagnosis about medicine, biology, as well as analysis and test in industry, agriculture, stockbreeding, criminal investigation, legal medical appraise, environmental protection .The microscope can be operated in binocular or trinocular mode depending on need.



 ♦Feature

--Brightfield and fluorescent observation

--Top quality professional optical glass elements

--180mm x140mm large double integrated stage with two slide holders

--Rechargeable and non rechargeable LED illumination can be chosen

--Six hole disc media which can be fixed with Uv/V/B/G

Items	Specification	Smart-B1-FL2	Smart-B1-FL2LED
Eyepiece	WF10X /20mm	•	•
Infinity E-Plan Objective	4X	•	•
	10X	•	•
	40X(S)	•	•
	100X(O,S)	•	•
Infinity Plan Objective	4X	°	°
	10X	°	°
	40X(S)	°	°
	100X(O,S)	°	°
	Plan 20X	°	°
	Plan 60X(S)	°	°
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance: 48-75mm	•	•
Seidentopf Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance:48-75mm Light Distribution 20:80	°	°
Nosepiece	Quadplex,Quintuple (optional)	•	•
Mechanical Stage	Stage size:145mm X140MM Travel:76mm x52mm, Scale:0.1mm Coaxial Coarse and Fine Focusing Knobs Travel range:26mm,Scale:2µm Two Slider Holder	•	•
	Integrated stage ,Stage Size:182mm X140mm Travel Range:77mm X52mm Two slide holder	°	°
Condenser	Abbe N.A.1.25 with iris diaphragm	•	•
Illumination	3W LED Illumination System	•	•
	12V/20W Halogen Lamp	°	°
	6V/30W Halogen Lamp	°	°
Field Diaphragm	--	°	°
Mirror	--	°
Polarizing Attachment	Analyzer/Polarizer	°	°
Independent Phase Contrast Unit	10X/20X/40X/100X	°

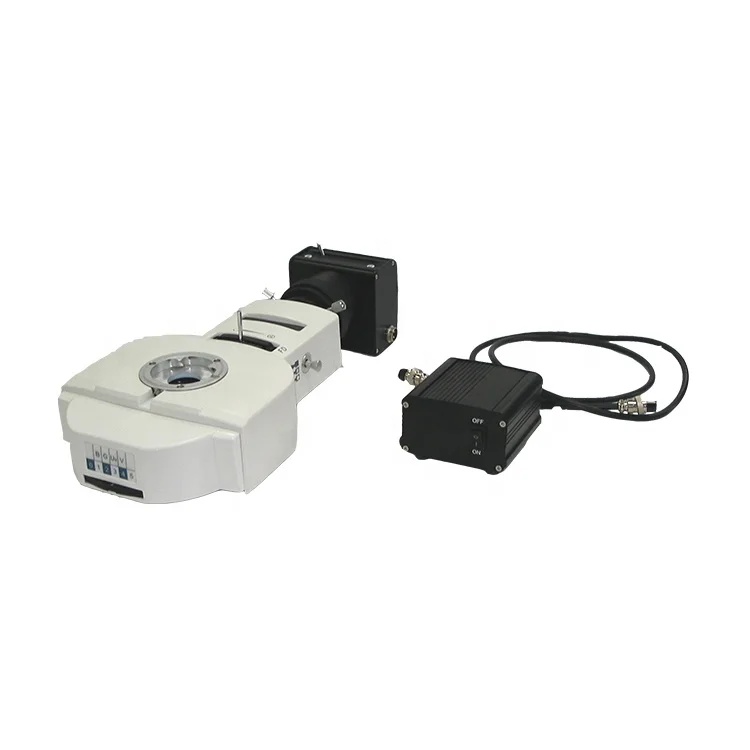

Fluorescence Attachment	Epi fluorescence unit(six-hole disc media which can be fixed with B/G and another filters),100W mercury lamp	•	°
	Epi fluorescence unit(six-hole disc media which can be fixed B/G),LED fluorescence lamp	°	•
Filter	Blue	°	°
	Green	°	°
	Yellow	°	°
C-Mount	1X	°	°
	0.47X	°	°
Dark Field Condenser	Dark field condenser(dry),apply to 4X~40X	°	°
	Dark field condenser(wet).apply to 100X	°	°
Wire Winding Device	--	°	°

Note: "•" in table is standard outfits, "°" is optional accessories
