3d vacuum press for cabinets art acrylic plate furniture decorative dado board advertising speaker industry

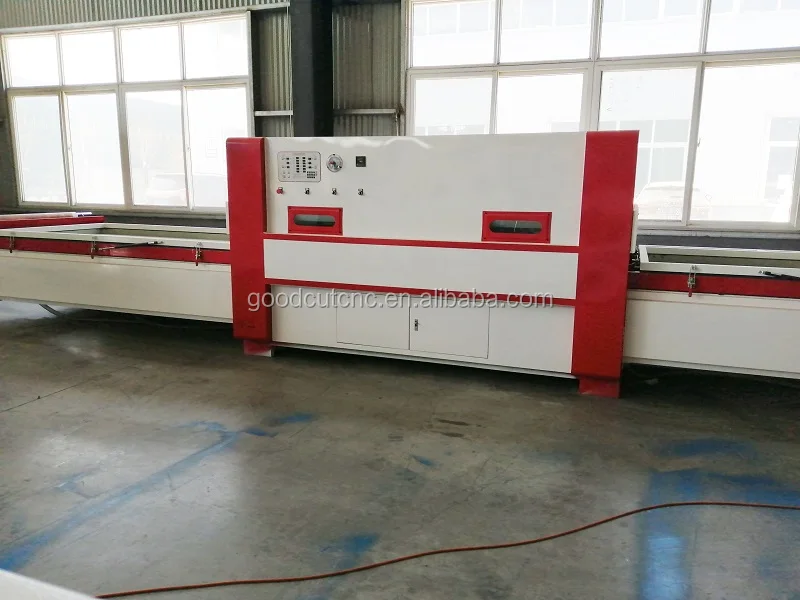

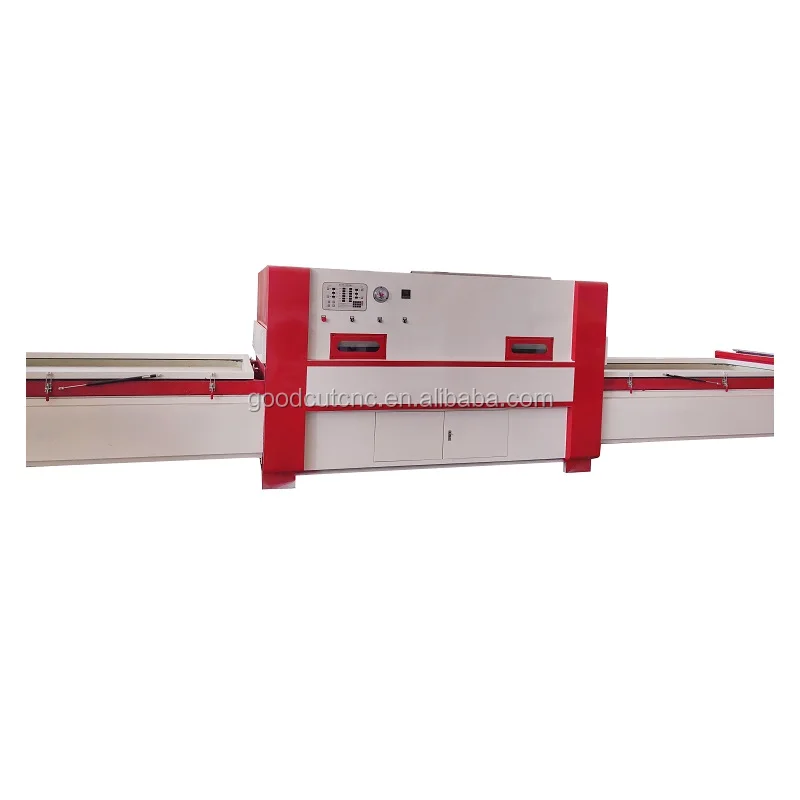

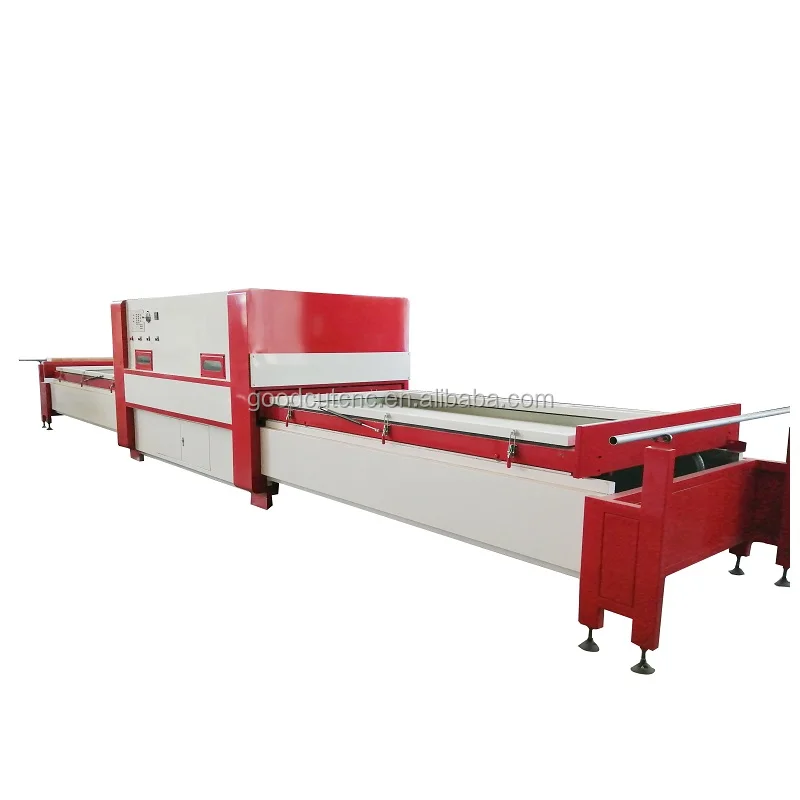

Model	2513 Double working tables wood door MDF vacuum laminating machine
Dimensions	9500*1900*1500mm
Work table dimension	2500*1110*1250mm(the inside diameter)
Maximum processing height	60mm,include buttom plate
Rated pressure	≥-0.095MPa
Total power	25KW
Actual power consumption	12KW
NW/GW	2500kg/2800kg
Power supply	3ph,380V,50HZ
Heating system	Iron air dry electric heating tube+Aluminum heat sinks
Temperature control system	Microcomputer time proportional control, accurate temperature without harmonic pollution
Transmission	Aluminum housing efficient motor + rack drive
Vacuum pump	Domestic well - known brand straight rotary vane vacuum pump
Adsorption	Large flow filter + pure copper solenoid valve, with multiple adsorption function
heat preservation	Using high quality rock wool
Electrical control	Domestic well-known brands of industrial electrical parts, traditional button control
Package	Reinforced wooden case
Warranty:	One year, free technical support service for all life













Features

1,This machine has fully automatic functions, easy operation and high production efficiency.

2,Waterproof, acid and alkali resistant, especially indoor decoration, no pollution, no odor, easy to install, beautiful and elegant, is the ideal equipment for the furniture decoration industry.

3,High quality vacuum pump, reliable quality and stable performance.

4,Double gas path double-enlarged gas storage tank, uniform suction, PVC film is not easy to damage.

5,The bottom heating is combined with heating, the temperature rises rapidly, and the workpiece is heated uniformly.

6,High quality inverter rack drive, the start is close to easing, and the drive is even without slip.

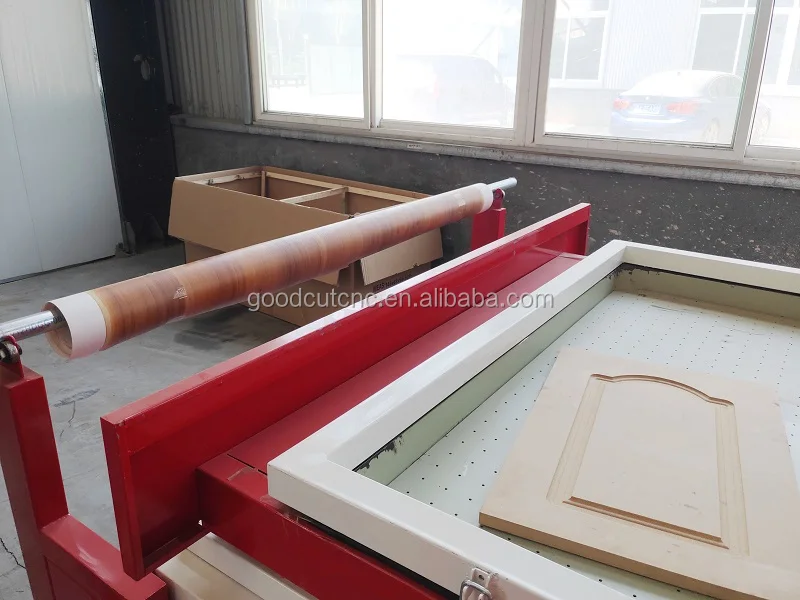

7,Automatic film cutting, PVC film incision uniform, simple operation, save film, save time.















Application

Various imitation high-grade wood, anti-leather PVC mask, surface decoration for all kinds of panel furniture, sound, decorative materials, etc., suitable for surface convex and concave patterns, linear and various edges



This machine is used for laminate PVC OR Transfer film material on various  kinds of panel furniture, door, cabinet, decorate panel and various kind of tabnormal shape worlpieces  also to laminate ,veneer, on door core withextra silicon plate.



It is intended for laminate doors, kitchen and furniture facades, different furniture units with PVC films and veneer, with the help of heat and vacuum technique system. As result you will receive product with long life use and the same time with elegant and inclusive surface.
It is applicable to cover furniture, sound box, cabinets, relief door, decorative panels and all kinds of baroque decorative surfaces with PVC films and natural veneer and hot stamping foils.
