Product Description

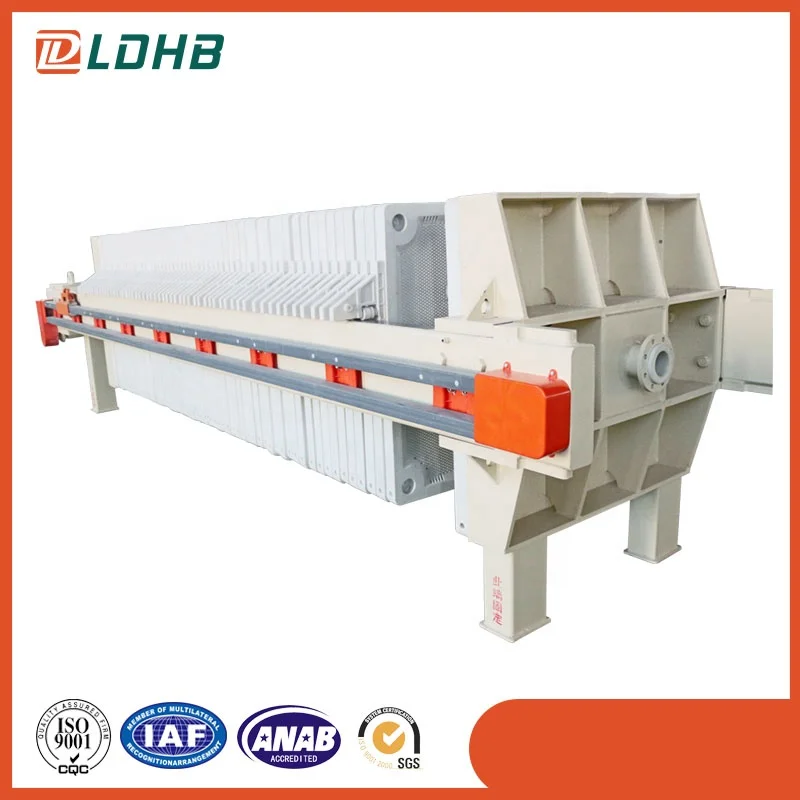

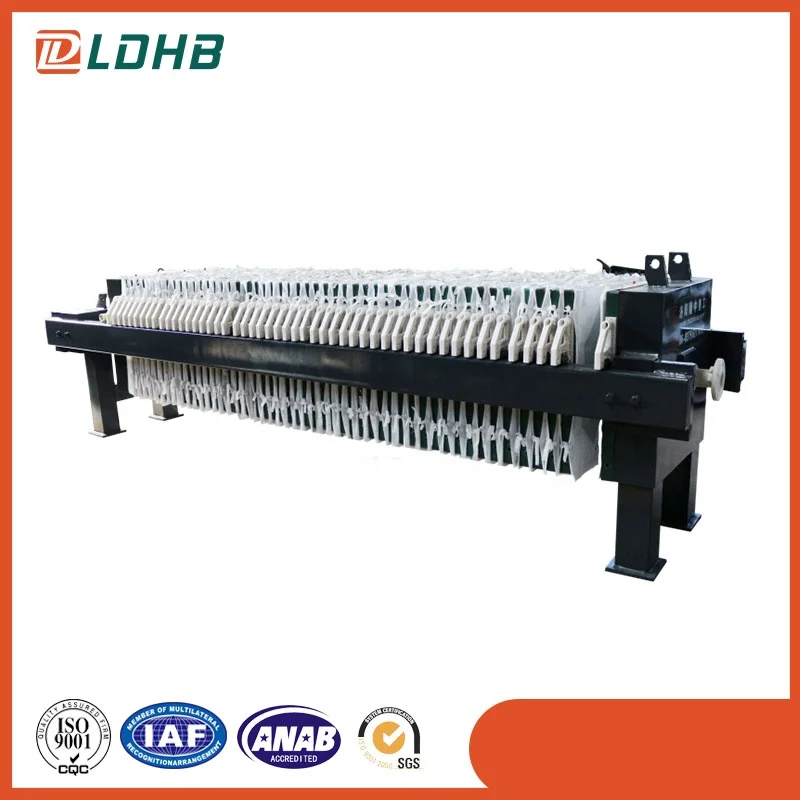

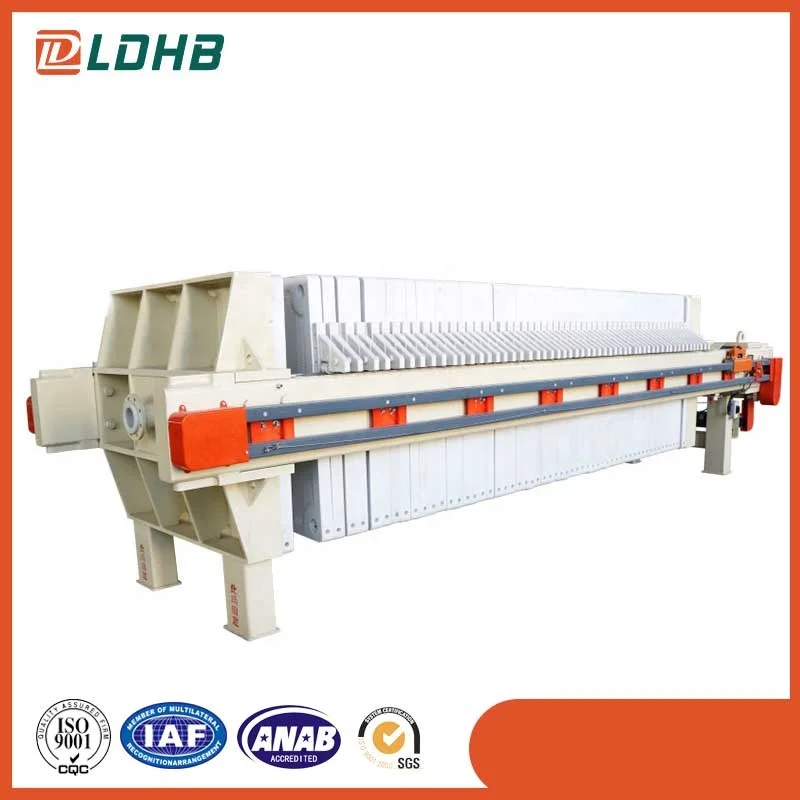

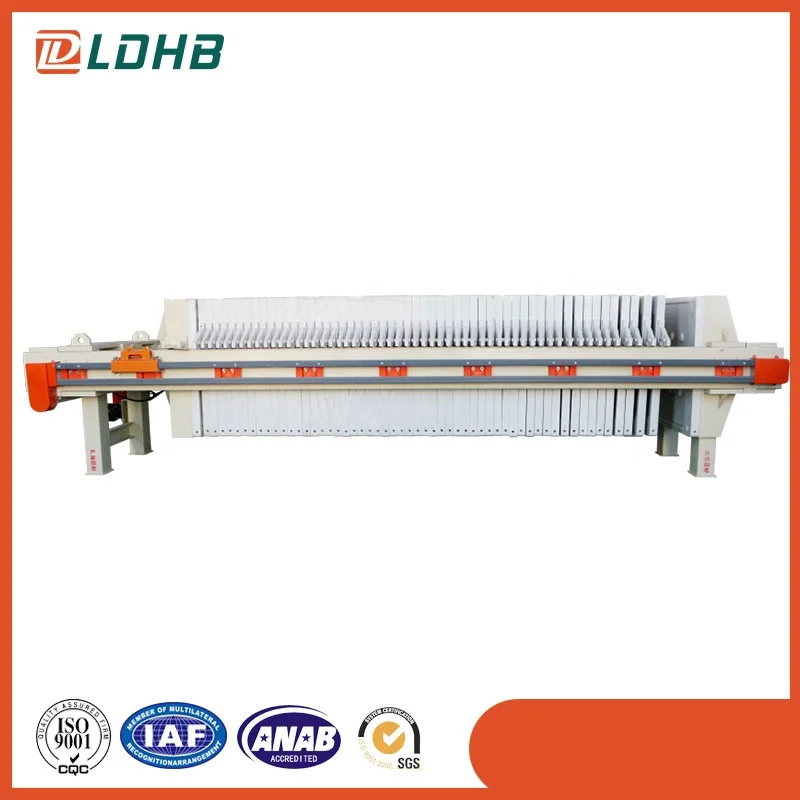

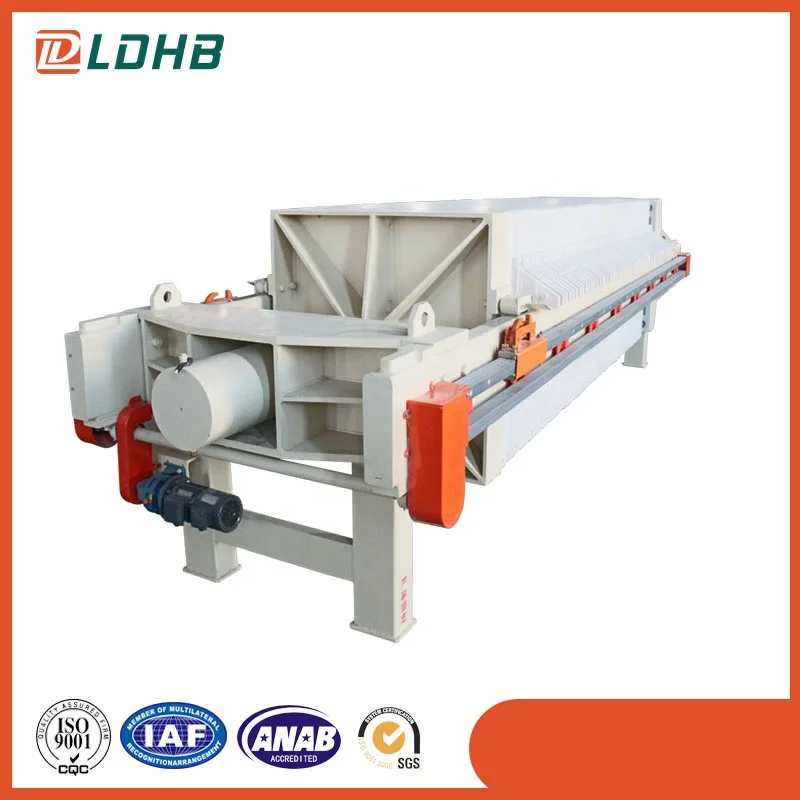

High efficiency Filter Press for waste water treatment

Filter press is a kind of mud treatment equipment developed for solid liquid separation in industrial production. It is mainly used in chemical, ceramic, petroleum, pharmaceutical, food, smelting and other industries, as well as industrial filtration and sewage slurry treatment. This equipment has the advantages of convenient operation and maintenance and reliable operation. The mud cake filtered by the filter press has a higher solid content and an excellent separation effect.

Working principle

LDHB filter press is extruded through the plate frame, so that the water in the sludge is discharged through the filter cloth to achieve the purpose of dehydration. In operation, under the pressure of the feed pump, the liquid to be filtered is sent to each filter chamber, and the solid and liquid are separated by a filter medium (selecting a suitable filter cloth according to different industries). The filter residue is formed on the filter cloth until the filter chamber is filled to form a filter cake.
The filtrate passes through the filter cloth and flows along the groove of the filter plate to the lower outlet hole passage, and is discharged centrally. After the filtration is finished, the filter press is opened to remove the filter cake (the filter cake is stored between the adjacent two filter plates), and the filter cloth is cleaned. Re-tighten the plate filter to start the next working cycle. This continuously cycles through the work to achieve the purpose of solid-liquid separation.

\t

Model
\t
Feed Material
concentration
(%)
\t
Filter Area
(m²)
\t
Power
(KW)
\t
Capacity
(t/h)
\t
Weight
(kg)
\t
Overall Dimension
(mm)
\t
G50-80
\t
20-40
\t
50
\t
15
\t
0.80-1.60
\t
3456
\t
4110*1400*1230
\t
G80-80
\t
20-40
\t
80
\t
15
\t
1.32-2.60
\t
4584
\t
4990*1400*1230
\t
G100-100
\t
20-40
\t
100
\t
24
\t
1.70-4.00
\t
6628
\t
4900*1900*1600
\t
G150-125
\t
20-40
\t
150
\t
27.5
\t
2.50-5.00
\t
9800
\t
6010*2000*1600
\t
G200-125
\t
20-40
\t
200
\t
35.5
\t
3.00-7.00
\t
12500
\t
7050*2260*1600
\t
G250-125
\t
20-40
\t
250
\t
44.5
\t
4.00-8.00
\t
14000
\t
7890*2260*1600
\t
G300-125
\t
20-40
\t
300
\t
52.5
\t
5.00-7.00
\t
25000
\t
8800*2260*1925
\t
G400-150
\t
20-40
\t
400
\t
62.5
\t
6.00-10.00
\t
30000
\t
10670*2260*1925
\t
G500-150
\t
20-40
\t
500
\t
82.5
\t
8.00-12.00
\t
36500
\t
12650*2260*1925

Main Features

1) The structure is simple, the operation is easy and stable, and the maintenance is convenient.

2) Less wearing parts and low maintenance costs.

3) The filter area has a flexible selection range and a small footprint.

4) LDHB filter press has strong adaptability to materials and is suitable for various small and medium sludge dewatering treatment occasions.

5) Compared with other types of dewatering machines, the mud cake has high solid content, small floor space, and convenient transportation and other post-treatment.

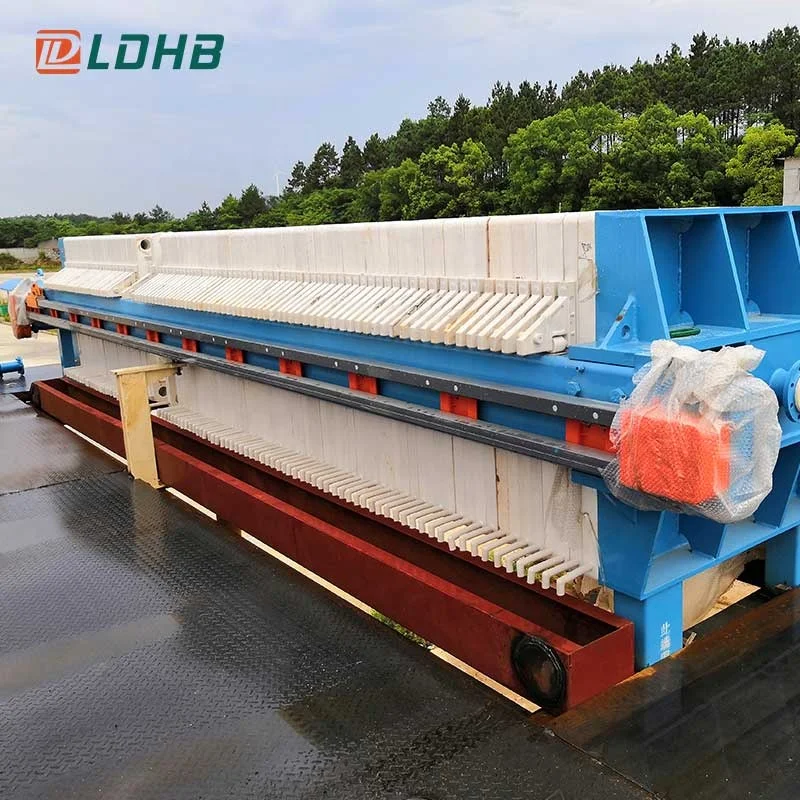

Working Site
Packing & Delivery
\t
Packaging
\t
Model
\t
G200-125
\t
Size
\t
7050 (L) * 2260 (W) * 1600 (H)
\t
Weight
\t
12500KG
\t



Packaging Details
\t
The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.
\t
Packaging
\t
Model
\t
G100-100
\t
Size
\t
4900 (L) * 1990 (W) * 1600 (H)
\t
Weight
\t
6628KG
\t



Packaging Details
\t
The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.
Our Company
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
