Мультифокальный тринокулярный микроскоп с двойной стрелой 3 5x 90X 180X 38MP 2K HD USB камера 144 светодиодная

Описание и отзывы

Трекер стоимости

Характеристики

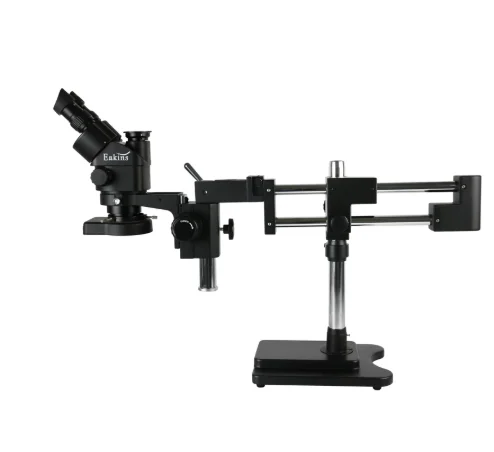

 1.3.5X 90X 180X Simul-Focal Double Boom Stand Trinocular Stereo Zoom Microscope 38MP 2K High resolution  Camera 144 LED Light Microscope..

2 .2 year warranty.





Feature:

An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light 7x-45x super wide zoom magnification power

Bright cool light 144-LED illumination system

High resolution with great flatness and contrast, giving sharp and clear images

Binocular head with 45 degree inclined 360 degree swiveling eye tubes

Sharp stereo erect images with a wide field of view

Crystal clear original true color microscope images

Dual eye tubes with adjustable diopters

Large working distance

Sturdy all-metal table stand

Accurate alignment reduces eye strain for longer periods of viewing

Full optical glass elements

Precise ground glass lenses

Full metal chrome-plated mechanical components

Adjustable interpupillary distance

Rubber eye-guards included



Expand the scope of operations,any orientation and angle observed the objectives.

Vertical Pillar: high 380mm,Diameter Ø32mm

Horizontal moving:235mm

Base size: 210x260x40mm

Steel Gears on Focusing Holder.

Standard Size Focusing Holder - Will Fit Scope



144 bright white LED bulbs 100,000 hours of life Intense and focused shadow-free illumination

The brightness of 0-100%

Adjustable,high brightness Variable intensity control

Power input: 100-240V, 50-60HZ Suit for the dia of the lens: 30mm-63mm



Module:FHD3860 38 MegaPixel

Optical format:1/2.3 inch pixel size:1.335μm x1.335μm

Interface:HDMI(Type A).USB(Type B).

TF Card Image resolution:38 MegaPixel Size of the picture:7120*5344

Video record resolution:2K@30FPS 1080p@60FPS

HDMI resoltion:1920*1080p 60FPS

Can output with USB at the same time HDMI scale:Support 4:3,16:9,16:10 screen USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS

Can output with HDMI at the same time

TF card:MAX 64GB AWB:WB color correction/Auto/Manual R.G.B value setting independent Exposure:Auto/Manual.AE value can set Cross lines:8lines.Can set color& width& position Scale mark lines:2lines. Dotted lines:2lines.Can set color& width& position Sharpness Contrast Color gain:Support Mono Negative:Support Mirror:Horizontal vertical mirror Language:English/simplified Chinese Digital Zoom:Support IR remoter:Support Voltage in:DC 12V 55-21mm size Power consumption:MAX 0.15W 12V,0.12A Lens interface:C/CS Net weight:180g Gross weight:400g Camera size:74*74*35mm Packaging size:160*100*80mm Questions Solutions: LCD no video or flicker 1.Check power supply. Check green LED be onlight. Press PowerKey to Up it. 2.Check lens cover. Increase the lighting. LCD have black bar Image warp 1.change resolution of LCD 2.change resolution of camera Have dirty spot 1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanse

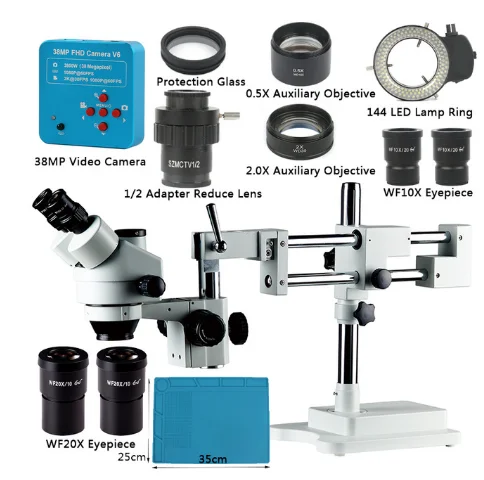

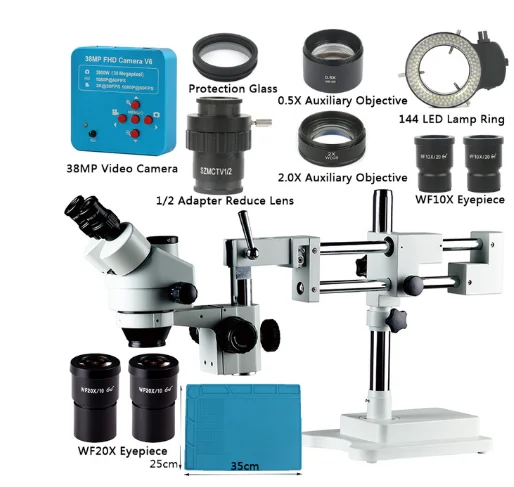

Package Including:

1 x Trinocular Stereo Zoom Head

1 x Pair of Super Widefield 10X20MM Eyepieces

1 x Pair 20X/10MM Eyepieces

1 x 144-LED Ring Light

1 x Double Boom Microscope Bracket

1 x Focusing Rack

1 x C-mount Adapter

1 x Pair of Eye-Guards

1 x Dust Cover

1 x Microscope Camera

1 x Power Adapter (AU/EU)

1 x IR remoter

1 x Usb Lines

1 x HDMI Lines

1 x Paper Manual

1 x 8G TF Card

1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)

1 x SZMCTV 0.5X/1/2 Lens

1 x High Temperature Resistant Working Pad

1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)

1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 30 mm)
