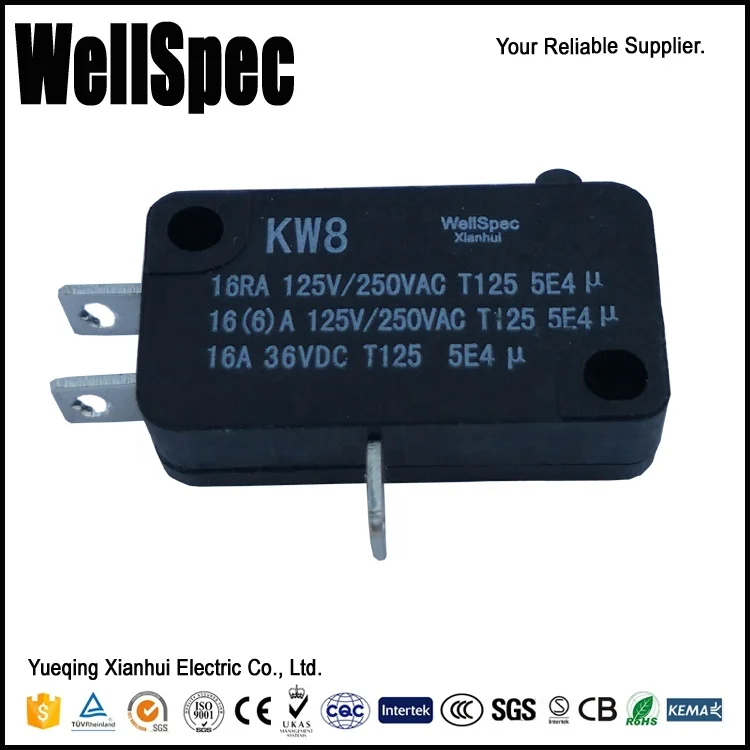

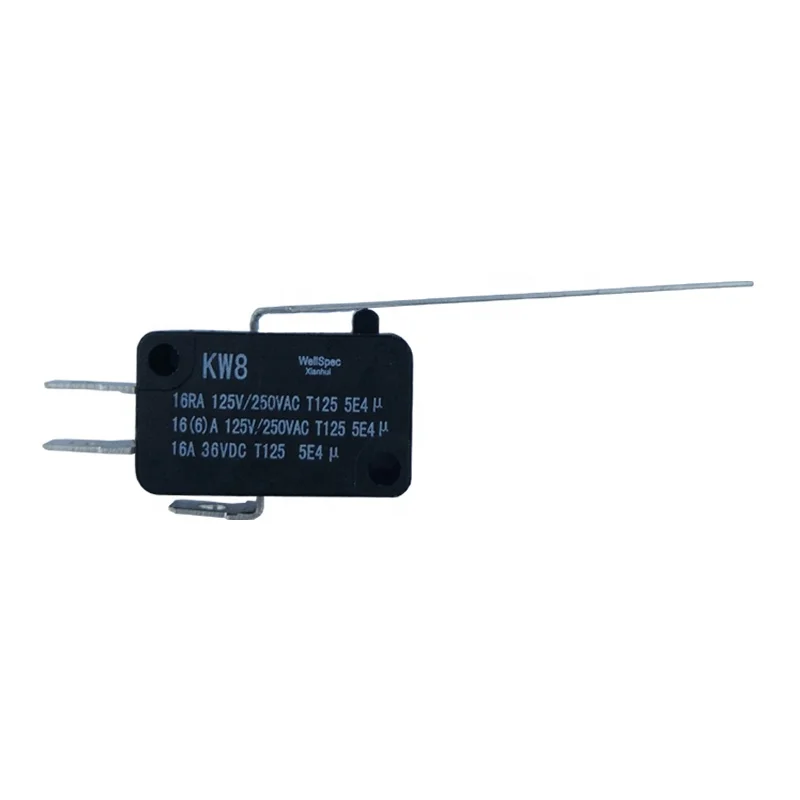

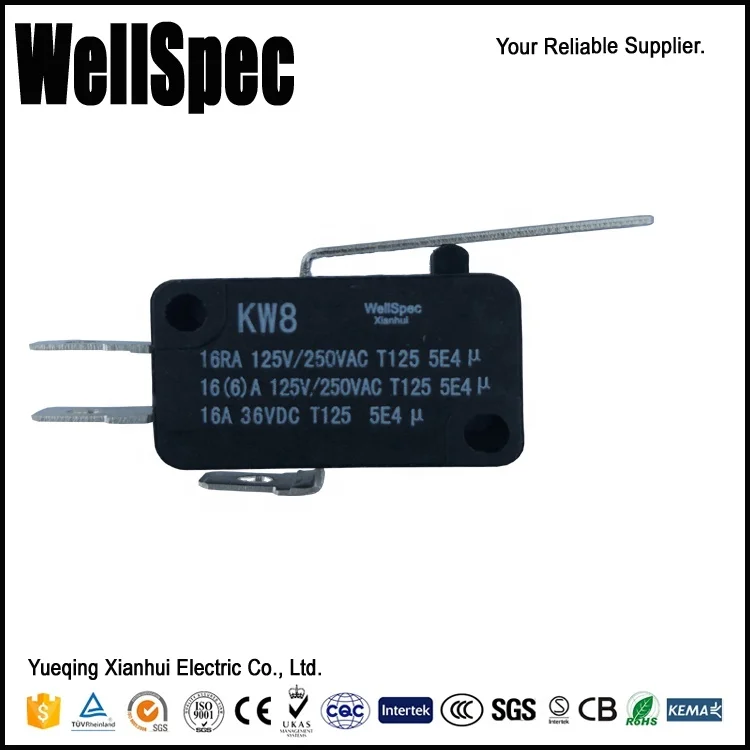

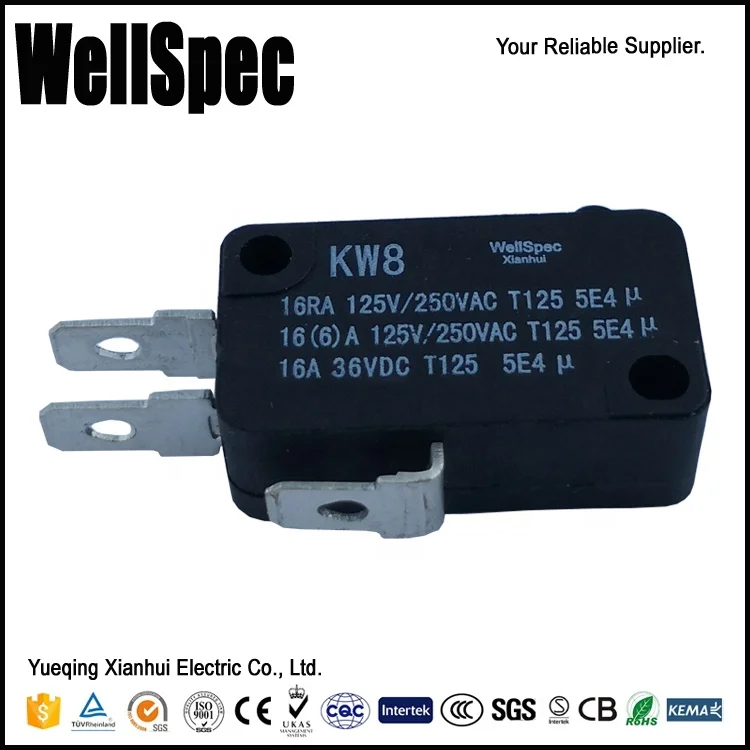

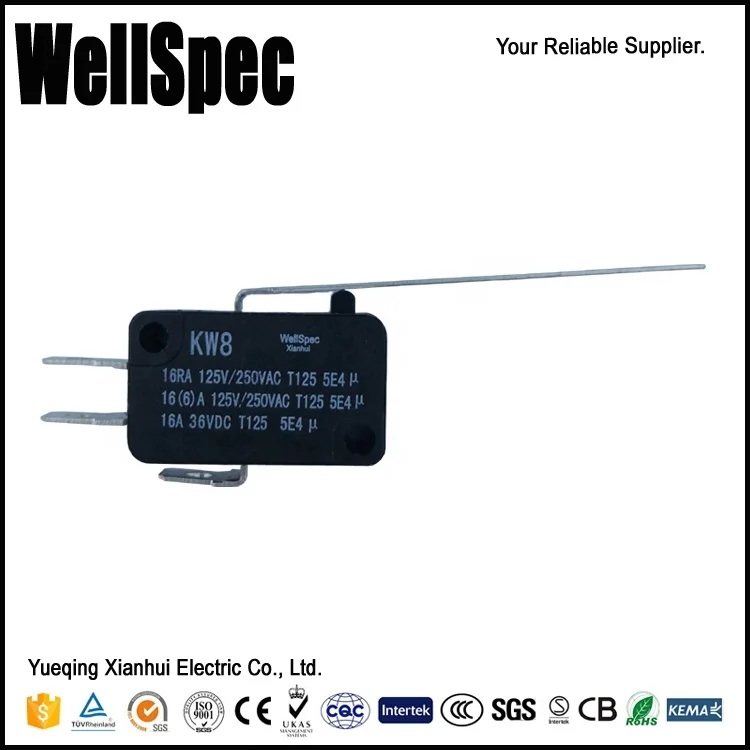

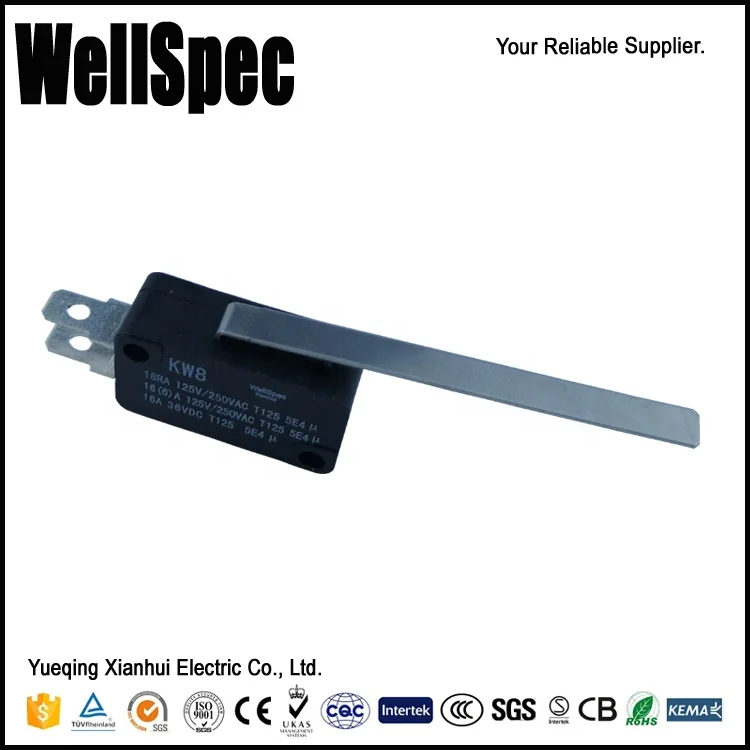

KW8-167-1C-472 micro switch dongnan micro switch adopts the high quality PA66 for injection molding, the shell is high strength and good heat resistance. The die structures are special design, all action positions are high accuracy. The switch button push sounds silvery, feel perfect and good rhythm. Our switches are fast action, long life, high reliability, stability and good appearance. We specialize in switches field for more than ten years and we have established business relationship with many world famous company such as Whirlpool, Siemens, Electrolux, Panasonic, Eaton and Emerson etc.

A. UL, CE, RoHS TUV, CCC approved, ISO9001:2008.

B. 1-22A, 250VAC.

C. Materials:

Base plastic---Nylon 66

Button plastic---PC or Nylon 66

Copper parts such as terminal----Copper H62

Terminal surface treatment----- tin plating

Contact----Compound Silver

Spring----Tungsten steel

1. Application

Our micro switch dongnan micro switch are widely used for microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, water heater, electric radiator, electric drill, joystick, TV game, time recorder, solder gun, mixer, food processor, juice maker, alarm, mixer, shredder machine etc. Micro switch, micro switch t85 5e4, kw3 oz micro switch, micro switch 25t85 micro switch, 40t85 micro switch

2. Features:

A. Using high quality PA66 for injection molding, the shell is high strength and good heat resistance.

B. The die structures are special design, all action positions are high accuracy.

C. The switch button push press sounds silvery, feel perfect and good rhythm.

D. Small contact gap, snap action, high sensitivity and small operating travel.

E. A Variety of levers and contact terminals are available for choosing.

F. Low to high operating force are available for various types.

G. Fast action, long life, high reliability and stability.

3. Technical Data:

4. Advantages

A. High accuracy, snap action and high sensitivity.

Using high quality PA66 for injection molding and the die structures are special design, so our switch button push press sounds silvery, feel perfect and good rhythm.

B. A Variety of levers, contact terminals and low to high operating force are available for various types.

C. Quality is pretty good because our switches are fast action, long life, high reliability and stability.

1. Working Conditions:

A. Ambient air temperature: -25^oC~+125C, the highest monthly mean temperature should not exceed +35^oC;

B. Altitude for installing place should not exceed 2000m;

C. Atmospheric relative humidity: + 40 ℃ not more than 50%, the highest humidity is 90%, air relative humidity of 85% or less;

D. Pollution level: level 2;

2. Quality Assurance of Our Micro Switches:

A. The main materials used in our micro switches are high quality PA66 for injection molding, pure cooper H62 for terminals, 301stainless steel for spring and compound silver for contact.

B. The die structures are special design, all action positions are high accuracy.

C. A Variety of levers and contact terminals are available for choosing and low to high operating force are available choosing for various types.

D. Fast action, long life, high reliability and stability.

E. 100% Inspection before shipment.

3. Matters Need Attention:

A. When fixing the switch on equipment, please use the small screw M2 to fix it with the torque below 0.098N·m on the smooth surface. In addition, we recommend to add place washers to prevent loosening of the screws;

B. Please note that the action body should not be directly exerted force on the button or the actuator when it’s in free state, but shall be exerted force on the button in the vertical direction when using;

C. The action setting after action shall be based on above 70% of O.T. value. Under the condition of switch, do not set the action body at the position of action limit, so as to avoid the opening and closing and over-travel that are accompanied by impact and shorten the service life;

D. When hand welding, please use a temperature control of electric temperature 320℃, finish the work in 3 seconds and don’t exert force on the terminal;

E. It is recommended to use low-power circuit type (Au plated contact) when using at small current and voltage.

4. Why choose us:

A. We are reliable Alibaba Gold Supplier.

B. We are leading manufacturer in micro switches for more than 10 years’ experience.

C. Rich experience in Global market, export to more than 50 countries.

D. 100% QC inspection before shipment.

E. Keep research and development the latest technology.

F. Reply within 24 hours.

G. After sale service: Professional technical support.

H. Customized design: We can produce according to your request.
