3D медленно самозакрывающийся трехсторонний Регулируемый не хлопывающий гидравлический кухонный шкаф вставка дверной
- Категория: Мебельные петли >>>
- Поставщик: Guangzhou,Racer,Hardware,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.93 $* | 0.17 $* |
| Aug-18-2025 | 0.96 $* | 0.14 $* |
| Jul-18-2025 | 0.92 $* | 0.79 $* |
| Jun-18-2025 | 0.83 $* | 0.74 $* |
| May-18-2025 | 0.31 $* | 0.28 $* |
| Apr-18-2025 | 0.7 $* | 0.35 $* |
| Mar-18-2025 | 0.12 $* | 0.91 $* |
| Feb-18-2025 | 0.63 $* | 0.68 $* |
| Jan-18-2025 | 0.68 $* | 0.94 $* |
Характеристики
Product Description
Name | 3 ways adjustments hydraulic hinge |
Item No. | FHS654-3D808 |
Feature | Full overlay / half overlay / insert |
Usage | Furnitures like kitchen cabinet and wardrobes etc |
Functions | 1.Three ways adjustments(left and right ,front and back ,top and bottom part) 2. Clip on type for easy discharging the base . 3. Soft closing/Hydralic type to close furniture doors smoothly for protecting furnitures |
Material | Steel |
Finish | Nickel plated |

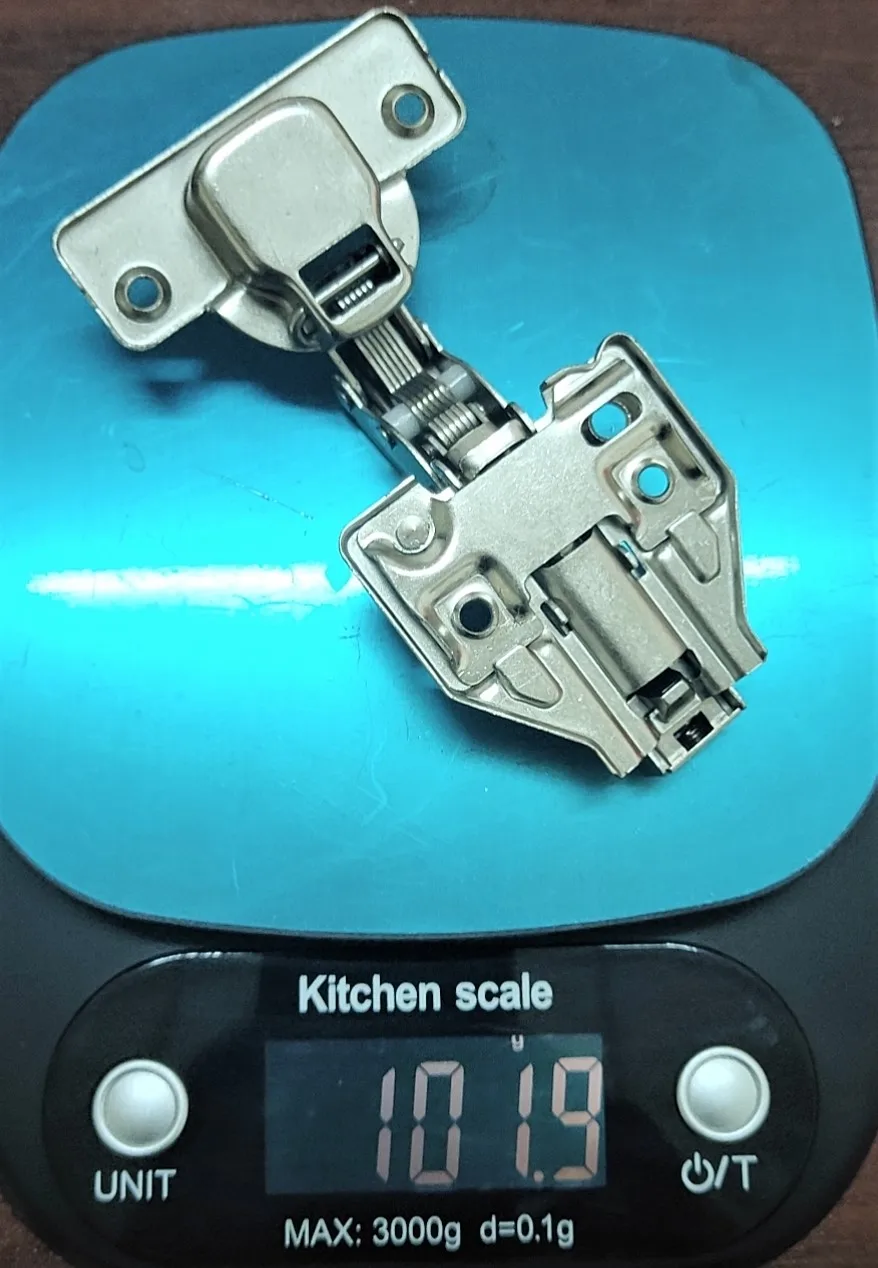

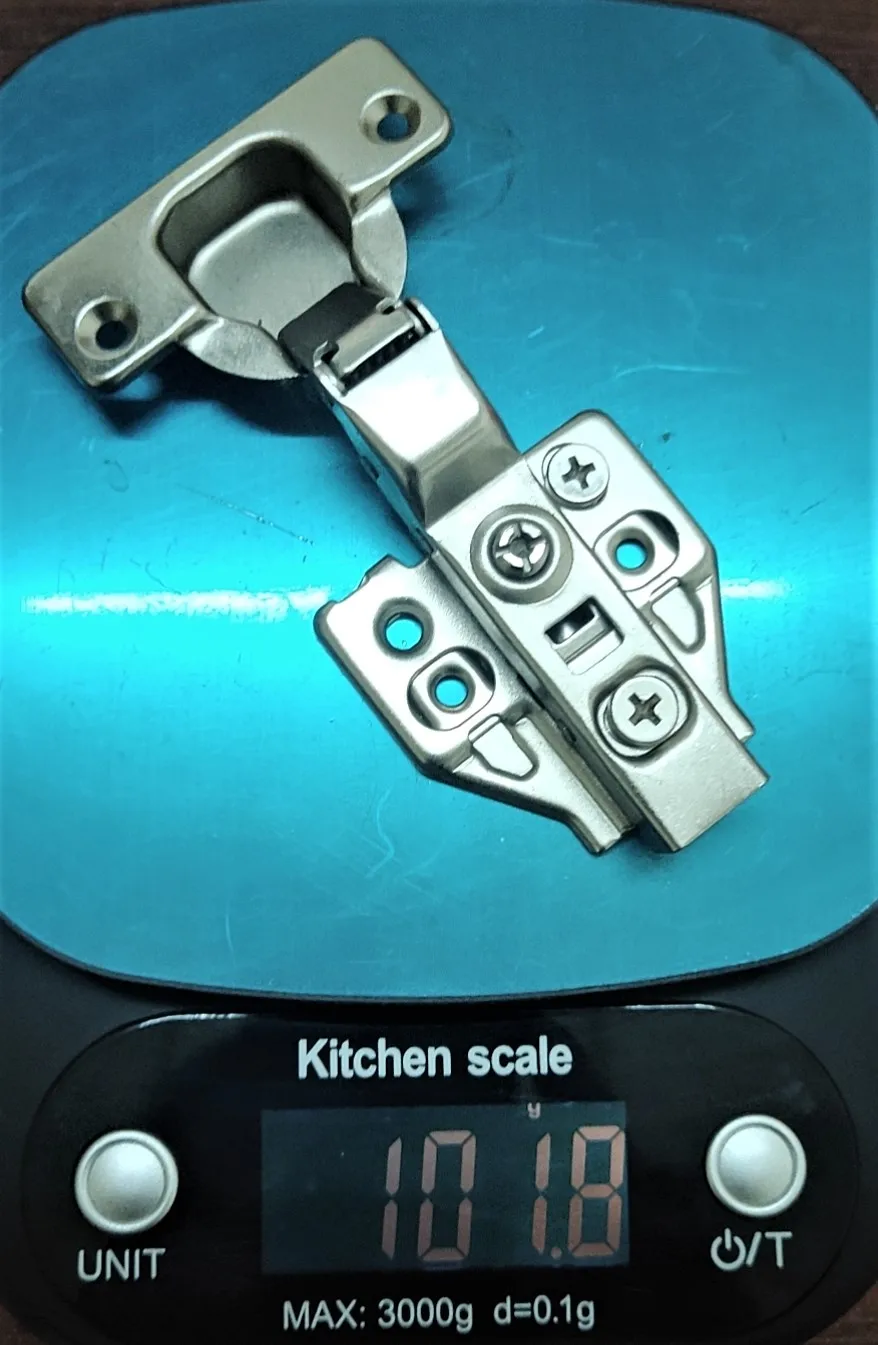

Net weight | 102g/pc |
Cup depth | 11.5mm |
Cup diameter | 35mm |
Hole Pitch | 48mm |
Hole | 2 & 4 holes |
Packing | 100pcs/polybag/ctn |

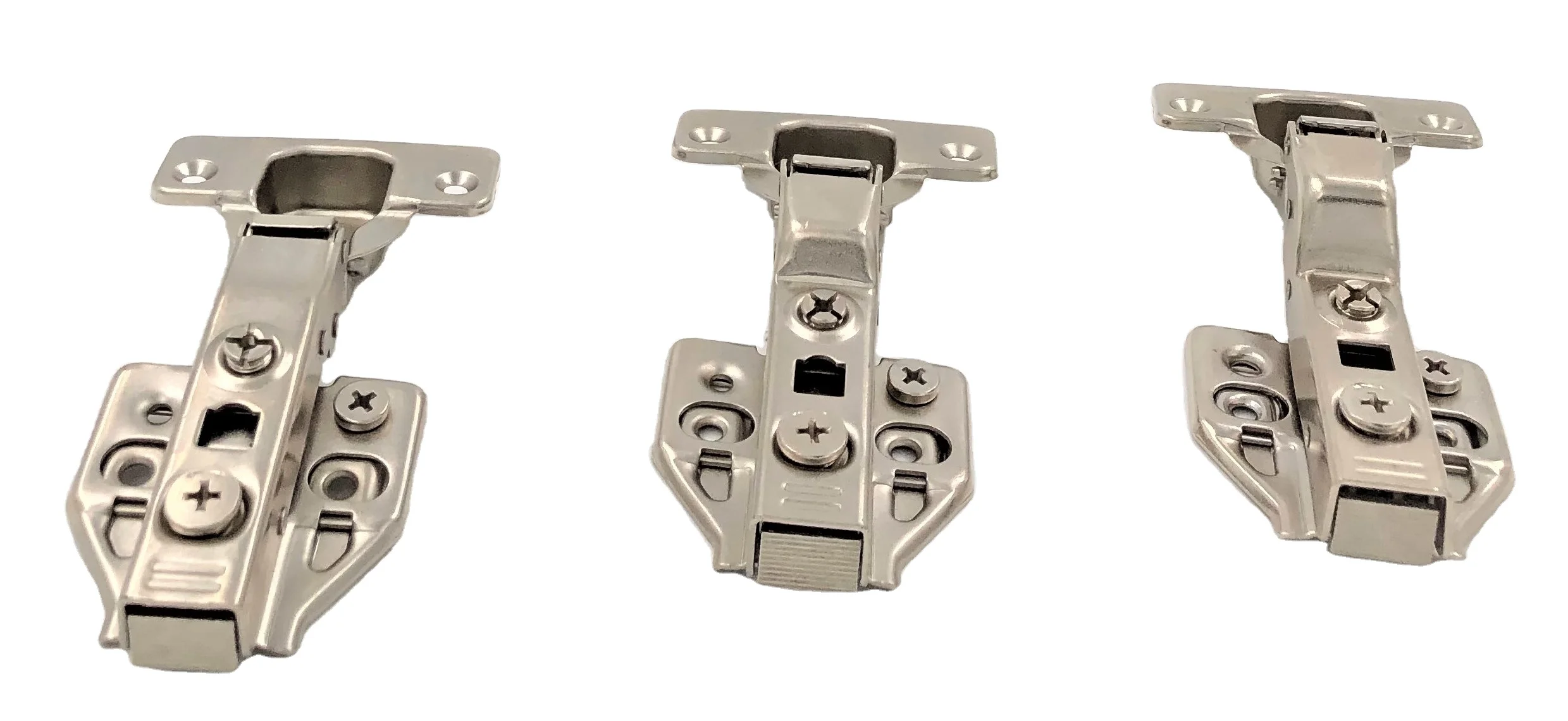

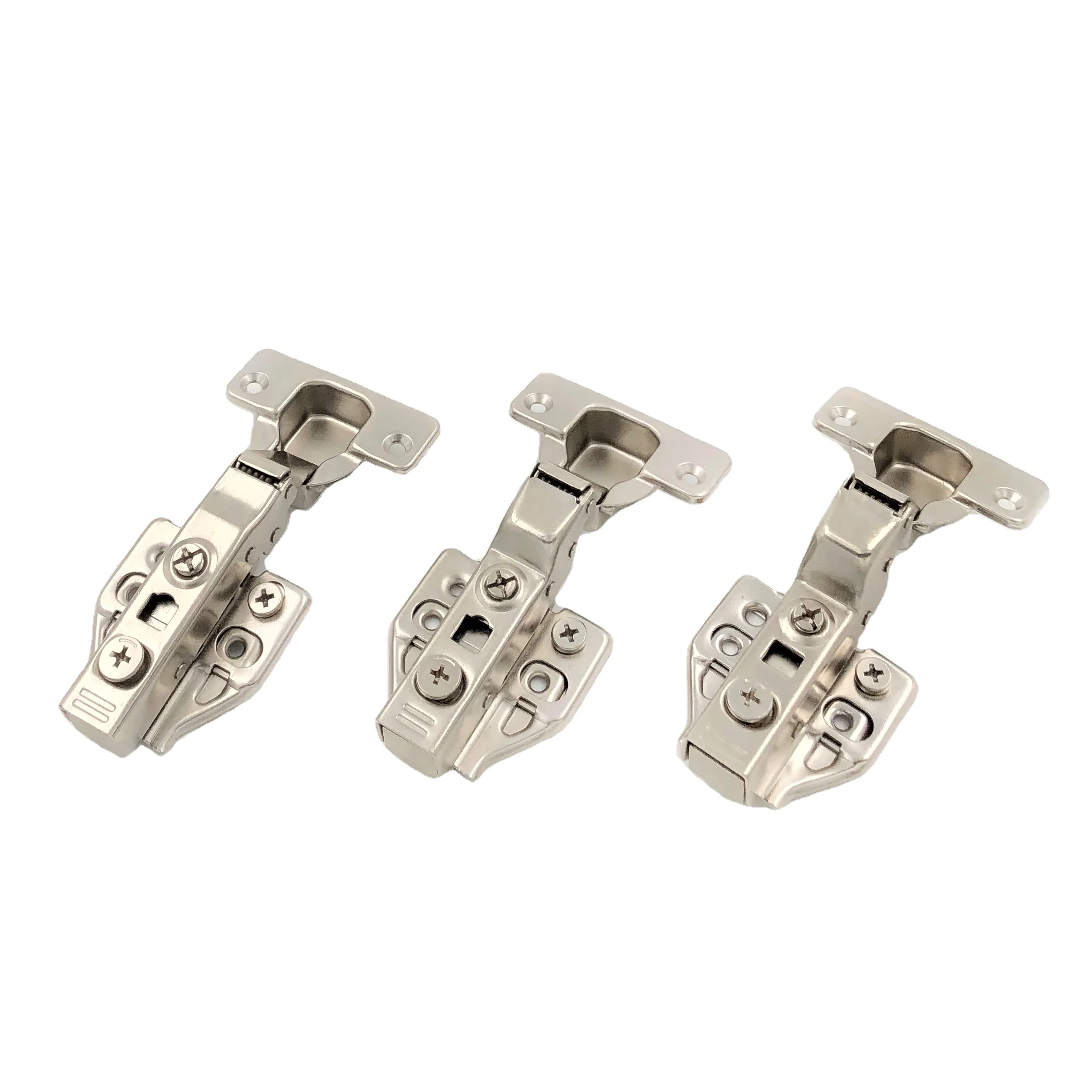

Three types
Full overlay .Half overlay and inserted type for choices.
Nice nickel plated finish to protect the steel material
High quality hydraulic cylinder
Hight quality hydraulic cylinder for long use .
Soft closing functions to close the furniture doors smoothly for protecting furnitures
Clip on type
The base can be discharged from hinge arm directly by pushing its back part .
Easy to fix or discharge the hinge .

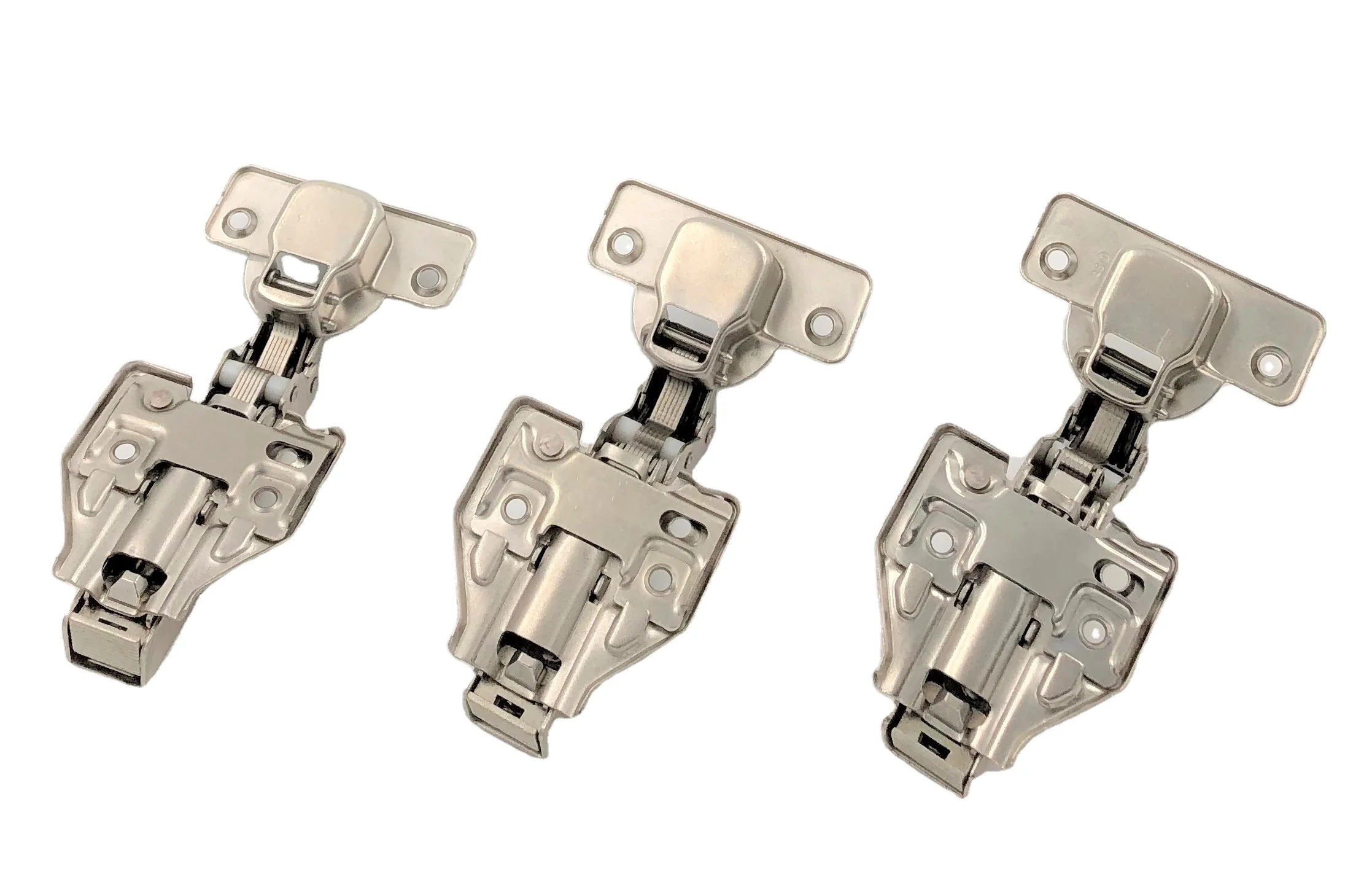

Front View
Three ways adjustment for easy installation etc
Left&right ,up & down,forward&backward adjustment
Back side
Three ways adjustment for easy installation etc
Left&right ,up & down,forward&backward adjustment
