Тонкий гибкий дисплей e-ink 2 13 дюйма с частичным
- Категория: Модуль OLED/E-Paper >>>
- Поставщик: Dalian,Good,Display,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 5.46 $* | 5.33 $* |
| Aug-20-2025 | 5.77 $* | 5.56 $* |
| Jul-20-2025 | 4.67 $* | 4.64 $* |
| Jun-20-2025 | 5.74 $* | 5.19 $* |
| May-20-2025 | 4.66 $* | 4.34 $* |
| Apr-20-2025 | 5.68 $* | 5.69 $* |
| Mar-20-2025 | 5.94 $* | 5.88 $* |
| Feb-20-2025 | 4.50 $* | 4.62 $* |
| Jan-20-2025 | 4.35 $* | 4.22 $* |
Характеристики

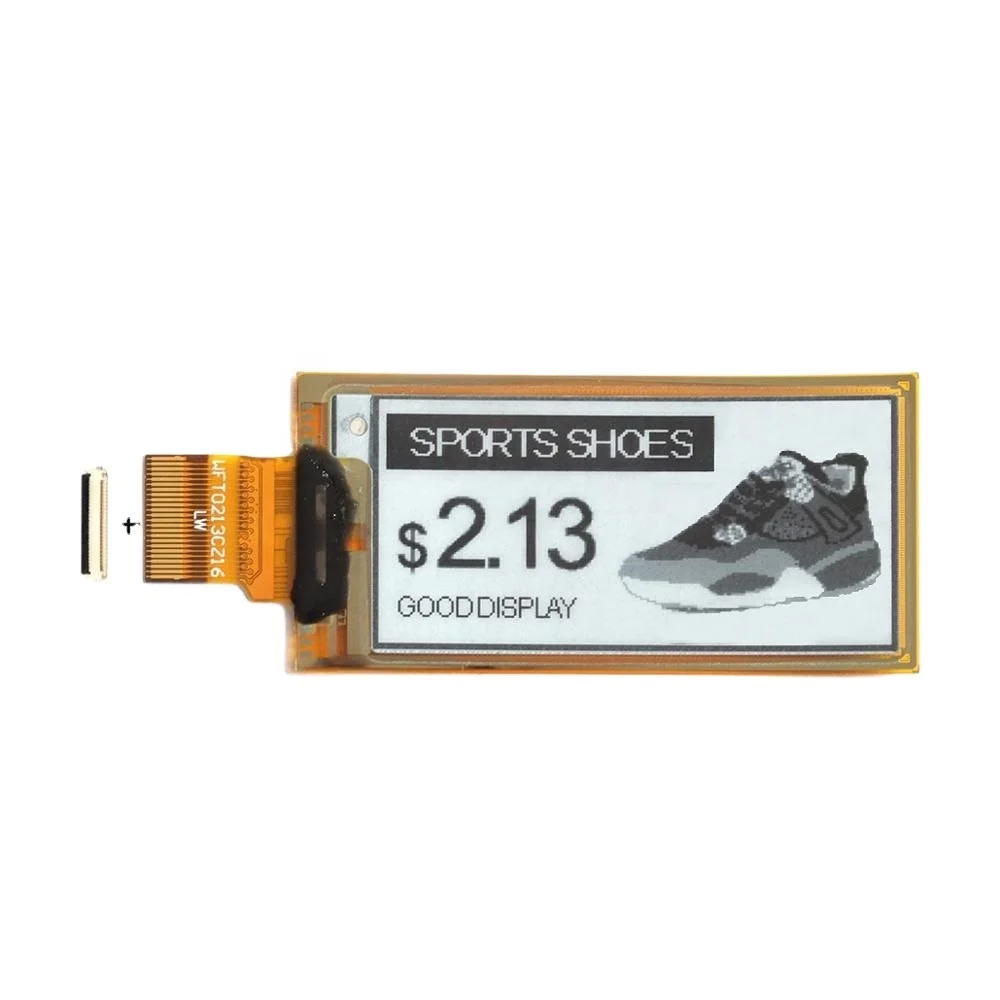

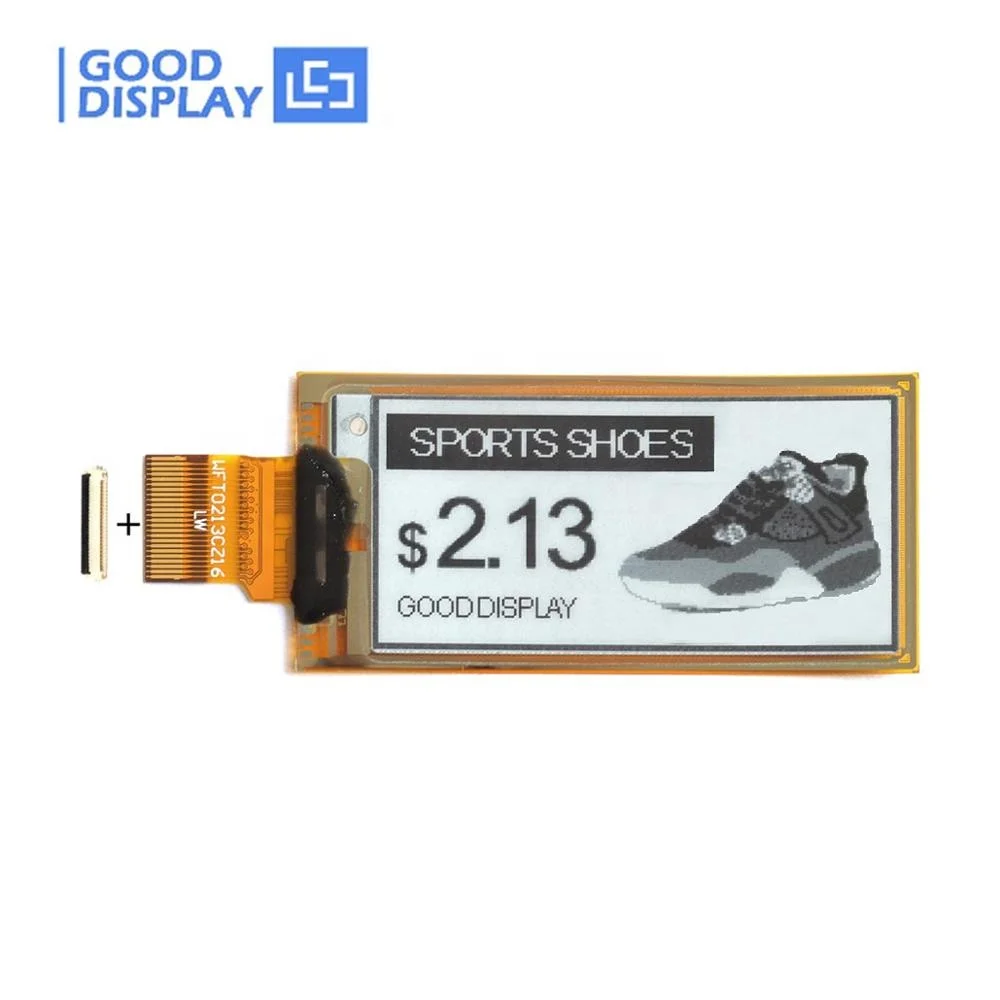

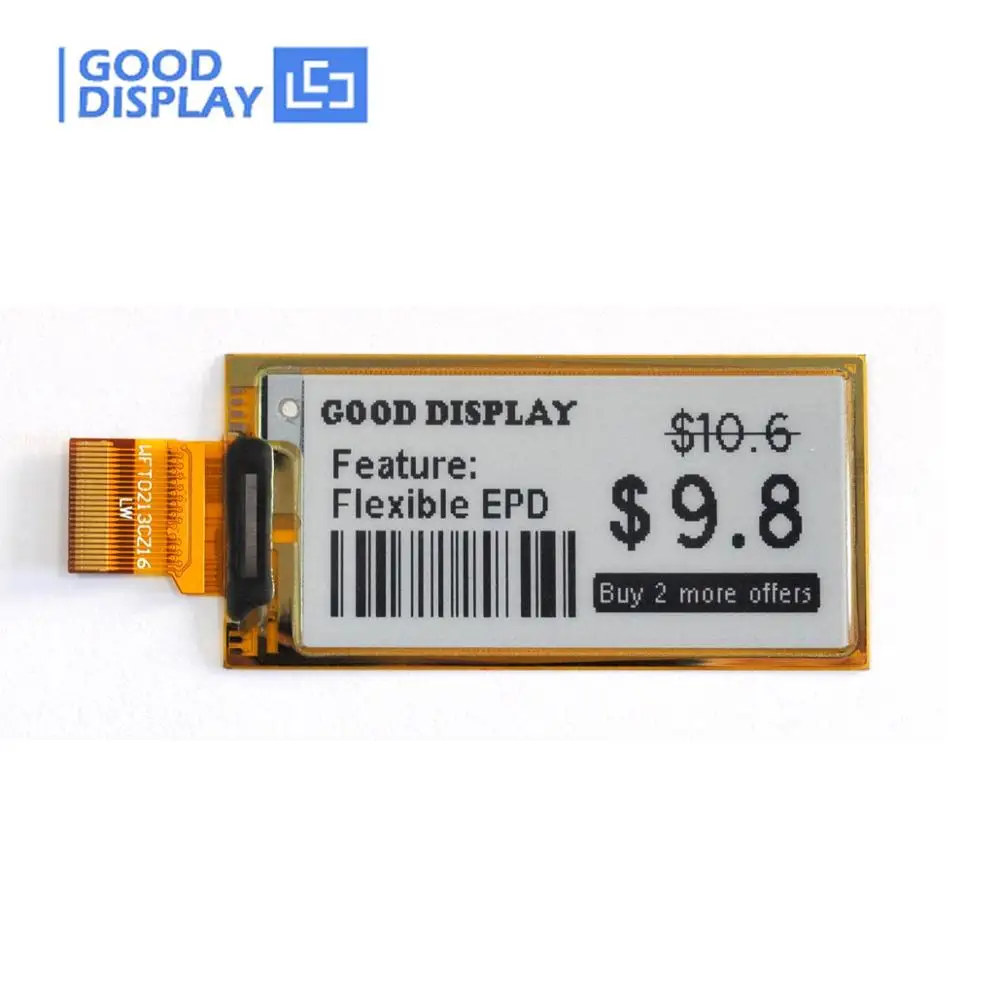

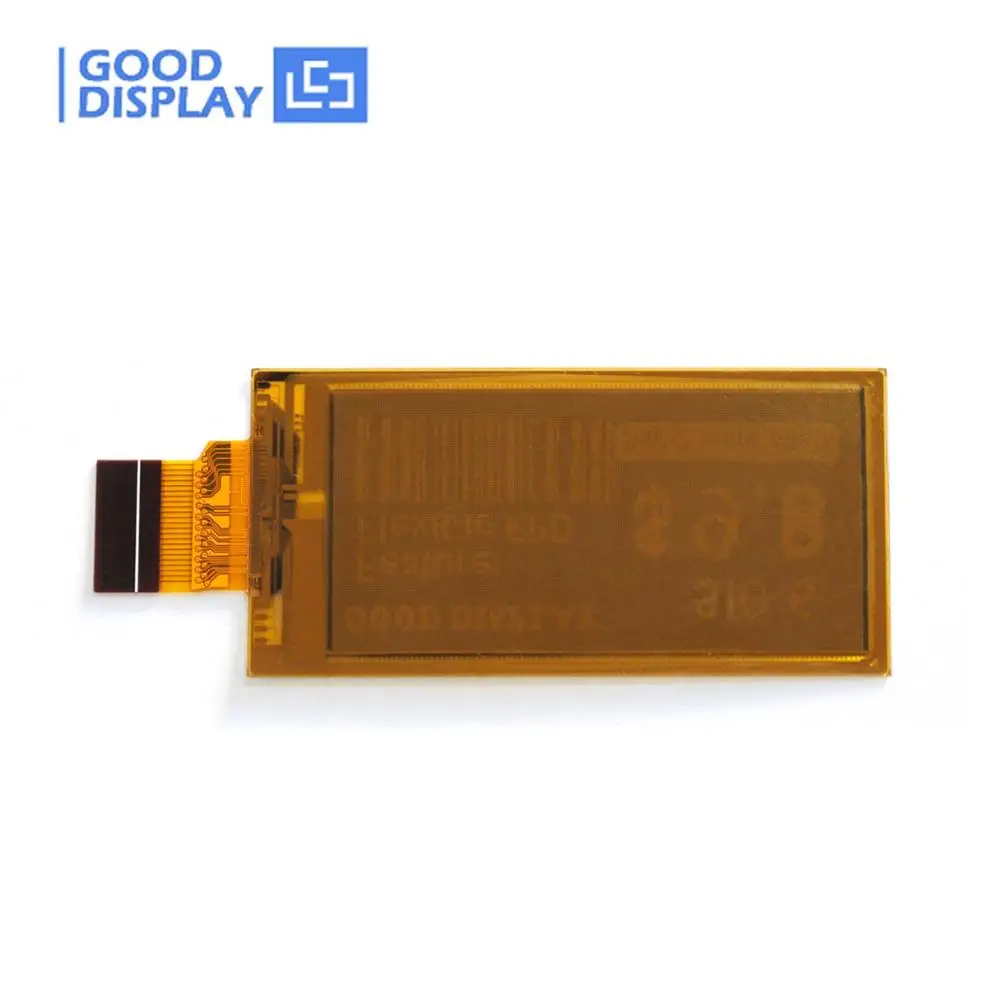

Partial Refresh thin 2.13 inch e-ink display flexible
General Description
This is a flexible 2.13 inch 212x104 SPI e-ink display, 24 pins FPC connection. The refresh rate is 3s/frame, the partial refresh rate is 0.3s/frame. The I2C signal master interface to read built-in temperature sensor. Its IC is UC8151C.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW0213I5F is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.
If you need any electronic paper display accessories, such as touch panel, frontlight, electronic label shell, please contact us, we could provide the customized services for you.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW0213I5F is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.
If you need any electronic paper display accessories, such as touch panel, frontlight, electronic label shell, please contact us, we could provide the customized services for you.
What's included in the package
No. | Standard Accessory Name | Qty |
1 | Partial Refresh thin 2.13 inch e-ink display flexible | 1 |
2 | FPC connector | 1 |
3 | Relevant manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32 ) | 1 |
Main Parameters
Part Number | GDEW0213I5F |
IC | UC8151C |
Type | Dot Matrix |
Resolution | 212x104 |

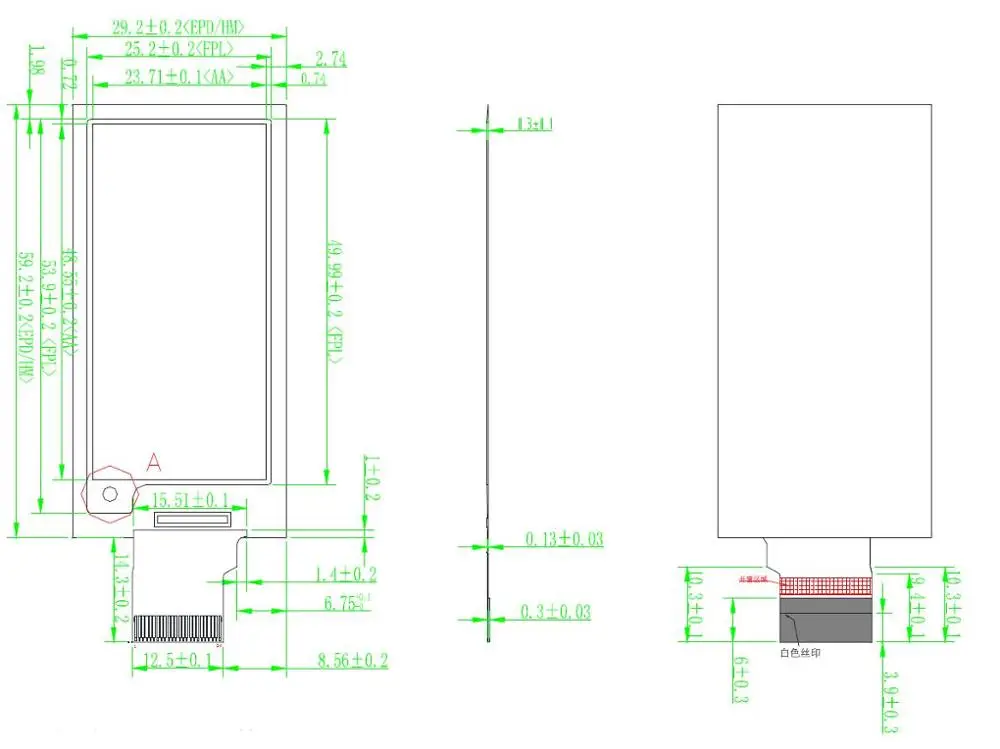

Outline Size(mm) | 59.2x29.2x0.3 |
Active Size(mm) | 48.55x23.71 |
Pixel Pitch(mm) | 0.229x0.228 |
Operating Temp. | 0℃~50℃ |
Storage Temp. | -25℃~70℃ |
Connector | 24 Pin FPC |
Max Grayscale | 4 |
Color | Black, White |
Interface | SPI |
Power consumption of the refresh(mW) | 26.5 |
Standby power consumption Pc(mW) | 0.0165 |
Time of refresh(s) | 3 |
Time of partial refresh(s) | 0.3 |
\t\t\t\t\t\t\t\t\tFeatures \t\t\t\t\t\t\t
● Support 4 Grayscale
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format

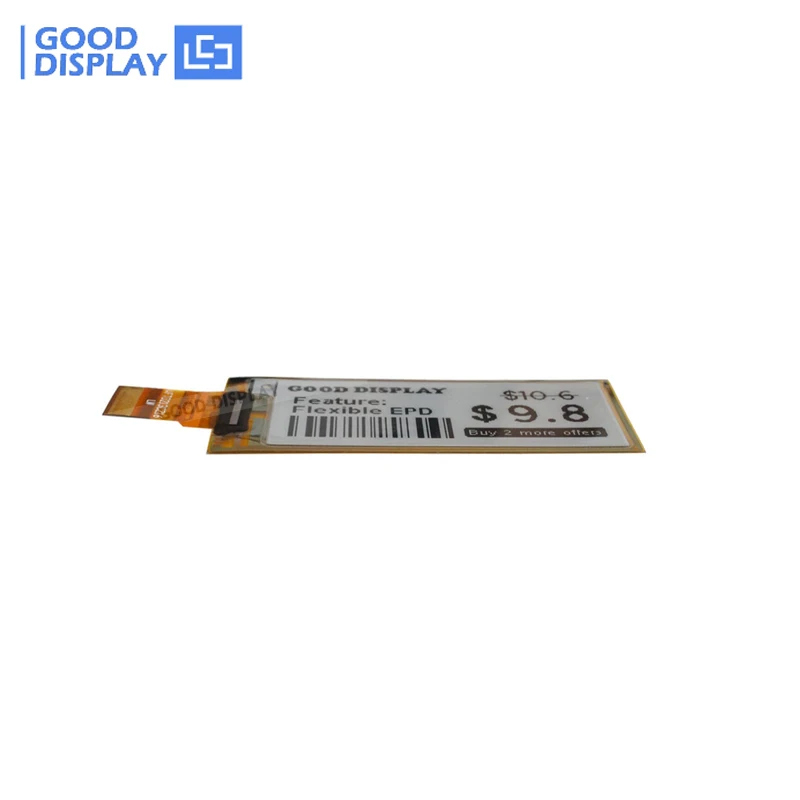

● It supports small bending because its flexible feature
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
Other Products
Part Number | Resolution | Refresh Time(s) | Color | Feature |
212x104 | 3 | Black, White | DES, 4 Grayscale, -20℃~60℃ | |
250x122 | 3 | Black, White | Partial Refresh, 4 Grayscale | |
212x104 | 3 | Black, White | Partial Refresh, 4 Grayscale | |
212x104 | 3 | Black, White | With 3 pcs LED frontlight | |
250x122 | 14 | Black, White, Red | Tri-color |
Matched Demo Kit
We can provide you demo kit and technical support.
Please click the picture for more details.
*Notice that the above price does not include the Demo Kit.
Please click the picture for more details.
*Notice that the above price does not include the Demo Kit.
Development Kit for SPI interface dot matrix e- ink Display on STM32 Platform.
Development Kit for SPI interface dot matrix e- ink Display on Arduino platform.
Development Kit for SPI interface dot matrix e- ink Display on Raspberry Pi.Also it can driving our e-paper display with touch panel and frontlight.
The ESP8266 for EPD development kit supports Wi-Fi, users need to develop by themselves.
The ESP32-02 development kit supports Wi-Fi and Bluetooth, users need to develop by themselves.
About Us
E-Paper Display Q&A
Q: What is Display Electronic Slurry (DES)?
A: The DES display module adopts a new display structure which is completely different from the current micro-cup and micro-capsule structure. The structure forms a layer of cofferdam structure on the surface of the TFT by forming a cofferdam around the periphery of a single pixel electrode, and the bank covers the source and gate lines on the TFT. The patterned structure is characterized in that each pixel electrode is surrounded by a cofferdam, the microstructure is not visible on the front side, and the number of layers is reduced, thereby obtaining the higher definition and resolution display effect. In order to distinguish it from the traditional micro-cup and micro-capsule technology, we call it the new display electronic slurry (DES) technology.
Q: How large/small can Matrix e-ink displays be?
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 1.02 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
A: The DES display module adopts a new display structure which is completely different from the current micro-cup and micro-capsule structure. The structure forms a layer of cofferdam structure on the surface of the TFT by forming a cofferdam around the periphery of a single pixel electrode, and the bank covers the source and gate lines on the TFT. The patterned structure is characterized in that each pixel electrode is surrounded by a cofferdam, the microstructure is not visible on the front side, and the number of layers is reduced, thereby obtaining the higher definition and resolution display effect. In order to distinguish it from the traditional micro-cup and micro-capsule technology, we call it the new display electronic slurry (DES) technology.
Q: How large/small can Matrix e-ink displays be?
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 1.02 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
