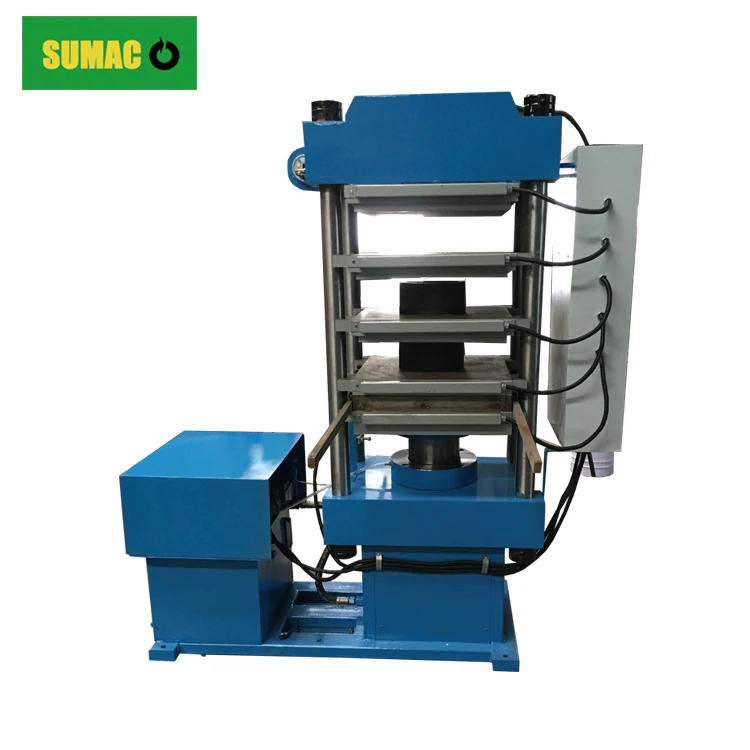

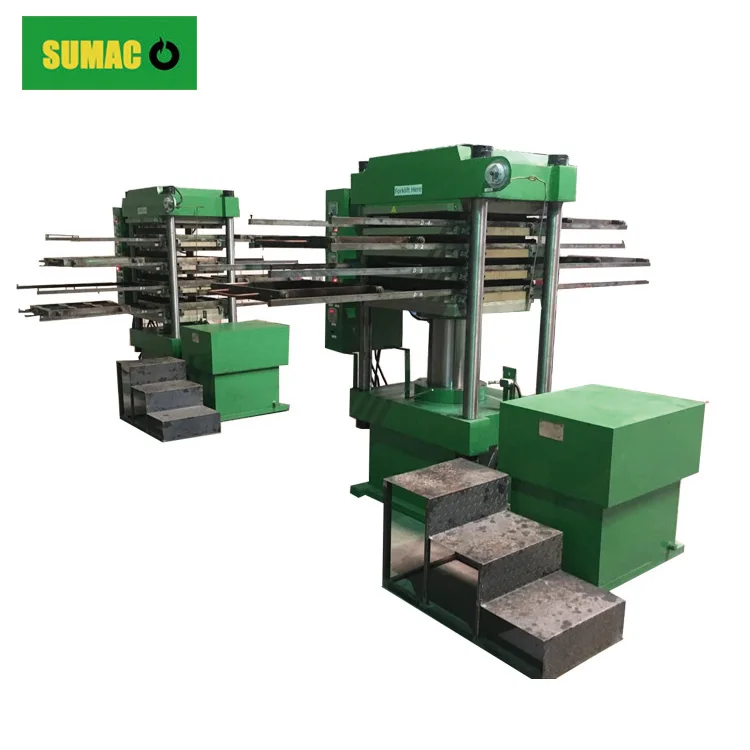

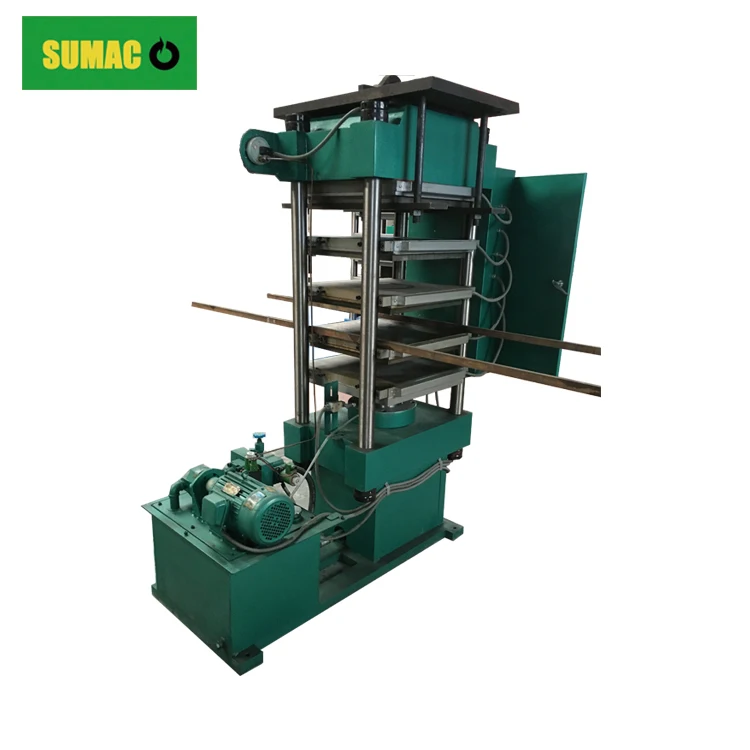

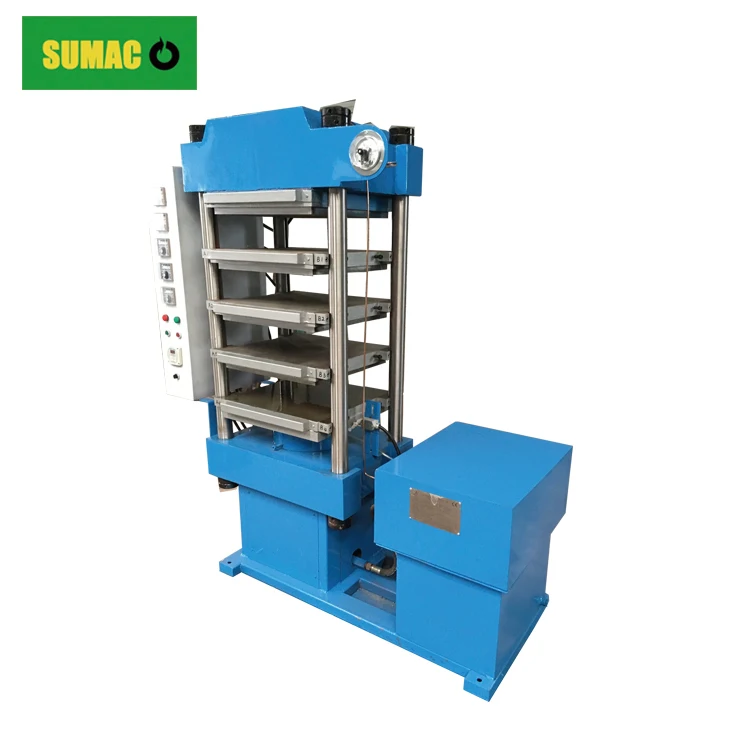

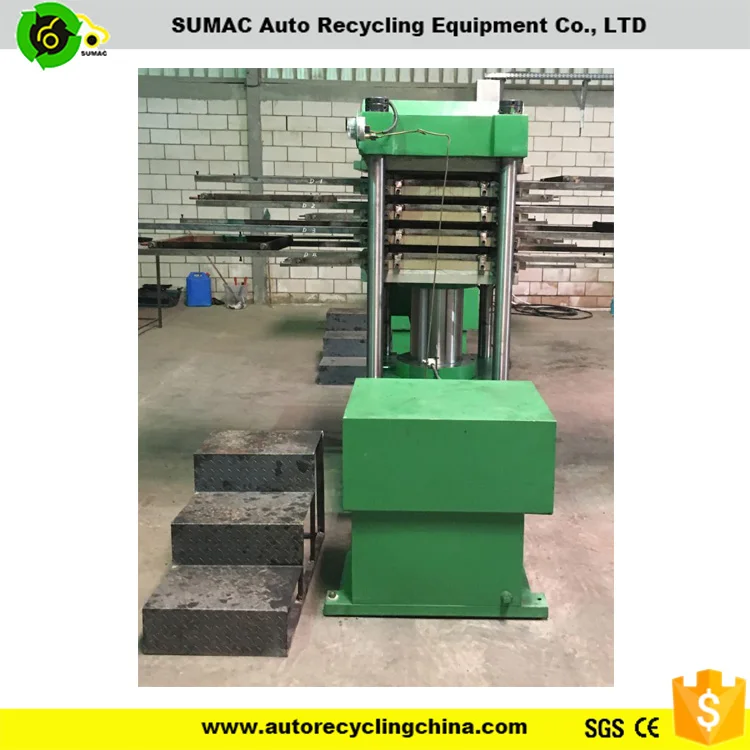

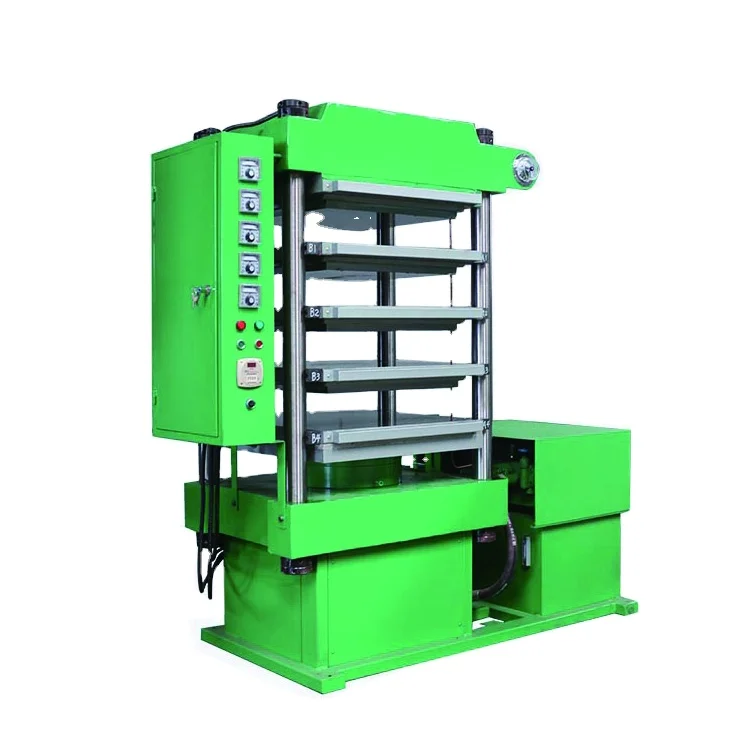

Rubber mat manufacturing machinery/rubber floor tile making machine

• Rubber tile making machine is used to make various types of floor tiles with different diamter as you required. With one set Vulcanizing machine, we can make many types tiles only by changing the moulds.


• We can customize the moulds according to your special requirments.


• This kind machine has three different types, frame type, pillar type and jaw type. It is high efficient with large output, automatic controling, easy operation and safety guaranteed.


• The working layer can be designed as customer's request, 2, 4, 6, etc


• We have got CE, ISO, SGS.





Introduction

1. Item

Four Columniation. Mainframe, crossbeam and oil jointing together.



2. Technical Data

Model	XLB-D 550x550
Max pressure(Ton)	50
Heating plate(mm)	550x550
Product size(mm)	500x500
Layer distance(mm)	150-180
Working layer	4 layers
Dia plunger(mm)	φ200
Plunger stroke(mm)	450
Total power(Kw)	23
Plate temperature(℃)	=<200



3. Temperature control

Heated by electronic resistance. Each heating plate fixes an electronic self-regulating

instrument.Temperature be shown and controlled by instrument.



4. Mould

4 pcs of square mould (used to make 500x500mm rubber tile with thickness 15-25mm

or 35-50mm) and 8 pcs of under-mould (loading materials for preparation).

TO MAKE SURE BETTER QUALITY



1) We use motor from Siemens,ABB/WEG is ok for your requirement

2) We adopts electrical control parts from  CHNT/Schneider/Delixi

3) We use bearings from SKF



Installation

If the buyer need our technicians to install the machines in his factory, the buyer will pay the round air tickets, accommodation,transportation,and commission (USD50/day/person) in his factory. And keep our technician safe in his country.



After service

1. Guarantee: 13 months from shipping date


2. 24 hours technical support by email.


3. use-friendly English software, operation manual and detailed video or CD.
