Новый дизайн Вертикальный шарнирный робот SV45 6-осевой промышленный
- Категория: Манипулятор >>>
- Поставщик: Hangzhou,Huicui,Intelligent,Technology,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 10077.47 $* | 10581.23 $* |
| Aug-16-2025 | 9992.98 $* | 10492.23 $* |
| Jul-16-2025 | 8383.47 $* | 8802.2 $* |
| Jun-16-2025 | 9823.39 $* | 10314.11 $* |
| May-16-2025 | 8553.75 $* | 8981.24 $* |
| Apr-16-2025 | 9654.8 $* | 10137.12 $* |
| Mar-16-2025 | 9569.26 $* | 10047.75 $* |
| Feb-16-2025 | 9484.58 $* | 9958.28 $* |
| Jan-16-2025 | 9399.10 $* | 9869.31 $* |
Характеристики

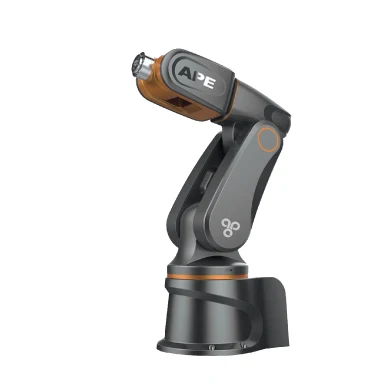

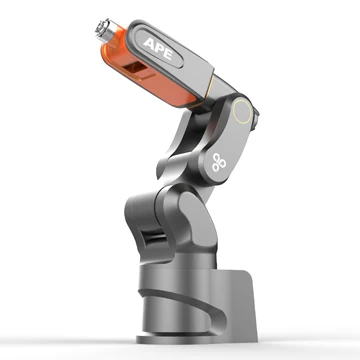

Vertical articulated robot SV45
Six-axis industry manipulator is multi-articulated and multi-DOF robot, flexible action, compact structure, convenient for installation and configuration. Short stable time, good dynamic property, high motion repeatability; the robot adopts inner wiring, the articulate adopts modular design and assembling.
Features:
| High rigidity: Through the optimization of the robot arm topology, the high rigidity and low inertia arm body are realized. The horizontal cabling method greatly reduces the space of the robot envelope and facilitates the customer system layout and use.
|
 | Beautiful shape: Robot body with a screw-free design concept, with a beautiful streamlined shape, shaping the industrial works of art.
|
 | The selection covers a wide range: 450mm main size, support custom.
|
Typical application
- Material handling
- Charge/discharge material
- Spot welding
- Conveyor tracing
- Component assembly
- Visual inspection
- Measure distribution
- Shutoff device
Parameters
| Items | SV45 | |
| Installation | Desktop, side hanging, incline and ceiling (*1) | |
| Configuration | Vertical articulated robot | |
| Drive motor | AC servo motor (six axis full furnished brakes) | |
| Encoder type | Absolute encoder | |
| Load | Rating | 1kg |
| Maximum | 2.5kg(*2) | |
| Allowable inertia torque of the fourth joint | Joint#4 + Joint#5 | 0.005Kg.m2 |
| Joint#6 | 0.01Kg.m2 | |
| Max. radius | 454mm(*3) | |
| Working space | Joint#1 | +165~-165 deg |
| Joint#2 | +100~-100 deg | |
| Joint#3 | +90~-70 deg | |
| Joint#4 | +160~-160 deg | |
| Joint#5 | +130~-130 deg | |
| Joint#6 | +360~-360 deg | |
| Max. speed | Max. integrative speed(*4) | 6 m/s |
| Articulate speed | Joint#1 | 360deg/s |
| Joint#2 | 300deg/s | |
| Joint#3 | 300deg/s | |
| Joint#4 | 540deg/s | |
| Joint#5 | 540deg/s | |
| Joint#6 | 600deg/s | |
| Standard cycle time(*5) | 0.7s | |
| Repeatability positioning accuracy | ±0.02mm | |
| Body weight (without cables) | 23Kg | |
| Work noise | ≤70dB | |
| Subscriber circuit | 15 Pin(DB15) | |
| Subscriber gas circuit | 4mmx4 | |
| Environmental specification | IP30 | |
(*1): Parameters provided by this specification are reference values under desktop installation, working space and max. The speed of the robot is different under side-hanging
installation and ceiling installation.
(*2): Wrist down within ±10°, the max. The load is 3Kg.
(*3): Max. The radius that wrist can reach.
(*4): Max. Integrative speed is caudated value that the max. Line speed of central point in flange face of robot end; max. Articulate speeds are different because of different loads.
(*5): Operation time is the fastest time of back and forth in horizontal 300mm, vertical 25mm during load rating.
Size of work space (SV45)
