Шанхай W11G-1.5X1300 3-ролик Электрический три сгорбленных машин асимметричной прокатный

Описание и отзывы

Трекер стоимости

Характеристики

 W11G-1.5X1300 3-roller electric three roller bender Asymmetric Rolling Machine

Asymmetric sheet rolling machine ’s upper roller is hand-adjusted up and down. The machine has a pre-bending function. 3-roller electric roll bending machine Electric Rolling Machine , Roll Bending Machine

Bending function is power driven,and the upper roller can be moved to remove the workpiece.

Model	Max. thickness	Max. width	Min. diameter	Top roller diameter	Bottom roller diameter	Main motor (KW)	Weight (Kg)	Dimension
W11G-1.2×1530	1.2	1530	120	72	72	1.5	280	2050×550×1200
W11G-1.5×1300	1.5	1300	120	72	72	1.5	250	1820×550×1200
W11G-2×1000	2	1000	120	72	72	1.5	230	1550×550×1200
W11-1.2×1530	1.2	1530	120	72	72		250	2000×550×1200
W11-1.5×1300	1.5	1300	120	72	72		220	1750×550×1200
W11G-2×1000	2	1000	120	72	72		200	1500×550×1200

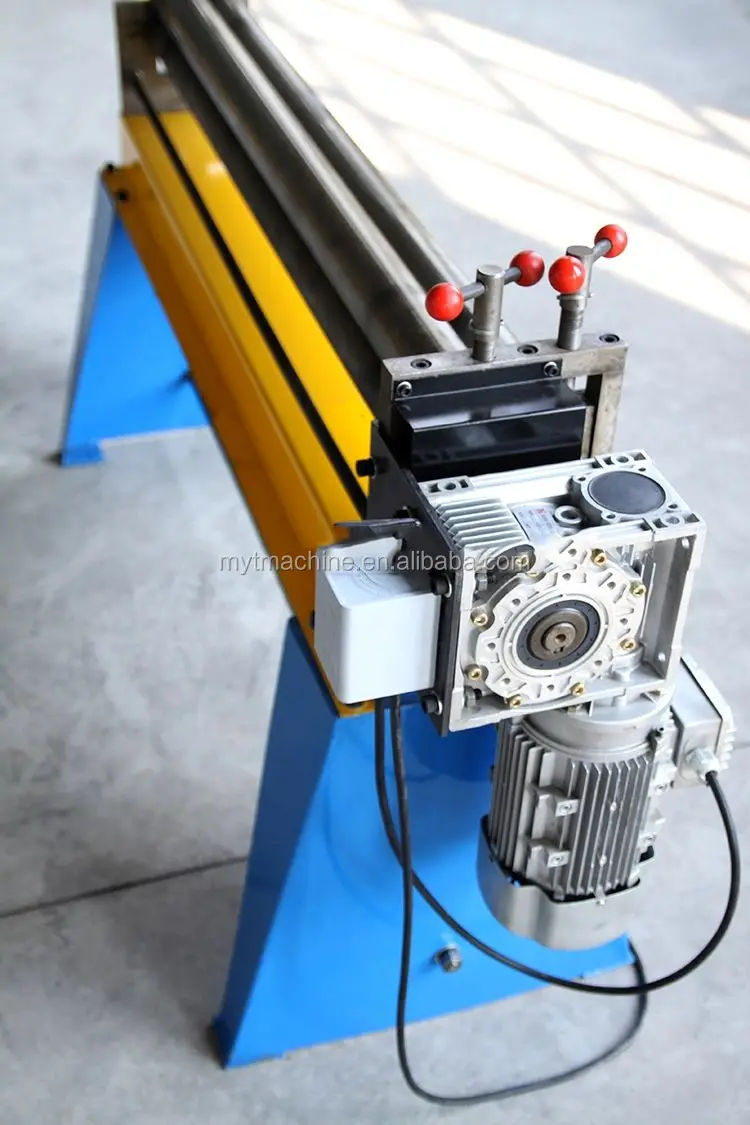

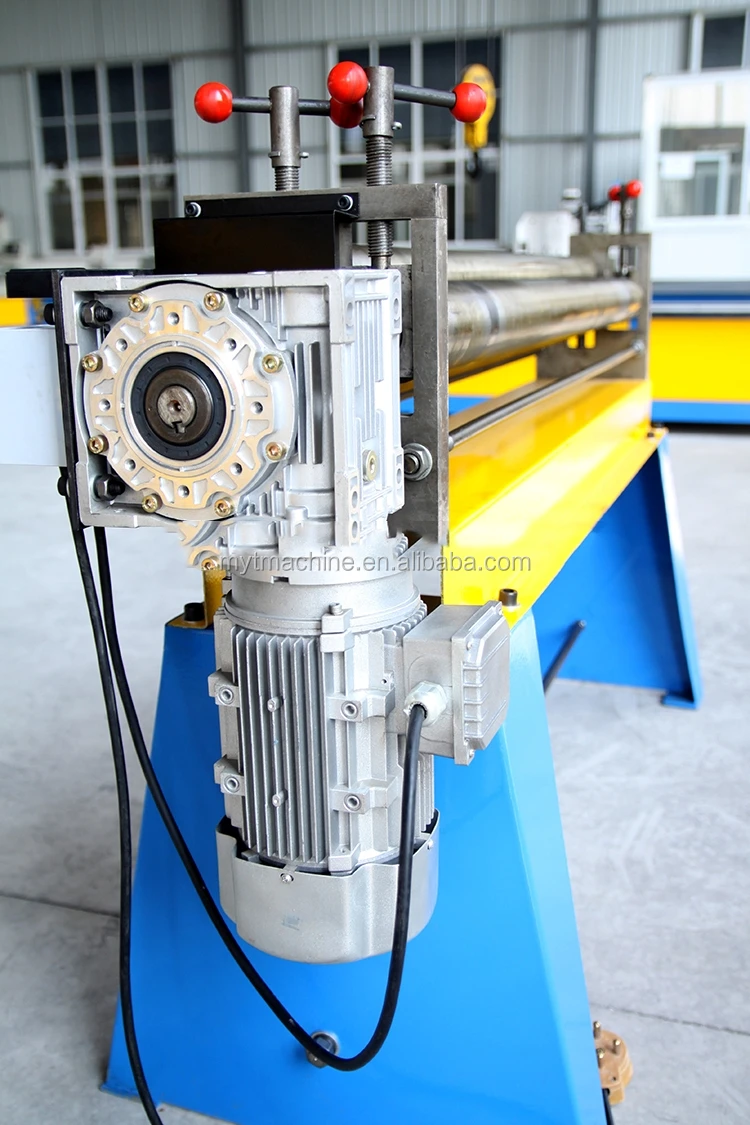

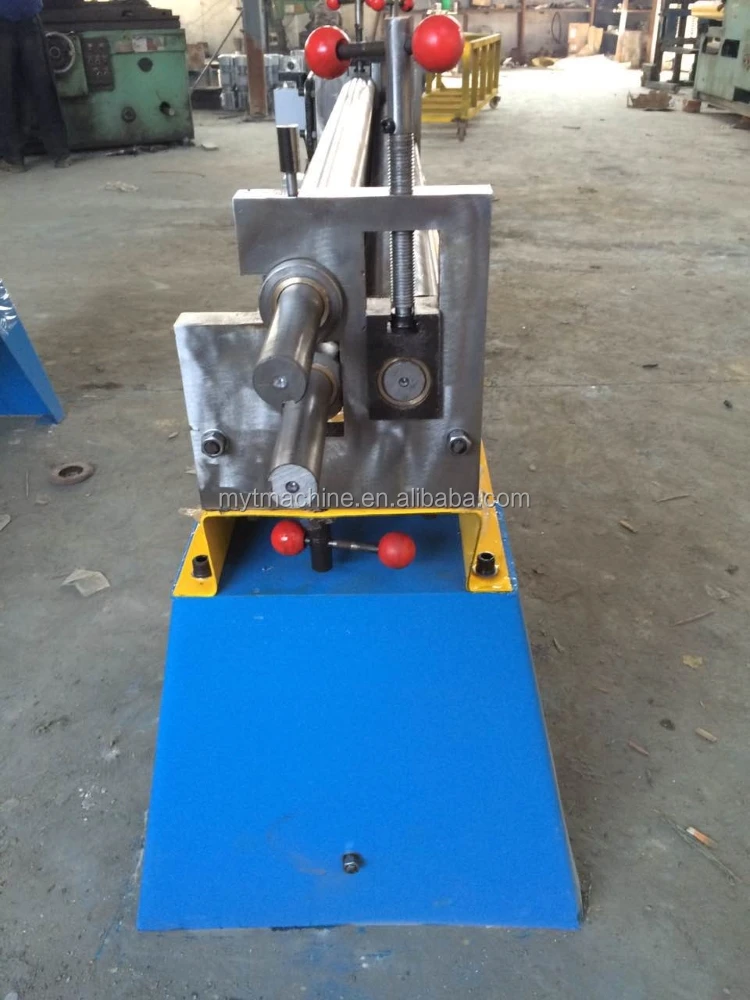

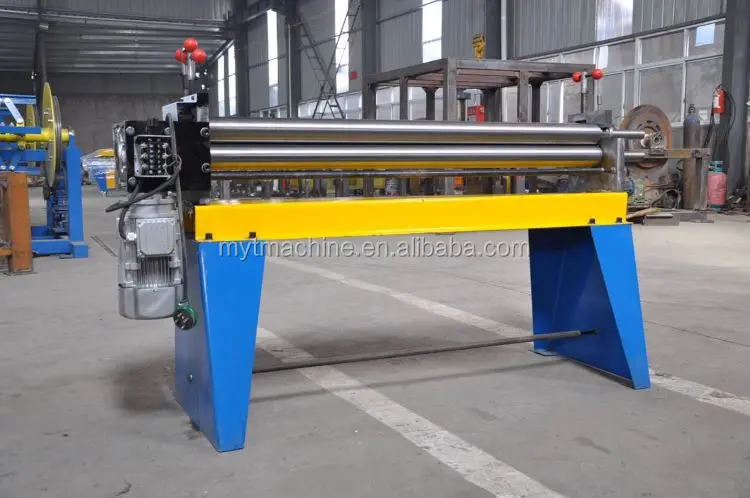

Detailed pictures about 3-roller electric three roller bender Asymmetric Rolling Machinee :

3-roller electric three roller bender Asymmetric Rolling Machine

3-roller electric three roller bender Asymmetric Rolling Machine

3-roller electric three roller bender Asymmetric Rolling Machine

3-roller electric three roller bender Asymmetric Rolling Machine

Price :  Give me reply, i will give you my favorable price immediately !

Payment term :  30% deposit and the balance paid against copy of B/L in 3 days .

Package :  Standard exporting package .

Operation manual and video disc : spiral forming machine spiral tube former round duct forming

When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc . spiral forming machine spiral tube former round duct forming machineV

After-sales service : spiral f3-roller electric three roller bender Asymmetric Rolling Machine

1.machine is simple, generally, user can understand how to operate. There is operation instruction  and disc .

2.welcome to our factory to learn how to operate our machine, we will give good training .

3.our engineer is available for user. If there is requirement, our engineer can go to user factory,  and adjust machine, give good training to user . 3-roller electric three roller bender Asymmetric Rolling Machine
