Характеристики

Materials
Machine Description

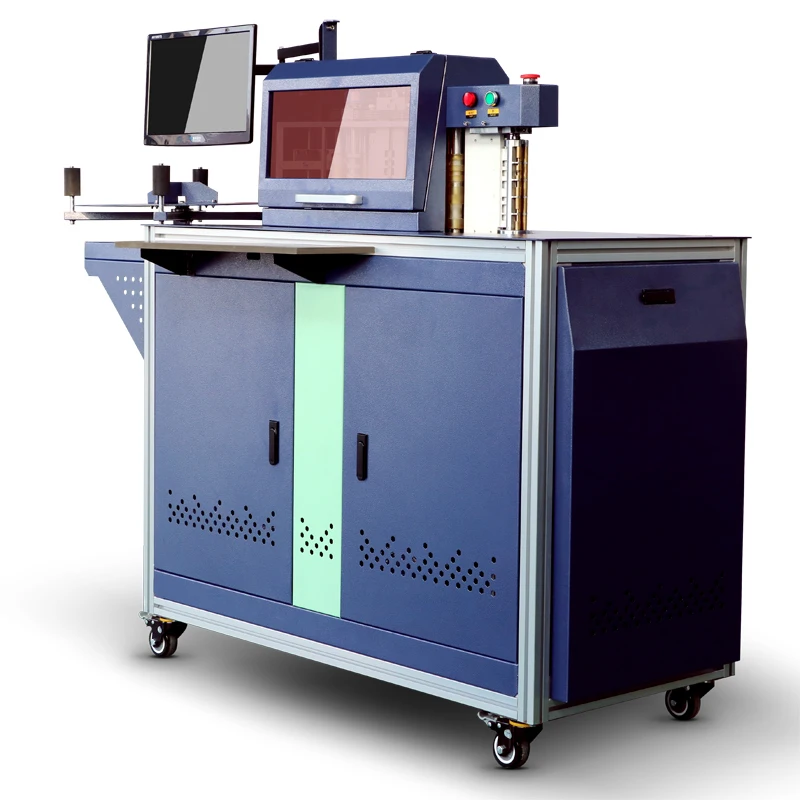

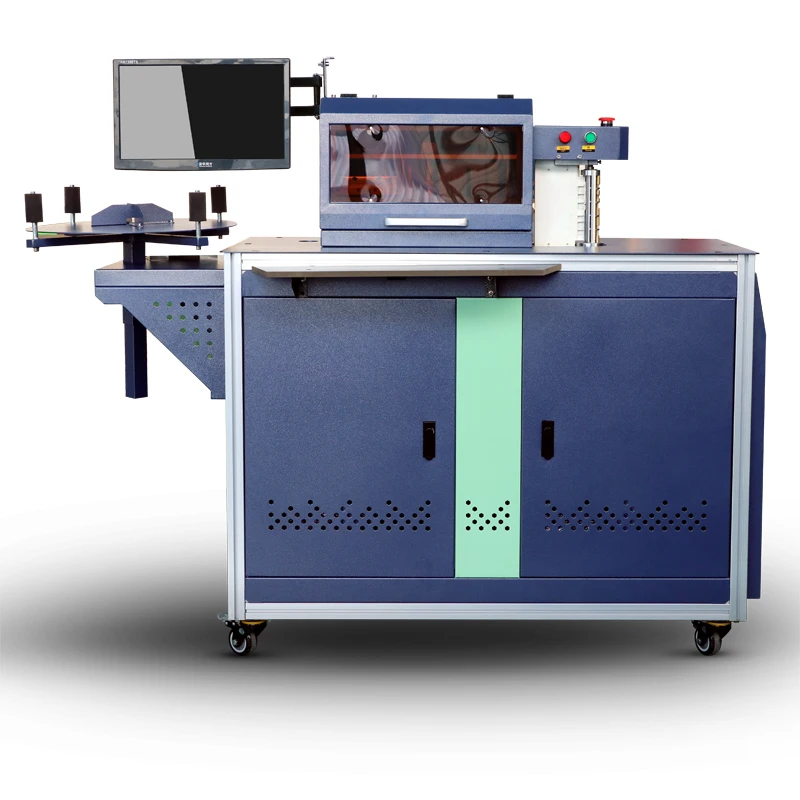

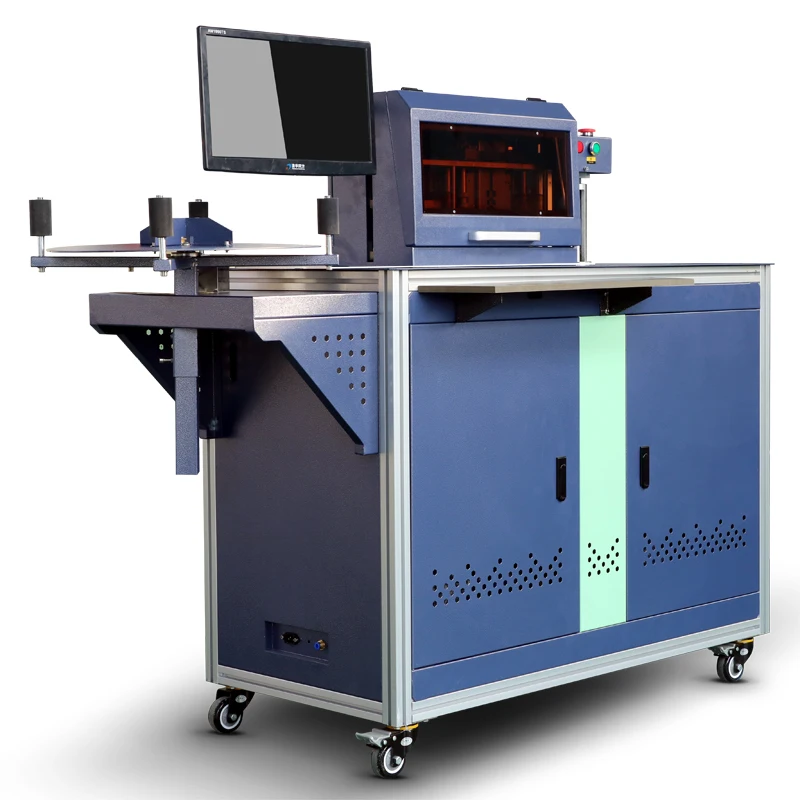

channel bending machine / channel letter and bending machine / channel letter auto bender

DH-5150

Appliable materials: Flat aluminum, Aluminum profile, Aluminum coil, Aluminum Channelume
Application - bending aluminum letters and signs.
Aluminum channel letter, Trimless channel letter, Aluminum profile channel letter, Liquid acrylic channel letter (Super lettter), Aluminum epoxy channel letter

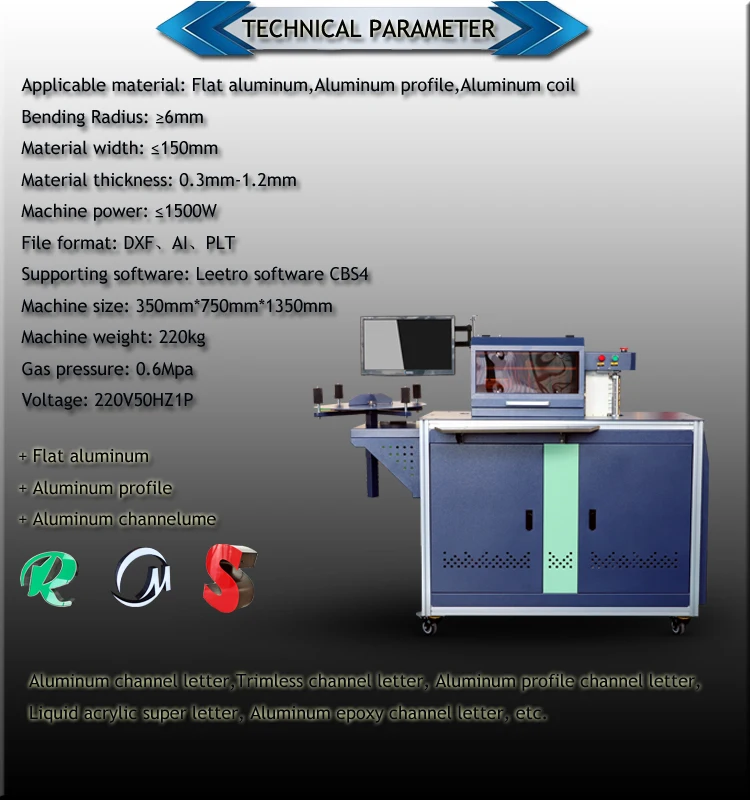

Technical Parameter
Model
DH-5150
Working principle
Auto feeding, notching and bending
Applicable material
Flat aluminum, Aluminum profile, Aluminum coil, Aluminum Channelume
Bending Radius
≥6mm
Material width
≤150mm
Material thickness
Aluminum: 0.3mm-1.2mm
Machine power
≤1500W
File format
DXF,AI,PLT
Supporting software
Leetro software CBS4
Machine size
1350mm*750mm*1350mm
Machine weight
220Kgs
Gas pressure
0.6Mpa
Voltage
220V50HZ1P
Machine Features:
1. Automatic computer adjusting system, no need to adjust the slotting depth by hand.
2. Fast bending speed, one time forming, big curve arc is flapped, small curve arc is squeezed.
3. Material width is 30-150mm,thickness is 0.4-1.2mm.
4. Low power consumption,the using power less than 1500W.
5. Can read various vector files in DXF, AI, PLT format, matching with engraving files.
6. Double side slotting,the bending angle of flat sheet is from -180° to 170°.
7. Adopt high quality encoder,high reliability, long lifetime and strong anti-interference performance.
8. Special parameter requirement can be customized.
Machine Advantages
1. Feeding System
The feeding part is clamped by rubber rollers and driven by gear belt. Fast speed can realize the continuous feeding.It is suitable for flat aluminum,aluminum profile and other materials.
2. High Quality Encoder
The high quality encoder used in this machine has high reliability, long life and strong anti-interference performance. With the high-speed precision motor, its high-precision performance makes the feeding control more accurate.
3. Imported Milling Cutter
The milling cutter used germany imported alloy-coated tool bit, increase the using lifetime.The tip of the cutter is rounded,ensure the flat sheet bending angle is from -180°to 170°.
4. Depth Adjusting System
The unique depth adjusting system can automatically adjust the groove depth by modifying the software parameters, and can control the front and back adjustments separately. The motion part adopts screw rod, square rail and slider, which has high precision and good stability.
5. Bending Tool
The bending part adopts the working mode of two-axis linkage bending, which is equipped with servo motor and speed reducer. It has fast speed, high precision, no damage to the material surface and small bending interference.
6. Electrical Components and Software
1. Professional distribution box. All electricall components and techniccal parameters comply with standard design requirements.
2. The control card and software is original Leetro control system, easy to study and operate, ensure the machine calculating size with zero error. The control card running stable, with strong anti-interference ability.
3. Software has both English and Chinese language, It can real all kinds of vector files in PLT, AI and DXF formats, and match perfectly with engraving machine files.
4. Computer system can support Windows XP, Win 7 32bits and 64bits.
7. Supporting Facility
Machine working needs air compressor to provide air pressure. Working pressure is 0.6Mpa.
Our Service

1. Free training at our factory.
2. Lifetime free online after-sales service.
3. English speaking engineer provides online after sales service and abroad installation and training.
4. Customization accepted.
5. One year warranty.

Factory View
Packing & Delivery

Export packing cases with PE film and bubble bag inside. Suitable for operation by forklift.
Supporting ocean transport, rail transport, air transport and road transport etc.

Certificate
More Samples
Exhibition
