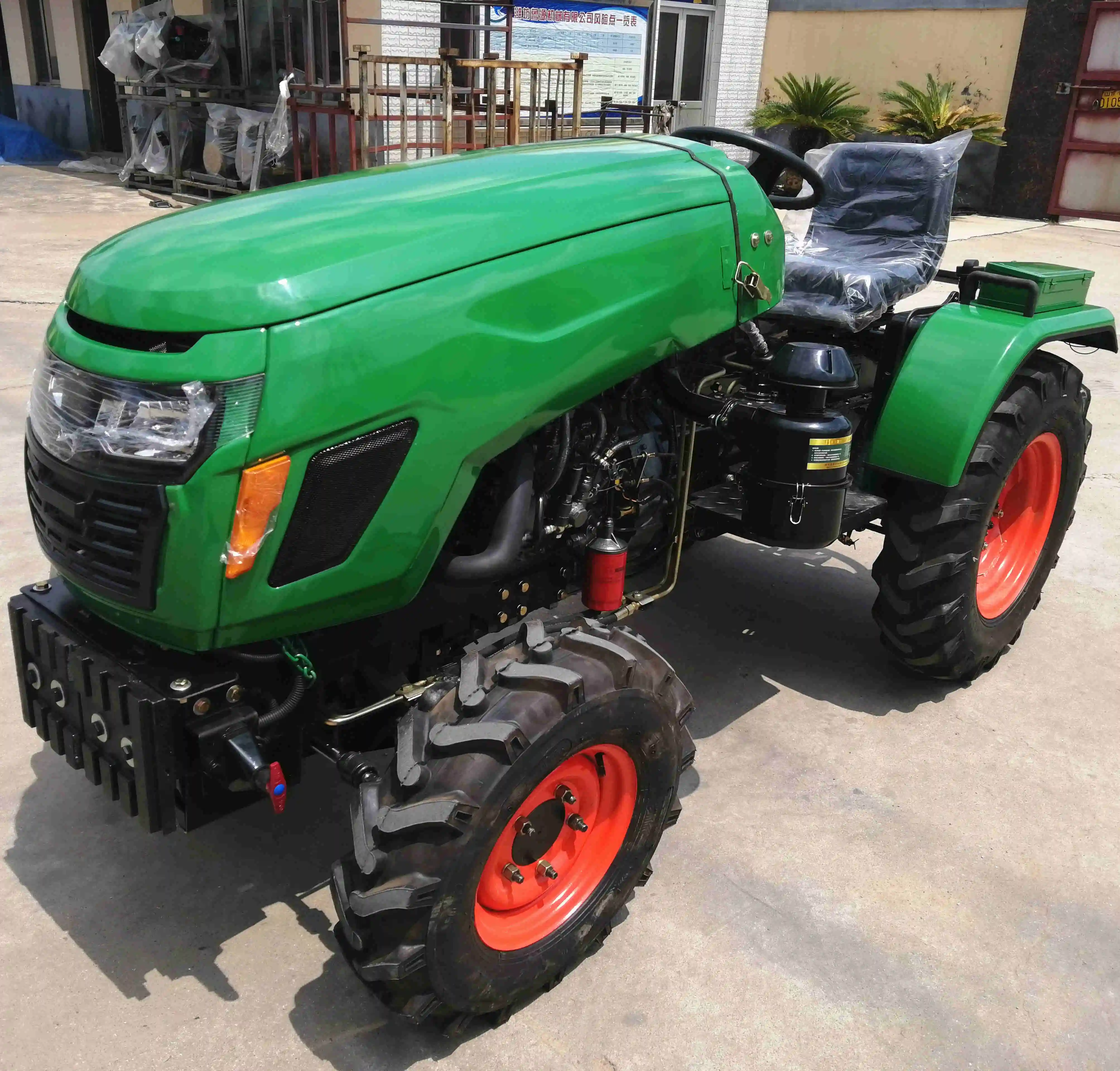

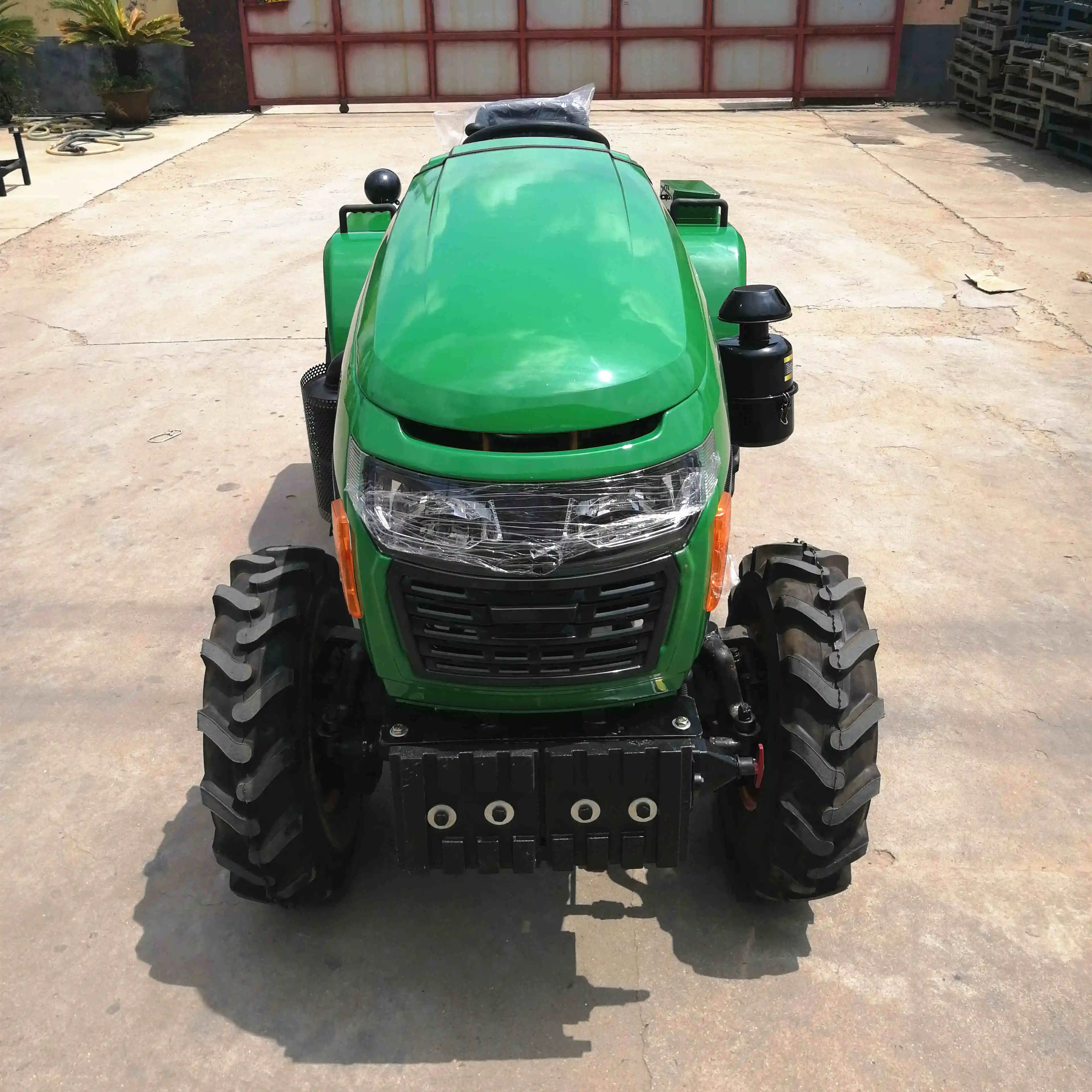

Хорошее качество 4x4 маленький компактный садовый трактор 30 л.с. 35 40 1 15 м ширина для сельского

Хорошее качество 4x4 маленький компактный садовый трактор 30 л.с. 35 40 1 15 м ширина для сельского

Цена:*

Количество:

Functions

Main Features of garden tractor

1. Power diversification:

1)Match the Laidong three or four engine, large torque reserve , powerful

2)Optional Quanchai three or four engine, increase the matching power to meet the needs of different users.

2. Working more efficient

1) Adopt 8 +2shifts, optional 8 +8 shuttle shift, reasonable speed match, high operating efficiency;

2) 2) Rear wheel stepless adjustable, many options to meet the needs of different operations;

3) Dual-speed power output, according to job requirements can choose 540 / 720r / min and 540 / 1000r / min.

3. Technology more advanced

1)The hydraulic lifter uses an external dispenser for easy maintenance

2)Enhanced oil cylinder of front drive axle can make high Min.ground clearance, strong bearing capacity.

3) hydraulic steering, operating more flexible.

specifications

garden tractor specifications:

Model			CPM 304 -G

Type			4×4 Wheeled Type
	Length		2589(without suspension)
	Width		1230
	Height		1228(up to steering wheel)
Dimensions		Front Wheel	1000
of Tractor	Tread	Rear Wheel	960
(mm)	Wheel Base		1670
			215
	Min.Ground clearance
			2.9
		One-side braking
Min Radius of Turning Circle (m)			3.3
		No braking
Dry Mass (kg)			1100
Engine	Model		KM3T30
	Type		Vertical, 3-cylinder,Water Cooled and 4-stroke,Injection
	Cylinder Diameter × Stroke (mm)		85×90
	Piston Displacement (L)		1.532
	(KW) Rated Power		22.05
	(r/min)Rated Rev.		2350
	Min. Fuel Consumption (g/kw*h)		<238
	Engine Overall (mm)		567× 494× 610
	Engine Mass (kg)		180
	Fuel		Diesel oil
Clutch			Single Disc, Dry-friction, Single Stage/Double Stage Clutch
Transmission Box			(4+1)×2 Mechanical Type
Steering			Hydraulic Type
Hydraulic Output			Single-way output or single/ dual-way quick coupling output
Suspension Type
			Post Postitioned Tri-point Suspension, Catalogue O
	Type and Rev		Single speed Non-independent Type540 or double speed Non-independent Type540/1000,540/720 or Semi-independent double speed type 540/1000,540/720
PTO	Spline Size (mm)		Post postitioned I35 Rectangle Spline with 6 teeth(6×28.91×34.79×8.69)
Theoretical speed (km/h)	Forward		1.77-26.98
	Reverse		0.33-5.02
Tyre	Front		5.00-12
	Rear		9.50-16
