180KN кабельная Тяговая машина гидравлический
- Категория: Other Hydraulic Tools >>>
- Поставщик: Taizhou,Haoxin,Electric,Power,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.0 $* | 0.57 $* |
| Aug-15-2025 | 0.58 $* | 0.30 $* |
| Jul-15-2025 | 0.14 $* | 0.3 $* |
| Jun-15-2025 | 0.9 $* | 0.8 $* |
| May-15-2025 | 0.37 $* | 0.95 $* |
| Apr-15-2025 | 0.67 $* | 0.26 $* |
| Mar-15-2025 | 0.99 $* | 0.19 $* |
| Feb-15-2025 | 0.80 $* | 0.6 $* |
| Jan-15-2025 | 0.34 $* | 0.24 $* |
Характеристики
180KN cable puller cable traction machine cable pulling machine hydraulic tractor
Product Description
Application:
Hydraulic cable puller machine is a kind of efficient traction equipment when tension of transmission line is erected. It can be used for traction and deployment of single conductor, double-split conductor and four-split conductor in flat, mountainous and hilly terrain. It can also be used for OPGW or ADSS cable traction display in various terrains.
Features:
1. The traction force and speed can be adjusted steplessly and displayed intuitively.
2. Color LCD display for engine parameters.
3. Traction force can be preset with overload protection.
4. Pressure-loss automatic braking function to ensure the safety of the operation when the engine suddenly stalls or other reasons cause the system to lose pressure.
5. Hydraulic traction rope clamping device, easy to replace wire rope tray.
6. The engine is equipped with a preheating device. The engine manual pump and diesel filter are easy to operate.
7. With automatic winding device of steel wire rope, it is convenient to arrange rope automatically and to load and unload.
Product Parameters
180KN cable puller cable traction machine cable pulling machine hydraulic tractor
| Item | Product model | SA-QY-180 | |
| Performance parameters | Rated traction | 180kN | |
| Maximum traction | 216kN | ||
| Rated traction speed | 2.5km/h | ||
| Maximum traction speed | 5km/h | ||
| Corresponding traction force | 90kN | ||
| Structural parameters | Traction drum | Bottom diameter | 750mm |
| Number of wire grooves | 9~10 | ||
| Pitch distance | 62mm | ||
| Groove depth | 12mm | ||
| Maximum applicable diameter of wire | 30mm | ||
| Dimensions | 4550×2200×2500mm | ||
| Weight | 6000kg | ||
| Main configurations | Engine | CUMMINS | |
| Electrical system | 24V | ||
| Hydraulic pump | REXROTH | ||
| Hydraulic motor | REXROTH | ||
| Reducer | REXROTH | ||
| Tailstock winding motor | DANFOSS | ||
| Hydraulic instrument | WIKA | ||
| Main hydraulic valves | ATOS | ||

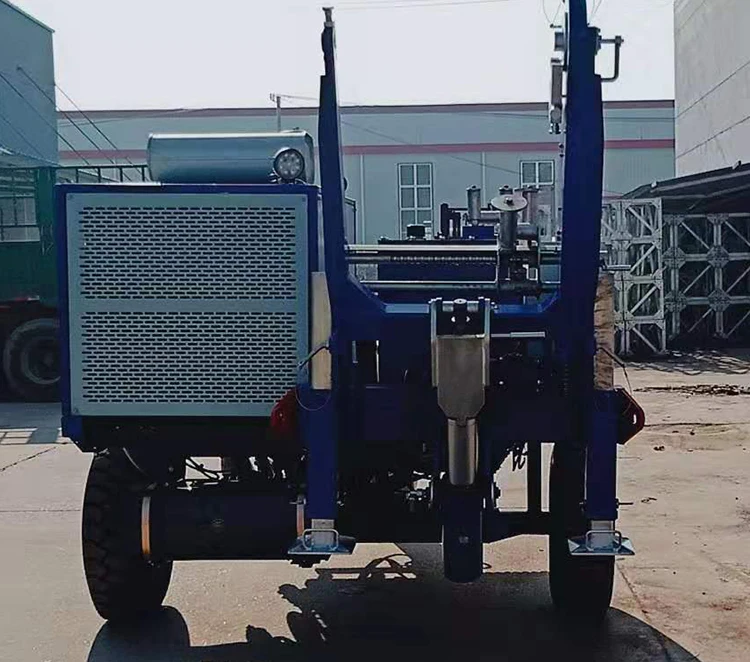

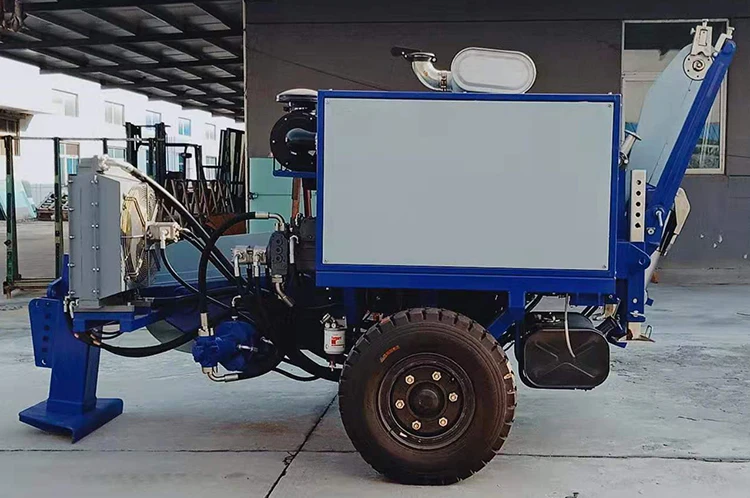

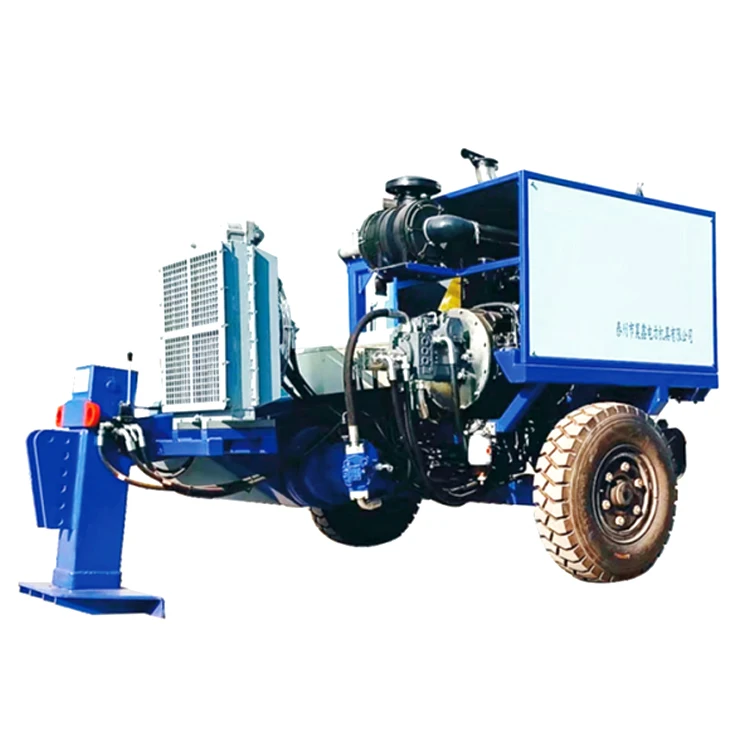

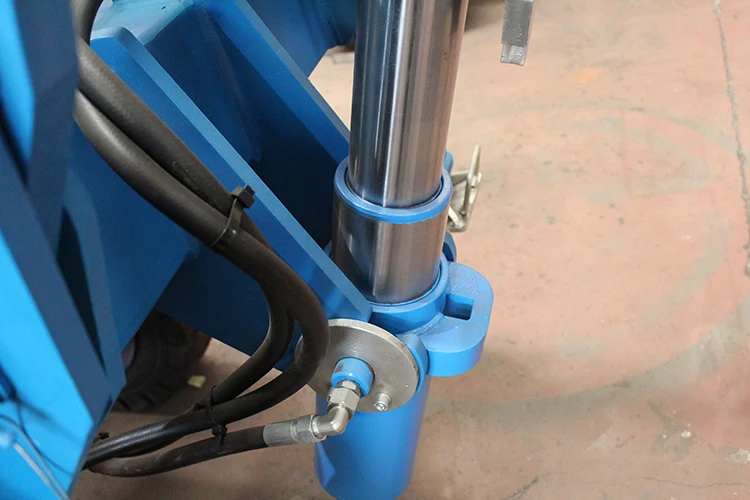

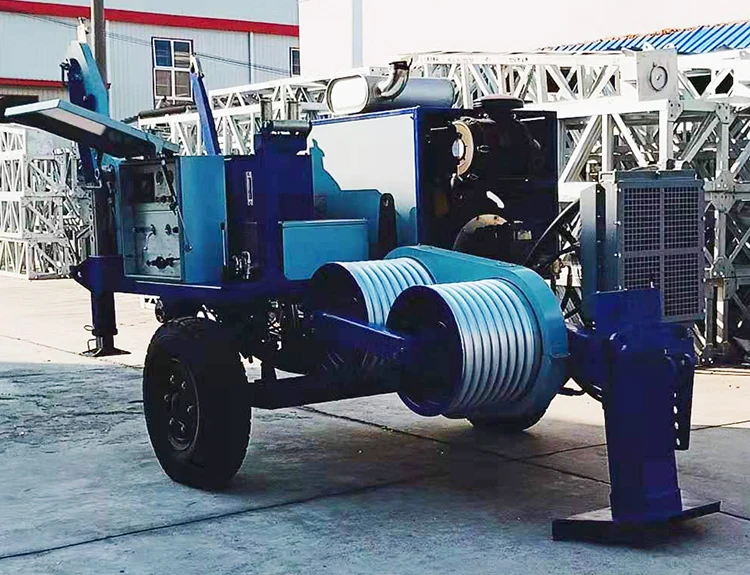

Product photos
