Адаптер питания pd type c 5 в 3 а 9 15 или 20 2 25 45 вт зарядное устройство для
- Категория: Аксессуары и запчасти >>>
- Поставщик: Shenzhen,Yidashun,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5.51 $* | 5.91 $* |
| Aug-18-2025 | 5.17 $* | 5.23 $* |
| Jul-18-2025 | 4.93 $* | 4.31 $* |
| Jun-18-2025 | 5.84 $* | 5.19 $* |
| May-18-2025 | 4.76 $* | 4.62 $* |
| Apr-18-2025 | 5.11 $* | 5.80 $* |
| Mar-18-2025 | 5.86 $* | 5.13 $* |
| Feb-18-2025 | 4.54 $* | 4.94 $* |
| Jan-18-2025 | 4.64 $* | 4.11 $* |
Характеристики

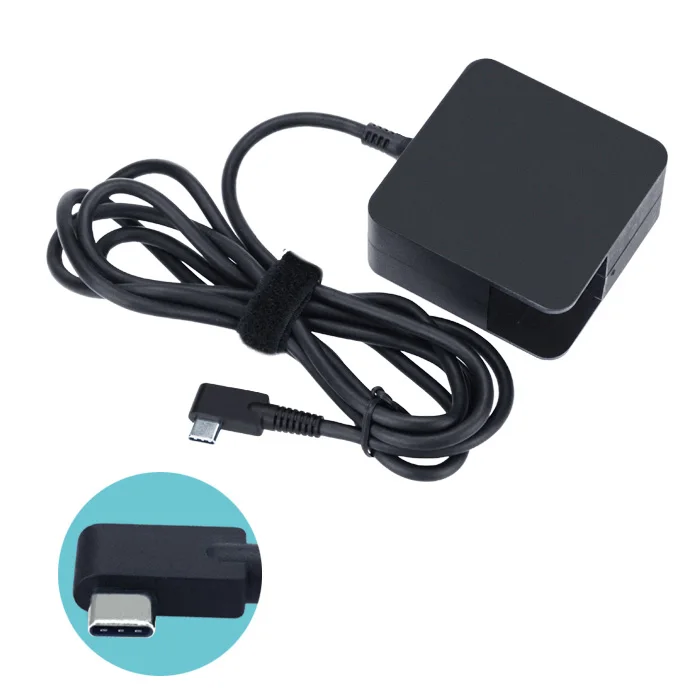

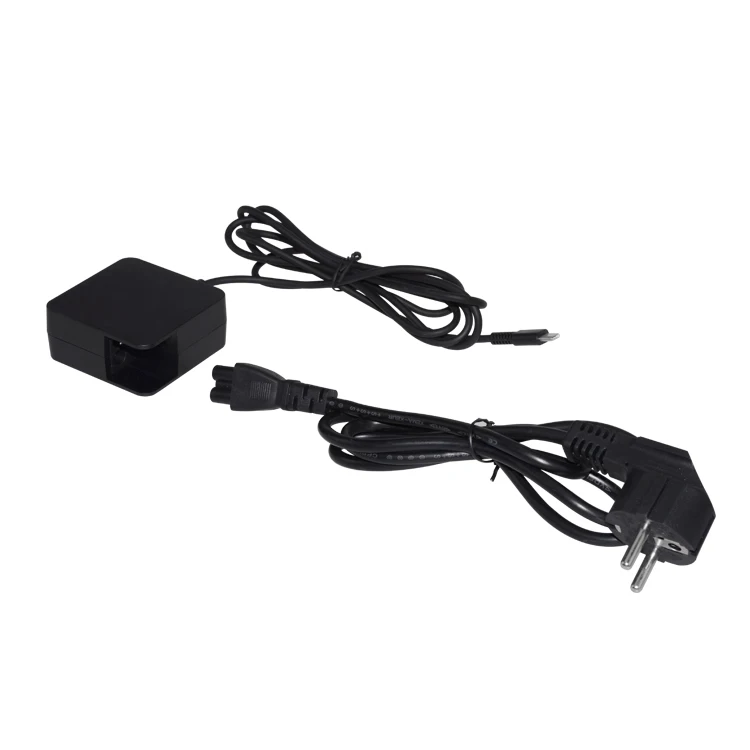

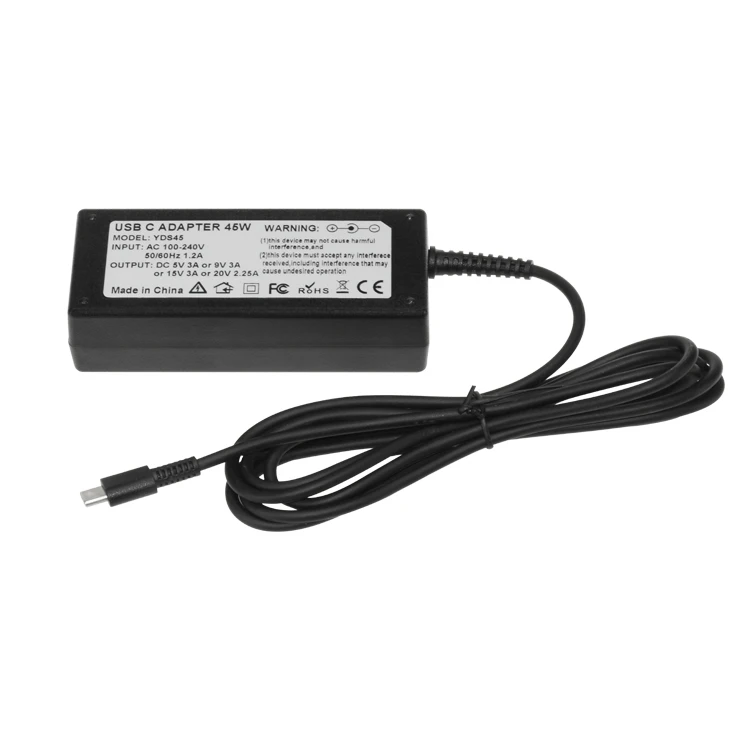

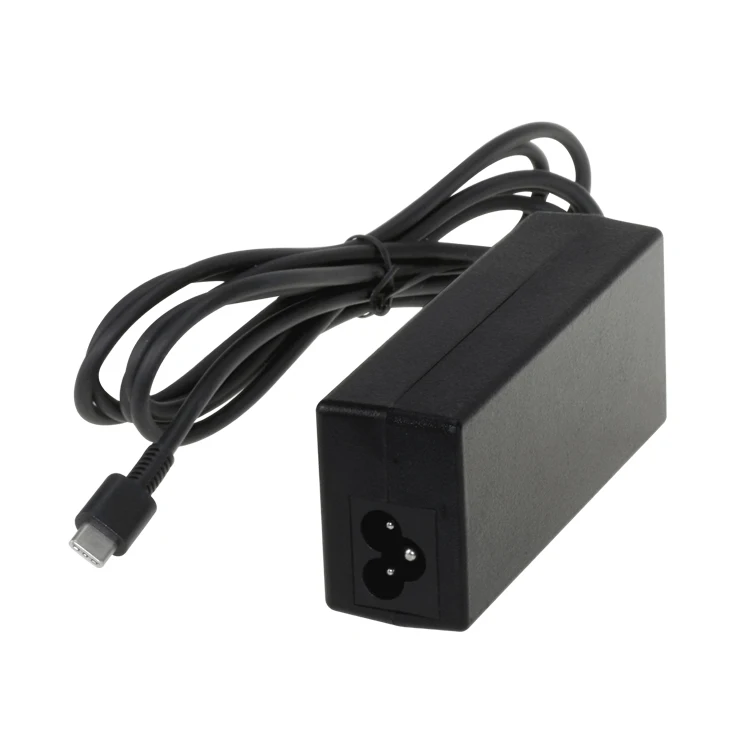

Desktop /Wall type 45W type c pd charger for Hp
Product Description
Specification:
Specifications | |
Model No. | YSA014 |
AC Input | |
Nominal Input Voltage | AC 100V~240V |
Input Voltage Range | AC 95V~265V |
Input Frequency | 50/60Hz |
DC Output | |
Output Voltage& current | 15V2A/9V3A/5V3A |
Output Power | 30W |
DC Connector Size | NEW TYPE C |
Line Regulation | 2% |
Load Regulation | 5% |
Ripple Noise | 180 Mvp-p |
Efficiency | >85% |
Output Cable Standard | 0.5mm2, OD 4.0mm Pure Copper |
Output Cable Length | 2m normally or customized requirement |
Environment | |
Operating Temperature | 0°C ~40°C |
Operating Humidity | 5%~95%RH |
Storage Temperature | -20°C ~85°C |
Storage Humidity | 5%~95%RH |
Protection | |
Over Load Protection | Short Circuit Protection |
Over Current Protection | Over Temperature Protection |
CE, FCC,ROHS | |
Adapter Size | 65*65*29 MM(not including the AC plug) |
Ac plug length | 40mm |
Adapter Weight | 160G |
Inner Box Size | 19*13*4.7 CM |
Inner Box Weight | 40G |
PCS/CTN | 50PCS |
Outer Carton Size | 48.5*32*40 CM |
Outer Carton Weight | 860G |
GW/CTN | 10860G |
Package | |
Inner Box | Normally neutral brown box or customized requirement |
Outer Carton | Normally neutral standard carton or customized requirement |
Guarantee | 30 days |
Warranty | 2 years |
Terms and Conditions | |
MOQ | 100PCS for mixed order |
Payment Terms | T/T, L/C, PayPal, western union |
Delivery Time | 3-5 days |
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping | |
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
| |
Click USB C charger
Package
Product package:
Certifications
Company Information
Our company:
Our factory :
Our Exhibition:
Shipping&payment
Our Services
OEM service√
Small OMQ√
High quality√
Competitive price√
Fast delivery√
Any inquiry within 24 hours get reply√
Professional team help for expand your business√
Contact US
We also have other Type C charger
Can ask for inquiry
Skype:yidashun826
Whatsapp:+86-18682338079
QQ:3005165285
Phone:+86-18028771573
Wechat:Yidashun-Ivy
