Gps-антенна 1575,42 МГц для автомобиля
US $2.30-$2.70

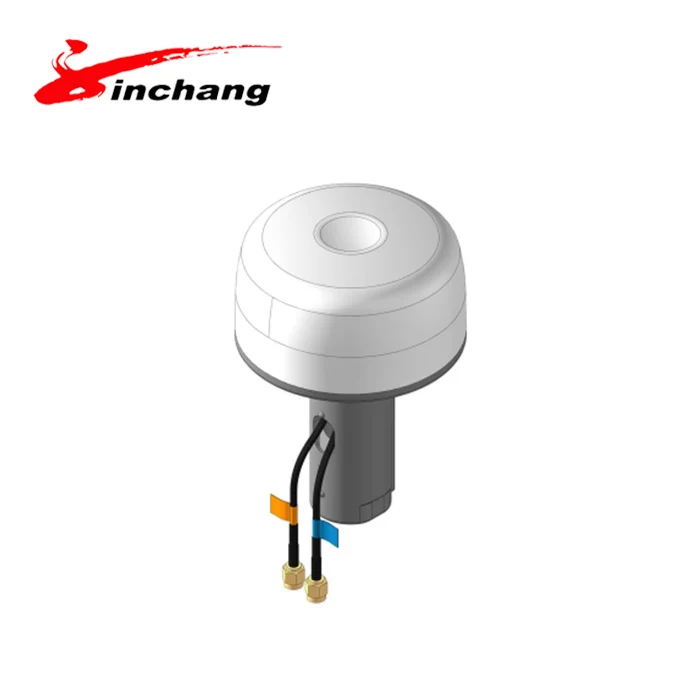

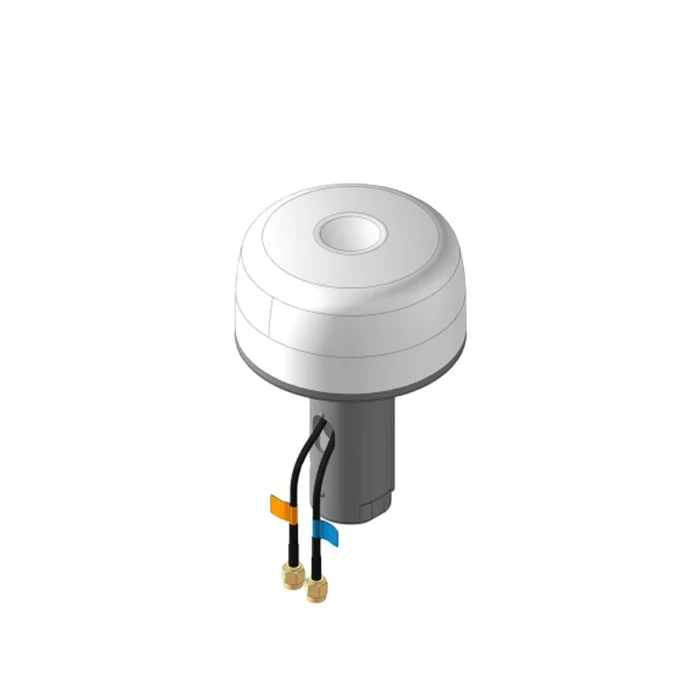

JCB005LM GPS антенна + LTE
- Категория: GNSS & GPS Antenna >>>
- Поставщик: Zhejiang,Jc,Antenna,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.11 $* | 0.47 $* |
| Aug-18-2025 | 0.14 $* | 0.83 $* |
| Jul-18-2025 | 0.93 $* | 0.11 $* |
| Jun-18-2025 | 0.56 $* | 0.94 $* |
| May-18-2025 | 0.84 $* | 0.27 $* |
| Apr-18-2025 | 0.54 $* | 0.33 $* |
| Mar-18-2025 | 0.8 $* | 0.96 $* |
| Feb-18-2025 | 0.99 $* | 0.34 $* |
| Jan-18-2025 | 0.47 $* | 0.17 $* |
Характеристики
JCB005LM GPS antenna + LTE MIMO antenna
JCB005LM
| Casing also support following function | Combo antenna |
| Centre Frequency (MHz) | GPS: 1561.098~1575.42 LTE:698~960/1710~2690 |
| Gain (dBic) | GPS:28 LTE:3 |
| Item | Specifications | |
| GPS Antenna | Center Frequency | 1561.098~1575.42MHz |
| Polarization | RHCP | |
| Axial Ratio | 3dB(max) | |
| V.S.W.R | <1.5 | |
| Impedance | 50Ω | |
| Gain | 28±2dB | |
| Noise Figure | <1.5dB | |
| V.S.W.R | <2.0 | |
| Supply Voltage | 2.2~5V DC | |
| Current Consumption | 5~15mA | |
| LTE Antenna MIMO1 | Frequency Range | 698~960MHz/1710~2690MHz |
| V.S.W.R(min) | <2.5 | |
| Polarization | Linear | |
| Gain | 3dBi | |
| Impedance | 50Ω | |
| LTE Antenna MIMO2 | Frequency Range | 698~960MHz/1710~2700MHz |
| V.S.W.R(min) | <2.5 | |
| Polarization | Linear | |
| Gain | 3dBi | |
| Impedance | 50Ω | |
| MIMO Antenna Isolation | Isolation | ≥10dB(L≥3m) |
| Mechanical | Cable | RG174 or others |
| Connector | SMA or others | |
| Radome Material | ABS | |
| Mounting Method | Screw | |
If you need a personalized product, we offer professional customization!
Q: Are you a manufacturer or a trading company?
A: We have been professional antenna manufacturer for 20 years.
Q: Have Combination antenna 100% assembles well in stock?
A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
A: T/T, Paypal, western union etc.
Q: Where is your factory located? Can I visit your factory?
A: One year and can repair for the whole life.
If you have any questions please send message to us , we will reply in time. Thanks for you time!
