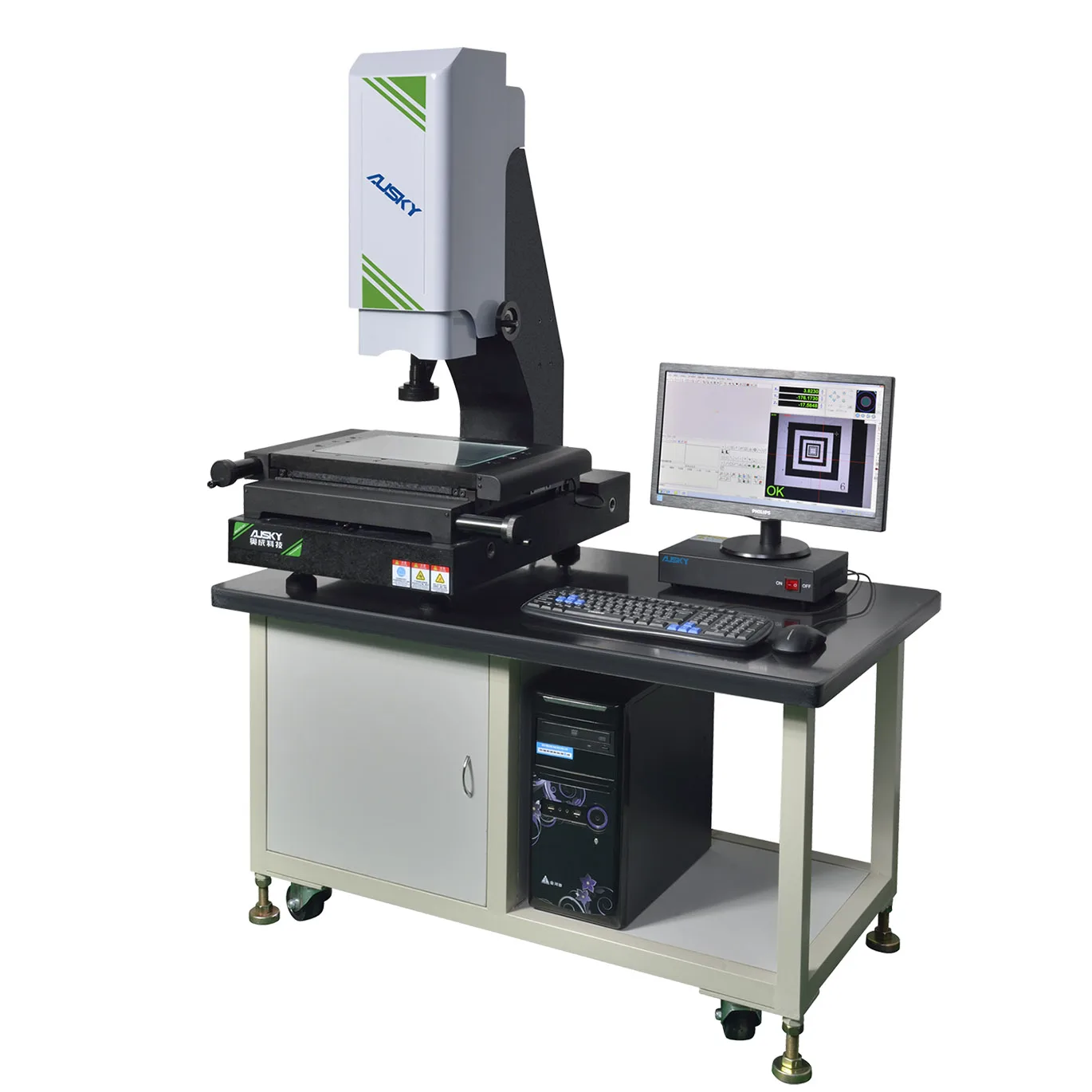

Недорогая 3d-координатная измерительная машина с хорошей
- Категория: Испытательное оборудование >>>
- Поставщик: Shenzhen,Aocheng,Instrument,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.41 $* | 0.1 $* |
| Aug-17-2025 | 0.6 $* | 0.84 $* |
| Jul-17-2025 | 0.2 $* | 0.88 $* |
| Jun-17-2025 | 0.25 $* | 0.84 $* |
| May-17-2025 | 0.9 $* | 0.88 $* |
| Apr-17-2025 | 0.38 $* | 0.78 $* |
| Mar-17-2025 | 0.61 $* | 0.69 $* |
| Feb-17-2025 | 0.1 $* | 0.74 $* |
| Jan-17-2025 | 0.69 $* | 0.11 $* |
Характеристики
Specifications
| Paramter and Model | AQC210 | AQC320 | AQC430 | AQC540 | |
| Workbench | Platfom size(mm) | 360*260 | 460*360 | 560*460 | 720*620 |
| Glass table size(mm) | 250*150 | 350*250 | 450*350 | 550*450 | |
| Bearing(kg) | 20 | 20 | 20 | 20 | |
| Travel | X axis(mm) | 200 | 300 | 400 | 500 |
| Y axis(mm) | 100 | 200 | 300 | 400 | |
| Z axis(mm) | 200 | 200 | 200 | 200 | |
| Image and measurement system | Display resolution(μm) | 1/0.5(Optional) | |||
| Instrument precision(μm) | (3+L/200)μm | ||||
| Imaging system(CCD) | HD Digital Camera | ||||
| Zoom objective(X) | High Precision Zoom Objective 0.7~4.5X | ||||
| Total video magnification(x) | 30~200X | ||||
| Working distance(mm) | 96mm | ||||

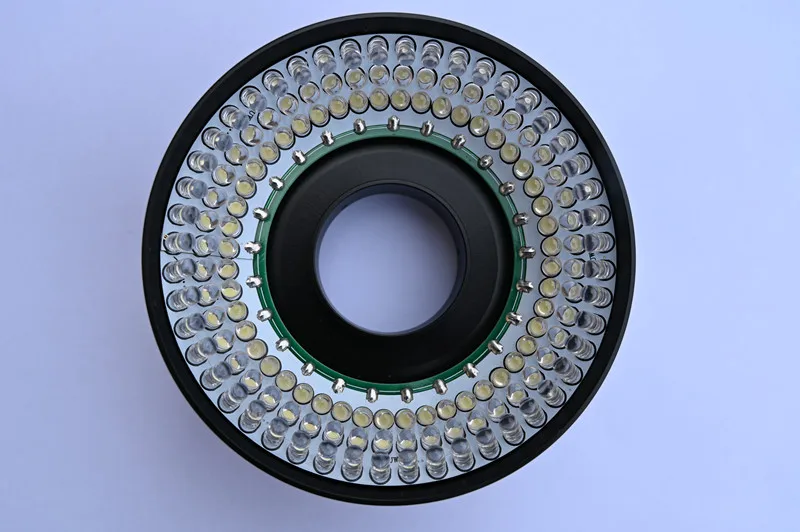

| Light source | LED programmable partiton light source(Coaxial light source optional) | ||||
| Outline dimension(mm) | 610*550*970 | 740*660*970 | 880*760*970 | 1090*720*1700 | |
Weight(kg) | 180kg | 250kg | 300kg | 700kg | |
| Power supply | 220V AC 50Hz/110V AC 60Hz | ||||

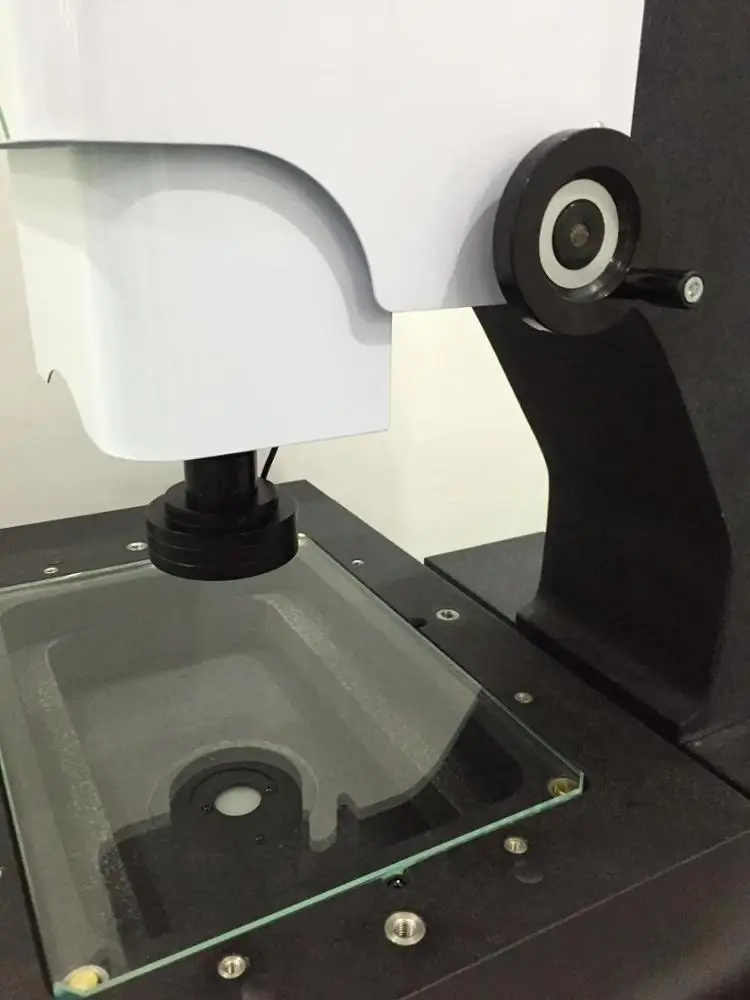

Product Display
Advantages
Main Function
1.Element measurements: multi-point measurement point, line, circle, arc, angle, ellipse, rectangle measuring points provided, automatic identification of point, line, circle, arc.
2.element structure: the center structure, the intersection of structure, the mid-point structure, line structure, a round structure, the angle structures.
3.preset elements: point, line, circle, arc.
4.graphics: coordinate translation, straighten the work piece.
5.arbitrary axis straightened, coordinate system reset.
6.graphic to enlarge, reduce graphics, graphics translation, graphic printing graphic is selected, uncheck, graphics removed.
7.Set the zoom, graphics narrow, graphic print radio is selected, deselect, graphics removed.
8 .Set the gray scale image, saturation, contrast, image saved as a BMP format.
9.a variety of edge detection mode, the computer automatically get points, automatic identification circle, arc greatly enhance the speed of mining points.
Company profile
Our Customers
Our Services
FAQ
1. How to Choose the Appropriate Specification
After get your demand,our professional team will work out best solutions by sending catalogue specification,demonstration video or other methods according to customers' need.
2. What is the delivery term of your products?
Normally we have standard products in stock. For bigger sizes (larger than 1000mm),
we can discuss and determine on the delivery time, generally,7-10 working days after receipt of the
payment. in urgent , we will try to make special arrangement.
Various shipping modes choices,shipping from Shenzhen port.
3. Do you accept customized service?
Yes OEM is welcome .
4. What is your warranty period?
12 Months warranty,after the warranty,the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products and promptly handle customer problems and complaints.
5.Have you ever had clients in our country before?
Our equipment has been widely supplied to Malaysia,India,Japan,
Pakistan, Philippines, Singapore,Thailand and Vietnam, Korea, UK, Italy, Germany,USA, Poland, Russia,
Turkey,Mexico,Ecuador,Canada,Israel and so on more than 30 countries.
6.How to install and use your product .
We will provide operating instructions and video of English version, if near our agent,the spot service is easier or we can send engineer to your country to finish installation and training,it takes extra cost like air-ticket and accommodation .
