Заводской водонепроницаемый IP65 высокая яркость рекламы наружный P4 P5 P6 P8 P10mm
- Категория: Дисплеи, вывески и Оптоэлектроника >>>
- Поставщик: Shenzhen,Ledful,Electronics,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 343.61 $* | 360.32 $* |
| Aug-16-2025 | 340.1 $* | 357.94 $* |
| Jul-16-2025 | 285.77 $* | 299.29 $* |
| Jun-16-2025 | 334.19 $* | 351.75 $* |
| May-16-2025 | 291.29 $* | 306.66 $* |
| Apr-16-2025 | 328.66 $* | 344.83 $* |
| Mar-16-2025 | 325.67 $* | 341.78 $* |
| Feb-16-2025 | 323.78 $* | 339.26 $* |
| Jan-16-2025 | 320.98 $* | 336.36 $* |
Характеристики
Product Description
OF Series Features & Advantages
◆3 times aging process.
◆Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test.
◆Long service time and low attenuation by applying dual channels for heat dissipation.
◆High protection grade of IP65 achieved by patented mask design with waterproof and dustproof fuction.
◆No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
Parameter | ||||||||||||
Value | OF4 | OF5 | OF6 | OF8 | OF10S | OF16S | ||||||
Pixel Pitch(mm) | 4 | 5 | 6 | 8 | 10 | 16 | ||||||
Pixel Matrix Per Sq.m | 62500 | 40000 | 27777 | 15625 | 10000 | 3906 | ||||||
Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 | ||||||
Brightness (nits) | 6500 | 6500 | 6500 | 6800 | 7500 | 8000 | ||||||
Scan | 1/8 | 1/8 | 1/4 | 1/3 | 1/2 | 1/1 | ||||||
Module Dimension | 192x192mm | 160x160mm | 192x192mm | 320x160mm | 320x160mm | 256x256mm | ||||||
Cabinet Dimension | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 1024x1024mm | ||||||
Cabinet Resolution | 192x192 | 192x192 | 160x160 | 120x120 | 96x96 | 64x64 | ||||||
Cabinet Weight | 44kg / 97Ib | 43kg / 95Ib | 42kg / 93Ib | 41kg / 90Ib | 40kg / 88Ib | 46kg / 101Ib | ||||||
Power Con. (Max / Avg) | 750 / 150 w/sq.m | 730 / 130 w/sq.m | 700 / 120 w/sq.m | 680 / 120 w/sq.m | 650 / 110 w/sq.m | 750 / 150 w/sq.m | ||||||
Service Access | Front / Rear | |||||||||||
Refresh Rate | ≥1920 HZ | |||||||||||
Grey Scale (bit) | 16 | |||||||||||
Viewing Angle | 140(H) / 140(V) | |||||||||||
IP Rate | IP65 | |||||||||||
Input Voltage (AC) | 110V / 240V | |||||||||||
Products Show
Where is LED display installed?
LEDFUL provide structure frame design drawing and installation suggestions.

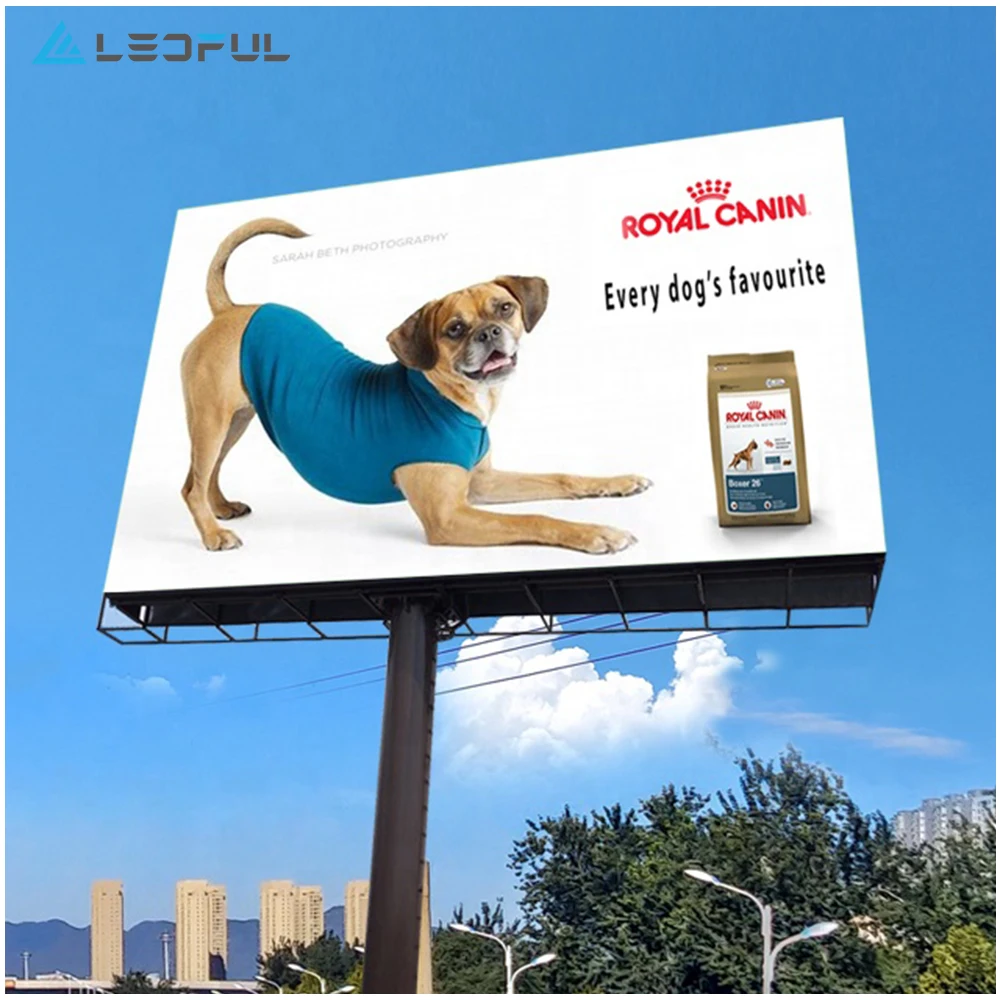

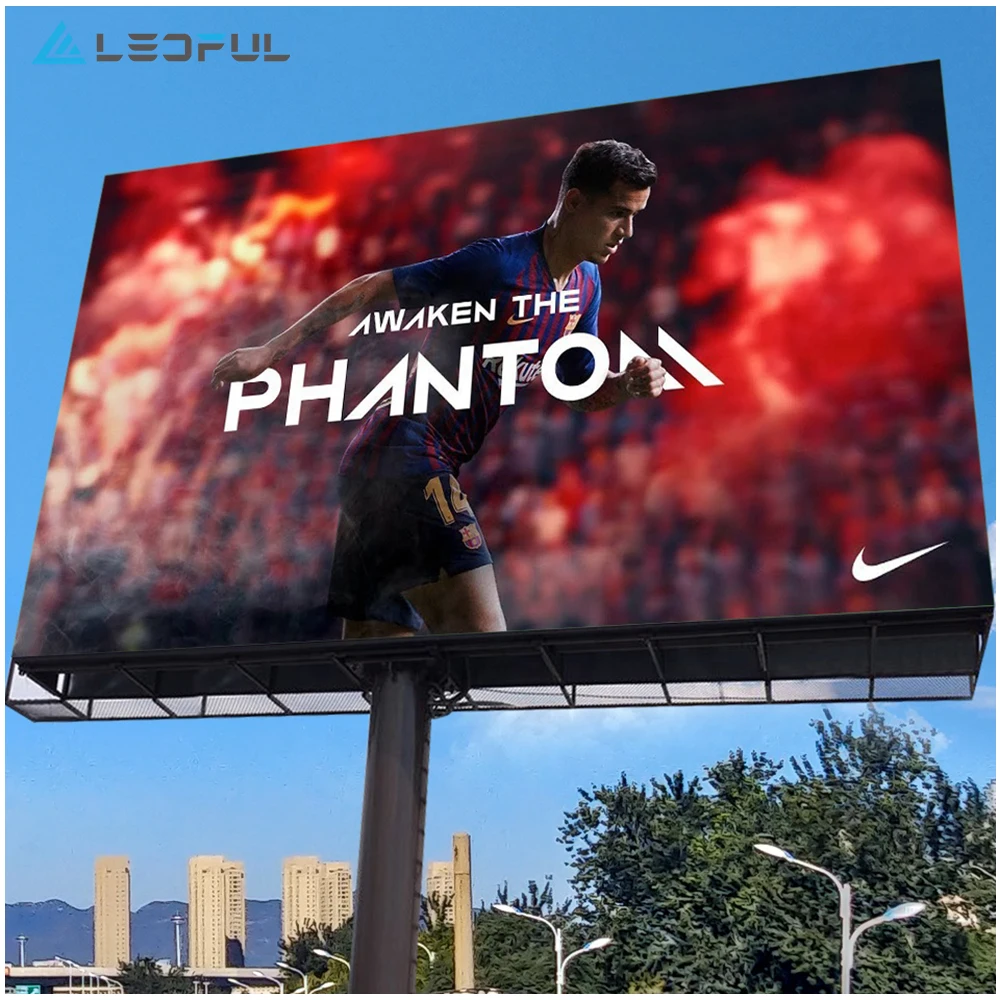

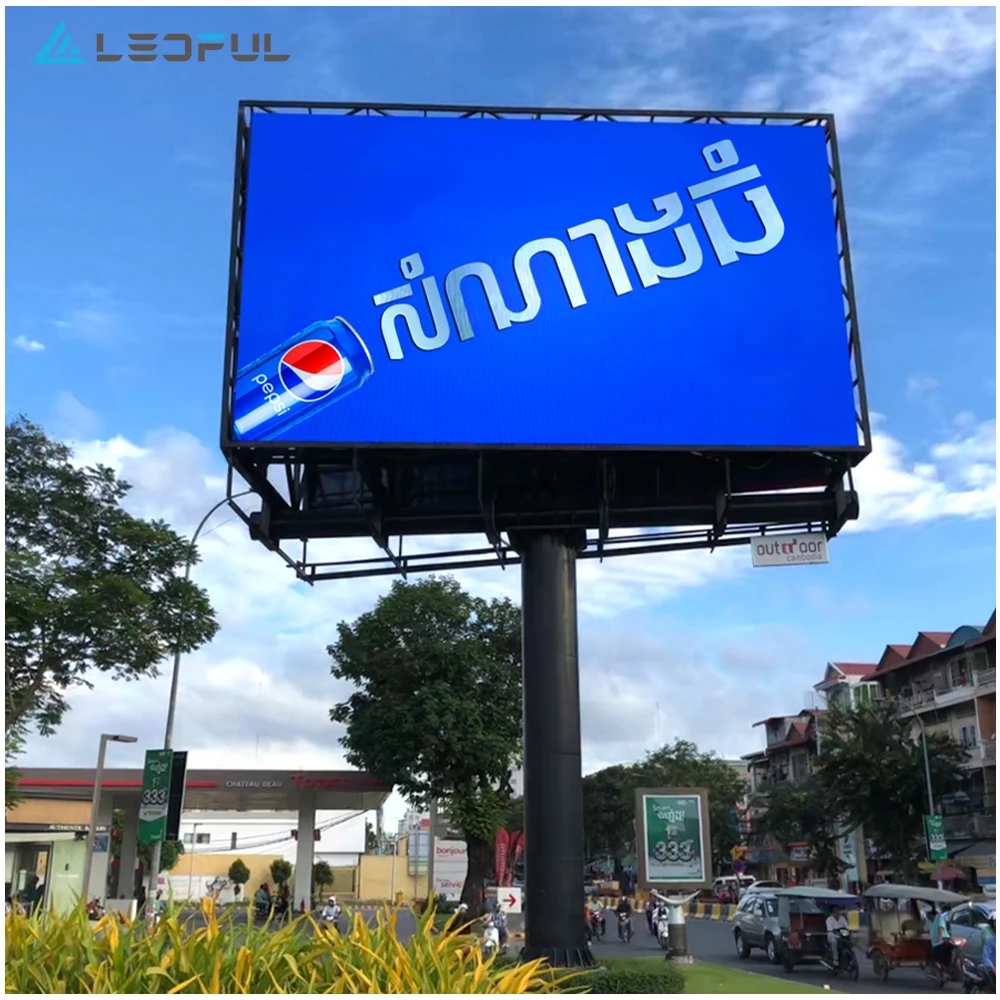

Pillar / Pole LED display

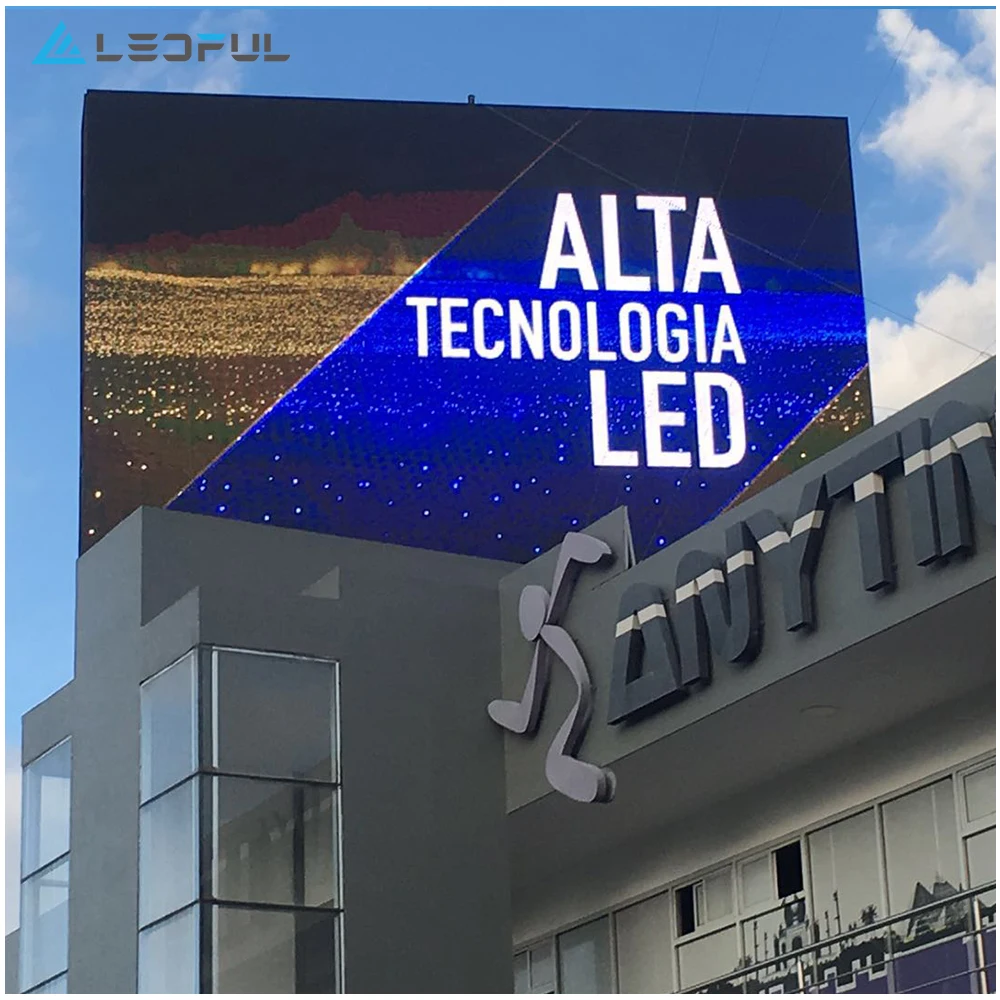

Wall mounted LED display
How to control LED display?
By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.
Ultra High / Low Temperature
OF series designed for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.
High Temperature
Low Temperature
SMD Performance and View Angle
Better contrast ratio and viewing performance. Wide viewing angle increasing its value by covering more viewing.
Various Shaped LED Display
Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball.
LEDFUL supply more design and more solutions.
How can we make Energy Saving LED display 30%?
1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency
Applications
Outdoor Double Poles Advertising Display
Product Model: OF6
Pitch: 6mm
Size: 28 sqm
Location: Australia
Energy Saving Outdoor Fixed LED Display---OF Series--OF10S
OF10S is one of the most popular model for outdoor fixed installation display application.
OF series cover wider pixel pitch, start from P2.5, P3, ... to P10, P16 and all OF series design for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.
Outdoor LEDFUL OF series is the perfect energy-saving outdoor fixed LED display solution, which use higher efficiency IC driver, perfect PCB design together with better power conversion efficiency.
Besides, LEDFUL team provide structure frame design drawing and installation suggestions for each project according to the local site requirements.
>>>>>More Applications
Our Company
>>>>>Why Choose LEDFUL
▲Deep Customized & OEM.
▲Listen to you, think more for you.
▲Lifelong maintenance with reasonable price.
▲Clear cost initially to save your time and money.
▲Provide with innovative and satisfying products.
▲Excellent product quality, quick and professional services.
▲Always ready for your any change on LED display detail.
▲Listen to you, think more for you.
▲Lifelong maintenance with reasonable price.
▲Clear cost initially to save your time and money.
▲Provide with innovative and satisfying products.
▲Excellent product quality, quick and professional services.
▲Always ready for your any change on LED display detail.
▲Recommend the best proper solution for your LED project.
▲Catch things what you missed before LED display production.
▲Take good care of each detail for your products, packages,shipping.
>>>>>>Best Balance of Quality & Price
Packing & Delivery
More Products
FAQ
Q1: Are you trading company or manufacturer ?
A: LEDFUL is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and skilled QC team for 12 years.
Q2: What is the control system? How is it?
A: We use Nova control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control the screen.
Q3: What is your best service?
A: One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well,
5…6…etc.
Q4. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5:How about your Warranty Term?
A: 3-year warranty. Structure design, installation problem, program the screen, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
