Характеристики
Manual Spraying Spray Booth Paint Booth/Small Paint Spray Booth
Product Description
Production Features:
Environmental protection type water curtain ark (spray paint stage) basically be to pump water to go up to water curtain board to flow down equably by self-priming pump, the waste gas that spray gun gush comes out (lacquer mist) by the water on water curtain board hits in the pool below.A small part of the exhaust gas (paint fog) is above the fan through the exhaust pipe exhaust outside the workshop.There is no waste gas (paint fog) in the workshop to give everyone a good working environment.
Use and performance
Mainly used for product spray paint workshop exhaust (paint fog) treatment, to give everyone a good working environment.High efficiency environmental protection water curtain cabinet (spray paint station) mainly USES the water to filter the exhaust gas of the spray paint workshop (paint fog) to use conveniently and save energy.Pass water to hit exhaust gas (lacquer) drain inside, change water regularly
Parameter List
No. | Item | Specification | |
1 | Size | W2000mm(inner width)x D2000mm x H2500mm | |
2 |
| Water Tank
| The water tank is welded by 1.5mm 202# stainless plate, Full welding. |
The foot stool for water tank | It is made of welding 50x50 stainless steel square box section. The M14 adjustable foot cup is equipped in the bottom of foot stool. | ||
The top and side plate | It is made by bending and welding 1.2mm 202# stainless steel sheets. They are connected by the stainless steel screw and the gap is filled by the glass cement. | ||
The rear of the plate | It is made by bending and welding 1.2mm 202# stainless steel sheets. | ||
Water Curtain Plate | It is made by 1.0mm 202# stainless steel sheets. | ||
3 | water-cycling system | Water Pump | Use 1 set 1HP vertical centrifugal water pump. |
Pipeline | The water pipe is made of 1.2 inch PVC pipe.The main and secondary water pipe are equipped with the valve. | ||
4 | exhaust gas system | Wind turbines | It use 1 set of 3P special centrifugal fan for water booth. The air volume is 8500 cubic meters per hours.(not included) |
Air Pipe | The air pipe is not included. | ||
5 | electrical equipment | Electric Control Cabinet | A set of Electricity box, not including the frequency transformer, The accessory use the China CHINT brand which is famous in our country. |
Lighting | The light use 1 pc 40W explosive-proof light with cover. | ||

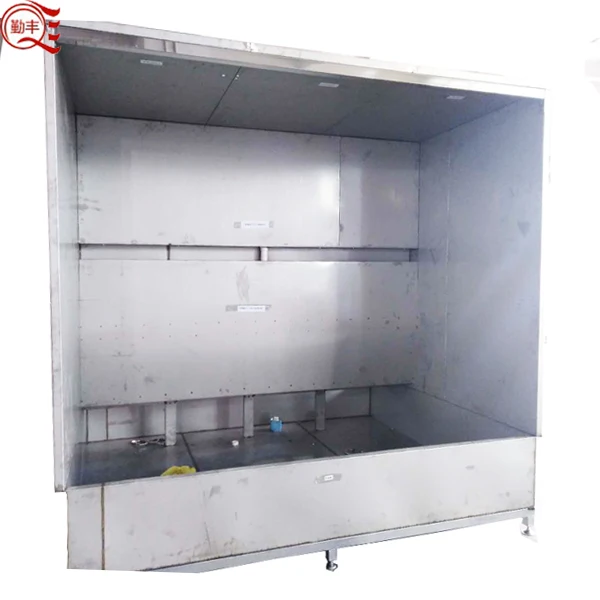

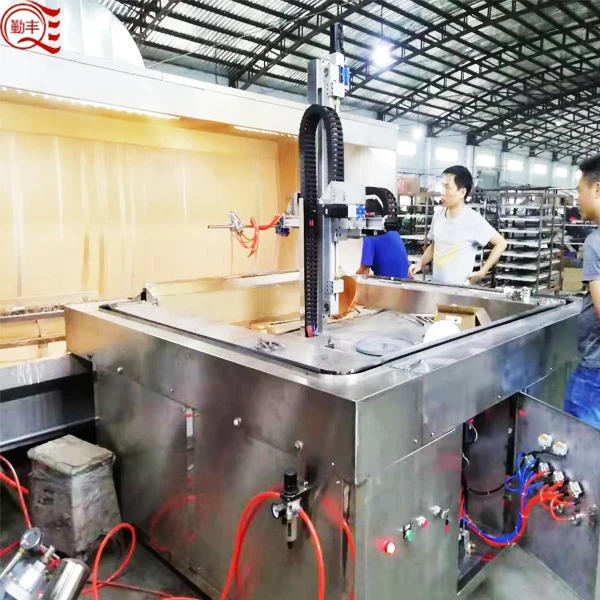

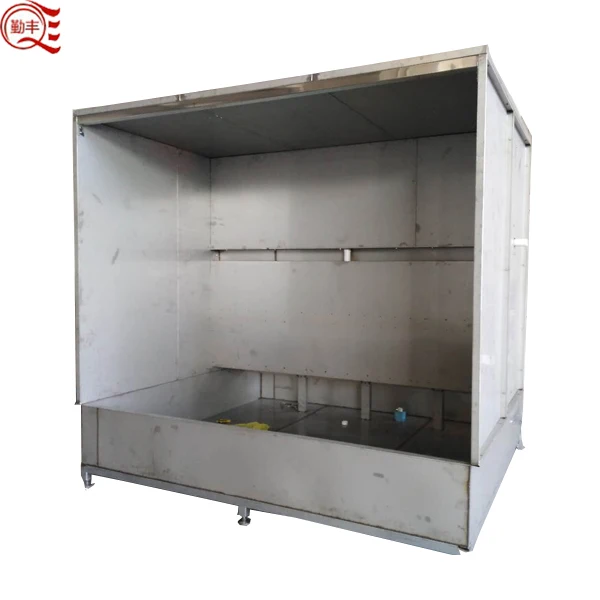

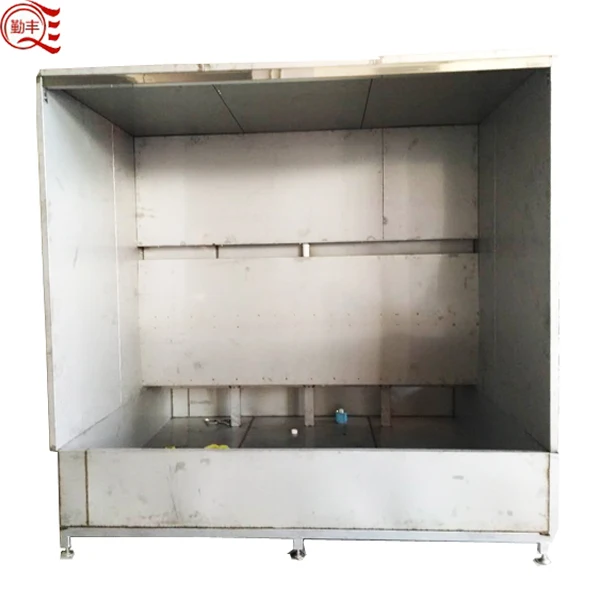

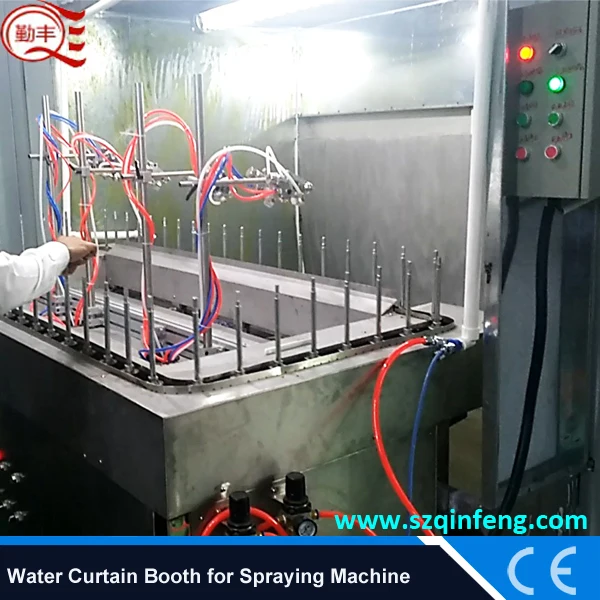

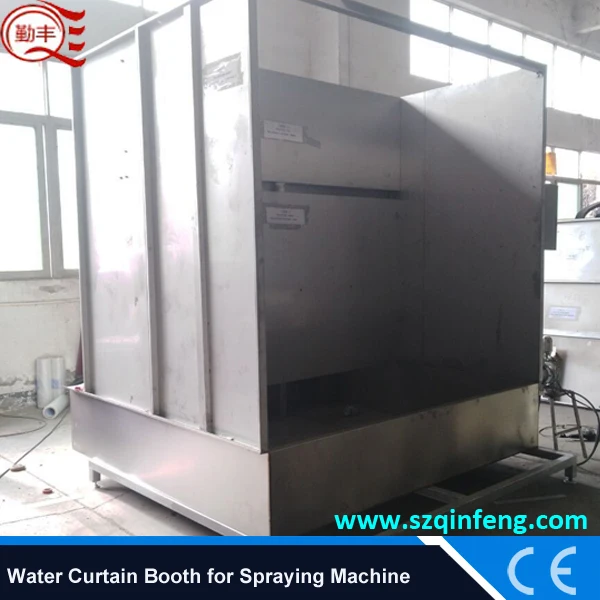

Product Show:
Application:
The paint booth has water curtain spraying booth and dry-type spray paint booth, which is used to exhaust the extra mist for manuap spraying and automatic spraying paint machine's spraying. it is wildly used in the field of plastic,Metal,stainless,glass,wood etc round,cylindrical,conical shapes or other irregular ,small type shapes' furface spraying,such as cellphone shell,glass cup, lamp shell,helmet,bottles,holder,cosmetics lid etc project.
Related Products
Company Information
Shenzhen Xinqinfeng industrial equipment co., LTD. was established in 2004.The products are sold to various regions of mainland China and foreign countries.From a development department,Xinqinfeng has become a professional manufacturers which currently specializing in non-standard automatic mechanical Equipment’s development, design and production, with standard large plant and advanced production equipment.After years of unremitting efforts and accumulation, Now Xinqinfeng specializes in industrial automation equipment with considerable scale and strength.
Main products include industry surface automatic painting, automatic drying, as well as automatic spraying the entire plant planning, designing and manufacturing, as well as industrial robots, robots, automation equipment and other non-standard test equipment.
Main Products:
- Whole factory plastic parts automatic dust coating equipment
- Whole plant metal products electrostatic coating equipment
- Whole factory furniture electrostatic coating equipment
- Whole plant locomotive, motorcycle coating equipment
- Manipulator, Spraying robot etc Industrial Robot equipment
- Automatic UV curing furnace line
- Fully automatic electrostatic dust removal equipment
- DISK automatic electrostatic coating equipment
- All kinds of Drying,silk-screen equipment
- All kinds of PVC/SUS belt,Nylon conveyor equipment
- Teflon/Ceramic powder /PE immersion high temperature equipment
- All kinds of Water Curtain Booth etc equipment
- High level Air Supply System
- Waste water/waste gas recycling system
- Whole plant electroplating coating equipment
- Whole factory electrophoresis coating equipment
