Door Release Manual Call Point Emergency Call Button



Introduction for Door Release Manual Call Point Emergency Call Button

• Break glass (which draws its name from breaking the glass to pull an alarm) refers to a quick means for a person who does not have access privileges to certain information to gain access when necessary.

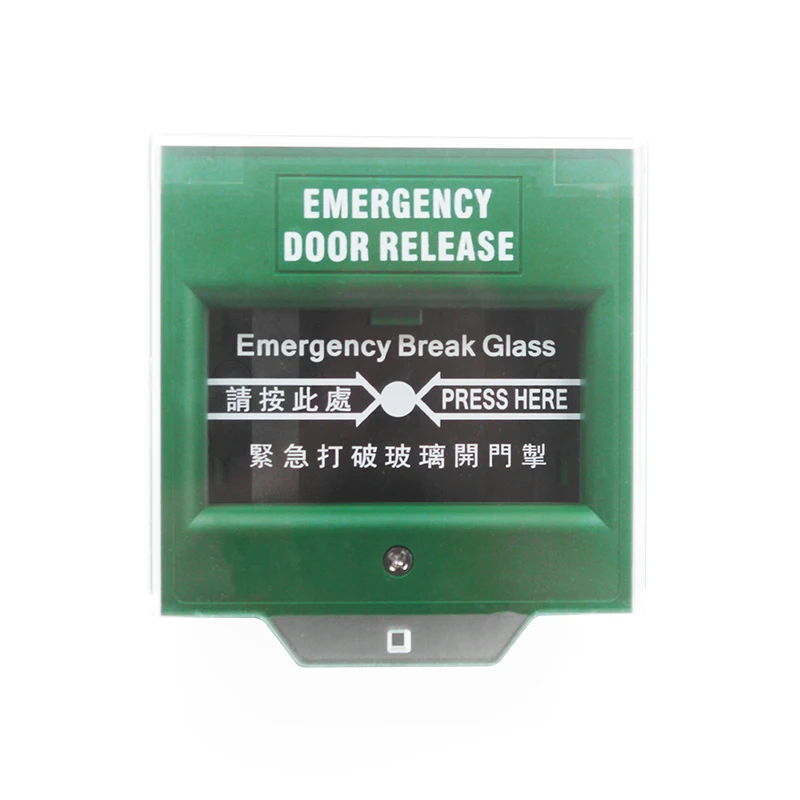

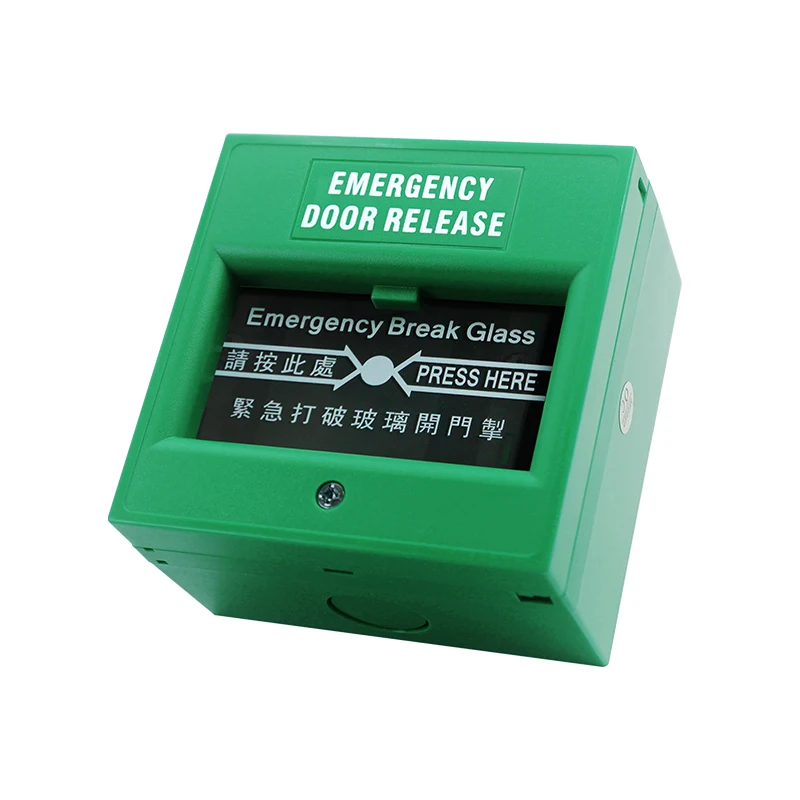

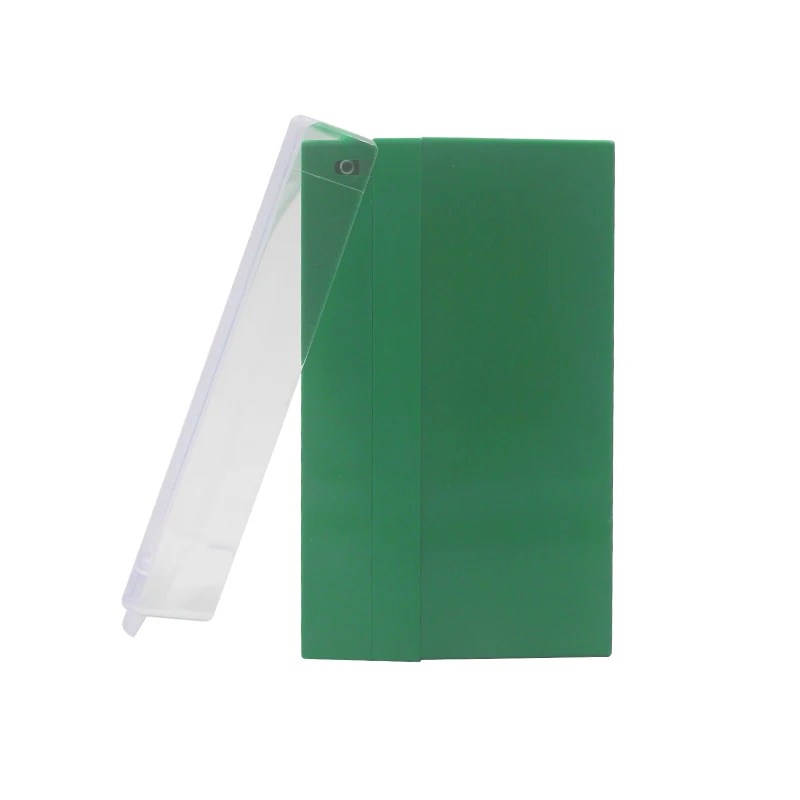

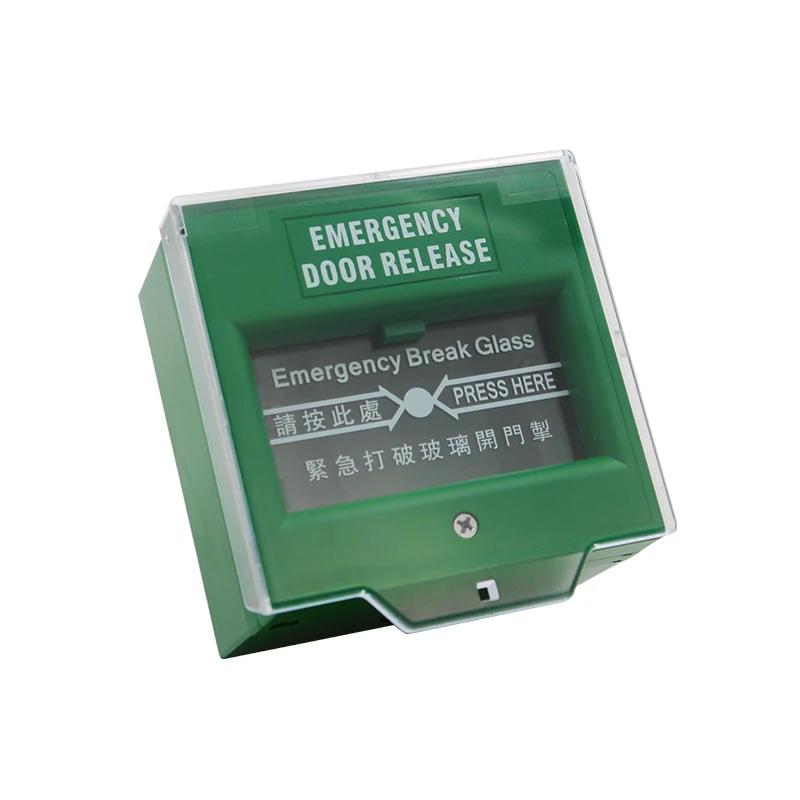

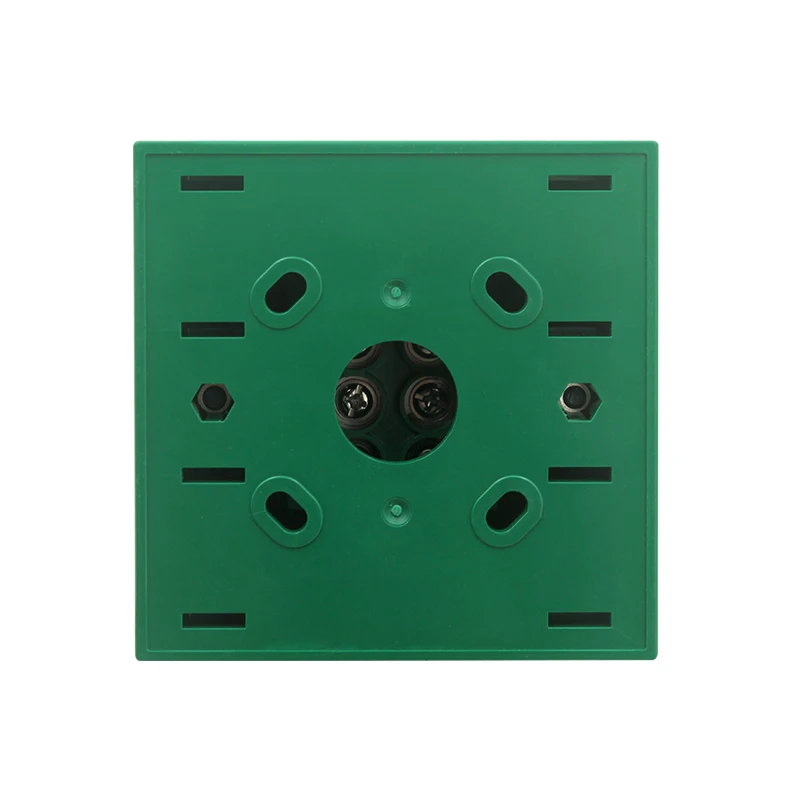

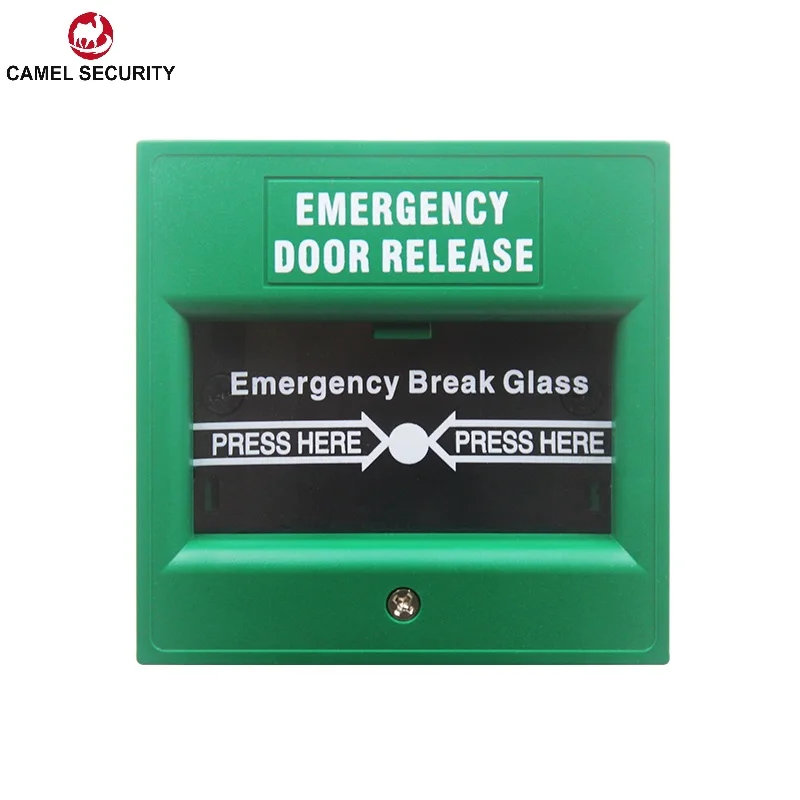

• Camel breakglass call point is a conventional call point that offers single or double pole changeover contacts with Normally Open and Normally Close connections. It is supplied with a breakable and test key and available in various colors for your choice.



Advantage of Door Release Manual Call Point Emergency Call Button

• Use the fireproof material according to the safety request
• Sandblast panel with elegant style
• Green/red/yellow/white/blue different colors options for different applications
• OEM language or words available





Technical Parameter of Door Release Manual Call Point Emergency Call Button



Size	86W*86L*53H (mm)
Standard Structure	Fireproof Material, Easy to Install
Current Rating	3A @36V DC Max
Output Contact	NO/NC/COM
Mechanical Lifetime	100,000 times tested
Suitable places	Office building, malls, hotels, metro stations, apartments etc.
Optional Accessories	Glass
Working Temperature	10~+55(14-131F)
Working Humidity	0-95% (relative humidity)
Material	Fireproof Material, Sandblast Finished
Option Colors	Green, Red, Yellow, White, Blue
Package	100pcs/20kg/56*48*37cm/ctn
