Характеристики

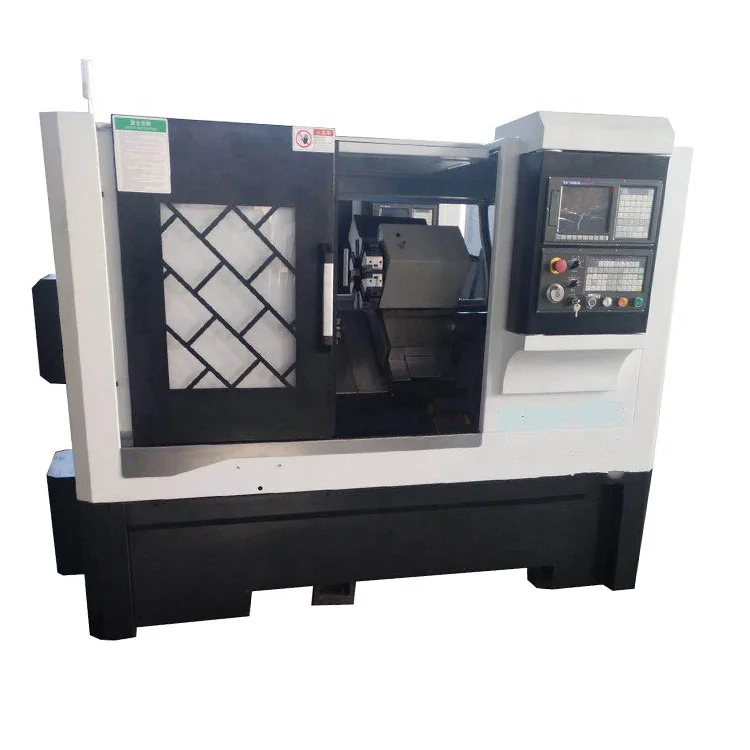

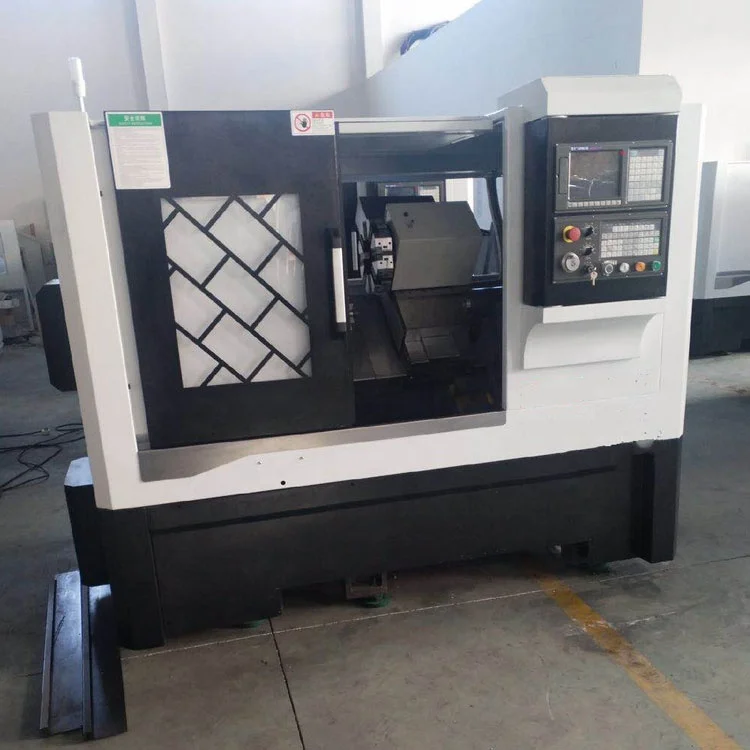

slant bed cnc lathe CK4030
slant bed cnc lathe CK4030 parameters:
Model | CK4030 | unit | parameter |
Maximum turning diameter of the bed | φ/mm | 400 | |
Maximum turning diameter on the pallet | φ/mm | 150 | |
Maximum processing length | mm | 300 | |
Spindle head form | mm | Spindle unit | |
Spindle through hole diameter | φ/mm | 49 | |
Pull tube through hole diameter | φ/mm | 48 | |

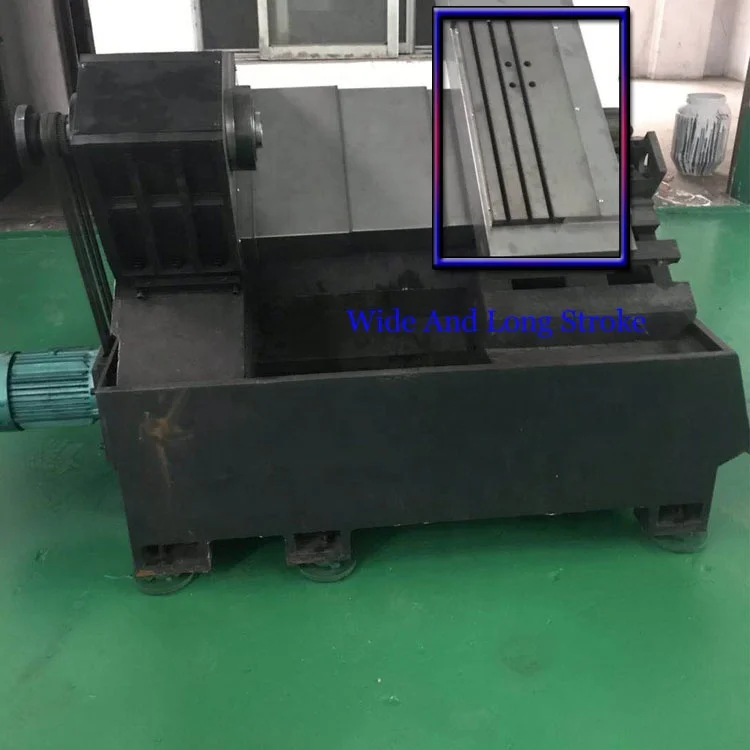

Rail width | mm | 250 | |
Total length of guide rail | mm | 640 | |
X-direction rail model | mm | HCW30CC2R600 | |
Z-direction rail model |
| HCH30CA2R640 | |
X/Z axis repeat positioning accuracy | mm | 0.001 | |
X-axis (horizontal) maximum stroke | mm | 300 | |
Z axis (horizontal) maximum stroke | mm | 300 | |
X fast moving speed | m/min | 8 | |
Z fast moving speed | m/min | 10 | |
Maximum spindle speed | r/min | 4500 | |
Tool holder form |
| Can be selected | |
Main motor power | Kw | Can be selected | |
Machine tool dimensions (L × W × H) | (L×W×H) | 1700*1200*1600 | |
Machine weight | Kg | 1300 | |
Standard configuration
1.980TC3 System Bus System
2. gang-type tool holder

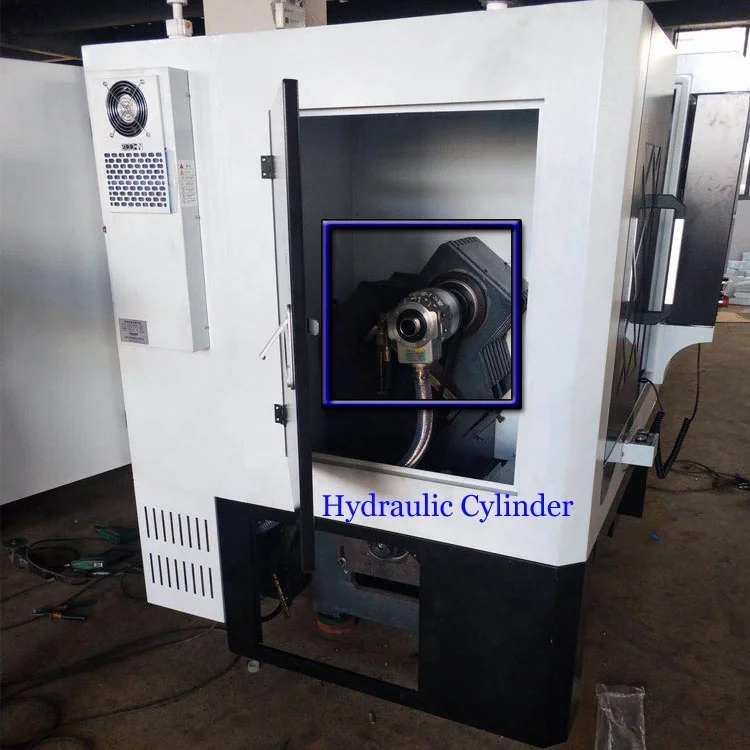

3. Hydraulic collet
4.4kw Servo Main Motor
5. Spindle unit
6.X/Z Taiwan Railway
Optional configuration
1. Four-position turret
2.6 Position turret

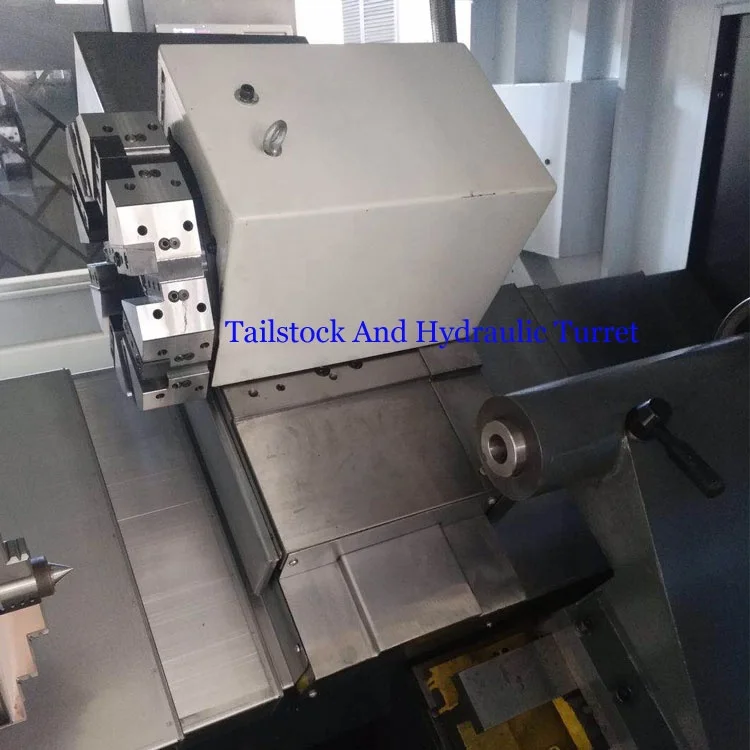

3.6 Position Hydraulic turret
4.8 Position Hydraulic turret
5. Hollow hydraulic chuck
6. Manual chuck
If you are interested in slant bed cnc lathe CK4030, welcome to leave a message or send the inquiry to understand the details of machine.
Our Services
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
About HAISHU Company
About HAISHU Machinery

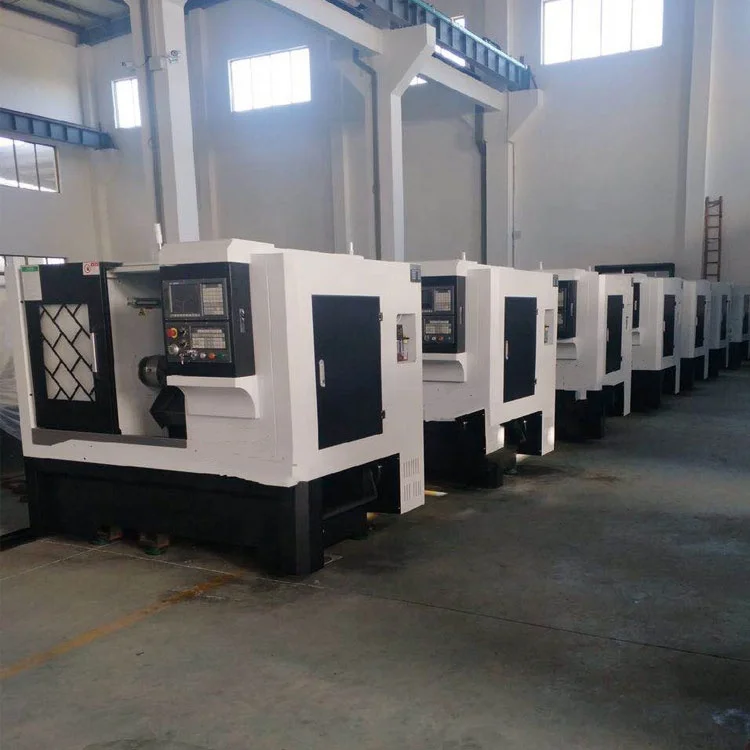

As the professional CNC machine designer and manufacturer, Taian Haishu Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory. More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative products include CNC lathes, CNC milling machine, CNC machining center, CNC turn milling machine, CNC tool grinding machine, CNC pipe threading lathe, CNC wood lathe, stone CNC machine, CNC root canal file grinder and custom CNC equipment for special requirements.
HAISHU Machinery is not only manufacturing best quality CNC machine products but also providing custom product design, fabrication and after sale services. Welcome contact us for detailed information.
