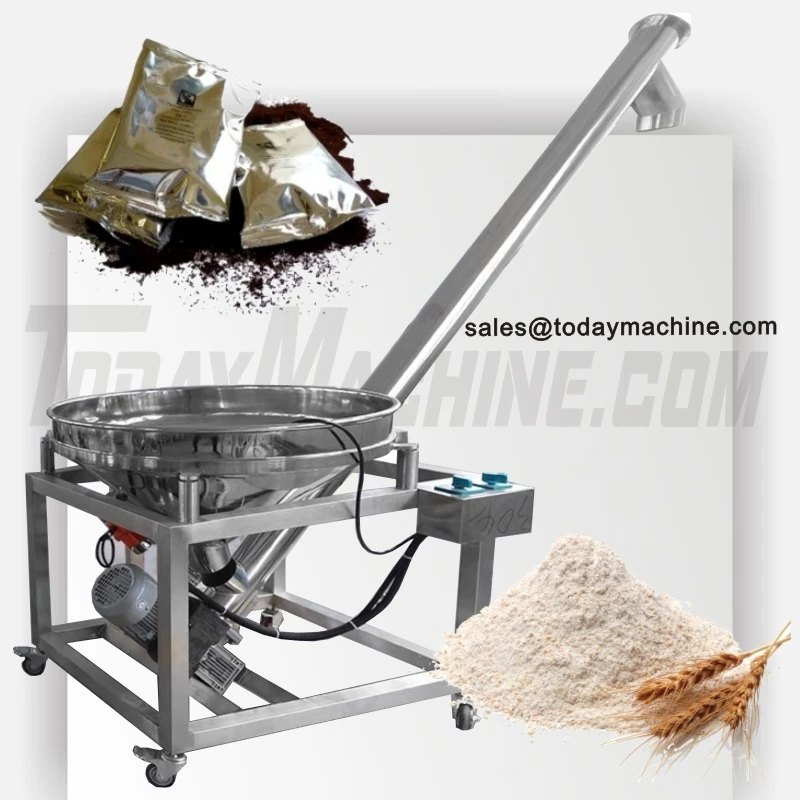

For powder, conveying to higher hopper, equip with packaging machine, ribbon blender, linear weigher, filling machine.
Application
DTC series screw conveyor can be powder or granular plastic materials transported within the hopper is a device-specific color mixer. The contact objects are made of stainless steel, transportation of raw materials not subject to the process of pollution, do not bring any outside objects, enabling the production process to achieve full closure of automation. Easy to install and can be moved, such as multiple spices machine using the same material, just a platform feeder for multiple spices simultaneously feeding machine, eliminating the trouble of artificial feeding, the feeding work has become more secure, less time and more effort.
Character
With eye sensor and movable wheels with brake, hopper With vibrator.
Reverse clear function, easy to disassemble and easy to clean.
Speed variation and time adjustment.
Options: Loaded hopper with cover, Frequency control, eye sensor.
Technical parameters
Model
Baiting power (kw)
Shoving power (kw)
Screw diameter (mm)
Speed (kg/h)
Hopper Volume (L)
Hopper diameter (mm)
Weight (kg)
DTC-600
0.75
0.75
89
600
100
600/800 round
80
DTC-1000
1.5
0.75
102
1000
150
600/800 round
150
DTC-2000
1.5
0.75
114
2000
200
600/800 round
200
DTC-3000
1.5
0.75
140
3000
200
950 square
300
DTC-5000
1.5
0.75
219
5000
200
950 square
400
Tilted Bucket Conveyor
Model: BUCKET-TILTED

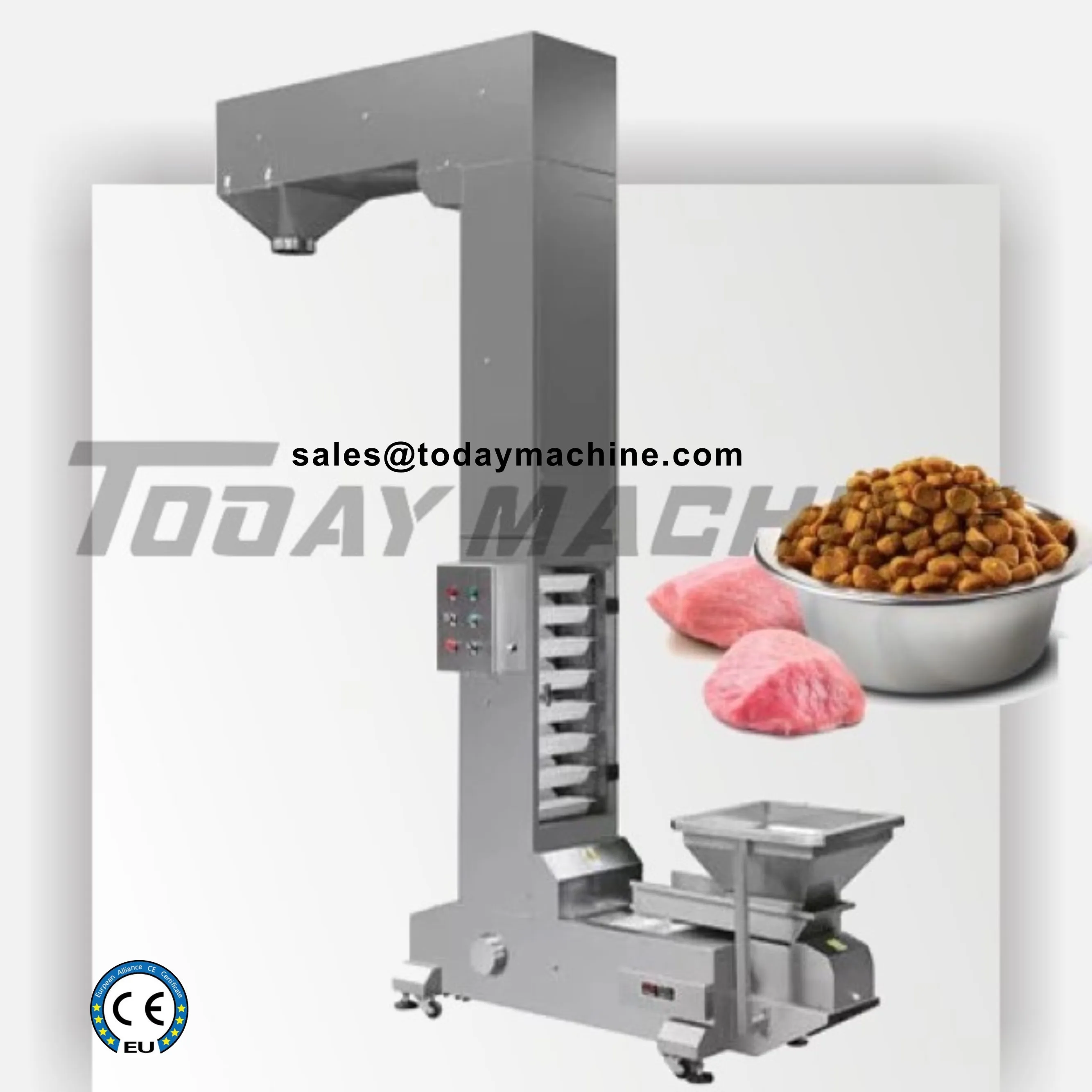

Z Bucket Conveyor
Model: BUCKET-Z
Character:
Speed is controlled by frequency converter , easy to control and more reliable.
304SS chain which is easy to maintain and long lift.
Strong sprocket with running and less noise.
Fully enclosed, keeping clean and sanitary.
Details
The buckets are made of a food grade reinforced polypropylene, molded in one piece and can handle temperatures from -10 to 120 degrees Fahrenheit.
The bucket elevators allow for controlled feeds at one or more locations and can easily interface with various types of feeding devices.
All parts have easy to remove inspection covers and a conveniently located inspection window. The buckets have a quick release mechanism to facilitate fast installation or removal of buckets. All elevators are equipped with an automatic chain tensioning device and built-in overload protection.
Features
Speed is controlled by frequency converter , easy to control and more reliable.
304SS chain which is easy to maintain and long lift.
Conveying the finished-packet up. Equip with packaging equipments.
Speed (adjustable)
25m/min
Height of the lowest point
60mm
Loading height(vertical)
850mm
Belt Width
250mm
Belt Length
1470mm
Power
AC 220V 60W
Package Size
1560x430x350mm 1100x420x800mm
Weight
62kg

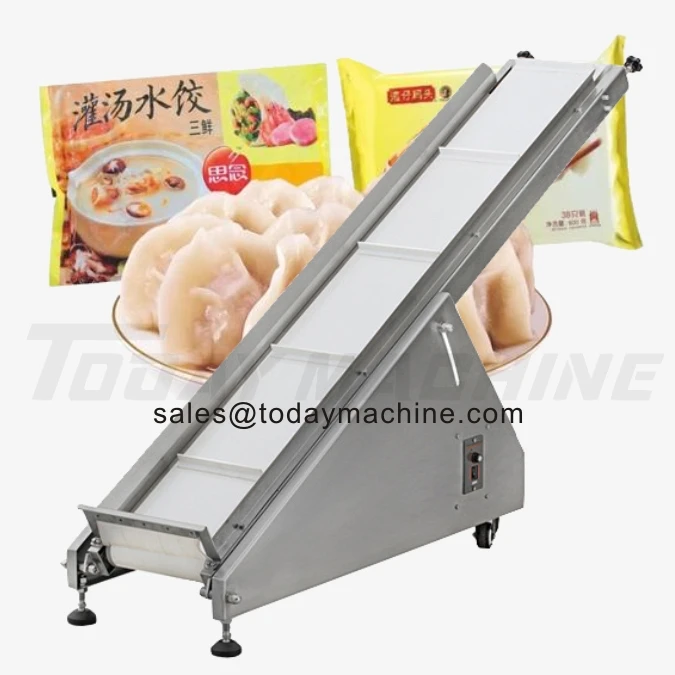

Tilted Belt Conveyor
Model: BELT-TILTED
Suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, such as snack foods, frozen foods, vegetales, fruits, confectionary. Chemicals and other granules.
Length and and height are made according to customers’ specifications.
Options
Frame: Food hygiene SUS304 201 / Aluminum alloy / carbon steel. Conveyor belt: Food grade PVC, PU or others. Driving device: electric motor or electric drum. Belt speed: Fixed speed or adjustable speed(frequency converter)
Features
Steady conveying, adjustable speed or adjustable height as your need. It has low noisy which is suitable for work environment. Simple structure, convenient maintenance. Less energy consumption and low cost. No sharp corners or danger to staff, and you can clean the belt freely with water.
Vacuum Auto Loader
Application to conveying nonstick granules mixture.
Advantages
Easy to install and operate
Computerized operation program
High-speed motor with a small size and strong loading capacity
Motor automatic protection system with alarm
Stainless steel hopper
Technical parameters
Model
AL-300G
AL-400G
AL-700G
AL-800G
AL-900G
Type
Carbon brush
Induction
Carbon brush
Induction
Induction
Motor
1Φ1.1KW
3Φ1.1KW
1Φ1.1KW
3Φ1.1KW
3Φ3KW
Conveying capacity
300KG/H
300KG/H
400KG/H
500KG/H
600KG/H
Loading capacity
6-8M
6-8M
6-8M
8-10M
8-10M
Static distance
1500mm/H2O
1500mm/H2O
1500mm/H2O
1800mm/H2O
2400mm/H2O
Reservoir volume
7.5L
7.5L
7.5L
7.5L
7.5L
Conveying tube inner dim
Φ38mm
Φ38mm
Φ38mm
Φ38mm
Φ38mm
Main frame
/
/
37*30*55cm
46*38*70cm
46*38*70cm
Hopper
40*36*60cm
40*36*60cm
40*30*44cm
40*30*44cm
50*40*60cm
Net Weight
20KG
30KG
70KG
70KG
85KG
Bottle Unscrambler
Stainless steel made
Characters
Full stainless steel 304 made.
No replacement parts, suitable for many size of empty glass bottle and pop can, is the ideal supplementary production line equipment
Adopts the frequency changer, speed adjustable as customer’s requirement through the panel.
Be able to connect to the complete filling production line.
Adopts the high quality of stainless steel 304 material, meet with the food grade, has long lifespan.
Easy structure and convenient operation, with a control panel with full English mark beside the machine.
Centrifugal type, with anti-diction function, adjustable support to suitable different filling line.
Advantages of elimination of labor, improve the effectiveness
