Неизолированный чип термистора 100Kohm 3950
- Категория: Resistors >>>
- Поставщик: Zhaoqing,Jinlongbao,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.28 $* | 0.27 $* |
| Aug-16-2025 | 0.74 $* | 0.3 $* |
| Jul-16-2025 | 0.82 $* | 0.88 $* |
| Jun-16-2025 | 0.59 $* | 0.49 $* |
| May-16-2025 | 0.5 $* | 0.25 $* |
| Apr-16-2025 | 0.8 $* | 0.53 $* |
| Mar-16-2025 | 0.29 $* | 0.5 $* |
| Feb-16-2025 | 0.12 $* | 0.49 $* |
| Jan-16-2025 | 0.47 $* | 0.81 $* |
Характеристики

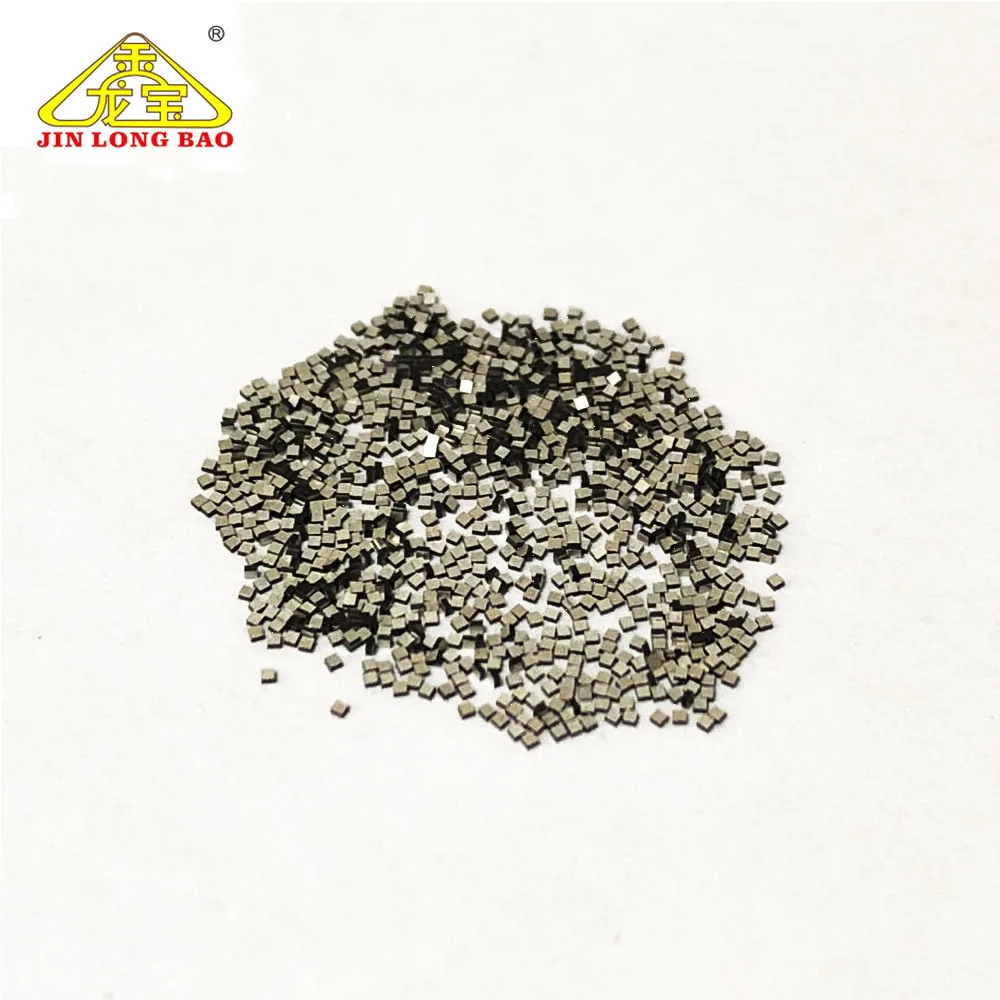

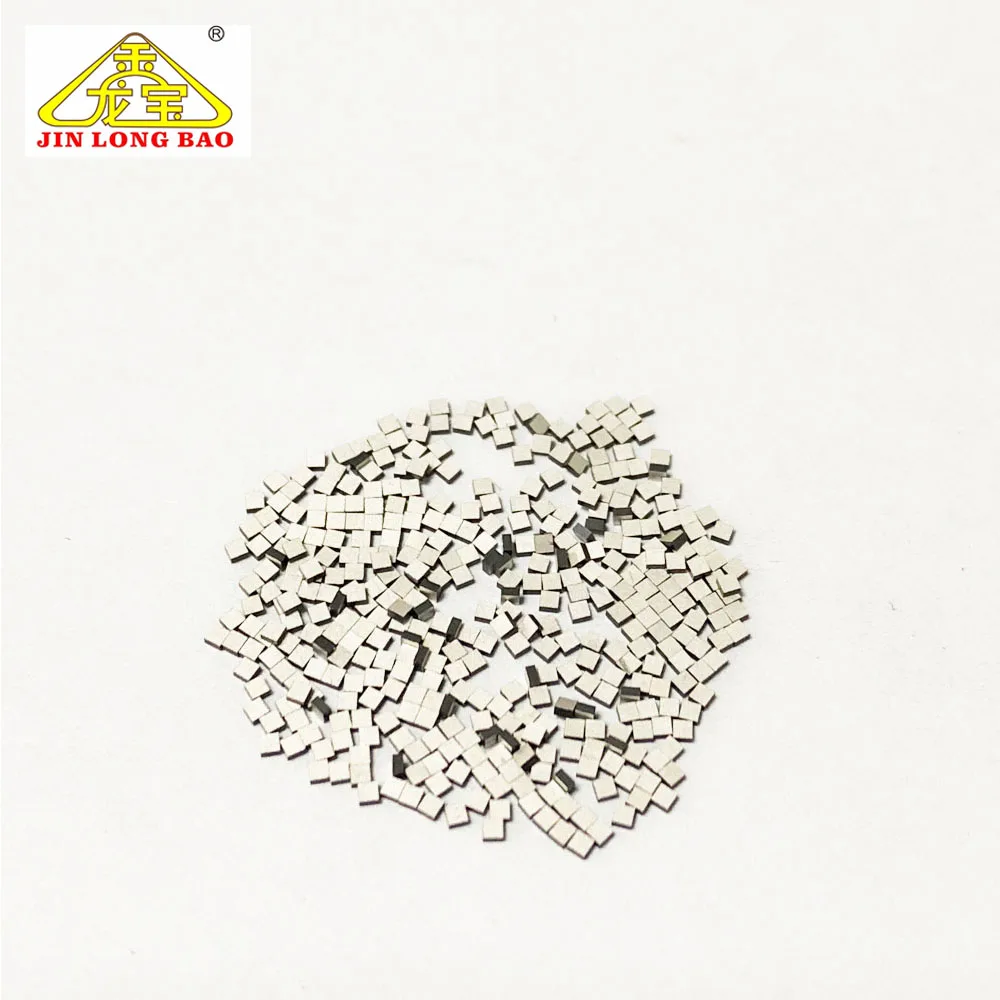

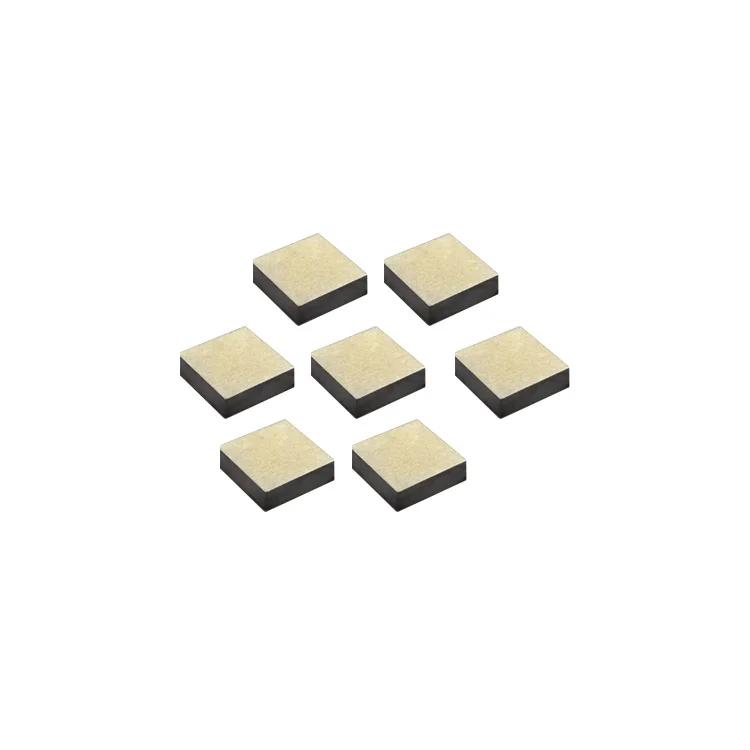

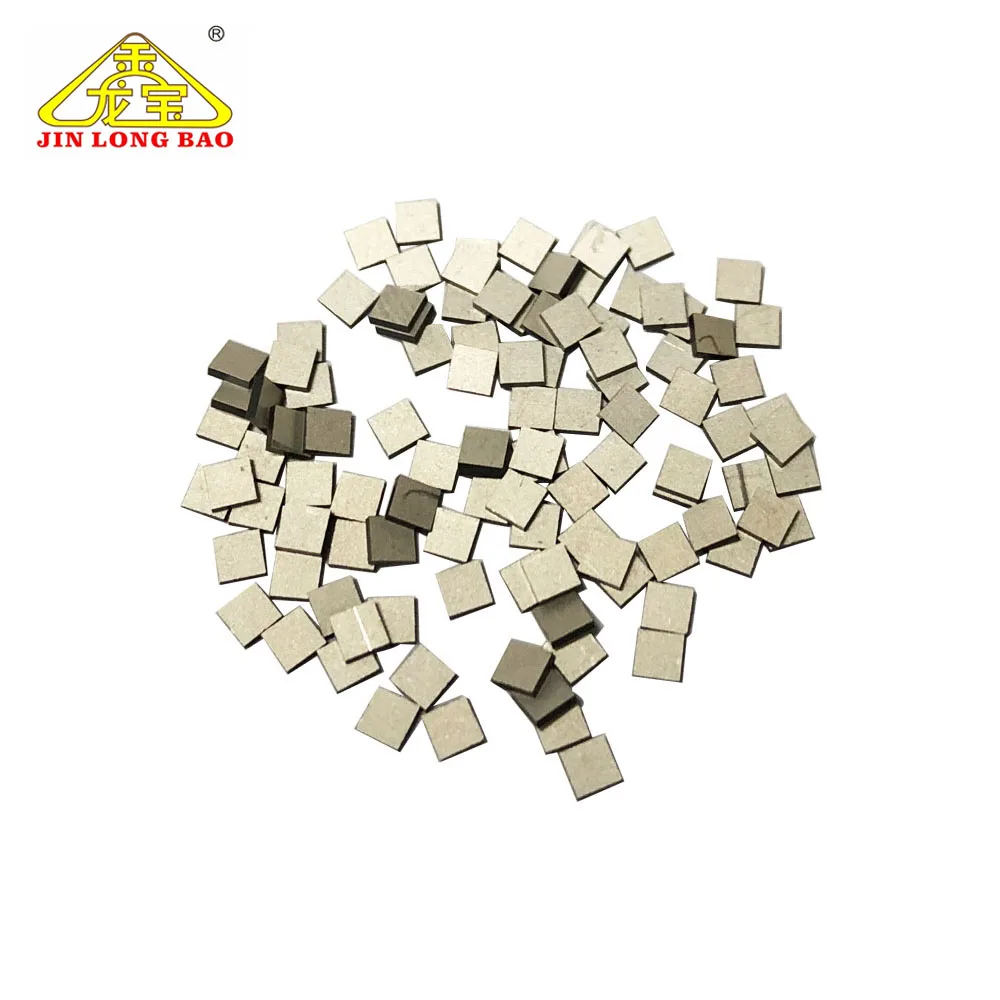

Small size 100Kohm 3950 NTC Thermistor bare Chip
Product Description
NTC Thermistor Die Chip Main Techno-Parameters | Tomato&Potato | |
Rated Zero Power Resistance(R25℃) | 1-100k ohm / Customized | |
Allowable tolerance of R25℃ | ±1%,2%,3%,5% | |
Range of Beta Value (B25/50℃) | 3950k, (Customized: 3100 ~ 4500 k) | |
Thermal time constant | ≤ 15 s (in still air ) | |
Operating Temperature | -40℃ ~ +250℃ | |
Dimensions | 0.5*0.5mm，or Custom-made as requirements | |
Product performance description
1. Bonding (infrared thermal reactor, IGBT, Thermal printer head, Integrate module, semiconductor module,etc).
2. Hybrid designs and construction. 3. NTC Temperature sensor.
2. Hybrid designs and construction. 3. NTC Temperature sensor.
Product Usage
Product usage introduction
NTC thermistor Die chip series provide high accuracy for temperature measurement and control of IGBT modules. Suitable for wire
bonding as well for nano-silver paste sintering, the devices offer long-term stability at high temperatures.
bonding as well for nano-silver paste sintering, the devices offer long-term stability at high temperatures.
Description of product Advantage
High accuracy tolerances to +/-0.1 centidegree
Excellent thermal cycle endurance
High stability
Operating ranges from -50 -- 200 centidegree
Excellent thermal cycle endurance
High stability
Operating ranges from -50 -- 200 centidegree
Related Products
Our Advantages
1. Small quantity is accepted.
2. Well and strict quality control.
3. We have series ex-factory tests before shipment, such as pulling test, high & low temperature test, drop test, temperature cycling experiment etc.
Our Service
1. Good quality is assured by advanced manufacturing technique.
2. All products will be checked by our quality-control department.
2. Well and strict quality control.
3. We have series ex-factory tests before shipment, such as pulling test, high & low temperature test, drop test, temperature cycling experiment etc.
Our Service
1. Good quality is assured by advanced manufacturing technique.
2. All products will be checked by our quality-control department.
3. Customized design. OEM & ODM is accepted.
Company Introduction
Customers Feedback
FAQ
Small size 100Kohm 3950 NTC Thermistor bare Chip
1. Are you a trading company or manufacturer?We are a manufacturing factory which have more than 12-years production experience.
2. Can you provide free samples, how about the freight?
Yes, we can offer 1-5pc free samples if we have it in stock. But not including the freight.
3. What is your terms of payment?
Depends on transaction amount, 100% T/T in advance in most cases. Otherwise, negotiable.
4. Can you have customised the products?
Yes, we accept ODM&OEM. Products can be customised upon customer's requirements.
5. How long is your lead time?
Generally, 2-3 weeks for regular products, while customised products take 3-4 weeks depending on quantity and order season.
