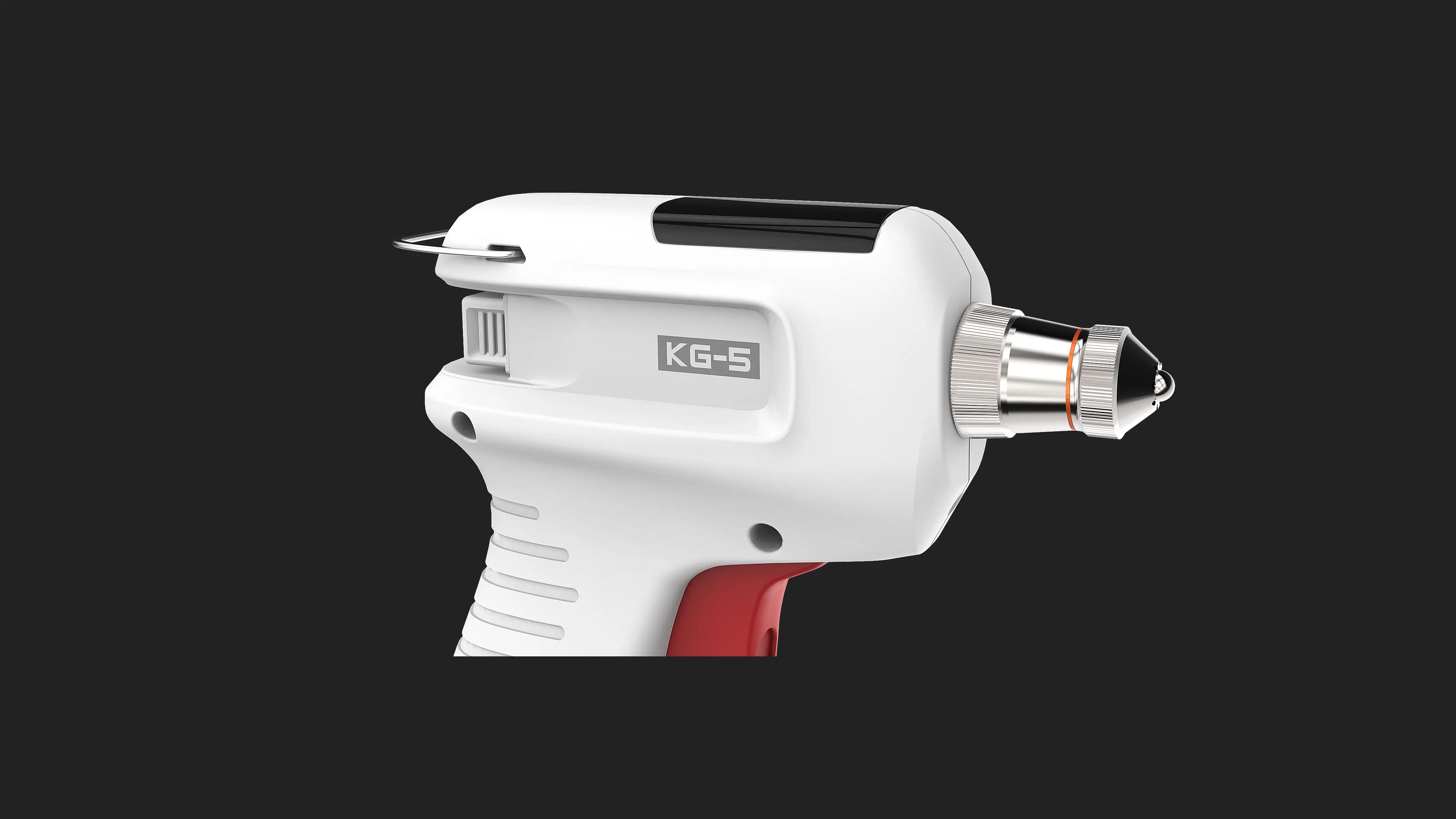

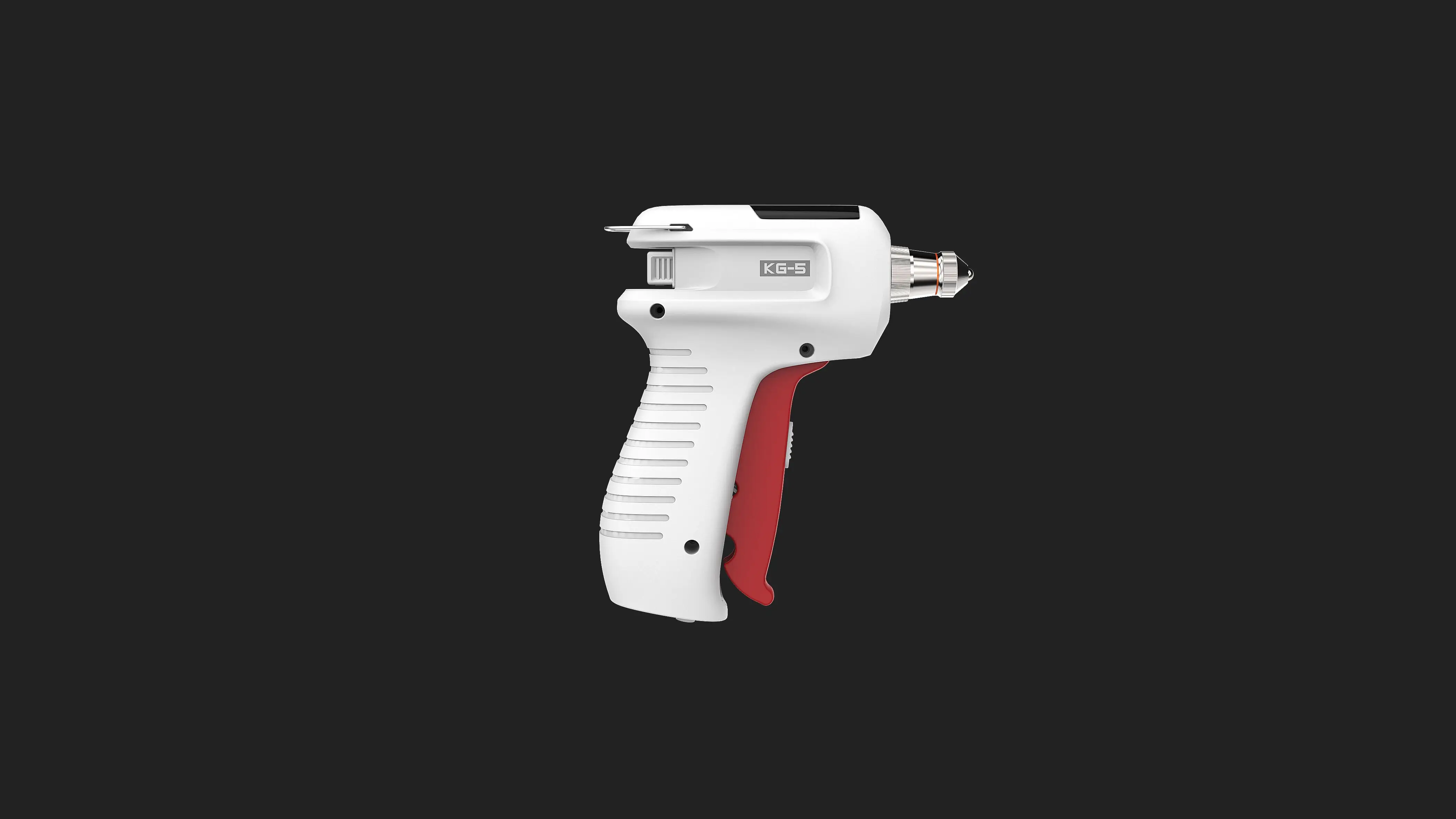

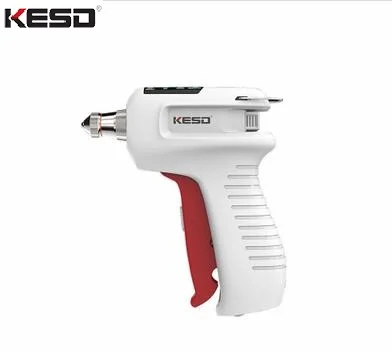

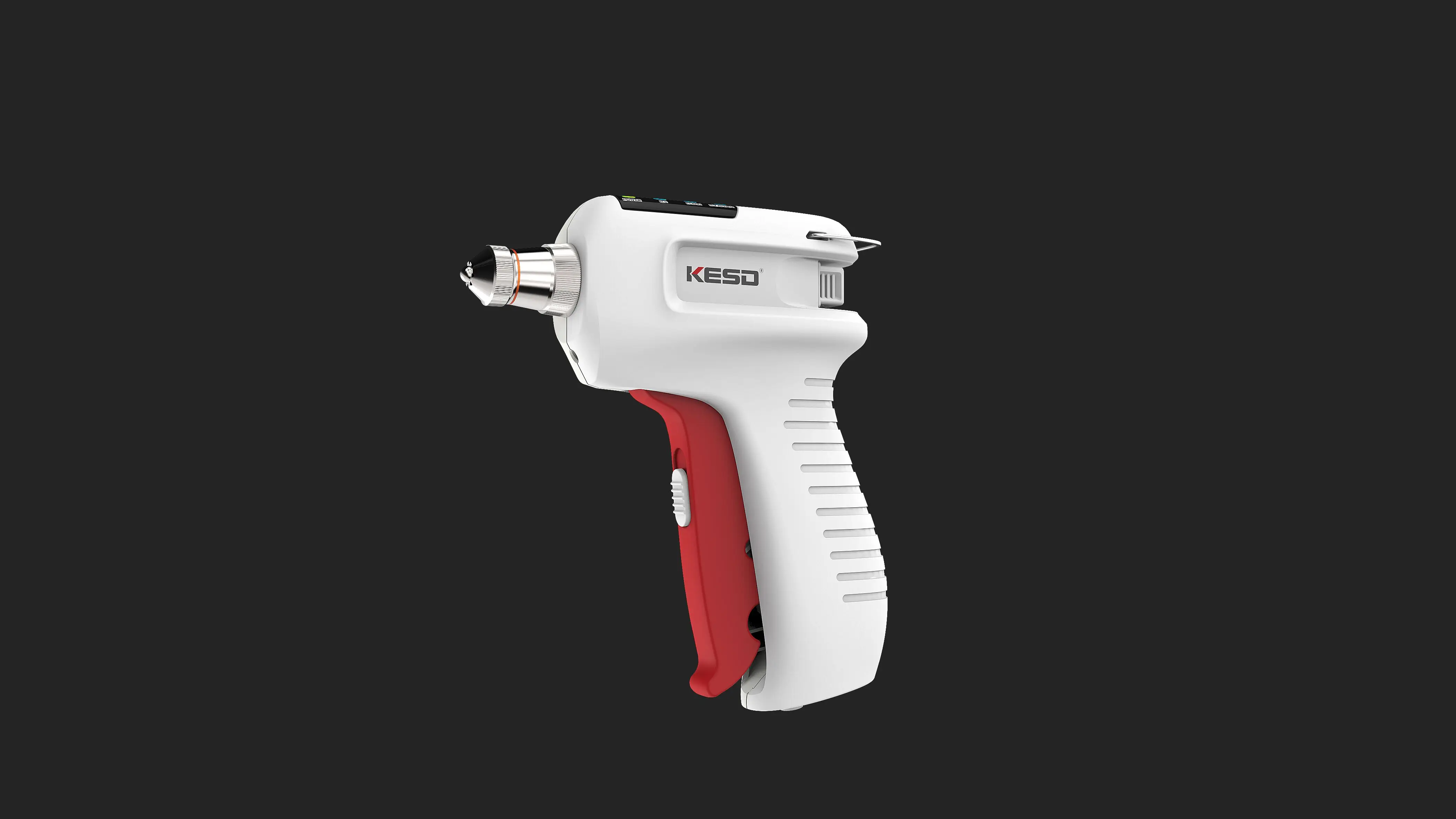

Легкий переносной ESD-ионизирующий пневматический пистолет

Technical parameters:

Model:

 KG-5

Input power

DC24V

High voltage output:

2200V

Current consumption

550mA

Ion generation mode

HF AC 2200vAC

Ion Balance:

0±15V

Operation Temperature:

0^oC-40^oC

Overall size /mm:

 147*118.1*33.3mm

Weight:

175g

Ion Balance:

Auto Ion balance system <=0±10V(Test Range:30cm)

Ozone concentration:

Below 0.03ppm(distance 150mm)

Length of power adapter cable:

1.5cm

Hose diameter:

Φ6 trachea

Filter precision:

0.2μm

Filter efficiency:

99%

Anti-static test condition

Operating voltage:DC24V Test voltage:±1000V-±100V Ambient temperature:0℃±40℃

Distance

150mm

300mm

Decay time

Positive

1.3s

1.9s

Negative

1.4s

2s

Residual voltage

Positive

<0±15V

Negative
