Huawei 4 PON порт 20 км волокно FTTH GPON EPON GEPON olt
- Категория: Telecommunications >>>
- Поставщик: Ningbo,Yinzhou,X-Link,Communication,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 329.38 $* | 336.64 $* |
| Jul-17-2025 | 267.24 $* | 272.83 $* |
| Jun-17-2025 | 324.12 $* | 330.76 $* |
| May-17-2025 | 321.26 $* | 327.92 $* |
| Apr-17-2025 | 256.35 $* | 261.8 $* |
| Mar-17-2025 | 316.9 $* | 322.81 $* |
| Feb-17-2025 | 313.1 $* | 319.52 $* |
| Jan-17-2025 | 311.28 $* | 317.81 $* |
Характеристики
Product Description

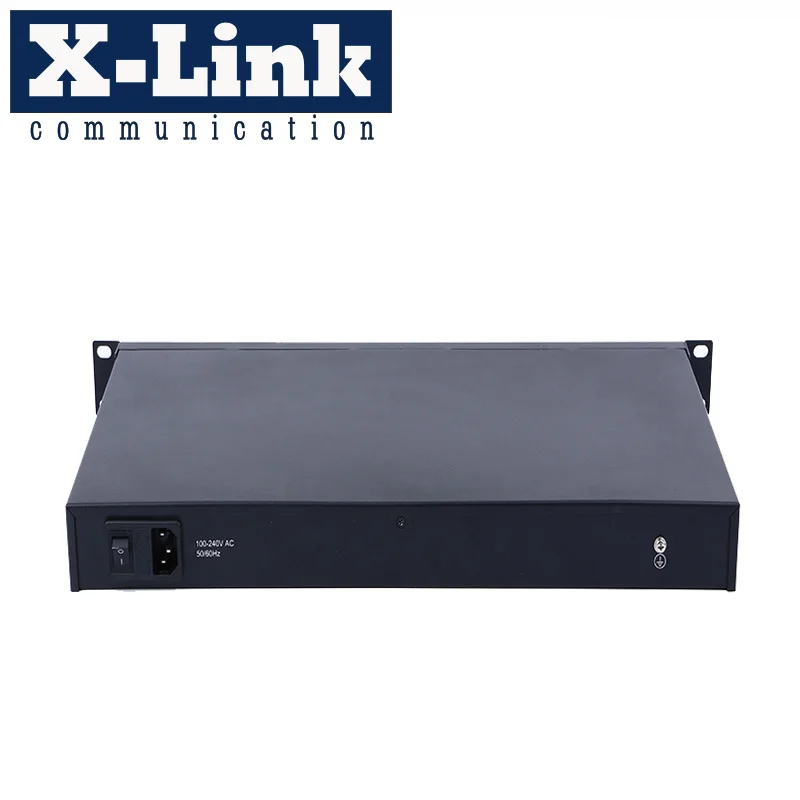

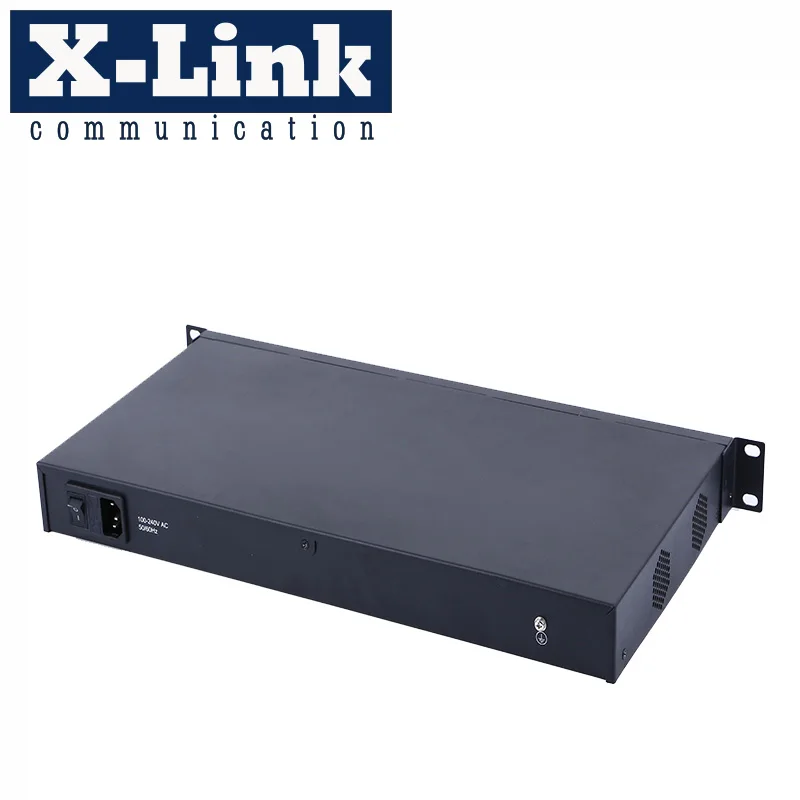

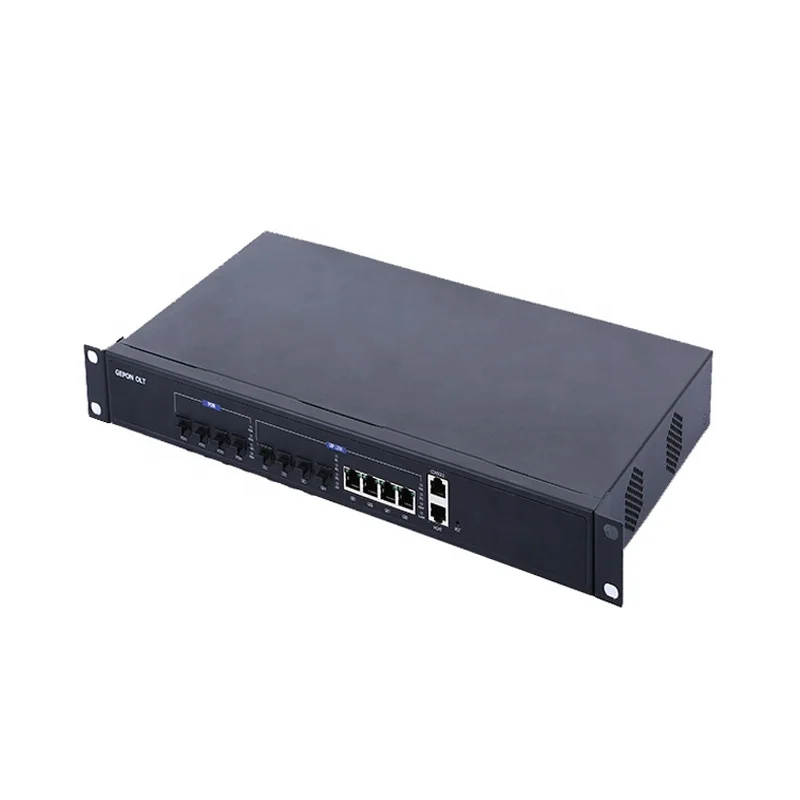

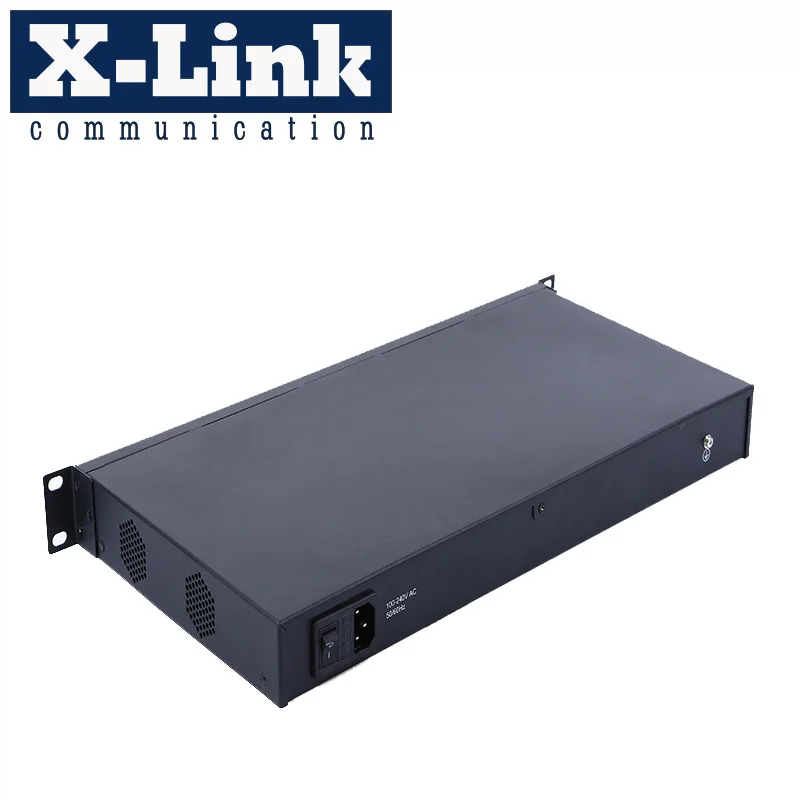

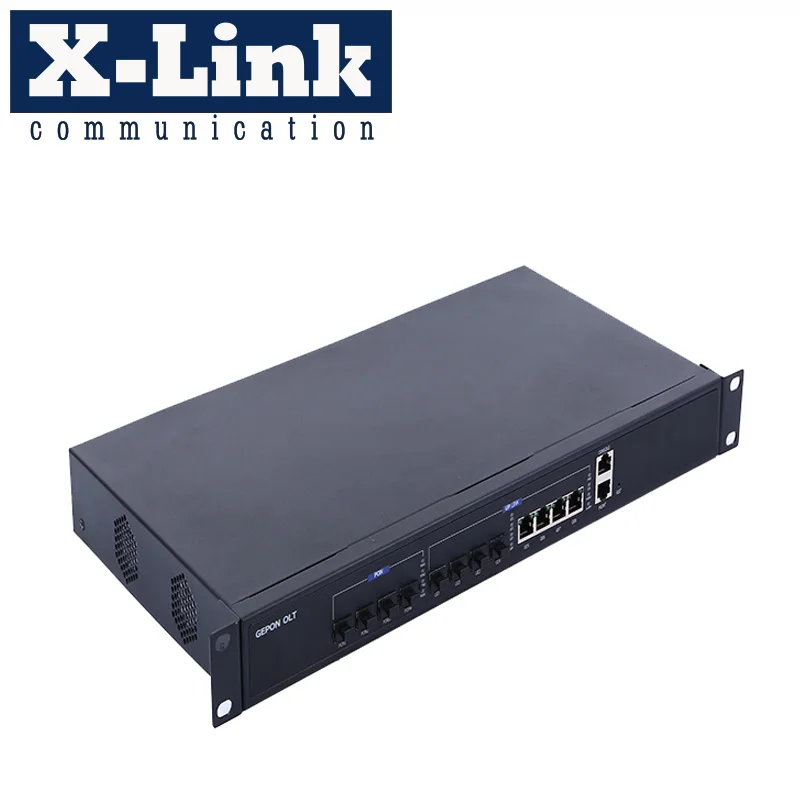

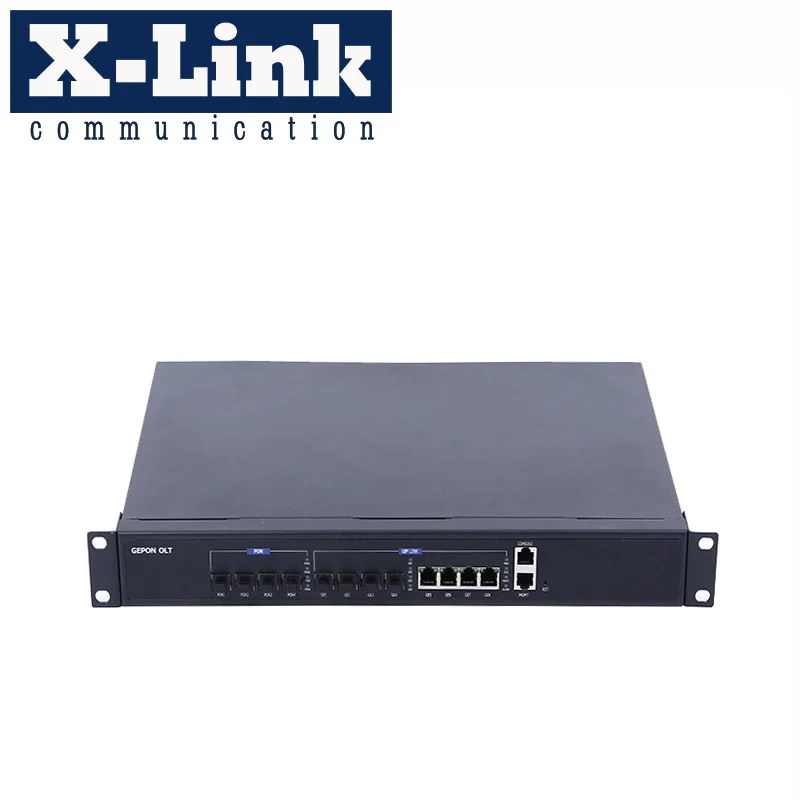

Huawei 4 PON port 20KM Fiber FTTH GPON EPON GEPON olt ZTE
Features:
1. 1U 19 inch standard box EPON OLT with 4 PON ports
2. Compliant with IEEE802.3ah YD/T1475-2006—EPON and China Telecom EPON Technical
Requirements
3. QoS based on port, VID, TOS and MAC address(32K Mac address)
4. Support priority queue scheduling, support SP, WRR or SP + WRR scheduling algorithm
5. Support 4096 VLAN, transparent transmission and conversion, support VLAN stacking
(QinQ)
6. Support 32K MAC’s line speed learning and aging, support MAC address restriction
7. Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol
8. Support multicast Groups, IGMP v1/v2 snooping and IGMP Proxy
9. Support port-based rate limitation and bandwidth control
10. Support PON line AES and triple churing encryption
11. Support Dynamic Bandwidth Allocation (DBA)
12. Support ONU auto-MAC binding and filtering, support the ONU offline business
configuration and automatically configure,manual/auto authentication
13. Support the use of the ACL rules for packet filtering
14. Support SNMP, telnet, CLI, OAM and Web management
15. Provide logs, alarms and performance statistics
16. Support remote software upgrade
Technical Specifications
Item | V1600D4 | ||
Chassis | Rack | 1U 19 inch standard box | |
1000M Uplink Port | QTY | 8 | |
Copper | 4*10/100/1000M auto-negotiation | ||
SFP (independent) | *SFP or 4*SFP+ slots (SFP+ is 10GE) | ||
QTY | 4 | ||
Physical Interface | SFP Slots | ||
Connector Type | 1000BASE-PX20+ | ||
Max splitting ratio | 1:64 | ||
Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port | ||
Transmission Distance | 20KM | ||
EPON port speed | Symmetrical 1.25Gbps | ||
Wavelength | TX 1490nm, RX 1310nm | ||
Connector | SC/PC | ||
Fiber Type | 9/125μm SMF | ||
TX Power | +2~+7dBm | ||
Rx Sensitivity | -27dBm | ||
Saturation Optical Power | -6dBm | ||
Function
Management Mode | SNMP, Telnet and CLI | ||||
Fan Group Detecting; Port Status monitoring and configuration management; Layer2 switch configuration such as VLAN, Trunk, RSTP, IGMP, QOS, etc; EPON management function: DBA,ONU authorization, ACL, QOS, etc; Online ONU configuration and management; User management; Alarm management. | |||||
Support port VLAN and protocol VLAN; Support 4096 VLANs; Support VLAN tag/Un-tag ,VLAN transparent transmission, QinQ; Support IEEE802.3d trunk; Support RSTP; QOS based on port, VID, TOS and MAC address; IGMP Snooping; IEEE802.x flow control; Port stability statistic and monitoring. | |||||
1024 Host Routes; 512 Subnet Routes; 256 IP Multicast Groups; | |||||
EPON Function | Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah standard; Up to 20KM transmission Distance; Support data encryption, multi-cast, port VLAN, separation, RSTP, etc; Support Dynamic Bandwidth Allocation (DBA); Support ONU auto-discovery/link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration; Different user and different service could provide different QoS by means of different LLID channels; Support power-off alarm function, easy for link problem detection; Support broadcasting storm resistance function; Support port isolation between different ports; Support ACL and SNMP to configure data packet filter flexibly; Specialized design for system breakdown prevention to maintain stable system; Support dynamic distance calculation on EMS online; Support RSTP, IGMP Proxy. | ||||
