Original New WS-C2960X-48TD-L Cisco-2960X 48 Ports Switch,

Cisco-2960X 48 GigE+2 x 10G SFP+ LAN Base managed Switch

Cisco Catalyst 2960X-48TD-L LAN Base stackable Layer 2 switch provides enterprise-class access for campus and branch applications. It is comprised of 48 Ethernet 10/100/1000 ports and 2 x 10G SFP+ uplink interfaces.

Quick Specs

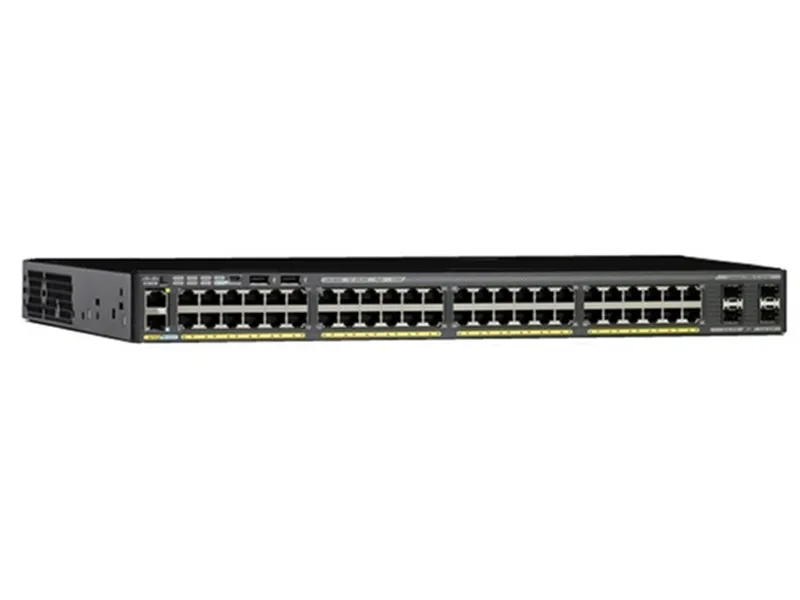

Figure 1 shows the front view of the Cisco 2960X-48TD-L switch.



Table 1 shows the Quick Spec of the Cisco 2960X-48TD-L switch.

Product Code	2960X-48TD-L
Description	Cisco Catalyst 2960-X 48 GigE, 2 x 10G SFP+, LAN Base- Managed Switch
Enclosure Type	Rack-mountable - 1U
Feature Set	LAN Base
Uplink Interfaces	2 x 10G SFP+
Ports	48 x 10/100/1000 Ethernet Gigabit ports
Maximum stacking number	8
Stack bandwidth	80G
Forwarding Performance	108 Mpps
Switching Bandwidth	216 Gbps
RAM	512 MB
Flash Memory	128 MB
Dimensions	44.5 cm x 27.9 cm x 4.5 cm
Weight	9.19 Kg

Product Details

Figure 2 shows the front panel of the Cisco Catalyst 2960X-48TD-L switch.



Note:

(1)	Ethernet management port
(2)	Mode button
(3)	Switch LEDs
(4)	USB mini-Type B (console) port
(5)	USB Type A ports
(6)	SFP module ports
(7)	48 x 10/100/1000 ports
(8)	CONSOLE LED
(9)	MGMT LED
(10)	RJ-45 console port

The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, and STACK LEDs.

Figure 3 shows the back panel of the Cisco Catalyst 2960X-48TD-L switch.



Note:

(1)	FlexStack-Plus module slot and cover
(2)	Fan Exhaust
(3)	RPS Connector
(4)	AC power connector

External RPS supports redundant power.

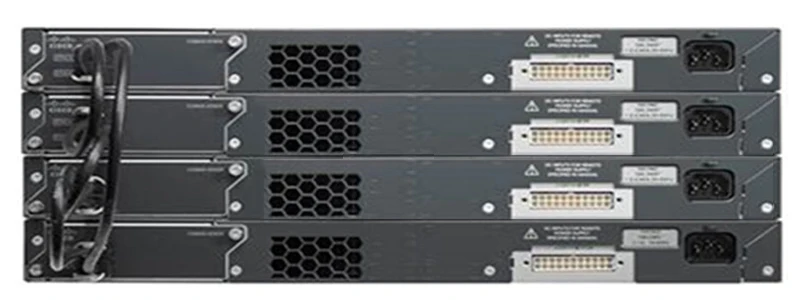

Figure 4 shows the stackable capacity.



This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.

The Accessories

Table 2 shows some accessories of the WS-C2960X-48TD-L.

Models	Description
C2960X-STACK	Catalyst 2960-X FlexStack Plus Stacking Module
CAB-STK-E-0.5M	Cisco FlexStack Stacking Cables
GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-SX-MMD	1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45	Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB	Console Cable 6 ft with USB Type A and mini-B

WS-C2960X-48TD-L Specification

Model Info:	WS-2960X-48TD-L
Enclosure type	Rack-mountable - 1U
Ports	48 x 10/100/1000 + 2 x 10G SFP+
Network management Interface	10/100 Mbps Ethernet (RJ-45)
Available PoE Power	None
Forwarding bandwidth(Gbps)	108 Gbps
Maximum stacking number	8
Stack Bandwidth	80 G
Forwarding Performance	130.9Mpps
Switching bandwidth	216 Gbps
Maximum active VLANs/td>	1023
MAC Address Table Size	16K (default)
CPU	APM86392 600MHz dual core
RAM	512 MB
Flash Memory	128 MB
Status Indicators	Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, and link speed
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Stacking cable	Optional
Power Redundancy	Option (PWR-RPS2300)
Voltage range (Auto)	110V-240V
Power Consumption Operational	0.49KVA
Miscellaneous
Width	17.5 Inches (44.5 cm)/td>
Depth	11 Inches (27.9 Cm)
Height	1.75 Inches (4.5 cm)
Weight	9.6 Pounds (4.3Kg)
Package Weight	20.26 Pounds (9.19Kg)
Rack Mounting Kit	optional
MTBF in hours	445,460
Compliant Standards	(1)IEEE 802.1D Spanning Tree Protocol (2)IEEE 802.1p CoS Prioritization (3)IEEE 802.1Q VLAN (4)IEEE 802.1s (5)IEEE 802.1w (6)IEEE 802.1X (7)IEEE 802.1ab (LLDP) (8)IEEE 802.3ad (9)IEEE 802.3af and IEEE 802.3at (10)IEEE 802.3ah (100BASE-X single/multimode fiber only) (11)IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports (12)IEEE 802.3 10BASE-T (13)IEEE 802.3u 100BASE-TX (14)IEEE 802.3ab 1000BASE-T (15)IEEE 802.3z 1000BASE-X (16)RMON I and II standards (17)SNMP v1, v2c, and v3 (18)IEEE 802.3az (19)IEEE 802.1ax
System software / license
System software	IOS LAN BASE
license	NERGY-MGT-100-K9, EW-DO-100-DE
features	(1)IEEE 802.1D Spanning Tree Protocol (2)IEEE 802.1p CoS Prioritization (3)IEEE 802.1Q VLAN (4)IEEE 802.1s (5)IEEE 802.1w (6)IEEE 802.1X (7)IEEE 802.1ab (LLDP) (8)IEEE 802.3ad (9)IEEE 802.3af and IEEE 802.3at (10)IEEE 802.3ah (100BASE-X single/multimode fiber only) (11)IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports (12)IEEE 802.3 10BASE-T (13)IEEE 802.3u 100BASE-TX (14)IEEE 802.3ab 1000BASE-T (15)IEEE 802.3z 1000BASE-X (16)RMON I and II standards (17)SNMP v1, v2c, and v3 (18)IEEE 802.3az (19)IEEE 802.1ax
Network security	SSH, SSL and SCP (1)RADIUS and TACACS+ (2)SNMPv3 crypto (3)802.1x (4)802.1x Accounting / MIB (5)802.1x w/ port security (6)802.1x w/Voice VLAN (7)802.1x Guest VLAN (8)802.1x VLAN assignment (9)802.1x MAC-Auth Bypass (10)BPDU/Root Guard (11)Port Security (12)Private VALN Edge (13)Storm Control (14)Block unknown unicast and multicast (15)IGMP Snooping (16)IGMP Filter/Throttle
Management and Troubleshooting	Auto-MDOX (1)TDR (2)UDLD (3)IP SLA Responder (4)layer 2 / IP Traceroute (5)SPAN (6)RSPAN (7)Express Setup (8)Device Manager (9)Cisco Network Assistant (10)Smartports + Advisor (11)Troubleshooting Advisor (12)Drag-and-drop Cisco IOS Upgrade (13)IP Address DHCP (14)Autoinstall with saved configuration (15)Configuration Replace (16)DHCP Auto Image Upgrade (17)DHCP Port Based Allocation (18)Error Disable MIB
Environmental Ranges
Operating temperature up to 5000 ft (1500 m)	23 Degree Celsius F to 113 Degree Celsius (-5 Degree Celsius to 45 Degree Celsius)
Operating temperature up to 10,000 ft (3000 m)	23 Degree Celsius to 104 Degree Celsius (-5 Degree Celsius to 40 Degree Celsius)
Short-term exception at sea level*	23 Degree Celsius to 131 Degree Celsius (-5 Degree Celsius to 55 Degree Celsius)
Short-term exception up to 5000 feet (1500 m)*	23 Degree Celsius to 122 Degree Celsius (-5 Degree Celsius to 50 Degree Celsius)
Short-term exception up to 10,000 feet (3000 m)*	23 Degree Celsius to 113 Degree Celsius (-5 Degree Celsius to 45 Degree Celsius)
Short-term exception up to 13,000 feet (4000 m)*	23 Degree Celsius to 104 Degree Celsius (-5 Degree Celsius to 40 Degree Celsius)
Storage temperature up to 15,000 feet (4573 m)	-13 Degree Celsius to 158 Degree Celsius (-25 Degree Celsius to 70 Degree Celsius)
Operating altitude	Up to 10,000 Feet (Up to 3000 Meters)
Storage altitude	Up to 13,000 (Up to 4000 Meters)
Operating relative humidity	10% to 95% noncondensing
Storage relative humidity	10% to 95% noncondensing
