Лидер продаж Литой Станок для литья алюминиевых

1.1 furnace steel members;

1.2 refractory;

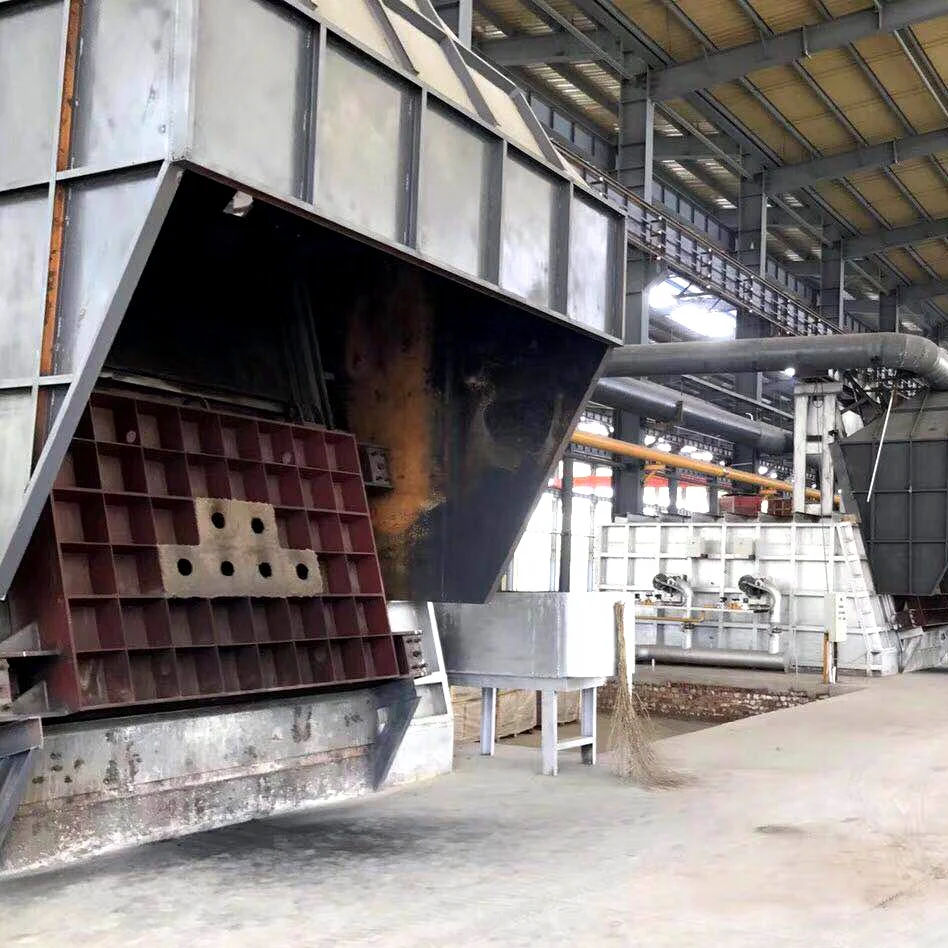

Including a 2) oven door and transmission mechanism of:

2.1 oven door steel structure;

2.2 refractory;

2.3 heat resisting cast iron pieces;

2.4 oven heat seal;

2.5 2.2 KW cycloid needle reducer;

2.6 sprocket;

2.7 the chain and the corresponding chain link;

2.8 sprocket shaft;

2.9 the shaft;

2.10 bearing (DIP GROOVE, PLLLOW BLOCK, etc.);

2.11 limit switches and accessories;

2.12 button station;

2.13 oven door steering mechanism;

2.14 oven door body all the necessary fasteners.

3.Technical parameters:

1.1 capacity:20 t + 5%

Temperature: 1.2 + / - 5 ℃

1.3 furnace temperature: 1050 ℃ / Max

1.4 discharge points: 2

The oven door lift 1.5: electric

4.Refractory materials:

1) furnace lining materials:

The bottom of the furnace with the oven door slope

230 mm high quality high alumina brick

120 mm fine river sand

150 mm high alumina aggregate

Liquid level above 300 mm the under side of the wall

230 mm high quality high alumina brick

250 mm of lightweight insulation brick

20 mm aluminium silicate fiber felt

The upper furnace wall

230 mm high quality high alumina brick

250 mm insulating brick

20 mm aluminium silicate fiber felt

Top

230 mm high quality high alumina brick

70 mm of lightweight insulation castable

Oven door

175 mm intermediate insulation castable

75 mm aluminum silicate fiber cotton blanket

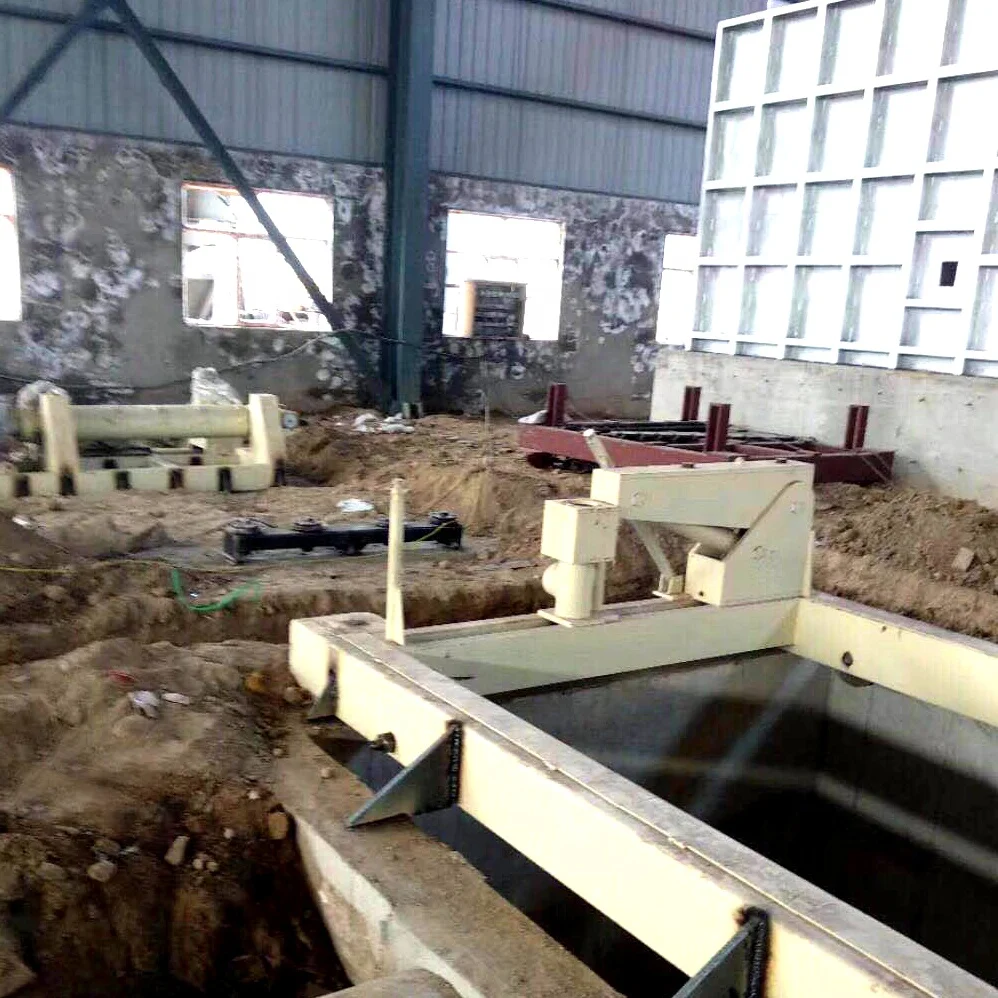

B.5T manual casting winch system

 The hoist system

Hoist stroke is greater than 15 meters, the use of frequency converter speed control, walking up and down can do move or automatic, digital display dummy platform walking speed, up and down the length of the casting, casting in place before the voice alarm, empty rise in place before doing safety stop automatically.When the casting can be realized fast fast drop and the high and low speed switching, when casting can realize double speed rate

Using a single four wire rope drum, high water level when casting machine tolerances maximum 25 tons.Hoist with manual down device.Hoist control electrical and hydraulic system on a electric control cabinet.

5. Tilting frame

Casting platform inclination flip designed by 80-90 ℃, can cooperate with the casting machine.Electrical control to ensure the casting machine lifting and tilting can realize single action.Tilting mechanism operated by hydraulic system, hydraulic cylinder, all seals, hydraulic valves and pumps for domestic hydraulic parts.Using 68 # anti-wear hydraulic oil, hydraulic oil is provided by the buyer.

6. Control system

Electronic control system consists of main control unit, low-voltage electrical appliances, all kinds of sensors and safety power supply device.Before the end of the alarm, rise in place before automatically stop, cast great sway frame.

C.Casting mold
