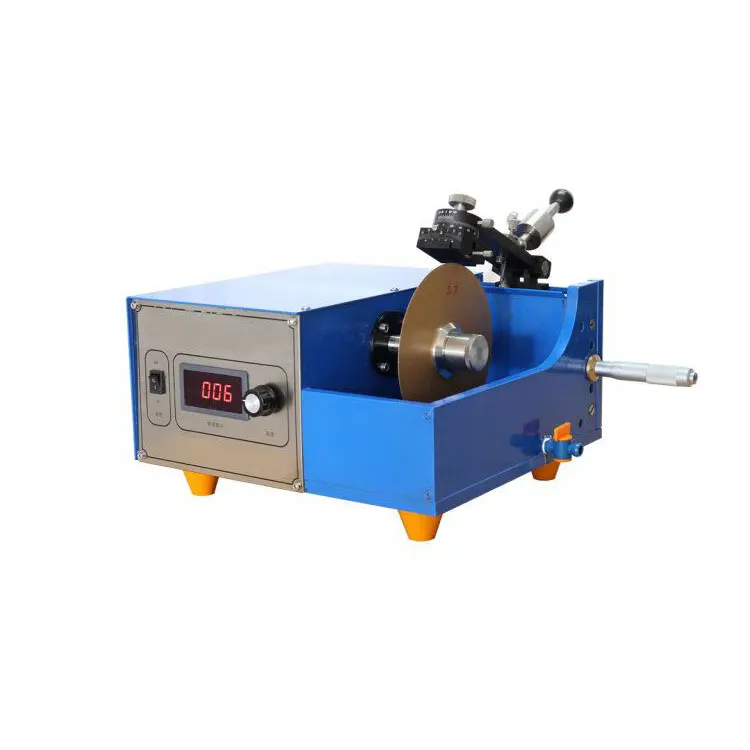

Digital Low Speed Diamond Saw with Three 4" Precision Blades
Product Description
Digital Low Speed Diamond Saw with Three 4" Precision Blades
Introduction of low speed diamond saw
CE certified low-speed diamond saw, which equips with the advanced digital micrometer and a digital speed display controller, it is the perfect tool for cutting/dicing/slicing all kinds of materials up to 32.5 mm thickness, especially for brittle crystals, ceramics, TEM samples, and even plastic samples. Also, this saw can be used for cutting cylindrical cell for failure analysis.
Technical Parameters of low speed diamond saw
Voltage and Power
AC 110V/220V switchable for worldwide usage
110VDC Motor
70W Max. Power consuming
Speed range
Variable 0-600 rpm with LED digital display
Cutting Width & Depth
The cutting width of the slice is controllable from 1mm ~ 24mm by adjusting the
LCD digital micrometer. The LCD micrometer is water-proof with resolution of 0.001 mm
and accuracy of +/-0.003 mm.
32.5mm max. cutting depth (when using 35mm dia. blade flange)
Diamond Blades
Three blades are included for cutting various materials
SiC blade: 4" x 0.35 mm x 0.5" arbor for cutting nonferrous metal materials,
such as super-alloys.
Al2O3 blade: 4" x 0.35 mm x 0.5" arbor for cutting ferrous metal materials,
such as iron and steel.
Full sintered diamond blade:
4" x 0.35 mm x 0.5" arbor for cutting crystal, ceramic, and plastic materials
Sample holder & Mini-vise
Two angle adjustable sample holder is included
One Mini-vise is included, which can be easily adapted onto the sample holder
to clamp rod shape specimens with diameter upto 1'' max.
Package dimensions
19"(L) x 15"(W) x 15"(H)
Shipping Weight & Dimension
32 lbs, 18" x 14" x 14"
Pictures
Company Introduction
Founded in 2005, Zhengzhou Tainuo Film Materials Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Package
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
